Czgor 60 LED Stagඊ සැහැල්ලු උපදෙස් අත්පොත

හැඳින්වීම

This manual provides detailed instructions for the safe and efficient operation of your Czgor 60 LED Stage ආලෝකය. කරුණාකර මෙම අත්පොත භාවිතා කිරීමට පෙර හොඳින් කියවා අනාගත යොමුව සඳහා තබා ගන්න.

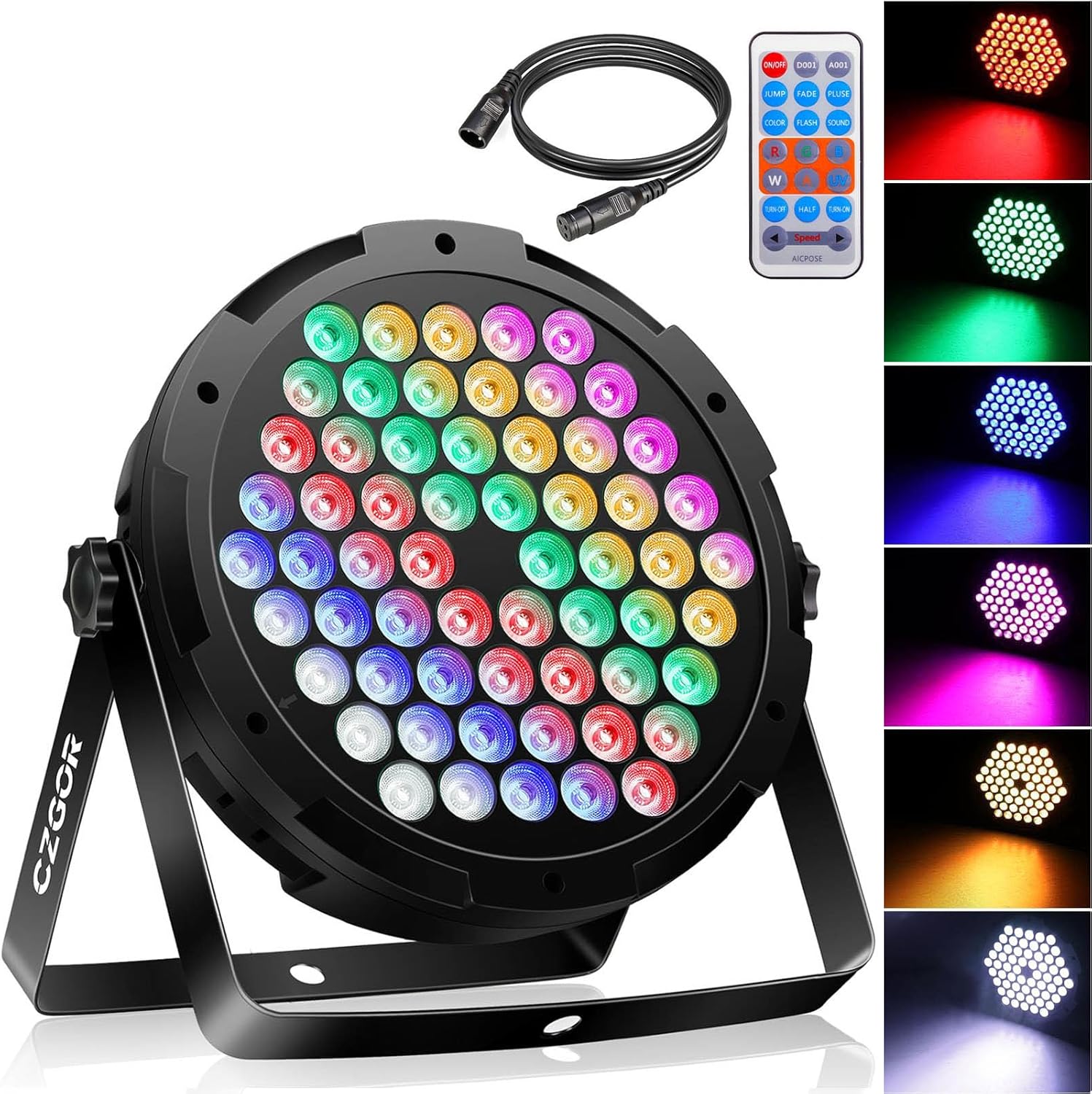

Image: The Czgor 60 LED Stagඊ ආලෝකය, පෙන්වන්නasing its front LED array, included remote control, and DMX cable.

පෙට්ටියේ ඇති දේ

පැකේජය විවෘත කිරීමෙන් පසු සියලුම සංරචක ඇති බව තහවුරු කර ගන්න:

• 90W Par Light x 1
• 3.2FT DMX Cable x 1
• දුරස්ථ x 1
• Metal Stand x 2
• ඉස්කුරුප්පු x 2
• අත්පොත x 1

Image: All components included in the package: the 60 LED stage light, remote control, DMX cable, metal stands, and screws.

පිරිවිතර

Image: Detailed technical specifications and dimensions of the Czgor 60 LED Stage ආලෝකය.

සැලසුම

1. Attach the Metal Stand: Secure the two metal stands to the sides of the light using the provided screws. Ensure they are tightened for stability.
2. ස්ථානගත කිරීම: The 360° adjustable brackets allow for flexible placement. Position the light on a table, floor, wall, or ceiling as required. Ensure the light is stable and securely mounted to prevent accidental falls.
3. බල සම්බන්ධතාවය: Connect the power cord to the light and then to a standard 110V AC power outlet.
4. DMX සම්බන්ධතාවය (විකල්ප): If using DMX control, connect the provided 3.2FT DMX cable from your DMX controller to the DMX IN port on the light. For multiple lights, connect them in a daisy chain from DMX OUT to DMX IN.

Image: The Czgor 60 LED Stage Light with its dimensions and all accessories laid out, illustrating the components for setup.

මෙහෙයුම් මාදිලි

1. දුරස්ථ පාලක මෙහෙයුම්

The included wireless remote control allows for convenient adjustment of lighting effects and colors.

1. බලය සක්රිය / අක්රිය: Press the "ON/OFF" button to power the light on or off.
2. වර්ණ තේරීම: Use the R (Red), G (Green), B (Blue), W (White), Y (Yellow), PK (Pink), UV (Ultraviolet) buttons to select a static color. To change colors, first turn off the current color by pressing its button again, then select a new color.
3. ආලෝකකරණ මාදිලි:
   • JUMP Mode: වර්ණ හදිසියේම වෙනස් වේ.
   • FADE Mode: Colors transition smoothly.
   • PLUSE Mode: Colors pulse.
   • FLASH Mode: Colors flash rapidly.
   • SOUND Mode: Light effects react to sound.
4. දීප්තිය/වේග ගැලපීම: Use the "Speed +" and "Speed -" buttons to adjust the speed of dynamic modes or the brightness of static colors.
5. Half/Turn-On/Turn-Off: These buttons control brightness levels or turn off specific color channels.

Image: The remote control for the Czgor 60 LED Stage Light, highlighting buttons for power, color selection, and various lighting modes.

Image: A detailed diagram of the remote control, labeling each button and its corresponding function for controlling the light.

2. පාලන පැනල් මෙහෙයුම

The rear control panel provides direct access to settings and modes.

• මෙනු: Press to cycle through different operating modes (e.g., DMX, Auto, Sound Active).
• උඩ යට: Use these buttons to navigate options or adjust values within a selected mode.
• ඇතුල් කරන්න: Confirm your selection or setting.
• සංඛ්යාංක දර්ශකය: Shows the current mode or value.

Image: A labeled diagram of the light's rear control panel, indicating the digital display, menu navigation buttons, DMX input/output, and cooling fan.

3. DMX පාලනය

For advanced control, connect the light to a DMX512 controller using the DMX IN/OUT ports.

• DMX ලිපින සැකසීම: Use the control panel to set the DMX address for each light. Refer to the DMX Description table for channel values.
• නාලිකා කාර්යයන්: The light utilizes 7 DMX channels for various functions including total dimming, individual RGB color control, strobe effects, program selection (jump, gradual, pulse, voice control), and speed adjustment.

Image: A table outlining the 7 DMX channels and their corresponding functions and value ranges for controlling the Czgor 60 LED Stage ආලෝකය.

නඩත්තු කිරීම

• පිරිසිදු කිරීම: Regularly clean the lens and exterior with a soft, dry cloth to maintain optimal light output. Do not use harsh chemicals or abrasive materials.
• සිසිලන විදුලි පංකාව: Ensure the built-in cooling fan is free from dust and obstructions to prevent overheating.
• ගබඩා: When not in use, store the light in a cool, dry place away from direct sunlight and extreme temperatures.
• කේබල් පරීක්ෂාව: Periodically check power and DMX cables for any signs of wear or damage. Replace damaged cables immediately.

දෝෂගවේෂණය

වගකීම් සහ සහාය

For any questions or support needs regarding your Czgor 60 LED Stage Light, please refer to the contact information provided with your purchase or visit the official Czgor webඅඩවිය. වගකීම් හිමිකම් සඳහා ඔබේ මිලදී ගැනීමේ රිසිට්පත තබා ගන්න.
