Total Table Saw TS5152542 1500W 10 Inch User Manual

1. හැඳින්වීම

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Total TS5152542 1500W 10 Inch Table Saw. Please read these instructions thoroughly before assembly, operation, or maintenance to ensure proper use and prevent injury. Keep this manual for future reference.

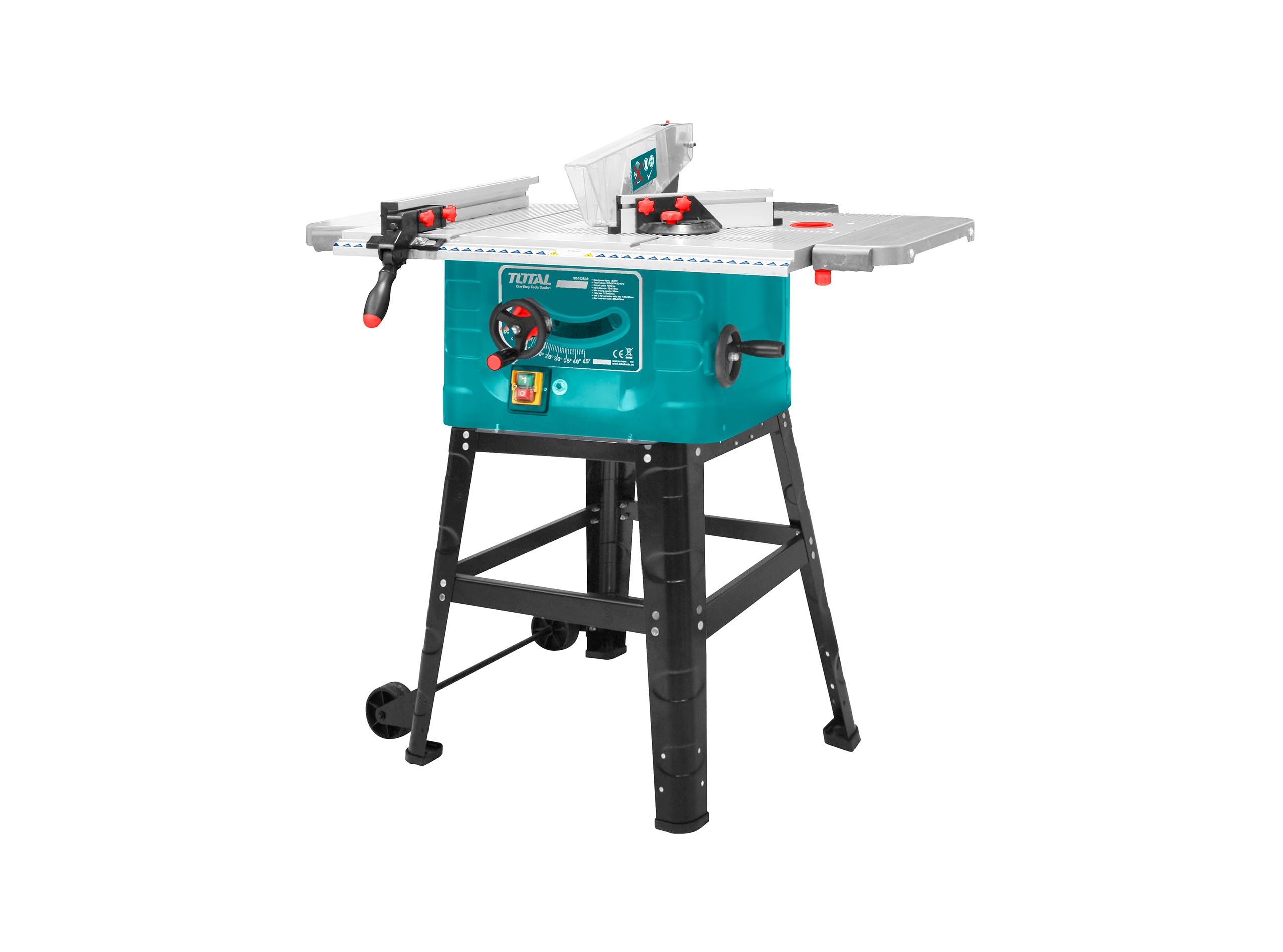

Figure 1: Total TS5152542 1500W 10 Inch Table Saw. This image displays the overall design and primary components of the table saw.

2. ආරක්ෂිත උපදෙස්

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using power tools. Familiarize yourself with all controls and proper usage procedures.

• සම්පූර්ණ අත්පොත කියවන්න: Understand all instructions and warnings before operating the saw.
• සුදුසු ආරක්ෂක ආම්පන්න පළඳින්න: Always use eye protection, hearing protection, and a dust mask.
• ආරක්ෂිත වැඩ ප්රදේශයක් සහතික කරන්න: Keep the area clean, well-lit, and free from obstructions. Do not operate in damp හෝ තෙත් තත්ත්වයන්.
• ළමයින් සහ අවට සිටින අය ඈත් කර තබන්න: අවධානය වෙනතකට යොමු කිරීම නිසා ඔබට පාලනය නැති විය හැක.
• නිවැරදි තලය භාවිතා කරන්න: Ensure the blade is sharp, clean, and suitable for the material being cut.
• Never bypass safety guards: Always use the blade guard and anti-kickback pawls.
• Unplug before adjustments: Disconnect the saw from the power source before changing blades, making adjustments, or performing maintenance.
• නිසි පාදයක් සහ සමබරතාවයක් පවත්වා ගන්න: ඉක්මවා නොයන්න.
• අහම්බෙන් ආරම්භ කිරීමෙන් වළකින්න: මෙවලම සම්බන්ධ කිරීමට පෙර ස්විචය අක්‍රිය ස්ථානයේ ඇති බව සහතික කර ගන්න.

3. පැකේජ අන්තර්ගතය

Upon opening the package, verify that all items are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.

• Total Table Saw TS5152542
• Saw Blade (10 Inch)
• බ්ලේඩ් ගාඩ් එකලස් කිරීම
• ඉරීම වැට
• මිටර් මිනුම
• තල්ලු සැරයටිය
• Wrenches for blade changes
• පරිශීලක අත්පොත
• Additional Attachments (as supplied)

4. පිරිවිතර

5. පිහිටුවීම

Careful setup is crucial for safe and accurate operation. Ensure the saw is unplugged before beginning assembly.

1. ඇසිරීම: ඇසුරුම්කරණයෙන් සියලුම සංරචක ප්‍රවේශමෙන් ඉවත් කරන්න. නැව්ගත කිරීමේදී කිසියම් හානියක් සිදුවී ඇත්දැයි පරීක්ෂා කරන්න.
2. එකලස් කිරීම:
   • Attach the stand/legs (if applicable) to the main saw body. Ensure all fasteners are securely tightened.
   • Install the saw blade: With the saw unplugged, use the provided wrenches to loosen the arbor nut. Place the blade onto the arbor, ensuring the teeth are oriented correctly for cutting. Tighten the arbor nut securely.
   • Install the blade guard and anti-kickback pawls: These are critical safety features. Follow the instructions in the included diagram for proper attachment.
   • Attach the rip fence and miter gauge: Familiarize yourself with their locking mechanisms and adjustment features.
3. වැඩ කරන ප්‍රදේශය සකස් කිරීම: Place the table saw on a stable, level surface. Ensure adequate space around the saw for material handling and safe operation.
4. බල සම්බන්ධතාවය: Connect the saw to a grounded 240V power outlet.

6. මෙහෙයුම් උපදෙස්

Always wear safety glasses and hearing protection during operation.

1. තල උස ගැලපීම: Use the blade height adjustment wheel to set the blade just high enough to clear the workpiece by approximately 1/8 inch (3mm).
2. Rip Fence Adjustment: For rip cuts, position the rip fence parallel to the blade at the desired width. Lock it securely in place.
3. Miter Gauge Usage: For crosscuts or angled cuts, use the miter gauge. Adjust it to the desired angle and ensure it slides smoothly in the table slot.
4. කියත් ආරම්භ කිරීම: Ensure the workpiece is properly positioned and you have a clear path. Turn the saw ON using the power switch. Allow the blade to reach full speed before beginning the cut.
5. කප්පාදුවක් සෑදීම:
   • Feed the workpiece slowly and steadily into the blade.
   • Always use a push stick when cutting narrow pieces or when your hands are close to the blade.
   • Maintain firm control of the workpiece throughout the cut.
   • Never stand directly in line with the blade.
6. කියත නැවැත්වීම: Turn the saw OFF after completing a cut. Wait for the blade to come to a complete stop before removing the workpiece or making any adjustments.

7. නඩත්තු කිරීම

Regular maintenance ensures optimal performance and extends the life of your table saw. Always unplug the saw before performing any maintenance.

• පිරිසිදු කිරීම: After each use, clean sawdust and debris from the table, blade guard, and motor vents using a brush or vacuum. Avoid using solvents that could damage plastic parts.
• තල පරීක්ෂාව: කියත් තලය තියුණු බව, හානි වීම හෝ නැතිවීම සඳහා නිතිපතා පරීක්ෂා කරන්න. අඳුරු හෝ හානි වූ තල වහාම ප්‍රතිස්ථාපනය කරන්න.
• ලිහිසි තෙල්: Periodically apply a light coat of machine wax or dry lubricant to the table surface to reduce friction and prevent rust.
• Motor Brushes: Refer to the detailed manual for instructions on inspecting and replacing motor brushes, if applicable.
• ගාංචු: Check all nuts, bolts, and screws periodically to ensure they are tight.

8. දෝශ නිරාකරණය

මෙම කොටසින් ඔබට මුහුණ දීමට සිදුවිය හැකි පොදු ගැටළු සාකච්ඡා කෙරේ. මෙහි ලැයිස්තුගත කර නොමැති ගැටළු සඳහා, පාරිභෝගික සහාය අමතන්න.

9. වගකීම් සහ සහාය

This Total Table Saw TS5152542 is designed for durability and performance. For specific warranty details, please refer to the warranty card included with your product or contact your retailer. General support and service inquiries can be directed to Total customer service through their official website or authorized service centers. Please have your model number (TS5152542) and purchase date available when contacting support.

Note: The product is eligible for a 15-day return period from the date of purchase, as per retailer policy.
