TopTes TS-501B Sound Level Meter and TS-710 Light Meter Instruction Manual

1. හැඳින්වීම

This manual provides essential information for the safe and effective operation of your TopTes TS-501B Sound Level Meter and TS-710 Light Meter. These devices are designed for accurate environmental monitoring, allowing users to measure noise levels and light intensity in various settings. Please read this manual thoroughly before use and retain it for future reference.

2. නිෂ්පාදන අවසන්view

The TopTes TS-501B Sound Level Meter and TS-710 Light Meter are a combined solution for environmental assessment. The TS-501B measures sound levels, while the TS-710 measures light intensity, ambient temperature, and humidity. Both devices feature a 2.25-inch backlit LCD screen for clear readings and user-friendly functions.

2.1 TS-501B Sound Level Meter

The TS-501B is equipped with a 1/2 inch electric condenser microphone for precise sound measurement. It offers A/C weighting options to analyze sound based on human ear perception (A-weighting) or for general noise analysis (C-weighting). The measurement range is 30 to 130 dB.

රූපය 1: TS-501B Sound Level Meter showing A-Weighting measurement. This mode measures sound levels as perceived by the human ear, typically ranging from 30 to 130 dBA.

රූපය 2: TS-501B Sound Level Meter showing C-Weighting measurement. This mode is suitable for general noise analysis, with a range of 30 to 130 dBC.

රූපය 3: සමීප රූපය view of the TS-501B's 1/2 inch Electric Condenser Microphone, protected by a windshield ball for high precision measurements.

2.2 TS-710 Light Meter

The TS-710 features a 180° rotating sensor for flexible light measurement from various directions. It measures light intensity from 0.1 to 200,000 lux (or 0.1 to 20,000 FC) and also provides readings for ambient temperature and humidity.

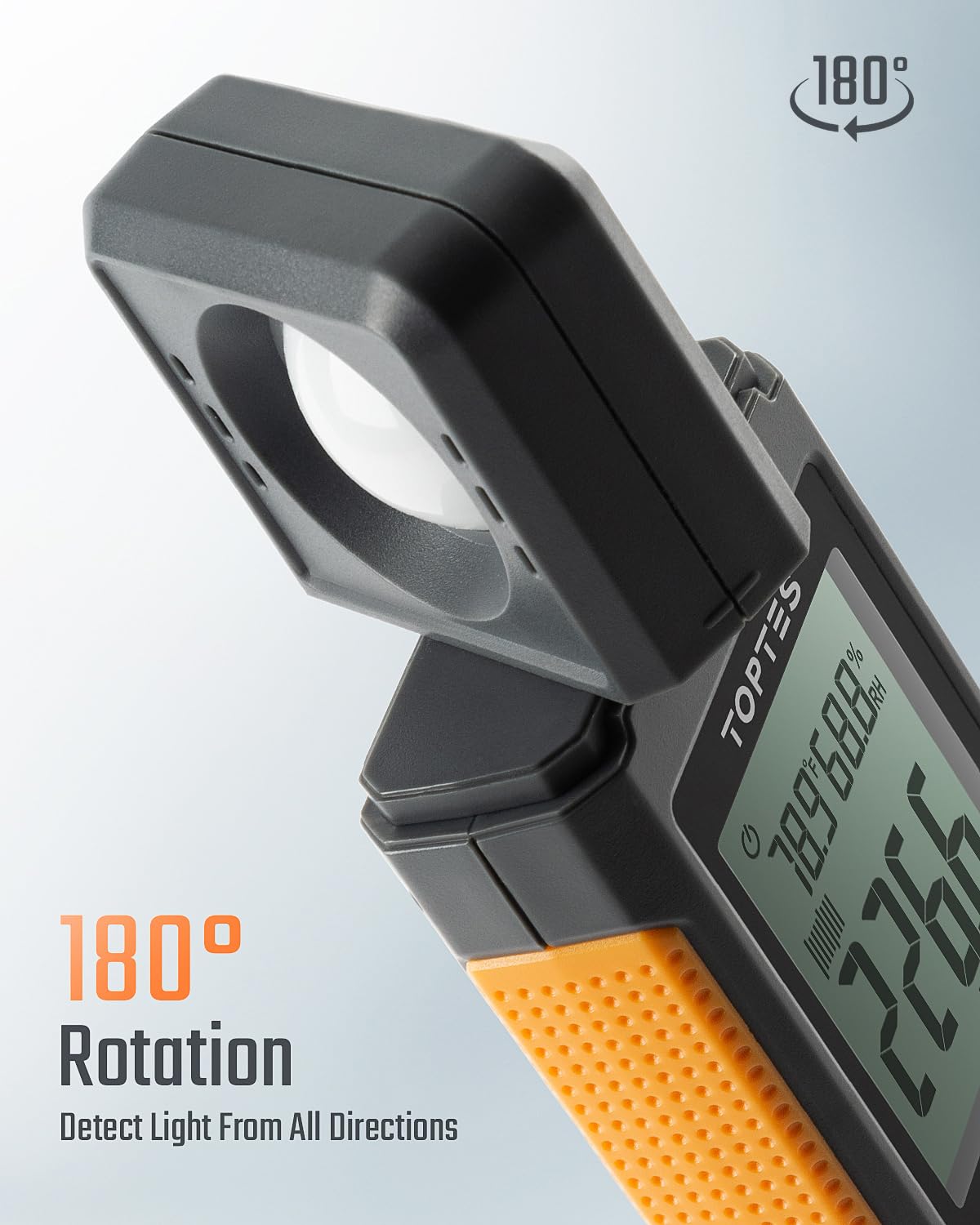

රූපය 4: TS-710 Light Meter demonstrating its 180° rotating sensor, allowing detection of light from all directions.

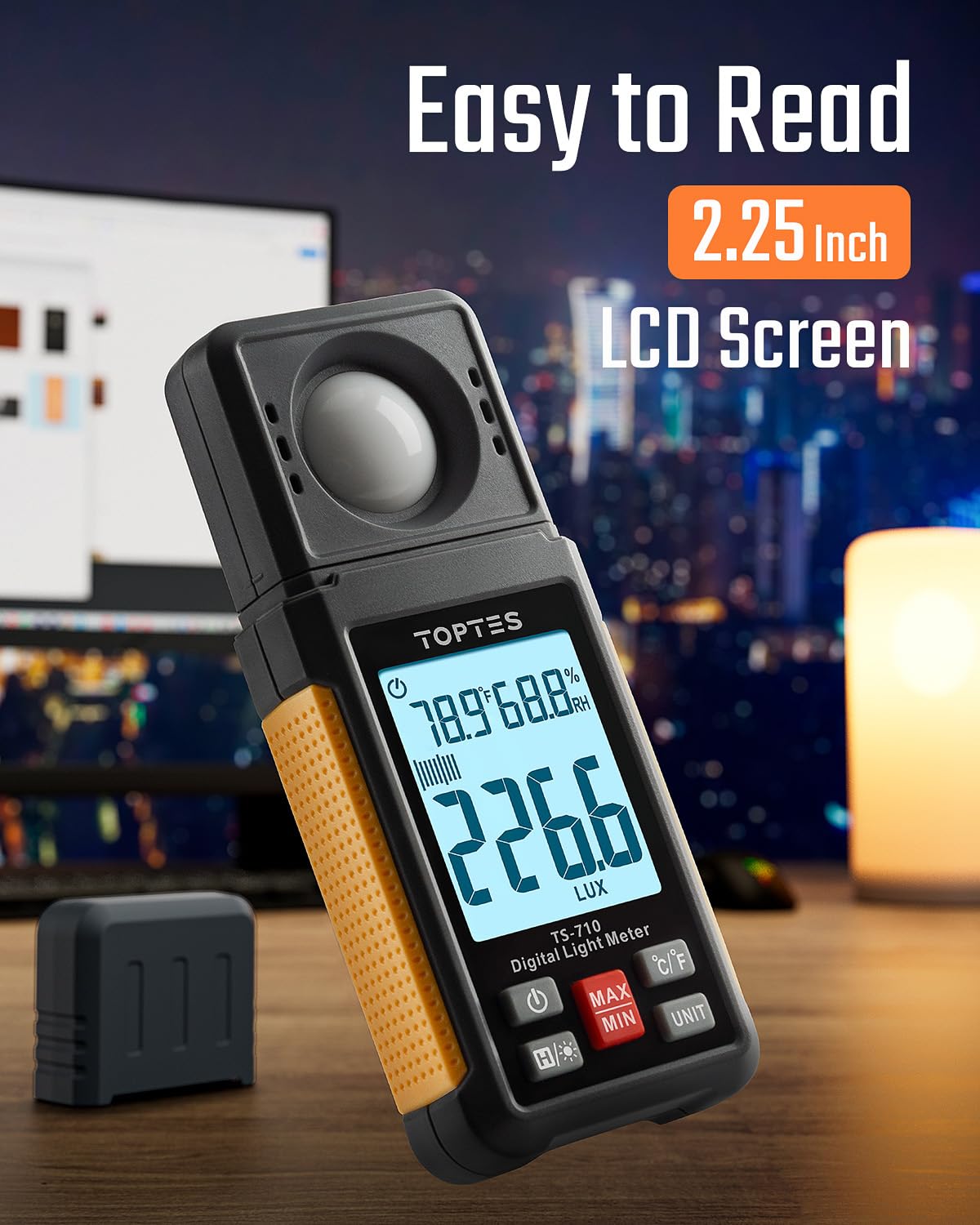

රූපය 5: TS-710 Light Meter with its easy-to-read 2.25-inch backlit LCD screen, showing current light, temperature, and humidity readings.

රූපය 6: TS-710 Light Meter illustrating its capability for dual measurement units: LUX (0.1~200,000 LUX) and Foot-Candle (0.1~20,000 FC).

3 ආරක්ෂිත තොරතුරු

Observe the following safety precautions to prevent injury and avoid damage to the devices:

• Do not attempt to open or modify the devices.
• Keep the devices away from water, high humidity, and extreme temperatures.
• උපාංග බිම හෙළීමෙන් හෝ දැඩි බලපෑම්වලට ලක් කිරීමෙන් වළකින්න.
• Remove batteries if the devices will not be used for an extended period.
• දේශීය රෙගුලාසිවලට අනුව බැටරි බැහැර කරන්න.

4. පැකේජ අන්තර්ගතය

සියලුම අයිතම පැකේජයේ ඇති බව තහවුරු කරගන්න:

• 1 x TopTes TS-710 Light Meter
• 1 x TopTes TS-501B Sound Level Meter
• 2 x Carrying Cases (one for each device)
• AAA බැටරි (පෙර ස්ථාපනය කර ඇති හෝ වෙන වෙනම ඇතුළත් කර ඇත)
• පරිශීලක අත්පොත (මෙම ලේඛනය)

5. පිහිටුවීම

5.1 බැටරි ස්ථාපනය

1. Locate the battery compartment on the back of each device.
2. බැටරි කවරය විවෘත කරන්න.
3. Insert the AAA batteries, ensuring correct polarity (+/-).
4. බැටරි කවරය ආරක්ෂිතව වසා දමන්න.

5.2 බල ගැන්වීම සක්‍රිය / අක්‍රිය කිරීම

ඔබන්න බලය button (usually marked with a power symbol) on each device to turn it on. Press and hold the same button to turn it off. Both devices feature an automatic power-off function to conserve battery life after a period of inactivity.

6. මෙහෙයුම් උපදෙස්

6.1 General Functions (Both Devices)

• MAX/MIN Recording: ඔබන්න උපරිම/මිනි button to display the maximum or minimum recorded value during a measurement session. Press again to cycle through MAX, MIN, and current readings.
• දත්ත රඳවා තබා ගැනීම: ඔබන්න අල්ලා ගන්න button (or similar icon) to freeze the current reading on the display. Press again to release.
• පසුතල ආලෝකය: ඔබන්න පසුතල ආලෝකය button (often marked with a light bulb symbol) to activate or deactivate the screen backlight for improved visibility in low-light conditions.

රූපය 7: Explanation of MAX and MIN functions. MAX displays the highest value measured, while MIN displays the lowest value measured over a given period.

6.2 TS-501B Sound Level Meter Operation

1. උපාංගය සක්රිය කරන්න.
2. Select Weighting (A/C): ඔබන්න A/C button to switch between A-weighting (for human ear perception) and C-weighting (for general noise analysis).
3. Select Response Time (FAST/SLOW): ඔබන්න එෆ්/එස් button to choose between Fast (125ms) or Slow (1s) response times, depending on the nature of the sound being measured.
4. Point the microphone towards the sound source. The current sound level in decibels (dB) will be displayed.

6.3 TS-710 Light Meter Operation

1. උපාංගය සක්රිය කරන්න.
2. Rotate Sensor: Adjust the 180° rotating sensor to face the light source directly or to capture ambient light as needed.
3. Select Unit (LUX/FC): ඔබන්න ඒකකය button to switch between Lux and Foot-Candle measurement units.
4. The device will display the light intensity, ambient temperature, and humidity.

7. නඩත්තු කිරීම

• පිරිසිදු කිරීම: Use a soft, dry cloth to clean the device surfaces. Do not use abrasive cleaners or solvents. For the TS-710's light sensor, ensure it remains clean and free of dust for accurate readings.
• ගබඩා: Store the devices in their protective carrying cases in a cool, dry place when not in use. Avoid areas with high humidity or extreme temperatures.
• බැටරි ආදේශනය: අඛණ්ඩ නිවැරදි ක්‍රියාකාරිත්වය සහතික කිරීම සඳහා සංදර්ශකයේ අඩු බැටරි දර්ශකය දිස්වන විට වහාම බැටරි ප්‍රතිස්ථාපනය කරන්න.

8. දෝශ නිරාකරණය

9. පිරිවිතර

9.1 TS-501B Sound Level Meter

• මිනුම් පරාසය: 30 සිට 130 dB දක්වා
• බර තැබීම: A/C
• මයික්‍රෆෝනය: 1/2 inch Electric Condenser Microphone
• සංදර්ශකය: අඟල් 2.25 බැක්ලයිට් LCD
• කාර්යයන්: MAX/MIN recording, Data Hold, Auto Power-Off

9.2 TS-710 Light Meter

• Light Measurement Range: 0.1 to 200,000 Lux / 0.1 to 20,000 FC
• සංවේදකය: 180° Rotating Sensor
• අතිරේක මිනුම්: පරිසර උෂ්ණත්වය, ආර්ද්රතාවය
• සංදර්ශකය: අඟල් 2.25 බැක්ලයිට් LCD
• කාර්යයන්: MAX/MIN recording, Data Hold, Auto Power-Off

10. වගකීම් සහ සහාය

TopTes products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact information provided on the TopTes official website or your purchase documentation. Please have your model numbers (TS-501B, TS-710) and purchase date available when contacting support.
