Taffio CH7102-F3 10.25-inch Android Car Radio GPS CarPlay System

1. හැඳින්වීම

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Taffio CH7102-F3 Android Car Radio GPS CarPlay System. This system is specifically designed for Mazda 3 vehicles, models BM and BN, manufactured between 2013 and 2019. It integrates advanced navigation, communication, and entertainment features into your vehicle's dashboard, enhancing your driving experience with modern multimedia capabilities.

Please read this manual thoroughly before installation and use to ensure proper functionality and to prevent damage to the unit or your vehicle. Keep this manual for future reference.

2 ආරක්ෂිත තොරතුරු

• වෘත්තීය ස්ථාපනය නිර්දේශ කෙරේ: Due to the complexity of car electrical systems, professional installation is highly recommended to avoid damage to the unit or vehicle.
• විදුලිය විසන්ධි කිරීම: Always disconnect the vehicle's battery before performing any electrical work to prevent short circuits or electrical shock.
• රැහැන් ඇදීම: Ensure all wiring connections are secure and properly insulated to prevent electrical hazards. Do not modify the wiring harness unless specifically instructed.
• රිය පැදවීමේ ආරක්ෂාව: රිය පැදවීමෙන් ඔබව අවධානය වෙනතකට යොමු කරන ආකාරයෙන් පද්ධතිය ක්‍රියාත්මක නොකරන්න. සෑම විටම මාර්ග ආරක්ෂාවට ප්‍රමුඛත්වය දෙන්න.
• වාතාශ්රය: Ensure the unit has adequate ventilation and is not obstructed by other components.
• පිරිසිදු කිරීම: Use a soft, dry cloth for cleaning the screen and unit. Avoid abrasive cleaners or solvents.

3. පැකේජ අන්තර්ගතය

Before beginning installation, verify that all components listed below are present in your package. If any items are missing or damaged, please contact your vendor.

රූපය 3.1: ඉවරයිview of all components included in the delivery. This includes the Android Display, Main Unit, Frame, Power Cable, LVDS cable, Speaker Cables, USB Cable, Mic Cable, Aux Adapter, Screws, Display Cable, GPS Antenna, and 4G Antenna.

• Android Display (10.25-inch touchscreen)
• Main Unit (Processor box)
• Vehicle-specific Frame
• බල කේබල් පටි
• LVDS කේබලය
• ස්පීකර් කේබල්
• USB Cable(s)
• මයික්රෆෝන කේබලය
• Aux ඇඩැප්ටරය
• සවිකරන ඉස්කුරුප්පු
• සංදර්ශක කේබලය
• GPS ඇන්ටනාව
• 4 ජී ඇන්ටෙනාව

4. පිහිටුවීම සහ ස්ථාපනය

The Taffio CH7102-F3 system is designed for a plug-and-play installation, requiring no modifications, restrictions, or coding of the original vehicle system. The original system's functions, including radio, controller, steering wheel controls, and vehicle settings, are fully preserved and supported.

4.1 ස්ථාපනය අවසන්view

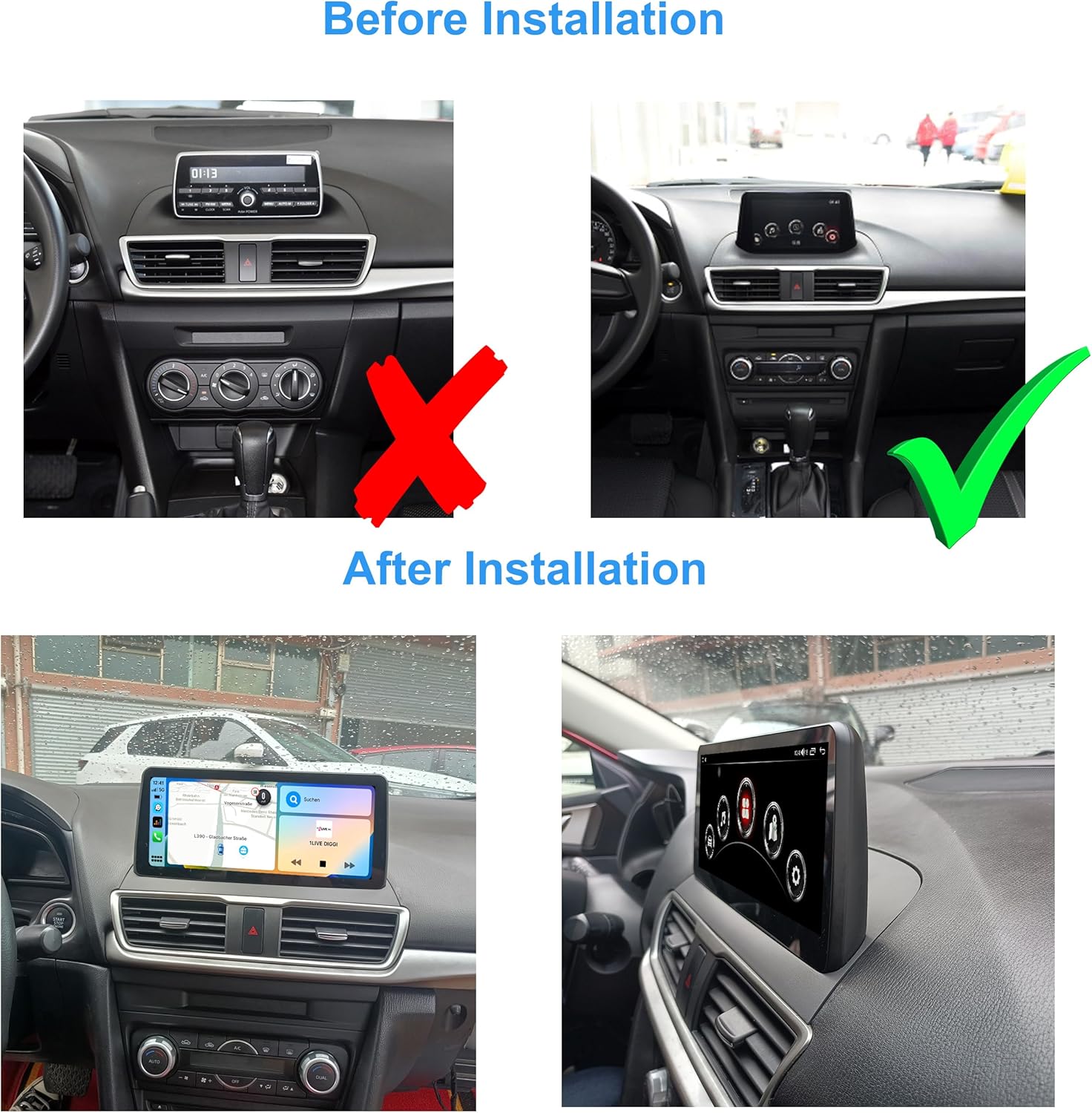

රූපය 4.1: Visual comparison of the Mazda 3 dashboard before and after the Taffio Android display installation. The original small display is replaced with the larger 10.25-inch Android unit.

The installation involves replacing the original display with the new 10.25-inch Android display and connecting the main unit and associated cables. The process is designed to be straightforward, primarily involving connecting the display and the main connection cable.

4.2 සම්බන්ධතා රූප සටහන

රූපය 4.2: Detailed wiring diagram illustrating how to connect the Taffio CH7102-F3 components. Key connections include LVDS to the original main unit, microphone input, rear camera input, audio/video inputs, USB ports, SIM slot, and antennas.

Refer to the diagram above for specific connection points. The numbered points correspond to the following:

1. LVDS: Connect with Original Main Unit.
2. Microphone IN: Input for external microphone.
3. Rear Camera IN (Aftermarket): Connect aftermarket rear view කැමරාව.
4. ශ්‍රව්‍ය ආදානය (RCA): බාහිර ශ්‍රව්‍ය ප්‍රභවයන් සඳහා.
5. Video Input (RCA): බාහිර වීඩියෝ මූලාශ්‍ර සඳහා.
6. Connect to Original Main Unit Plug: Main power and data connection.
7. Connect to Original Main Unit: Additional data connection.
8. Connect to Original Main Unit: Additional data connection.
9. Connect to Original Main Unit Plug: Main power and data connection.
10. Connect to Original Main Unit Plug: Main power and data connection.
11. Connect to Original Main Unit Plug: Main power and data connection.
12. SIM-Slot: Insert 3G/4G SIM card for mobile data.
13. USB - Port: USB උපාංග සම්බන්ධ කරන්න.
14. USB - Port: USB උපාංග සම්බන්ධ කරන්න.
15. Connect to Original Microphone: If applicable, connect to the vehicle's original microphone.
16. Connect to TAFFIO Main Unit: Connect the display to the main processing unit.
17. Connect with No. 2: Specific connection point as per diagram.

5. මෙහෙයුම් උපදෙස්

The Taffio CH7102-F3 operates on Android 12, providing a familiar and intuitive user interface. The 10.25-inch capacitive multi-touch screen allows for easy navigation through menus and applications.

5.1 පද්ධති අතුරුමුහුණත

රූපය 5.1: Main home screen of the Android system, displaying various application icons.

රූපය 5.2: Secondary home screen with additional application icons, including vehicle settings.

රූපය 5.3: Third home screen displaying connectivity and utility applications.

Swipe left or right on the screen to navigate between different home screens. Tap on an icon to launch the corresponding application. The system supports multi-touch gestures for zooming and scrolling.

5.2 CarPlay සහ Android Auto

The unit features integrated CarPlay and Android Auto functionality, allowing seamless integration with your smartphone without the need for additional adapters.

රූපය 5.4: Wireless CarPlay interface, mirroring your iPhone's essential apps.

රූපය 5.5: Android Auto interface, providing access to Android apps optimized for driving.

To use CarPlay or Android Auto, connect your compatible smartphone via USB or wirelessly (if supported by your phone and the unit). Follow the on-screen prompts to establish the connection. Once connected, you can access navigation, music, messages, and other apps directly from the unit's display.

5.3 සංචාලනය (GPS)

The unit includes an integrated GPS receiver with high sensitivity and accuracy. It comes with 3D map material and free lifetime updates. To use navigation, launch the 'Navi' or 'Maps' application from the home screen. Ensure the GPS antenna is properly installed and has a clear view ප්‍රශස්ත සංඥා පිළිගැනීම සඳහා අහසේ.

5.4 Connectivity (Wi-Fi, Bluetooth, 4G LTE)

• Wifi: Connect to Wi-Fi hotspots or your smartphone's hotspot for internet access. Go to Settings > Network & Internet > Wi-Fi to configure.
• බ්ලූටූත් 5.0: Pair your smartphone for hands-free calling and audio streaming. Go to Settings > Connected devices > Pair new device.
• 3G/4G LTE: Insert a SIM card into the dedicated slot for faster navigation and streaming capabilities. Ensure the 4G antenna is connected.

5.5 බහුමාධ්‍ය නැවත ධාවනය

The system supports various audio and video formats:

• වීඩියෝ ආකෘති: 1080p, H264, AVI, RMVB, FLV, MKV.
• ශ්රව්ය ආකෘති: MP3, WMA, FLAC, APE, AAC.

Play media from USB drives, internal storage, or streaming apps. The unit also supports DVR functions via USB 2.0 & AV/CVBS.

5.6 Rear Camera Connection

The unit supports connection to a rear view camera. It features an automatic switching function when the vehicle is put into reverse gear, displaying the camera feed on the screen.

6. පිරිවිතර

7. නඩත්තු කිරීම

7.1 පිරිසිදු කිරීම

To clean the display screen, use a soft, lint-free cloth. For stubborn smudges, slightly dampen the cloth with water or a screen-safe cleaning solution. Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the screen coating or plastic components.

7.2 මෘදුකාංග යාවත්කාලීන

Periodically check for software updates to ensure optimal performance and access to new features. Updates can typically be found through the system's settings menu under 'System' or 'About device'. Ensure a stable internet connection (Wi-Fi or 4G) during the update process and do not power off the unit.

7.3 සාමාන්‍ය රැකවරණය

• ඒකකය දිගු කාලයක් අධික උෂ්ණත්වයන්ට හෝ සෘජු හිරු එළියට නිරාවරණය වීමෙන් වළකින්න.
• Do not place heavy objects on the unit or apply excessive force to the screen.
• Keep liquids away from the unit to prevent electrical damage.

8. දෝශ නිරාකරණය

This section addresses common issues you might encounter with your Taffio CH7102-F3 system. If you experience a problem not listed here, or if the suggested solutions do not resolve the issue, please contact customer support.

9. වගකීම් සහ සහාය

9.1 වගකීම් තොරතුරු

Please refer to the warranty card included with your product for specific warranty terms and conditions. Typically, products come with a limited warranty covering manufacturing defects for a specified period from the date of purchase. Keep your proof of purchase for warranty claims.

9.2 පාරිභෝගික සහාය

For technical assistance, troubleshooting, or warranty inquiries, please contact your retailer or the manufacturer's customer support. Have your product model number (CH7102-F3) and purchase details ready when contacting support.

Manufacturer: Real Media GmbH & Co. KG
