1. නිෂ්පාදන අවසන්view
The ATOTO F7XE is a versatile 10-inch car multimedia system designed for both single DIN and double DIN installations. It features wireless CarPlay and Android Auto, integrated DAB+ radio, Bluetooth connectivity, MirrorLink, and Live Rear View (LRV) capabilities. This manual provides essential information for installation, operation, and maintenance.

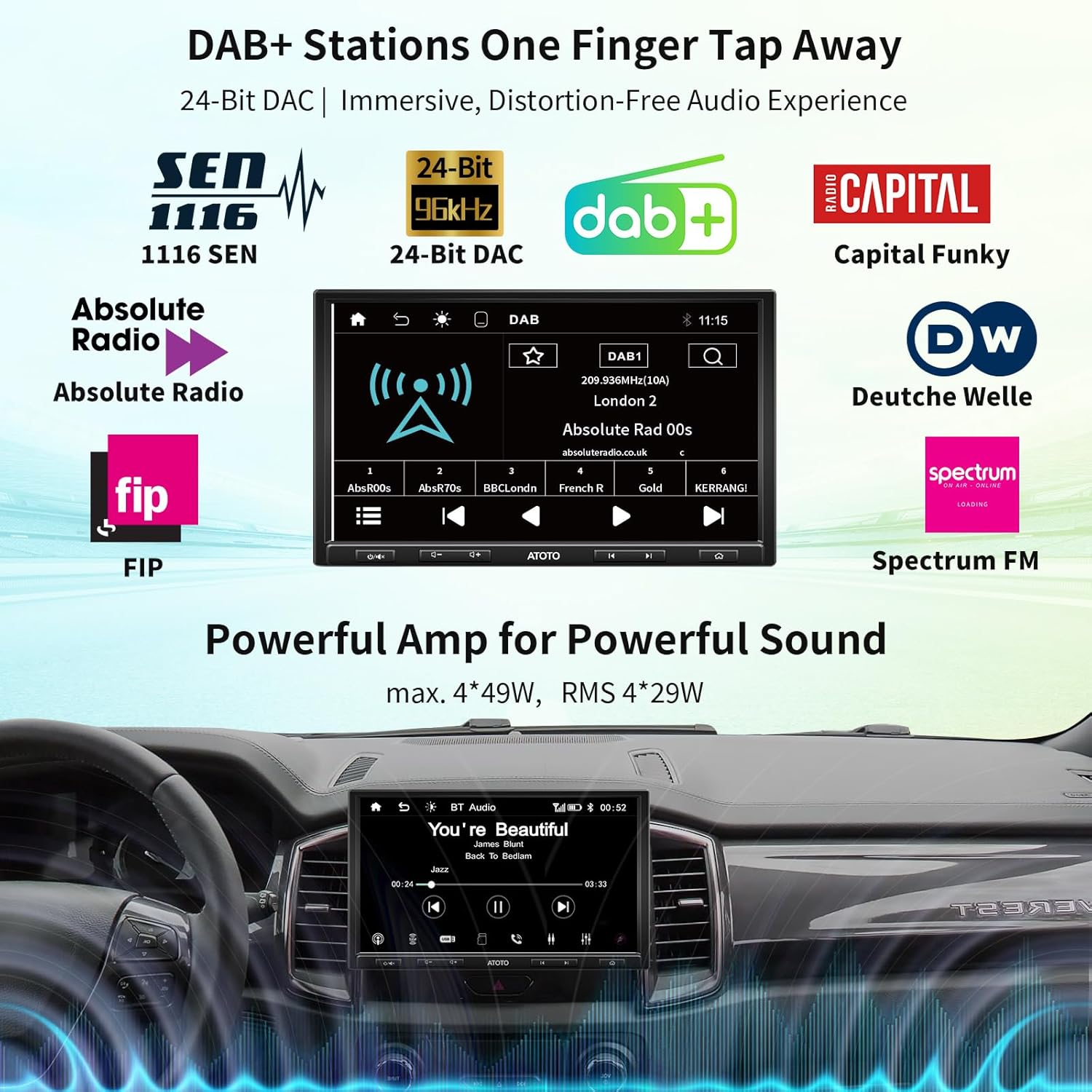

Image: The ATOTO F7XE car stereo display showing the DAB+ radio interface with various station logos.
2. පිහිටුවීම සහ ස්ථාපනය
The F7G110XED supports adaptive single DIN mounting with its 10.1-inch display, and can also be installed as a double DIN unit using the included DIN pocket. The screen offers 3-way adjustability for optimal viewing කෝණ.
2.1 පැකේජයේ අන්තර්ගතය
Before installation, verify all components are present:
- බල කේබලය
- බාහිර මයික්රොෆෝනය
- Adaptive Cage (1x)
- DIN Pocket (1x)
- සවිකරන වරහන්
- තිර ආරක්ෂකයා
- සවිකරන ඉස්කුරුප්පු
- Video Input/Output Extension Cable (1x)
- Wi-Fi ඇන්ටෙනාව
- ISO සම්බන්ධකය
- DAB+ ඇන්ටනාව
- Autoradio Unit
- පරිශීලක අත්පොත
රූපය: උඩින්view of all components included in the ATOTO F7XE package, such as cables, antennas, mounting hardware, and the main unit.
2.2 රැහැන් සහ සම්බන්ධතා
Ensure all wiring is correctly connected according to your vehicle's specifications and the provided wiring diagram. Incorrect wiring can damage the unit or your vehicle's electrical system.
- බල කේබලය: Connect to your vehicle's power supply.
- බාහිර මයික්රෆෝනය: Plug into the designated microphone input for hands-free calling.
- USB Ports: Two USB ports are available. One is for Phone Link (CarPlay/Android Auto/MirrorLink), and the other is for external storage and media playback (supports up to 2TB SSD).
- SD තව්: Supports up to 512GB SD cards for media.
- DAB+ ඇන්ටනාව: Connect the included DAB+ antenna for digital radio reception.
- Wi-Fi ඇන්ටනාව: Connect for wireless connectivity features.
- පසුපස කැමරා ආදානය: For connecting an optional ATOTO AC-HD02LR HD 720P rear camera for Live Rear View ක්රියාකාරිත්වය.
2.3 සුක්කානම් රෝද පාලන
The unit supports retaining OEM steering wheel controls or using an ATOTO AC-44F5 wireless remote (sold separately).
- OEM Controls: Connect to the SWC wires on your vehicle (analogue signals).
- 3rd Party Interfaces: A dedicated 3.5mm port is available for connecting steering wheel control interfaces purchased from third parties.
- ATOTO AC-44F5 Remote: If OEM controls are not compatible, the optional ATOTO AC-44F5 wireless remote can be used.
Image: A visual guide demonstrating three methods for integrating steering wheel controls: direct wiring, a 3.5mm port for third-party interfaces, and the ATOTO AC-44F5 wireless remote.
3. මෙහෙයුම් උපදෙස්
3.1 රැහැන් රහිත CarPlay සහ Android Auto
The F7XE supports both wired and wireless CarPlay and Android Auto. This allows for seamless integration of your smartphone for navigation, music, calls, and other apps.
- සම්බන්ධතාවය: Connect your iPhone for CarPlay or Android phone for Android Auto via USB for wired connection, or wirelessly via Bluetooth and Wi-Fi.
- ක්රියාකාරීත්වය: Navigate using maps, play music, make calls, send messages, and access compatible apps directly from the car stereo display.
- අයකිරීම: When using wired CarPlay/Android Auto, your phone's battery will charge.

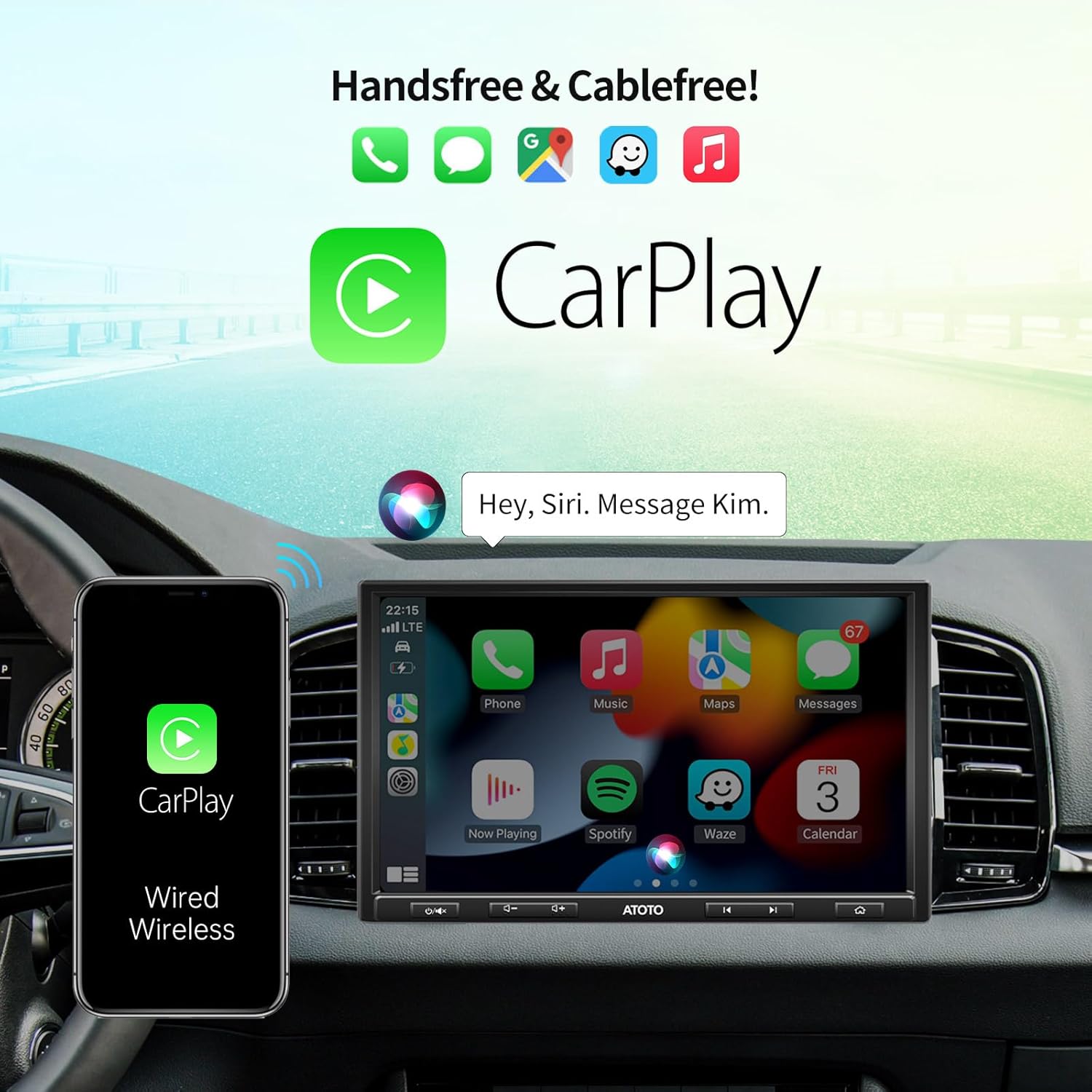

Image: The ATOTO F7XE display showing the Apple CarPlay interface, with a smartphone connected via cable.
Image: The ATOTO F7XE display showing the Android Auto interface, with a smartphone connected via cable.
3.2 මිරර්ලින්ක්
MirrorLink allows you to mirror your Android or iOS smartphone screen onto the F7XE display via a wired connection.

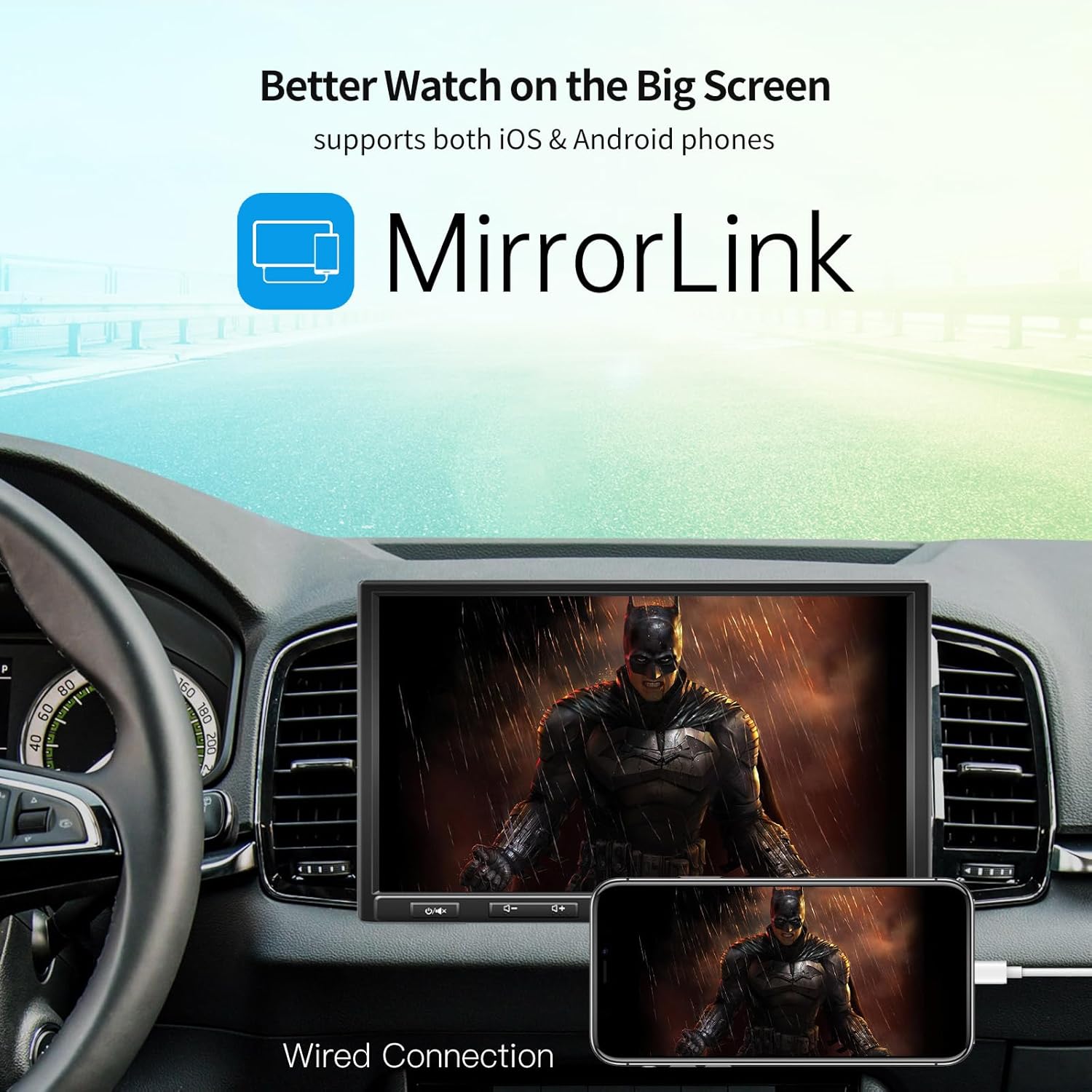

Image: The ATOTO F7XE display mirroring content from a smartphone using the MirrorLink feature.
3.3 DAB+ and FM/AM Radio
The F7XE includes an integrated DAB+ module and supports FM/AM radio with RDS. The included DAB+ antenna ensures access to digital radio stations.
- DAB+ Features: Enjoy features like traffic announcements, service following, and program type information.
- FM/AM: Tune into traditional radio stations with RDS support for station information.
3.4 Live Rear View (LRV)
The LRV function provides a real-time rear view display at any time, enhancing driving safety. This feature requires the optional ATOTO AC-HD02LR HD 720P rear camera (not included).
Image: The ATOTO F7XE display demonstrating the Live Rear View (LRV) feature, showing both a reversing view with guidelines and a continuous rear view රිය පැදවීමේදී.
3.5 ශ්රව්ය සැකසුම්
Customize your audio experience with the built-in 10-band equalizer, offering 7 preset options and a bass filter function. The unit provides a maximum output of 4*49W and RMS output of 4*29W.
4. නඩත්තු කිරීම
4.1 තිර පිරිසිදු කිරීම
To clean the QLED touch screen, gently wipe it with a soft, lint-free cloth. For stubborn smudges, use a screen cleaner specifically designed for electronic displays. Avoid abrasive materials or harsh chemicals.
4.2 ස්ථිරාංග යාවත්කාලීන කිරීම්
ATOTO provides continuous firmware updates to improve system performance and add new features. It is recommended to regularly check for and install updates to ensure optimal functionality.
- Visit the ATOTO online support system (resources.myatoto.com) for update notifications and instructions.
- Follow the on-screen prompts carefully during the update process.
Image: A symbolic representation of car stereo maintenance or troubleshooting, showing a wrench icon on a dashboard.
5. දෝශ නිරාකරණය
If you encounter issues with your ATOTO F7XE, refer to the following common troubleshooting steps. For more detailed assistance, consult the ATOTO online support system.
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| බලය නැත | වැරදි රැහැන් ඇදීම, පිපිරුණු ෆියුස්, වාහන බැටරි ගැටළුව. | Check power connections, inspect fuses, verify vehicle battery health. |
| ශ්රව්ය නැත | Speaker wiring issue, incorrect audio settings, muted volume. | Verify speaker connections, check audio output settings, increase volume. |
| CarPlay/Android Auto සම්බන්ධ නොවේ | Incorrect USB cable, phone settings, software glitch. | Use a high-quality USB cable, ensure phone settings allow connection, restart phone and stereo. |
| දුර්වල ගුවන්විදුලි පිළිගැනීම | Antenna not connected, weak signal area, damaged antenna. | Ensure antennas are properly connected, try in a different location, inspect antennas for damage. |
6. පිරිවිතර
| විශේෂාංගය | විස්තර |
|---|---|
| ආකෘතිය | F7G110XED |
| ප්රදර්ශනය කරන්න | 10.1-inch QLED HD 1280*720, 178° Full Viewing කෝණය |
| සවි කිරීමේ විලාසය | SAH10D (Adaptive Single DIN with 10.1-inch display), Double DIN compatible |
| CarPlay/Android ඔටෝ | රැහැන් සහ රැහැන් රහිත |
| මිරර්ලින්ක් | Wired (Android & iOS) |
| ගුවන්විදුලි සුසරකය | Integrated DAB+, FM/AM with RDS |
| ශ්රව්ය ප්රතිදානය | Max 4*49W, RMS 4*29W, Stereo, Surround 2.0 |
| සමකරනය | 10-band with 7 presets, Bass Filter |
| සම්බන්ධතාවය | Bluetooth, 2x USB ports (up to 2TB SSD), 1x SD slot (up to 512GB), Wi-Fi |
| වීඩියෝ කේතනය | H.264, H.265/HEVC, MPEG-4, etc. |
| අමතර විශේෂාංග | Rear Camera Input (for ATOTO AC-HD02LR), Steering Wheel Control Retention |
| වර්ණය | කළු |
7. වගකීම් සහ සහාය
For warranty information, please refer to the documentation provided with your purchase or visit the official ATOTO website. ATOTO offers continuous firmware updates and technical support through their online support system.
- මාර්ගගත සහාය: For the latest firmware updates, FAQs, and troubleshooting guides, visit resources.myatoto.com.
- සහාය අමතන්න: If you require further assistance, please contact ATOTO customer service through their official channels.
