1. හැඳින්වීම
This manual provides detailed instructions for the installation, operation, and maintenance of your ATOTOZONE A6PL 7-inch 2-Din Android Car Stereo. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.
Image 1.1: ATOTOZONE A6PL 7-inch 2-Din Android Car Stereo main unit.
2 ආරක්ෂිත තොරතුරු
- රිය පැදවීමෙන් ඔබව අවධානය වෙනතකට යොමු කරන ආකාරයෙන් උපාංගය ක්රියාත්මක නොකරන්න. සෑම විටම මාර්ග ආරක්ෂාවට ප්රමුඛත්වය දෙන්න.
- කෙටි පරිපථ හෝ හානි වැළැක්වීම සඳහා සියලුම රැහැන් නිවැරදිව සම්බන්ධ කර ඇති බවට වග බලා ගන්න. විශ්වාස නැත්නම් ස්ථාපනය සඳහා වෘත්තිකයෙකුගෙන් විමසන්න.
- ඒකකය අධික උෂ්ණත්වයන්ට, දිගු කාලයක් සෘජු හිරු එළියට හෝ අධික තෙතමනයට නිරාවරණය වීමෙන් වළකින්න.
- ඒකකය විසුරුවා හැරීමට හෝ වෙනස් කිරීමට උත්සාහ නොකරන්න. මෙය වගකීම් සහතිකය අවලංගු කර හානි සිදු කළ හැකිය.
- බාහිර රථවාහන ශබ්ද ඇසීමට ඉඩ සලසන මට්ටමක ශබ්දය තබා ගන්න.
3. පැකේජ අන්තර්ගතය
සියලුම අයිතම පැකේජයේ ඇති බව තහවුරු කරගන්න:
- ATOTOZONE A6PL Main Unit
- බල කේබලය
- පසුපස කැමරා ආදාන කේබලය
- RCA Connector Cables
- USB External Storage Cable
- USB Phone Link Cable
- 4G LTE ඇන්ටෙනාව
- GPS ඇන්ටනාව
- බාහිර මයික්රොෆෝනය
- Double-DIN Brackets
- සවිකරන වරහන්
- සවිකරන ඉස්කුරුප්පු
- තිර ආරක්ෂකයා
- ස්ථාපන රාමුව
- පරිශීලක අත්පොත (මෙම ලේඛනය)

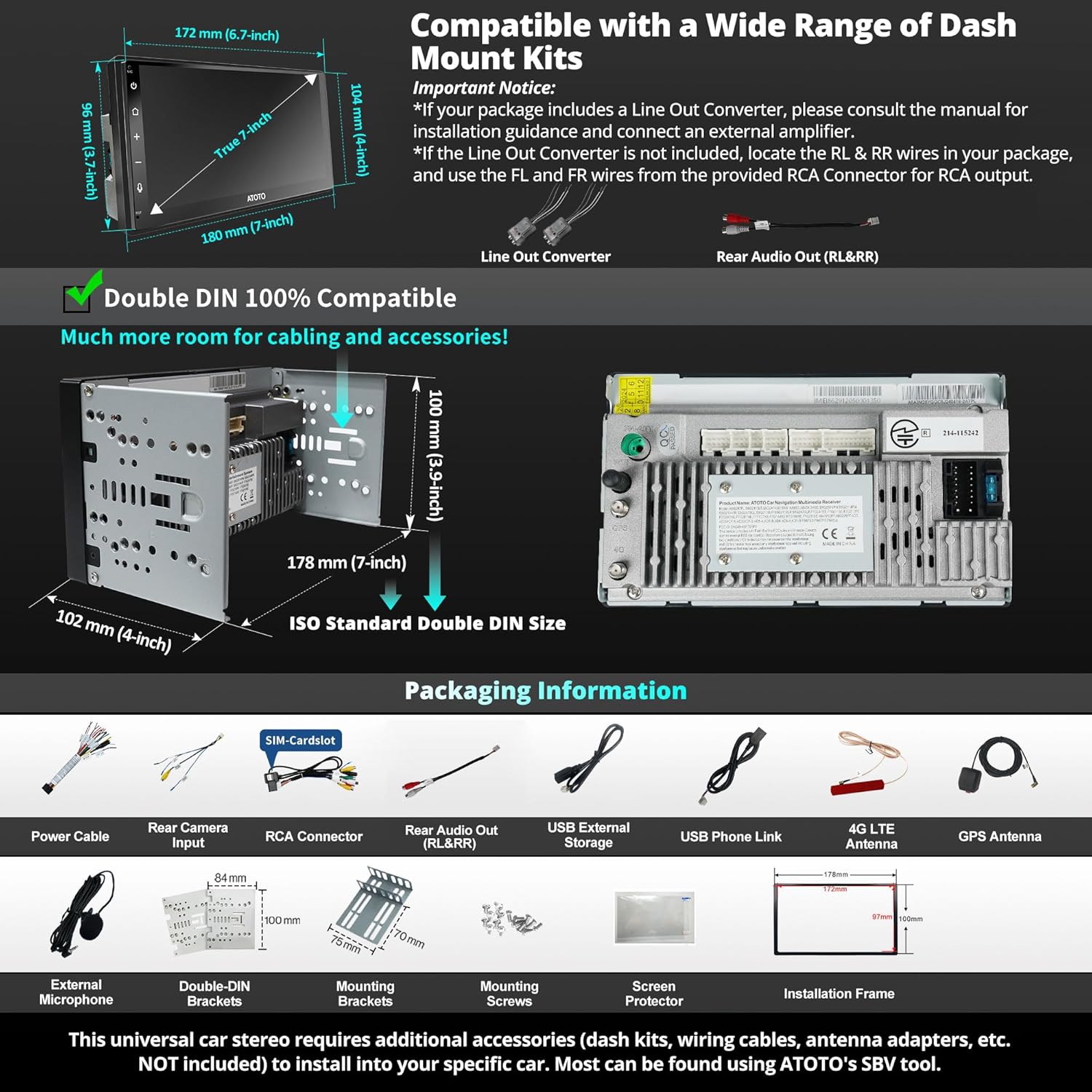

රූපය 3.1: ඉවරයිview of package contents and unit dimensions.
4. පිහිටුවීම
4.1 ස්ථාපන සලකා බැලීම්
The A6PL is designed for standard Double DIN openings. Ensure your vehicle has a compatible opening. Additional dash kits, wiring harnesses, or antenna adapters may be required for specific vehicle models and are not included. Use the SBV (Search By Vehicle) tool for compatibility information.
Image 4.1: ISO Standard Double DIN dimensions for compatibility.
4.2. රැහැන් සටහන
Refer to the following diagram for proper wiring connections. Incorrect wiring can damage the unit or vehicle electrical system. If you are not experienced with car audio installation, seek professional assistance.
Image 4.2: Detailed wiring diagram for the ATOTOZONE A6PL.
- බල කේබලය: Connect to vehicle's power supply (Constant 12V, Accessory 12V, Ground).
- කථික නිමැවුම්: වාහන ස්පීකර් වලට සම්බන්ධ කරන්න (ඉදිරිපස වමට/දකුණට, පසුපස වමට/දකුණට).
- ඇන්ටනා: Connect 4G LTE, GPS, Wi-Fi, and FM/AM antennas.
- බාහිර මයික්රෆෝනය: Connect for improved call quality and voice commands.
- පසුපස කැමරා ආදානය: Connect an optional rear view camera (e.g., AC-HD02LR, sold separately).
- සුක්කානම් රෝද පාලනය (SWC): Connect to vehicle's SWC wires or use a dedicated adapter (AC-44F8, not included).
5. මෙහෙයුම් උපදෙස්
5.1. Power On/Off and Quick Boot
The A6PL features a quick boot function, allowing access to the system in less than 2 seconds after the initial power-on. If the unit does not quick boot, verify wiring connections.
Image 5.1: Quick Boot functionality for rapid system access.
5.2. Display and Touch Control
The unit features a 7-inch QLED HD touchscreen with 1024x600p resolution and a 178° viewing angle. It supports multi-touch gestures for intuitive operation, including split-screen functionality.
Image 5.2: QLED touchscreen with sleek touch buttons and rear camera input feature.
Image 5.3: Multi-touch gestures and split-screen display for enhanced user experience.
5.3. Connectivity (4G LTE, Wi-Fi, Bluetooth)
The A6PL offers multiple options for internet access and device connectivity:
- 4G LTE: Integrated module for independent online services and navigation. Requires a SIM card (not included).
- Wi-Fi හොට්ස්පොට්: Connect to a Wi-Fi network or use your phone's hotspot.
- බ්ලූටූත් ටෙදරින්: බ්ලූටූත් හරහා ඔබගේ දුරකථනයේ අන්තර්ජාල සම්බන්ධතාවය බෙදා ගන්න.
- USB ටෙදරින්: Share your phone's internet connection via USB.
- ද්විත්ව බ්ලූටූත්: BT1 for calls and audio streaming, BT2 for connecting other devices like OBD2 scanners (AC-4450, not included).
Image 5.4: Various internet access options including 4G LTE, Wi-Fi, Bluetooth, and USB tethering.
Image 5.5: Dual Bluetooth for stable connections and convenience.
5.4. Wireless CarPlay and Android Auto
Enjoy seamless integration with your smartphone. Connect once via Bluetooth and Wi-Fi for automatic reconnection. Access navigation, calls, messages, and music directly from the head unit.
- රැහැන් රහිත CarPlay: Compatible with iPhone 5 or later running iOS 9.0 or higher.
- රැහැන් රහිත Android Auto: Compatible with Android 11.0+ phones, or Google/Samsung phones with Android 10.0, or Samsung Galaxy S8/S8+/Note 8 with Android 9.0.
- Wired connections are also supported for both CarPlay and Android Auto.
Image 5.6: Wireless and wired options for CarPlay and Android Auto.
5.5. MirrorLink
Use MirrorLink to display apps not supported by CarPlay or Android Auto directly on the A6PL's QLED screen. This feature supports both iOS and Android phones.
Image 5.7: MirrorLink for casting phone content to the A6PL screen.
5.6. Audio Settings (DSP, EQ, SCVC, Time Alignment)
Enhance your in-car audio experience with advanced sound processing features:
- බිල්ට්-ඉන් DSP: Digital Signal Processor for balanced sound.
- 36-Band Customizable EQ: ඔබේ අභිමතය පරිදි ශ්රව්ය සංඛ්යාත සියුම් ලෙස සකස් කරන්න.
- කාල පෙළගැස්ම: Synchronizes sound from all speakers to reach your ears simultaneously.
- SCVC (Speed Compensated Volume Control): Automatically adjusts volume based on vehicle speed for consistent audio clarity.
- සකස් කළ හැකි හරස්කඩ: Optimize sound delivery to different speaker types.
Image 5.8: DSP and 36-band customizable EQ for superior audio quality.
Image 5.9: Time Alignment ensures clear sound from all seating positions.
5.7. Navigation and GPS Tracking
The A6PL supports both online and offline navigation. It features an integrated GPS module and the TrackHU app for real-time vehicle tracking.
- මාර්ගගත සංචාලනය: Use your preferred online map applications.
- Offline Navigation: Pre-installed GPS for navigation without an internet connection.
- TrackHU App: Real-time vehicle tracking with update frequencies up to 5 seconds, 4-satellite positioning (GPS, GLONASS, Galileo, Beidou), detailed reports, and geofence alerts.
Image 5.10: TrackHU app interface for vehicle tracking and route playback.
5.8. DriveChat AI Voice Assistant
The DriveChat app enhances your driving experience with advanced voice commands. Manage the car stereo, answer calls, and control music playback hands-free. Customize wake-up words and interact with different Drivebots for tailored assistance.
Image 5.11: DriveChat AI Voice Assistant for effortless control.
5.9. පසුපස View කැමරා ආදානය
The A6PL supports HD 720P rear view camera input with Live Rear-View (LRV) feature. This allows you to check live traffic conditions behind your vehicle while driving forward. The AC-HD02LR camera is recommended (sold separately).
Image 5.12: HD 720P rear view camera input with Live Rear-View (LRV) functionality.
5.10. Dual Zone Video Output
The A6PL supports dual zone video output, allowing passengers in the rear to watch videos on separate monitors while the driver uses navigation or other functions on the main unit. Adapters like AC-AHV68 (USB to HDMI) or AC-AHV48 (USB to RCA) are required and sold separately.
Image 5.13: Dual Zone Video Output for simultaneous viewසතුටට.
6. නඩත්තු කිරීම
6.1. ඒකකය පිරිසිදු කිරීම
To clean the screen and unit, use a soft, dry cloth. For stubborn marks, slightly dampen the cloth with water. Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the screen and finish.
6.2. මෘදුකාංග යාවත්කාලීන
Regular software updates are provided to improve performance, add new features, and fix bugs. It is recommended to keep your A6PL updated. Check the official ATOTOZONE website or contact support for the latest updates and instructions.
Image 6.1: Regular system updates ensure optimal performance.
7. දෝශ නිරාකරණය
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| ඒකකය බලය සක්රිය නොවේ. | Incorrect power wiring; blown fuse. | Check power connections (constant 12V, accessory 12V, ground). Inspect vehicle's fuse box and the unit's fuse. |
| ස්පීකර් වලින් ශබ්දයක් නැත. | වැරදි ස්පීකර් රැහැන් ඇදීම; ශබ්දය ඉතා අඩුයි; නිහඬ කිරීම සක්රිය කර ඇත. | Verify speaker connections. Increase volume. Check if mute function is active. |
| බ්ලූටූත් සම්බන්ධතා ගැටළු. | Device not in pairing mode; interference; incorrect pairing process. | Ensure both devices are in pairing mode. Move closer to the unit. Delete previous pairings and re-pair. |
| CarPlay/Android Auto සම්බන්ධ නොවේ. | Incorrect phone settings; incompatible phone/OS version; Wi-Fi/Bluetooth issues. | Check phone's CarPlay/Android Auto settings. Ensure Wi-Fi and Bluetooth are enabled. Verify phone OS compatibility (refer to section 5.4). |
| GPS සංඥාව නැති වී හෝ සාවද්යයි. | GPS ඇන්ටෙනාව අවහිර වී හෝ නුසුදුසු ලෙස ස්ථාපනය කර ඇත. | GPS ඇන්ටෙනාව පැහැදිලි බව සහතික කර ගන්න view අහසේ සහ ආරක්ෂිතව සම්බන්ධ කර ඇත. |
| Unit is slow or unresponsive. | Too many apps running; low storage; software issue. | Close unnecessary apps. Clear cache. Perform a factory reset (backup data first). Check for software updates. |
8. පිරිවිතර
| විශේෂාංගය | විස්තර |
|---|---|
| වෙළඳ නාමය | ATOTOZONE |
| ආකෘතිය | A6G2B7PL |
| ප්රදර්ශනය කරන්න | 7-inch QLED HD Touchscreen (1024x600p) |
| ප්රොසෙසරය | ARM Cortex A55 8-Core |
| මෙහෙයුම් පද්ධතිය | Android 10.0 |
| RAM | 4GB |
| අභ්යන්තර ගබඩාව | 64GB |
| සම්බන්ධතාවය | 4G LTE, Wi-Fi, Dual Bluetooth, USB |
| ස්මාර්ට්ෆෝන් ඒකාබද්ධ කිරීම | Wireless CarPlay, Wireless Android Auto, MirrorLink |
| ශ්රව්ය විශේෂාංග | Built-in DSP, 36-Band EQ, Time Alignment, SCVC |
| GPS | Integrated GPS (4-satellite positioning), TrackHU App |
| ප්රතිදාන බලය | Max 4x45W, 4x24W RMS |
| මානයන් (ඒකකය) | 178 mm (7-inch) width, 102 mm (4-inch) height (ISO Double DIN Standard) |
| බර | කිලෝ ග්රෑම් 1.56 යි |
9. වගකීම් සහ සහාය
ATOTOZONE provides 18 months of product support for the A6PL. For technical assistance, warranty claims, or any questions regarding your product, please contact ATOTOZONE customer service.
You can typically find contact information on the official ATOTOZONE website or through your purchase platform. Regular software updates are also provided to ensure continued performance and feature enhancements.
Image 9.1: ATOTOZONE offers 18 months of product support.
