GAMEON Midnight I Series Mid Tower Gaming PC Case User Manual

1. හැඳින්වීම

This manual provides detailed instructions for the installation, operation, and maintenance of your GAMEON Midnight I Series Mid Tower Gaming PC Case. Please read this manual thoroughly before beginning installation to ensure proper setup and to maximize the performance and lifespan of your product. Keep this manual for future reference.

2 ආරක්ෂිත තොරතුරු

• Always disconnect the power supply from the wall outlet before performing any installation or maintenance inside the PC case.
• Handle the tempered glass panels with care. Tempered glass, while durable, can shatter if dropped or subjected to sharp impacts.
• Avoid exposing the case to extreme temperatures or high humidity.
• Do not attempt to modify the case or its components. Unauthorized modifications may void your warranty and pose safety risks.
• Keep small parts and screws away from children.

3. පැකේජ අන්තර්ගතය

පහත ලැයිස්තුගත කර ඇති සියලුම අයිතම ඔබගේ පැකේජයේ ඇති බව කරුණාකර තහවුරු කරගන්න:

• GAMEON Midnight I Series Mid Tower Gaming PC Case
• 7 x 120mm ARGB PWM Cooling Fans (pre-installed)
• Accessory Box (containing screws, cable ties, and other mounting hardware)
• ARGB/PWM Fan Controller and Remote Control
• පරිශීලක අත්පොත (මෙම ලේඛනය)

4. නිෂ්පාදන අවසන්view

The GAMEON Midnight I Series PC case is designed for optimal cooling and aesthetic appeal, featuring tempered glass panels and pre-installed ARGB PWM fans.

Figure 4.1: Internal layout of the PC case, highlighting the spacious interior for component installation.

Figure 4.2: Rear and top internal view, illustrating fan placement and overall structure.

4.1 ARGB+PWM Case Fans

The case comes with 7 pre-installed 120mm ARGB PWM fans, providing efficient cooling and customizable lighting. The fans are controlled via an included ARGB/PWM controller and remote.

Figure 4.3: ARGB+PWM fan features and fan mounting support. The front supports 360mm water cooling. Fan mounts include 3x120mm for PSU cover, 3x120mm for bottom, 3x120mm for top, and 1x120mm for rear.

4.2 ඉදිරිපස I/O ports

ඉදිරිපස පුවරුව සම්බන්ධතාවය සඳහා අත්‍යවශ්‍ය වරායන් වෙත පහසු ප්‍රවේශයක් සපයයි.

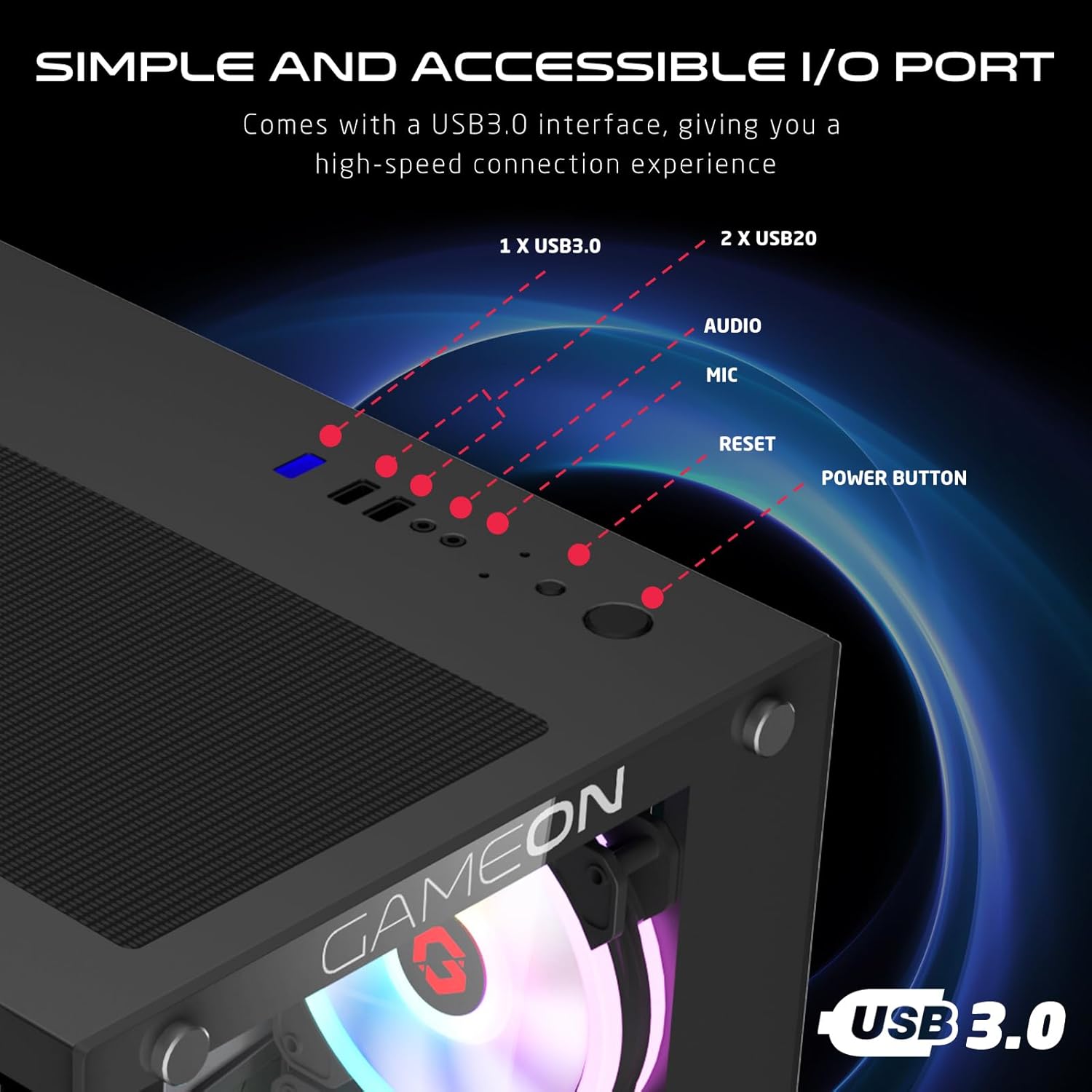

Figure 4.4: Front I/O ports, including 1x USB 3.0, 2x USB 2.0, Audio jack, Microphone jack, Reset button, and Power button.

4.3 Cooling and Construction

The case is designed with an optimized cooling solution, featuring multiple fan mounts and durable tempered glass panels.

Figure 4.5: Optimized cooling solution with massive air intake and exhaust. Features 7 pre-installed fans and durable tempered glass construction.

4.4 Compatibility and Drive Support

The case offers wide compatibility for various motherboard form factors and ample drive bay support.

Figure 4.6: Motherboard compatibility includes ATX, M-ATX, and ITX. Drive bay support for 2x HDD and 2x SSD. Also shown are the front panel header connections.

5. සැකසුම් උපදෙස්

Follow these steps to install your components into the GAMEON Midnight I Series PC case.

5.1 නඩුව සකස් කිරීම

1. නඩුව පැතලි, ස්ථාවර මතුපිටක් මත තබන්න.
2. Carefully remove the tempered glass side panel(s) by unscrewing the thumb screws and gently sliding the panel off. Set them aside in a safe place.
3. Remove any internal packaging materials.

5.2 මවු පුවරුව සවි කිරීම

1. I/O පලිහ (ඔබේ මවු පුවරුවේ පෙර ස්ථාපනය කර නොමැති නම්) නඩුවේ පසුපස විවරයට ස්ථාපනය කරන්න.
2. Align your motherboard with the standoffs inside the case. Ensure the standoffs match your motherboard's form factor (ATX, M-ATX, ITX).
3. සපයා ඇති ඉස්කුරුප්පු වලින් මවු පුවරුව සුරක්ෂිත කරන්න.

5.3 බල සැපයුම් ඒකකය (PSU) ස්ථාපනය

1. Locate the PSU mounting area at the bottom rear of the case.
2. Slide your PSU into position from the rear of the case.
3. Secure the PSU with the provided screws.

5.4 Drive Installation (HDD/SSD)

මෙම කේස් එක 2x 3.5" HDD සහ 2x 2.5" SSD සඳහා සහය දක්වයි.

• For 3.5" HDDs: Locate the drive cage, typically near the PSU shroud. Slide the HDD into the drive bay and secure it with screws.
• For 2.5" SSDs: Mount the SSDs to the designated mounting points, usually on the back of the motherboard tray or within the drive cage, using the provided screws.

5.5 ග්‍රැෆික් කාඩ්පත සහ පුළුල් කිරීමේ කාඩ්පත ස්ථාපනය කිරීම

1. නඩුවේ පිටුපසින් අවශ්‍ය PCIe තව් ආවරණ ඉවත් කරන්න.
2. ඔබේ මවු පුවරුවේ සුදුසු PCIe තව් වලට ඔබේ ග්‍රැෆික් කාඩ්පත හෝ වෙනත් පුළුල් කිරීමේ කාඩ්පත් ඇතුළු කරන්න.
3. කාඩ්පත් ඉස්කුරුප්පු වලින් සුරක්ෂිත කරන්න.

5.6 කේබල් කළමනාකරණය

කේබල් කළමනාකරණය කිරීම සඳහා මවු පුවරුවේ තැටිය පිටුපස ඇති කේබල් රවුටින් කටවුට් සහ ගැටගැසීම් ස්ථාන භාවිතා කරන්න. මෙය වායු ප්‍රවාහය සහ සෞන්දර්යය වැඩි දියුණු කරයි.

5.7 Connecting Front Panel I/O and Fans

• Connect the front panel cables (Power SW, Reset SW, HDD LED, Power LED, USB 3.0, USB 2.0, HD Audio) to their corresponding headers on your motherboard. Refer to your motherboard manual for header locations.
• Ensure the pre-installed ARGB fans are connected to the included ARGB/PWM controller. Connect the controller to a SATA power connector from your PSU and a 3-pin ARGB header (if available) and a 4-pin PWM header on your motherboard for software control, or use the remote for standalone control.

6. මෙහෙයුම් උපදෙස්

6.1 බල ගැන්වීම සක්‍රිය / අක්‍රිය කිරීම

• After all components are installed and cables connected, replace the side panels.
• Connect your monitor, keyboard, mouse, and power cable to the PSU.
• Press the Power button on the front panel to turn on your PC.
• To turn off, use the operating system's shutdown function or press and hold the Power button for several seconds.

6.2 ARGB විදුලි පංකා පාලනය

පෙර ස්ථාපනය කර ඇති ARGB විදුලි පංකා ක්‍රම දෙකකින් පාලනය කළ හැකිය:

• දුරස්ථ පාලක: Use the included remote to cycle through various lighting effects, adjust brightness, and change fan speed.
• මවු පුවරු මෘදුකාංග: If the ARGB controller is connected to a compatible 3-pin ARGB header on your motherboard, you can synchronize lighting effects with your motherboard's RGB software (e.g., ASUS Aura Sync, MSI Mystic Light Sync, ASRock Polychrome RGB, Gigabyte RGB Fusion).

7. නඩත්තු කිරීම

නිතිපතා නඩත්තු කිරීම ඔබේ පරිගණක නඩුවේ ප්‍රශස්ත ක්‍රියාකාරිත්වය සහ කල්පැවැත්ම සහතික කිරීමට උපකාරී වේ.

7.1 දූවිලි පෙරහන් පිරිසිදු කිරීම

The case includes dust filters to prevent dust buildup. It is recommended to clean them every 1-3 months, depending on your environment.

1. Locate the dust filters (e.g., top, bottom, front).
2. පෙරහන් මෘදු ලෙස ඉවත් කරන්න.
3. Clean them using compressed air, a soft brush, or by rinsing with water (ensure they are completely dry before re-installing).
4. Re-attach the dust filters.

7.2 සාමාන්ය පිරිසිදු කිරීම

• මෘදු, ඩී භාවිතා කරන්නamp cloth to wipe down the exterior surfaces of the case. Avoid abrasive cleaners.
• For tempered glass panels, use a glass cleaner and a microfiber cloth to avoid streaks.

7.3 Fan Cleaning

Periodically inspect the fan blades for dust accumulation. Use compressed air to gently clear dust from the fan blades and grilles.

8. දෝශ නිරාකරණය

If you encounter issues with your PC case, refer to the following common problems and solutions.

8.1 Fans Not Spinning or ARGB Not Working

• බල සම්බන්ධතාවය පරීක්ෂා කරන්න: Ensure the ARGB/PWM controller is properly connected to a SATA power connector from your PSU.
• විදුලි පංකා සම්බන්ධතා පරීක්ෂා කරන්න: Verify that all fans are securely connected to the ARGB/PWM controller.
• දුරස්ථ පාලක බැටරි: If using the remote, check if its battery needs replacement.
• මවු පුවරු මෘදුකාංග: If using motherboard software for control, ensure the controller is connected to the correct ARGB header and the software is installed and configured correctly.
• පංකා දිශාව: Ensure fans are oriented correctly for optimal airflow (intake/exhaust).

8.2 Front I/O Ports Not Functioning

• Check Motherboard Connections: Ensure all front panel cables (USB 3.0, USB 2.0, HD Audio) are correctly and securely connected to their respective headers on the motherboard. Refer to your motherboard manual.

8.3 PC Not Powering On

• Power Button Connection: Verify the Power SW cable from the front panel is correctly connected to the motherboard's front panel header.
• PSU Connection: PSU බිත්ති අලෙවිසැලට නිසි ලෙස සම්බන්ධ කර ඇති බවත් PSU හි බල ස්විචය 'ON' ස්ථානයේ ඇති බවත් සහතික කර ගන්න.
• Internal Power Cables: Check that all necessary power cables (24-pin ATX, CPU, GPU) are securely connected to the motherboard and components.

9. පිරිවිතර

10. වගකීම් සහ සහාය

This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact GAMEON customer support. For technical assistance or further inquiries, please visit the official GAMEON webඅඩවියට පිවිසෙන්න හෝ ඔවුන්ගේ සහාය නාලිකා අමතන්න.
