7artisans 24-96mm T2.9 S35 වෘත්තීය විශාලන සිනමා කාච පරිශීලක අත්පොත

1. හැඳින්වීම

This manual provides detailed instructions for the proper use and care of your 7artisans 24-96mm T2.9 S35 Professional Zoom Cine Lens. This lens is designed for cinematic applications, offering a 4X optical zoom range, a constant T2.9 aperture, and a parfocal optical design. Please read this manual thoroughly before using the lens to ensure optimal performance and longevity.

Figure 1.1: The 7artisans 24-96mm T2.9 S35 Professional Zoom Cine Lens, showcasing its robust construction and clear markings.

2. නිෂ්පාදන ලක්ෂණ

• S35 Frame Compatibility: Designed for Super 35 format cameras, providing a 4X optical zoom range with focal lengths between 24-96mm.
• Constant T2.9 Aperture: Maintains a consistent T2.9 aperture across the entire zoom range (T2.9-T22), facilitating clear imaging in low-light conditions and consistent exposure.
• 240° Focus Throw: Offers a wide 240-degree focus rotation for precise and delicate focus adjustments, enhancing control during shooting.
• Parfocal Design: Ensures that focus remains consistent throughout the zoom range, improving shooting efficiency and maintaining image continuity.
• Imperceptible Breathing: Engineered to minimize focus breathing, ensuring image stability and consistency during focus transitions without changes in the frame.

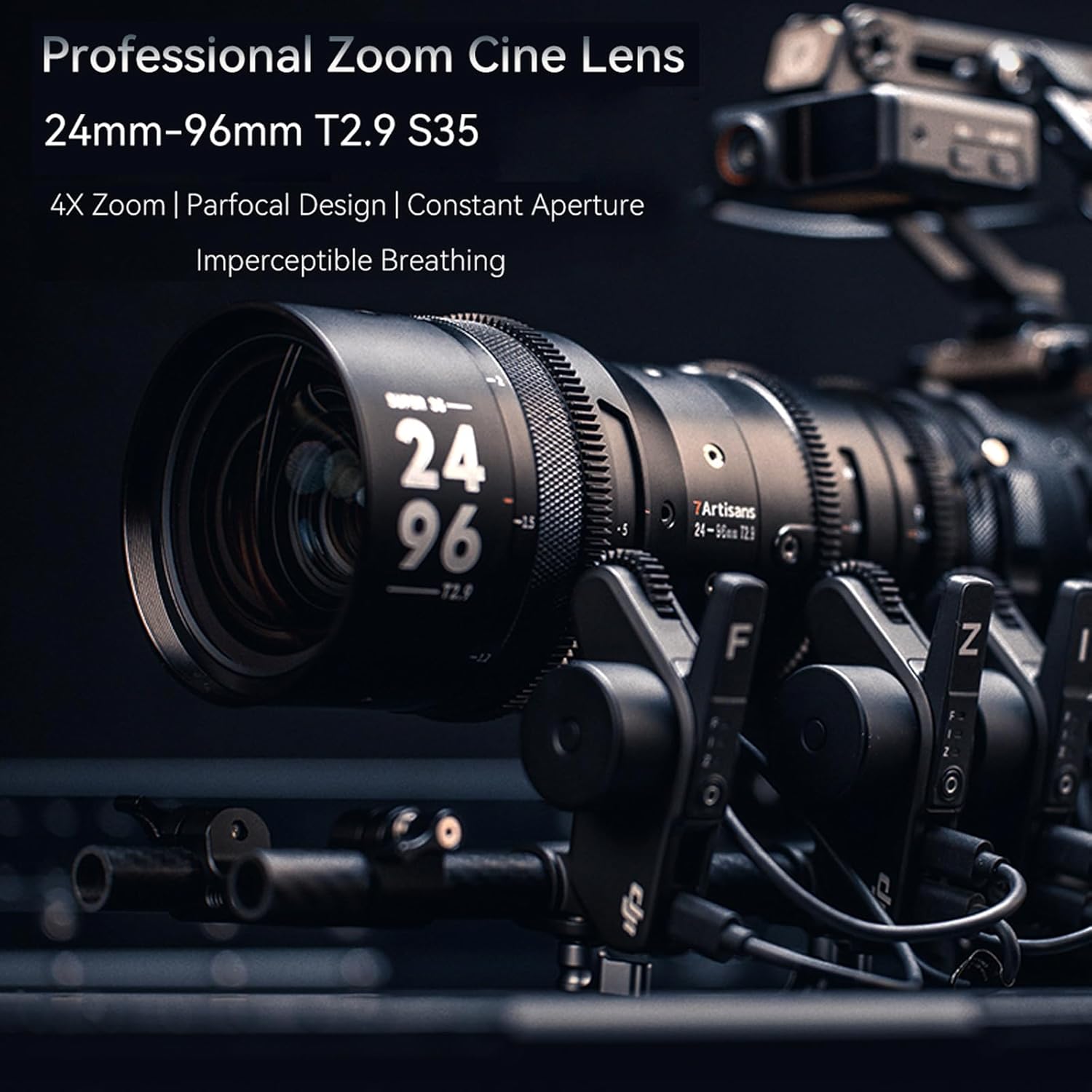

Figure 2.1: The 7artisans 24-96mm T2.9 S35 Professional Zoom Cine Lens mounted on a camera rig, illustrating its professional application.

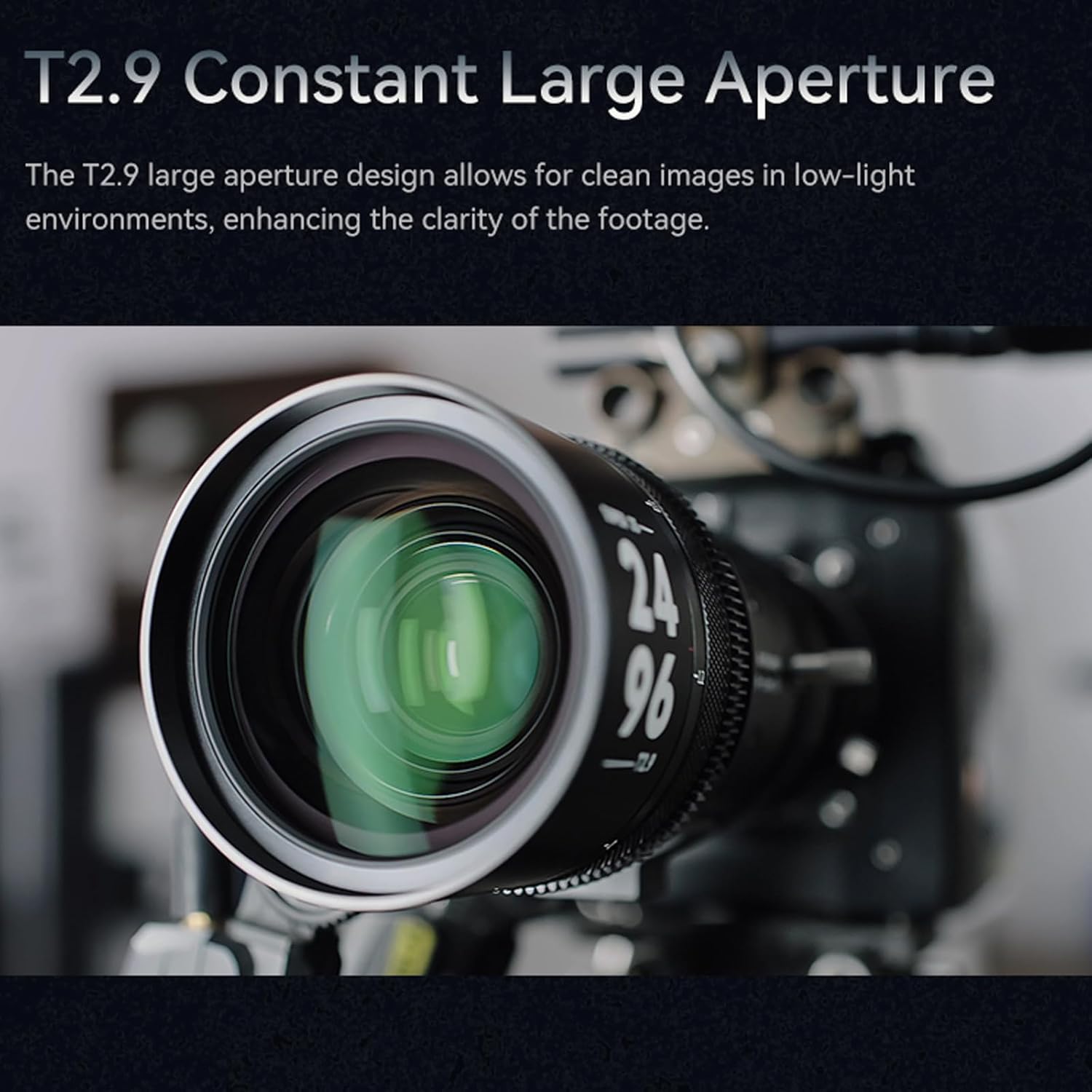

රූපය 2.2: ඉදිරිපස view of the lens, highlighting the T2.9 constant large aperture for low-light performance.

3. පැකේජ අන්තර්ගතය

පහත සඳහන් සියලු අයිතම ඔබේ නිෂ්පාදන පැකේජයට ඇතුළත් කර ඇති බව තහවුරු කර ගන්න:

• 7artisans 24-96mm T2.9 S35 Professional Zoom Cine Lens
• කාච පසුපස කැප්
• Lens Front Cap
• පෙරහන් ඇඩප්ටරය
• ඉස්කුරුප්පු ඇණ
• Dry Cabinet (for storage)

රූපය 3.1: අවසන්view of the lens and its included accessories.

4. පිහිටුවීම

4.1 කාචය සවි කිරීම

1. කාචය සවි කිරීමට හෝ වෙන් කිරීමට පෙර ඔබේ කැමරාව ක්‍රියා විරහිත කර ඇති බවට වග බලා ගන්න.
2. Remove the rear lens cap from the 7artisans 24-96mm T2.9 S35 lens and the body cap from your camera.
3. Align the mounting index on the lens with the corresponding index on your camera body (e.g., red dot to red dot for EF mount).
4. Gently insert the lens into the camera's lens mount and rotate it clockwise until it clicks into place, indicating it is securely locked.

4.2 Using the 1.5X Teleconverter (Optional)

The lens can be used with a 1.5X teleconverter to extend the focal length range to 35-140mm. Attach the teleconverter between the lens and the camera body following the manufacturer's instructions for the teleconverter.

Figure 4.1: The lens shown with different camera mounts (E, L, PL, RF, Z Mounts) using an adapter ring.

5. ක්‍රියාත්මක වීම

5.1 Focus Control

The lens features a manual focus ring with a 240° throw. Rotate the focus ring to achieve precise focus on your subject. The wide throw allows for fine adjustments, crucial for cinematic work.

5.2 විශාලන පාලනය

Adjust the focal length using the zoom ring, which has a 100° throw. The parfocal design ensures that your focus point remains consistent as you zoom in or out, eliminating the need to refocus after changing focal length.

Figure 5.1: Demonstrating the 4X optical zoom capability of the lens.

5.3 විවර පාලනය

The aperture ring provides manual control over the T-stop, with a 90° throw. The constant T2.9 aperture ensures consistent light transmission across the entire zoom range, simplifying exposure settings.

Figure 5.2: The lens showing the distinct focus, zoom, and aperture rings with their respective throw angles.

5.4 Parfocal Performance

The parfocal optical design is a key feature, allowing you to maintain sharp focus on your subject even when changing the focal length. This is particularly beneficial in dynamic shooting environments where constant refocusing would be disruptive.

Figure 5.3: Visual demonstration of the parfocal design, showing consistent focus maintained throughout the zoom range.

5.5 Imperceptible Breathing

The lens is designed to exhibit minimal focus breathing. This means that when you adjust focus, the field of view remains stable, preventing distracting changes in composition and allowing cinematographers to concentrate on their subject.

Figure 5.4: The lens on a camera rig, illustrating its imperceptible breathing feature.

6. නඩත්තු කිරීම

6.1 කාච පිරිසිදු කිරීම

• කාච මතුපිටින් දූවිලි ඉවත් කිරීම සඳහා මෘදු, ලින්ට් රහිත රෙද්දක් හෝ කාච බුරුසුවක් භාවිතා කරන්න.
• මුරණ්ඩු පැල්ලම් හෝ ඇඟිලි සලකුණු සඳහා, පිරිසිදු මයික්‍රෝෆයිබර් රෙද්දකට කාච පිරිසිදු කිරීමේ ද්‍රාවණය කුඩා ප්‍රමාණයක් යොදන්න සහ රවුම් චලිතයකින් කාචය මෘදු ලෙස පිස දමන්න.
• උල්ෙල්ඛ ද්‍රව්‍ය හෝ රළු රසායනික ද්‍රව්‍ය භාවිතා කිරීමෙන් වළකින්න, මන්ද මේවා කාච ආලේපනවලට හානි කළ හැකිය.

6.2 ගබඩා කිරීම

• කාචය භාවිතයේ නොමැති විට සෑම විටම ඉදිරිපස සහ පසුපස කාච ආවරණ සවි කරන්න.
• කාචය සෘජු හිරු එළියෙන් සහ අධික උෂ්ණත්වයන්ගෙන් ඈත්ව සිසිල් වියළි ස්ථානයක ගබඩා කරන්න.
• Utilize the provided dry cabinet to protect the lens from humidity and dust, which can lead to mold growth.

7. දෝශ නිරාකරණය

If you encounter any issues with your lens, consider the following general troubleshooting steps:

• Lens not mounting securely: Ensure the lens is correctly aligned with the camera mount and rotated until it clicks. Check for any obstructions on the mount.
• අපැහැදිලි රූප: Verify that the lens surfaces are clean and free from dust or smudges. Ensure proper focus and aperture settings.
• Rings are stiff: If the focus, zoom, or aperture rings feel unusually stiff, avoid forcing them. Contact customer support for assistance.
• රූපයේ ගුණාත්මක ගැටළු: Check camera settings, lighting conditions, and ensure the lens is compatible with your camera model.

අඛණ්ඩ ගැටළු සඳහා, සම්බන්ධතා තොරතුරු සඳහා කරුණාකර වගකීම් සහ සහාය අංශය බලන්න.

8. පිරිවිතර

Figure 8.1: Detailed specifications and dimensions of the lens.

9. වගකීම් සහ සහාය

7artisans products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official 7artisans webවෙබ් අඩවිය. වගකීම් හිමිකම් සඳහා මිලදී ගැනීමේ සාක්ෂියක් ලෙස ඔබේ මිලදී ගැනීමේ රිසිට්පත තබා ගන්න.
