GIVI E455NT Monolock Top Case Instruction Manual

1. හැඳින්වීම

This manual provides essential instructions for the safe and correct installation, operation, and maintenance of your GIVI E455NT Monolock Top Case. Please read this manual thoroughly before using the product to ensure optimal performance and safety. The GIVI E455NT is a 45-liter motorcycle top case designed for secure storage, featuring a Monolock attachment system and smoked reflectors for enhanced visibility.

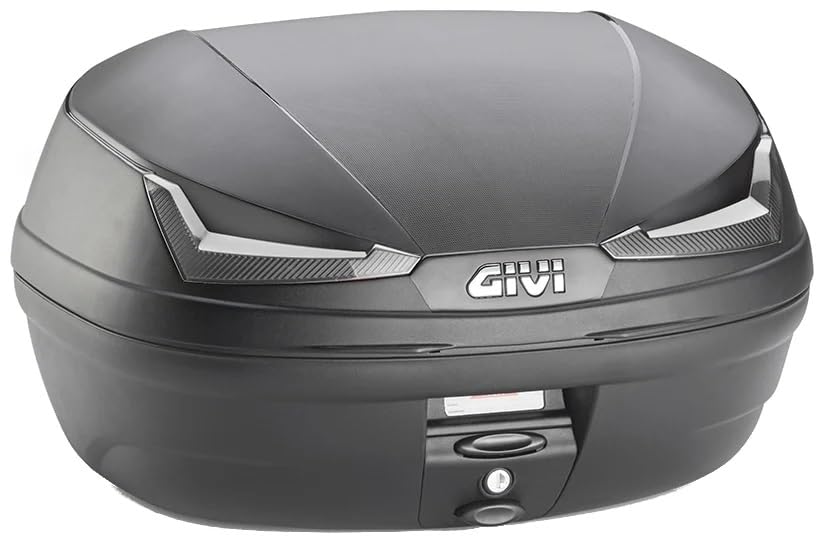

රූපය 1.1: ඉදිරිපස view of the GIVI E455NT Monolock Top Case.

2 ආරක්ෂිත තොරතුරු

• උපරිම බර: Do not exceed the maximum load capacity of 3 kg (6.6 lbs). Overloading can affect motorcycle stability and handling.
• වේග සීමාව: Always adhere to the speed limits recommended by your motorcycle manufacturer and local traffic laws. Excessive speed with luggage can compromise stability.
• බර බෙදා හැරීම: Distribute the weight evenly inside the top case. Place heavier items at the bottom and center to maintain balance.
• ආරක්ෂිත වසා දැමීම: Always ensure the top case is securely closed and locked before riding.
• නිතිපතා චෙක්පත්: Periodically check the mounting screws and attachment system for tightness, especially after long rides or rough terrain.
• Motorcycle Handling: Be aware that adding a top case can alter your motorcycle's center of gravity and handling characteristics. Practice riding with the loaded top case in a safe environment.

3. පැකේජ අන්තර්ගතය

සියලුම සංරචක පැකේජයේ ඇති බව තහවුරු කර ගන්න:

• GIVI E455NT Monolock Top Case (45 Liters)
• Universal Monolock Plate
• Mounting Hardware Kit (screws, washers, brackets)
• යතුරු (2x)
• උපදෙස් අත්පොත (මෙම ලේඛනය)

4. පිහිටුවීම සහ ස්ථාපනය

The GIVI E455NT top case utilizes the Monolock system, which requires a universal plate to be mounted on your motorcycle's existing rear rack. If your motorcycle does not have a rear rack, a specific GIVI fitting kit may be required (sold separately).

4.1 Mounting the Universal Plate

1. රාක්කය සකස් කරන්න: Ensure your motorcycle's rear rack is clean and free from obstructions.
2. තහඩුව ස්ථානගත කරන්න: Place the universal Monolock plate on the rear rack. Adjust its position to ensure it is centered and does not interfere with the passenger seat or other motorcycle components.
3. වරහන් අමුණන්න: Use the provided brackets and screws to secure the universal plate to the motorcycle rack. Depending on your rack design, you may need to use different combinations of brackets and spacers. Ensure all screws are tightened firmly but do not overtighten.
4. ස්ථාවරත්වය තහවුරු කරන්න: Once mounted, gently shake the plate to ensure it is securely attached and does not wobble.

Image 4.1: Illustration of the universal Monolock plate installation on a motorcycle rack.

4.2 Attaching the Top Case to the Plate

1. නඩුව පෙළගස්වන්න: Position the GIVI E455NT top case over the mounted universal plate, aligning the front hooks of the top case with the corresponding slots on the plate.
2. පහළට ඔබන්න: Gently press the top case down until it clicks into place. You should hear an audible click, indicating that the rear locking mechanism has engaged.
3. ආරක්ෂාව සත්‍යාපනය කරන්න: Attempt to lift the top case without pressing the release button. It should be firmly attached to the plate.

Image 4.2: Attaching the top case to the universal Monolock plate.

5. මෙහෙයුම් උපදෙස්

The GIVI Monolock system allows for opening, closing, and detaching the top case with a single key.

5.1 Opening the Top Case

1. Insert the key into the lock cylinder located at the front of the top case.
2. Turn the key clockwise to unlock the lid.
3. Press the button adjacent to the lock cylinder to release the lid.
4. Lift the lid to open the top case.

5.2 Closing and Locking the Top Case

1. Lower the lid until it clicks shut.
2. Turn the key counter-clockwise to lock the lid. Remove the key.
3. Always ensure the lid is securely closed and locked before riding.

Image 5.1: Detail of the Monolock opening and locking mechanism.

5.3 Detaching the Top Case from the Plate

1. අගුළු සිලින්ඩරයට යතුර ඇතුල් කරන්න.
2. Turn the key clockwise to the position that allows the release button to be pressed.
3. While holding the key in this position, press the large red release button located at the base of the top case, near the lock.
4. Lift the top case upwards and backwards to remove it from the universal plate.

Image 5.2: Detaching the top case from the universal plate.

6. නඩත්තු කිරීම

• පිරිසිදු කිරීම: Clean the top case with a soft cloth, mild soap, and water. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the polycarbonate material and smoked reflectors.
• ලිහිසි තෙල්: Periodically lubricate the lock mechanism with a silicone-based spray to ensure smooth operation.
• ගබඩා: When not in use, store the top case in a cool, dry place away from direct sunlight to prevent material degradation.
• පරාවර්තක: Keep the smoked reflectors clean to maintain their visibility.

7. දෝශ නිරාකරණය

• Case difficult to open/close: Check for obstructions inside the case or around the sealing edges. Ensure the lock mechanism is clean and lubricated.
• Case not locking: Ensure the lid is fully closed and aligned. The key should turn smoothly. Do not force the key.
• Case loose on plate: Verify that the universal plate is securely mounted to the motorcycle rack. Check that the top case is fully engaged with the Monolock mechanism (listen for the click).
• ජල ඇතුල්වීම: Check the rubber seal around the lid for damage or debris. Ensure the lid is properly closed and latched.

8. පිරිවිතර

Image 8.1: Dimensional diagram of the GIVI E455NT top case.

9. වගකීම් සහ සහාය

GIVI products are manufactured to high-quality standards. For warranty information, specific terms and conditions, or technical support, please refer to the official GIVI website or contact your authorized GIVI dealer. Keep your proof of purchase for any warranty claims.
