ATOTO S8 PN Android Car Stereo User Manual

1. නිෂ්පාදන අවසන්view

The ATOTO S8 PN Android Car Stereo is a 12.3-inch high-definition touchscreen unit designed to upgrade the infotainment system in specific BMW 3 Series models while retaining original vehicle functions. It offers advanced features such as wireless CarPlay, Android Auto, 4G LTE connectivity, GPS tracking, and dual Bluetooth capabilities.

Figure 1.1: ATOTO S8 PN Android Car Stereo Main Unit

2 ප්රධාන ලක්ෂණ

• ගැළපුම: Specifically designed for BMW 3 Series E90, E91, E92, E93 (2008-2012) with CIC original 4 PIN LVDS system, preserving all original vehicle functions.
• DriveChat AI Co-Pilot: An integrated AI assistant for hands-free task assistance and information retrieval while driving.
• High-Performance Touchscreen: Features a 12.3-inch HD 1920x720p IPS screen, powered by an efficient 12nm SoC and ARM Cortex Octa-Core processor with 4GB RAM + 64GB storage.
• රැහැන් රහිත සම්බන්ධතාවය: Supports wireless CarPlay, Android Auto, and Mirror Link for seamless smartphone integration.
• Multiple Internet Options: Offers 4G, Wi-Fi, USB, and Dual Bluetooth for versatile online access and device pairing.
• ජීපීඑස් ලුහුබැඳීම: Includes TrackHU, ATOTO's GPS tracking app, with real-time tracking, 4-satellite positioning, and geofence alerts.
• උසස් ශ්‍රව්‍ය: Equipped with DSP (Digital Signal Processor) for cinematic audio and a 32-band Equalizer for sound customization.

3. අනුකූලතා පරීක්ෂාව

Before installation, it is crucial to confirm your BMW 3 Series (E90, E91, E92, E93) model (2008-2012) has the CIC system. This unit is not compatible with NBT, CCC, or EVO systems. Verify the following three features:

1. iDrive UI: Check the appearance of your iDrive user interface.
2. ආරම්භක/නැවතුම් ස්විචය: Confirm the type of start/stop switch in your vehicle.
3. LVDS Connector: Locate the 4-PIN LVDS connector at the rear of your OEM display.

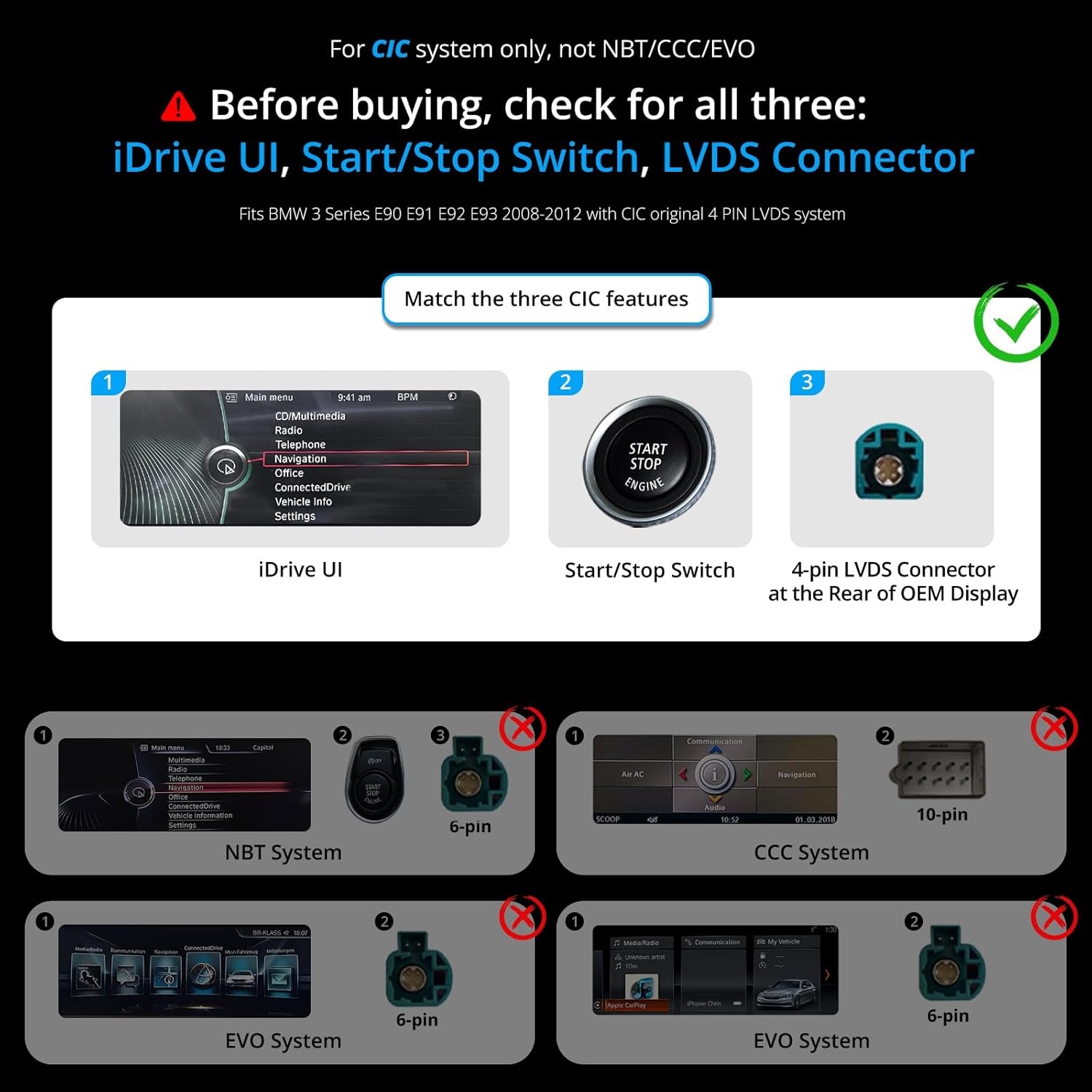

Figure 3.1: Visual guide for identifying CIC system compatibility

Figure 3.2: How to confirm your car's system type

4. ඇසුරුම් ලැයිස්තුව

The following items are included in your ATOTO S8 PN package:

Figure 4.1: ATOTO S8 PN Packing List and Accessories

• 12.3 inch Display Unit
• BMW Power Cable Harness
• සවිකරන වරහන
• අගුලු දැමීමේ වරහන්
• සවිකරන ඉස්කුරුප්පු
• Can Bus Decoder (For CCC/CIC)
• කුඩා කථානායක
• GPS ඇන්ටනාව
• 4 ජී ඇන්ටෙනාව
• USB to 4 Pin Cable
• USB to 6 Pin Cable
• RCA කේබල්
• පසුපස-View කැමරා කේබලය
• 9.84 FT/3M Lavalier Microphone
• මාර්ගගත සම්පත් ඉක්මන් මාර්ගෝපදේශය
• Product Care Online Support Information

5. ස්ථාපන මාර්ගෝපදේශය

මෙම කොටස සාමාන්‍ය අවසන් කිරීමක් සපයයිview of the installation process. For detailed visual instructions, please refer to the installation video below.

5.1. රැහැන් සටහන

Refer to the following diagram for proper wiring connections:

Figure 5.1: ATOTO S8 PN Wiring Diagram

5.2. සාමාන්‍ය ස්ථාපන පියවර

1. මුල් සංරචක ඉවත් කරන්න: Carefully remove the air conditioning vents, climate control module, original CD player, and the original car display using appropriate pry tools. Disconnect all power connectors and the LVDS connector.
2. ෆයිබර් ඔප්ටික් කේබලය සම්බන්ධ කරන්න: Press the small buckle on the original ISO wire head with tweezers and remove the 2P green optical fiber cable. Connect this cable to the Android ISO female end, ensuring correct alignment.
3. Connect ISO Plug: Connect the ISO plug from the original host to the male connector of the Android ISO harness.
4. Reinstall Original Host: Reinstall the original host, ensuring it is properly seated, then lock and secure it in place.
5. Reconnect Climate Control Module: Reconnect the plugs on the back of the climate control module and reinstall it.
6. පැති කවරය ස්ථාපනය කරන්න: Install the side cover of the storage box after tucking excess harness into the gap above the storage box.
7. Reconnect Air Conditioning Vents: Reconnect the plug on the back of the air conditioning vents and reinstall them.
8. Connect Accessories to New Screen: Connect the 4G antenna, GPS antenna, Wi-Fi antenna, rear-view camera, external storage, phone link, Can Bus Decoder, and audio output cables to the new screen.
9. Attach Bezel: Snap the bezel securely onto the screen.
10. නව සංදර්ශකය ස්ථාපනය කරන්න: Align the four clips on the back of the S8 PN with the four clip slots on the mounting bracket and press down gently to secure the S8 PN.

සටහන: Make sure to insert the LVDS cable first before inserting the power cable during the wiring process.

6. මූලික සැකසුම

After physical installation, perform the initial setup to ensure optimal display and functionality.

6.1. Screen Resolution, Sound, and Camera Setup

Proper configuration of screen resolution, audio output, and camera settings is essential for the best user experience.

Figure 6.1: Setup Steps for Screen Resolution, Sound, and Camera

1. Set Screen Resolution: Navigate to the display settings and select the appropriate screen resolution for your specific iDrive system to ensure proper display.
2. Configure Sound Output: To ensure the Android system audio plays through your car's original speakers, adjust the sound settings. Switch to manual mode, enter the original iDrive system, and select "AUX front" under "Multimedia" > "External Devices". Ensure the volume is turned up in the AUX Front menu.
3. Setup Camera: If your car is equipped with an original backup camera, turn off the "Local Reverse Switch" option in the settings to enable the factory camera. If installing an aftermarket backup camera, ensure this option is off.

7. මෙහෙයුම් උපදෙස්

This section covers the various functionalities and how to operate your ATOTO S8 PN Android Car Stereo.

7.1. පද්ධති අතර මාරුවීම

Easily switch between the Android system and your original iDrive system.

Figure 7.1: Switching Systems and Theme Selection

7.2. රැහැන් රහිත කාර්ප්ලේ සහ ඇන්ඩ්‍රොයිඩ් ඔටෝ

සංචාලනය, සංගීතය, ඇමතුම් සහ තවත් දේ සඳහා ඔබේ ස්මාර්ට් ජංගම දුරකථනය සමඟ බාධාවකින් තොරව ඒකාබද්ධ වීම භුක්ති විඳින්න.

Figure 7.2: Wireless Connectivity Features

7.3. DriveChat AI Co-Pilot

Utilize the integrated AI co-pilot for voice-activated assistance and information.

Figure 7.3: DriveChat AI Co-Pilot Interface

7.4. DSP Audio Customization

Tailor your audio experience with the built-in Digital Signal Processor and 32-band equalizer.

Figure 7.4: DSP Audio Settings

7.5. Dual Bluetooth Functionality

Connect multiple Bluetooth devices simultaneously for calls, streaming, and hotspot functionality.

Figure 7.5: Multitasking with Dual Bluetooth

7.6. Split Screen Multitasking

Manage multiple applications simultaneously without switching between them.

Figure 7.6: Split Screen Multitasking

7.7. 4G LTE & Wi-Fi Connectivity

Stay connected on the go with various internet options.

Figure 7.7: 4 Internet Options

7.8. GPS Tracking (TrackHU)

Utilize the TrackHU app for real-time GPS tracking and security features.

Figure 7.8: Infotainment and TrackHU GPS Tracking

8. විකල්ප උපාංග

Enhance your driving experience with these optional accessories (not included in the standard package):

Figure 8.1: Explore More with Essential Accessories

• AC-FCR04W Front View කැමරාව: Improves driving precision by spotting obstacles and tight spaces.
• AC-RCR04W Rear View කැමරාව: Assists with reversing and parking.
• AC-AHV68 USB to HDMI Video Out Adaptor: Connects to external displays for an immersive viewඅත්දැකීමෙන්.
• AC-HBV86 HDMI-to-USB Adapter: Connects favorite HDMI devices like TV boxes, Chromecast, Switch, etc.
• AC-UTP1 USB Tire Pressure Monitor: Monitors tire pressure for safety.
• 1080P USB DVR Camera: Records driving footage.
• AC-4450 Bluetooth OBD II: වාහන රෝග විනිශ්චය සඳහා.

රූපය 8.2: ඉදිරිපස සහ පසුපස View කැමරා උපාංග

Figure 8.3: HDMI Adapter Accessories

9. පිරිවිතර

10. දෝශ නිරාකරණය

If you encounter any issues during installation or operation, please consider the following general troubleshooting steps:

• Review ස්ථාපන පියවර: Double-check all wiring connections and ensure they match the provided wiring diagram. Verify that all original components were reinstalled correctly.
• ගැළපුම තහවුරු කරන්න: Re-verify that your vehicle's system is indeed a CIC system as outlined in Section 3.
• බල සම්බන්ධතා පරීක්ෂා කරන්න: Ensure all power cables are securely connected and receiving power.
• තිර විභේදනය: Confirm the screen resolution is set correctly according to your iDrive system (refer to Section 6.1).
• ශ්‍රව්‍ය ප්‍රතිදානය: If there is no sound, ensure the AUX input is selected in your original iDrive system and the volume is adjusted.
• මෘදුකාංග යාවත්කාලීන: Check for available firmware updates as these often resolve known issues.

For more specific troubleshooting guides and solutions, please refer to the online resources mentioned in the Warranty and Support section.

11. වගකීම් සහ සහාය

ATOTO provides comprehensive support for its products.

Figure 11.1: Online Resources and Product Care

• නිෂ්පාදන රැකවරණය: A 12-month warranty is included from the purchase date. This can be extended for an additional 6 months, totaling 18 months. Details for extension are available in the online resource quick guide.
• සබැඳි සම්පත්: Scan the QR code on the product box to access Eproductcare for quick guides and support in multiple languages.
• පාරිභෝගික සහාය: The customer care team is available around the clock on workdays. Refer to package details for contact information.
• ස්ථිරාංග යාවත්කාලීන කිරීම්: ATOTO regularly provides system firmware updates. Users can obtain the latest firmware to ensure a smooth user experience.
