LIBRATON 9.5" One-Handed Rivet Nut Tool

1. නිෂ්පාදන අවසන්view

The LIBRATON 9.5" One-Handed Rivet Nut Tool is designed for efficient and reliable installation of threaded rivet nuts in various materials. This heavy-duty tool kit includes a rivet nut gun, a comprehensive set of interchangeable mandrels, and a variety of rivet nuts, all organized in a durable carrying case.

ප්රධාන ලක්ෂණ:

• සම්පූර්ණ කට්ටලය: Includes rivet nut gun, 8 interchangeable mandrels (M3, M4, M5, M6, 6-32", 8-32", 10-24", 1/4-20"), and 80 threaded rivet nuts (10 of each size).
• කල් පවතින ඉදිකිරීම්: Made from aluminum alloy die-casting with a glossy spraying surface for long-lasting performance.
• Ergonomic Design: Features an ergonomic handle with larger leverage for force-saving operation and a thickened TPR coating for shockproof, comfortable use.
• පුළුල් යෙදුම: Suitable for automotive body panels, sheet metal, plastic parts, riveted wood, furniture, and decorative items.
• පහසු මෙහෙයුම: Simple installation and removal of mandrels and rivet nuts.

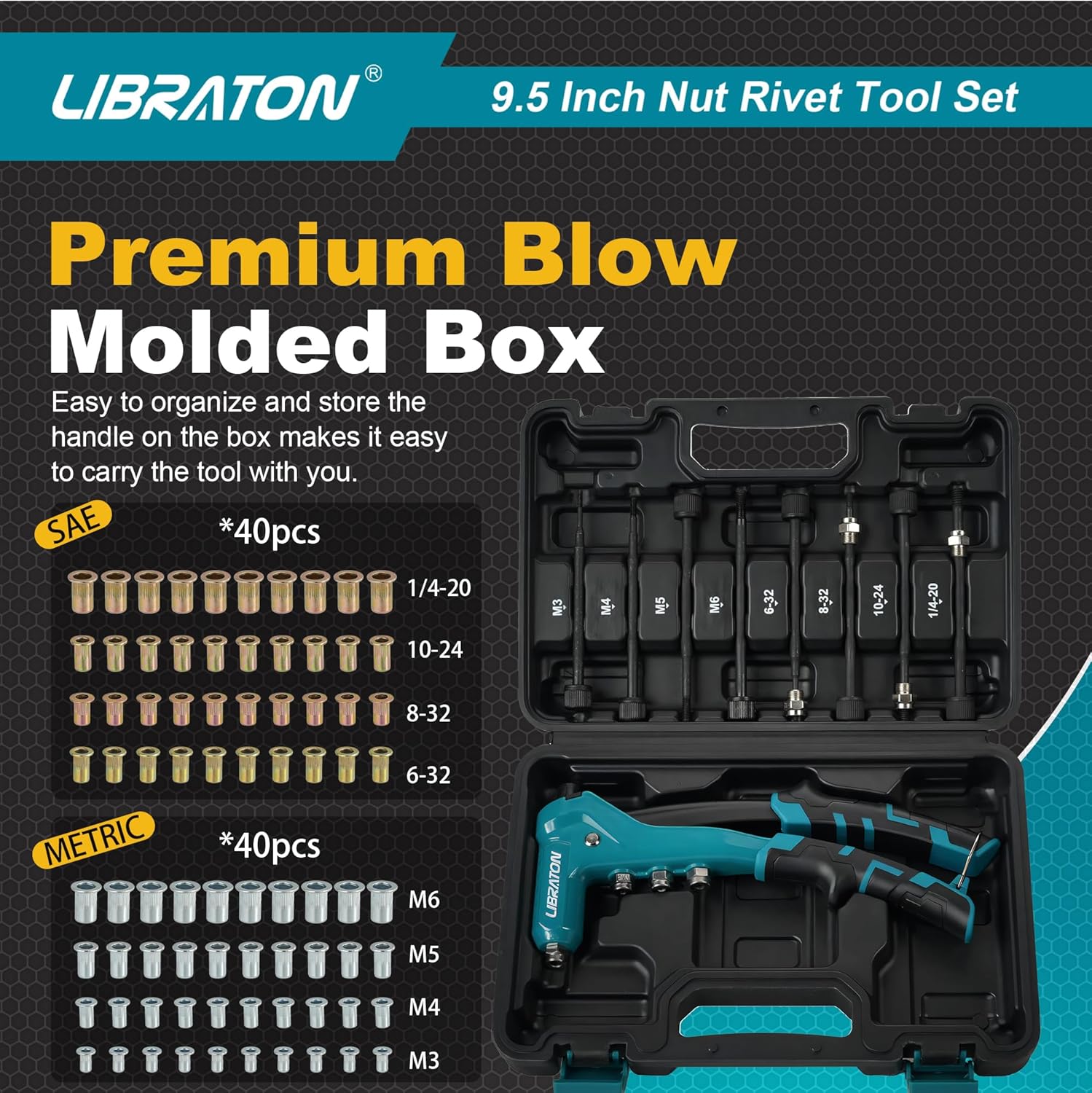

Image 1.1: The LIBRATON 9.5" One-Handed Rivet Nut Tool kit, showcasing the tool, mandrels, and rivet nuts.

වීඩියෝ 1.1: ඕවරයක්view of the LIBRATON One-Handed Rivet Nut Gun, demonstrating its features and ease of use.

2. පැකේජ අන්තර්ගතය

Please verify that all items listed below are present in your kit:

• 1 x LIBRATON 9.5" One-Handed Rivet Nut Tool
• 8 x Interchangeable Mandrels: M3, M4, M5, M6, 6-32", 8-32", 10-24", 1/4-20"
• 80 x Threaded Rivet Nuts (10 of each size: M3, M4, M5, M6, 6-32", 8-32", 10-24", 1/4-20")
• 1 x Blow-Molded Storage Case

Image 2.1: Close-up of the LIBRATON Rivet Nut Tool highlighting its ergonomic handle and one-handed operation.

3 ආරක්ෂිත තොරතුරු

Always follow basic safety precautions when using hand tools to reduce the risk of injury:

• Wear appropriate personal protective equipment, including safety glasses, to protect against flying debris.
• වැඩ කොටස ආරක්ෂිතව cl බව සහතික කර ගන්නamped or held before riveting.
• මෙවලම හානි වී ඇත්නම් හෝ අක්‍රිය වී ඇත්නම් එය භාවිතා නොකරන්න.
• ක්‍රියාත්මක වන අතරතුර අත් සහ ඇඟිලි චලනය වන කොටස් වලින් ඉවත් කර තබා ගන්න.
• Store the tool and accessories in the provided case when not in use to prevent damage and maintain organization.
• දරුවන්ට ළඟා විය නොහැකි ලෙස තබා ගන්න.

4. Setup and Mandrel Installation

Before using the rivet nut tool, select the correct mandrel and nosepiece size that matches your rivet nut. The kit includes both metric (M3, M4, M5, M6) and SAE (6-32", 8-32", 10-24", 1/4-20") sizes.

Steps for Mandrel and Nosepiece Installation:

1. Identify the correct mandrel and nosepiece size for your rivet nut.
2. Unscrew the existing mandrel (if any) from the tool by rotating the knob at the rear of the tool counter-clockwise.
3. Insert the desired mandrel into the front of the tool.
4. Screw the mandrel clockwise until it is finger-tight.
5. Attach the corresponding nosepiece to the end of the mandrel. Ensure it is securely fastened.

Image 4.1: Illustration of the various metric and SAE mandrels and nosepieces included in the kit.

Image 4.2: Visual guide for installing the mandrel into the rivet nut tool.

5. මෙහෙයුම් උපදෙස්

Follow these steps to properly install a rivet nut using your LIBRATON tool:

1. සිදුර සකස් කරන්න: Drill a hole in your workpiece that is slightly larger than the diameter of the rivet nut body, ensuring a snug fit.
2. Install the Mandrel: As described in Section 4, ensure the correct mandrel and nosepiece are installed.
3. Screw the Rivet Nut: Thread the rivet nut onto the mandrel until it is fully seated against the nosepiece.
4. වැඩ කොටසට ඇතුළු කරන්න: Insert the rivet nut and mandrel assembly into the prepared hole in your workpiece.
5. Squeeze the Handle: Firmly squeeze the handles of the tool together. This action will compress the rivet nut, forming a secure threaded insert in the material. Continue squeezing until resistance is felt and the rivet nut is fully set.
6. Unscrew the Mandrel: Once the rivet nut is set, rotate the knob at the rear of the tool counter-clockwise to unscrew the mandrel from the newly installed rivet nut.
7. අවසන්: The rivet nut is now securely installed, providing a strong internal thread for fastening.

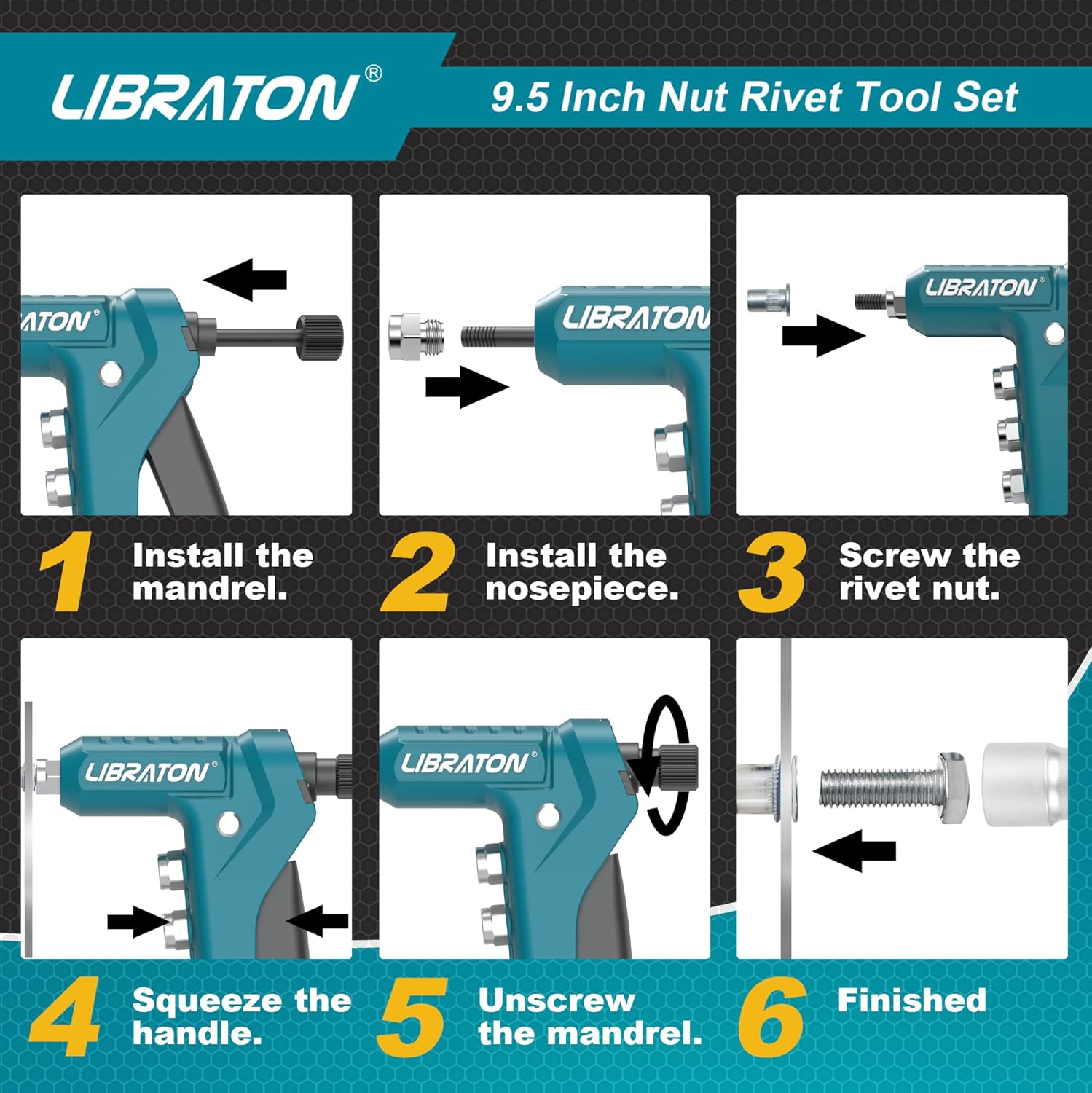

Image 5.1: A visual step-by-step guide demonstrating the operation of the rivet nut tool.

6. නඩත්තු කිරීම

Proper maintenance ensures the longevity and optimal performance of your LIBRATON Rivet Nut Tool:

• පිරිසිදු කිරීම: After each use, wipe down the tool with a clean, dry cloth to remove any dust, debris, or residue.
• ලිහිසි තෙල්: Periodically apply a small amount of light machine oil to the pivot points and threaded parts of the mandrels to ensure smooth operation.
• පරීක්ෂාව: Regularly inspect mandrels and nosepieces for wear or damage. Replace worn components to maintain proper riveting performance.
• ගබඩා: Store the tool and all accessories in the provided blow-molded case in a dry, clean environment to protect them from moisture and impact. Utilize the safety lock on the tool handles for secure storage.

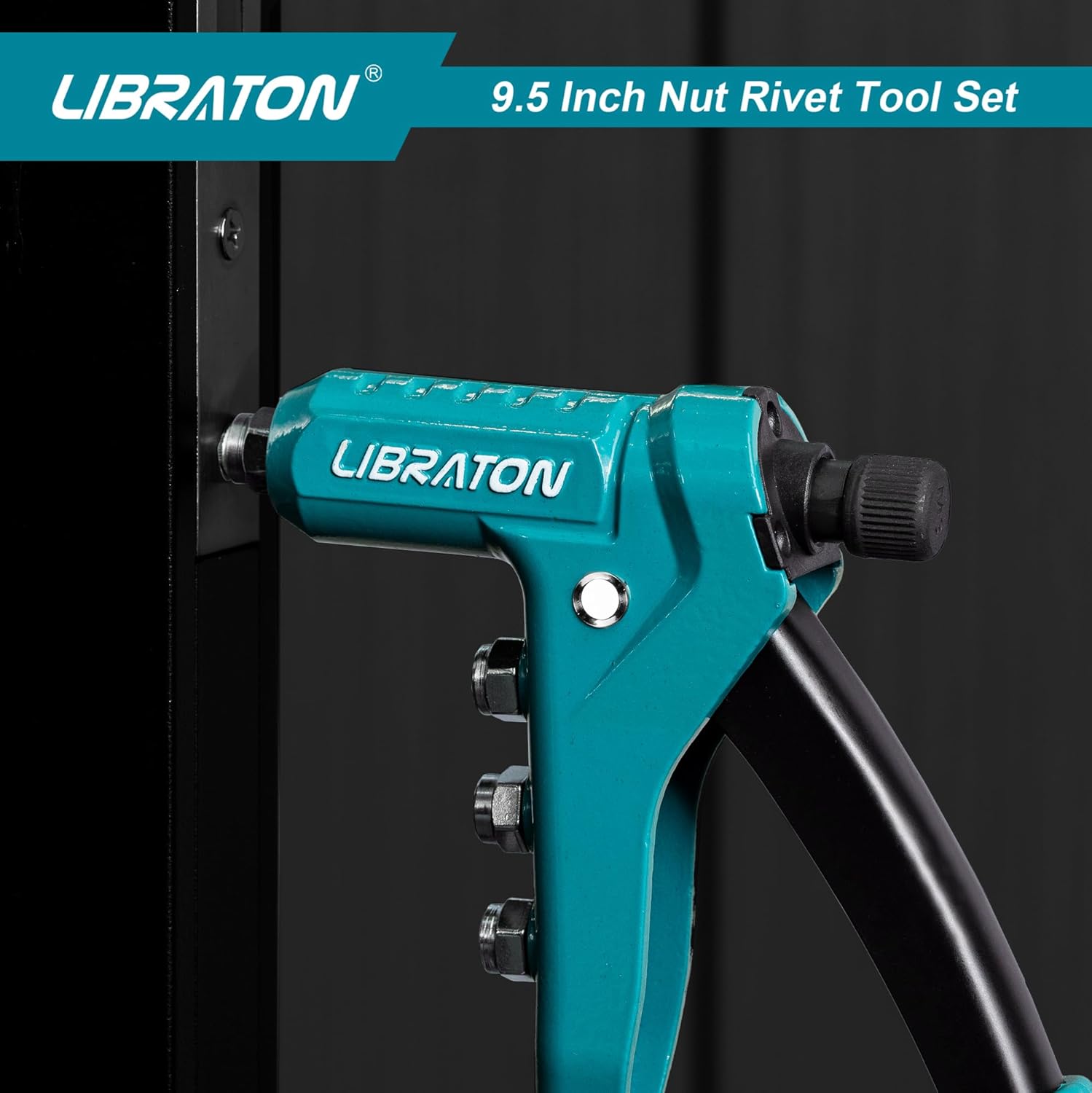

Image 6.1: The LIBRATON Rivet Nut Tool in action, demonstrating its application in a metal frame.

7. දෝශ නිරාකරණය

If you encounter issues while using your rivet nut tool, refer to the following common problems and solutions:

8. පිරිවිතර

9. වගකීම් සහ සහාය

LIBRATON products are manufactured to high-quality standards. For warranty information, product support, or to inquire about replacement parts, please contact LIBRATON customer service through the retailer where the product was purchased or visit the official LIBRATON webඅඩවිය.

ඕනෑම වගකීම් හිමිකම් පෑමක් සඳහා කරුණාකර ඔබගේ මිලදී ගැනීමේ සාක්ෂි තබා ගන්න.
