1. හැඳින්වීම
The LAMAX X5.2 is a versatile action camera designed to capture your adventures in high definition. Featuring real 4K video recording at 30 frames per second (FPS) and Full HD at 60 FPS, it ensures clear and detailed footage. The camera incorporates MAX Soft Electronic Stabilisation for smooth shots, even in dynamic environments. It is waterproof up to 40 meters with its included case, offers USB-C charging, a 2-inch LCD display, and Wi-Fi connectivity for easy file මාරු.
රූපය 1.1: ඉදිරිපස view of the LAMAX X5.2 Action Camera, showcasing එහි කාචය සහ සංයුක්ත නිර්මාණය.
2. පැකේජ අන්තර්ගතය
Before using your LAMAX X5.2 Action Camera, please verify that all items are present in the package:
- LAMAX X5.2 ක්රියාකාරී කැමරාව
- ජල ආරක්ෂිත ආවරණය (මීටර් 40 දක්වා)
- Mounting Accessories (various clips, mounts, and adhesive pads)
- USB-C ආරෝපණ කේබලය
- රෙදි පිරිසිදු කිරීම
- නැවත ආරෝපණය කළ හැකි බැටරි

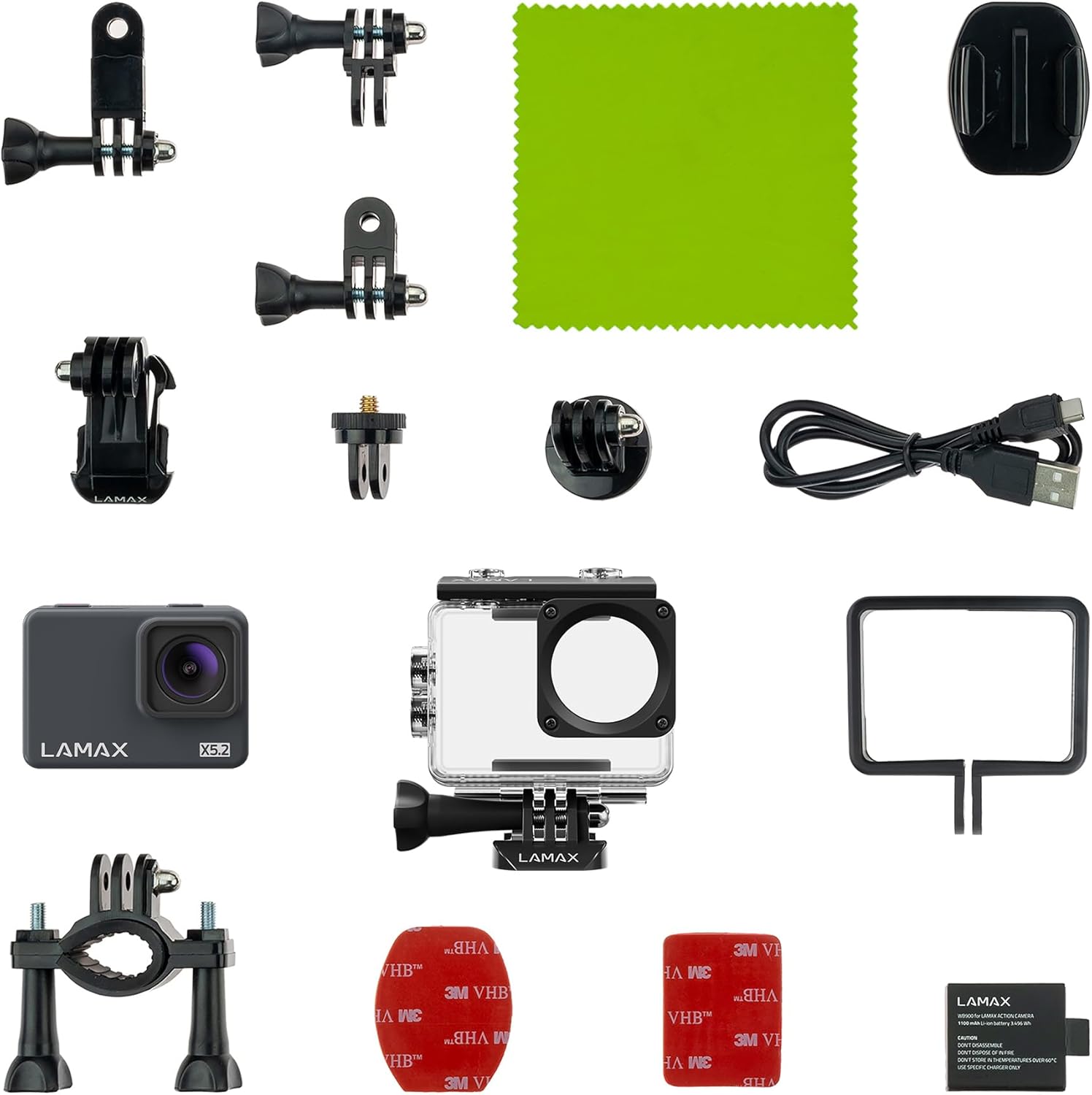

Image 2.1: All components included with the LAMAX X5.2 Action Camera, laid out for inspection.
3. ආරම්භ කිරීම
3.1 බැටරිය ආරෝපණය කිරීම
Before first use, fully charge the camera battery. Connect the camera to a USB power source (e.g., computer, wall adapter) using the provided USB-C cable. The charging indicator light will illuminate during charging and turn off when complete.
3.2 MicroSD කාඩ්පතක් ඇතුළු කිරීම
The LAMAX X5.2 supports microSD cards up to 128 GB. Use a high-speed card (Class 10 or UHS-I/UHS-3 recommended) for optimal performance. Open the card slot cover, insert the microSD card with the contacts facing the correct direction until it clicks into place. To remove, press the card gently until it springs out.
3.3 බල ගැන්වීම සක්රිය / අක්රිය කිරීම
- බල ගැන්වීමට: තිරය ආලෝකමත් වන තුරු බල/ප්රකාර බොත්තම තත්පර කිහිපයක් ඔබාගෙන සිටින්න.
- බලය අක්රිය කිරීමට: තිරය ක්රියා විරහිත වන තුරු නැවත බල/ප්රකාර බොත්තම ඔබාගෙන සිටින්න.
4. මූලික මෙහෙයුම
4.1 මෙනුව සංචාලනය කිරීම
Use the Power/Mode button to cycle through different modes (Video, Photo, Playback, Settings). Use the Up/Down buttons (if available, or the Shutter button for selection) to navigate within menus and adjust settings on the 2-inch LCD display. The multilingual menu allows for easy customization.

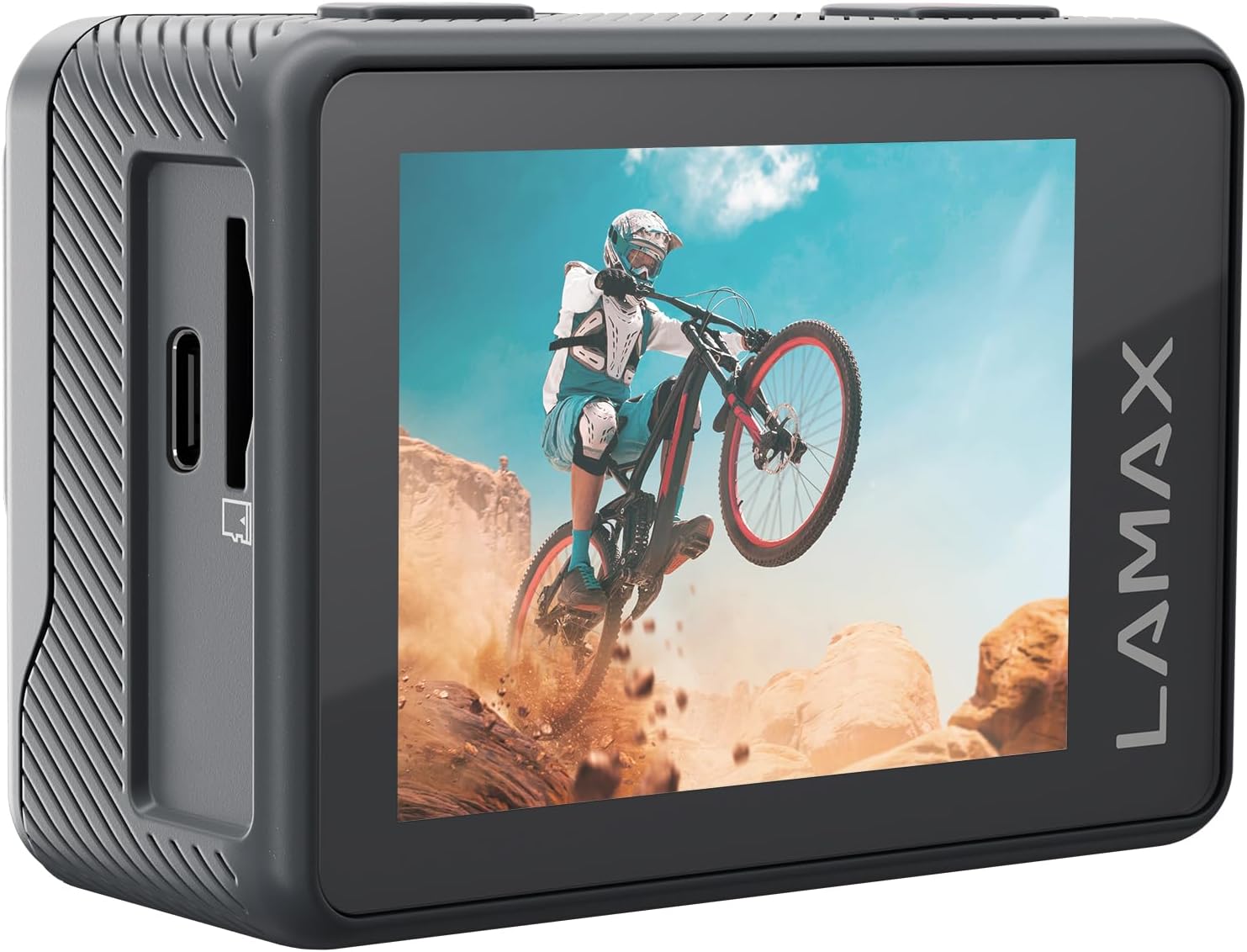

රූපය 4.1: පසුපස view of the LAMAX X5.2 Action Camera, showing the 2-inch LCD screen displaying captured action footage.
4.2 වීඩියෝ පටිගත කිරීම
In Video mode, press the Shutter button to start recording. Press it again to stop. The camera supports real 4K at 30 FPS and Full HD at 60 FPS. MAX Soft Electronic Stabilisation helps achieve smooth video footage.
4.3 ඡායාරූප ගැනීම
In Photo mode, press the Shutter button to take a picture.
4.4 Wi-Fi සම්බන්ධතාවය
Activate Wi-Fi in the camera settings. Download the official LAMAX app on your smartphone or tablet. Connect to the camera's Wi-Fi network. This allows for fast and wireless transfer of footage and remote control of the camera.
5. උසස් විශේෂාංග
The LAMAX X5.2 offers several creative functions:
- කාල පරතරය: Capture a series of photos at set intervals and combine them into a video.
- ලූප් පටිගත කිරීම: Continuously record video, overwriting the oldest fileමතක කාඩ්පත පිරී ඇති විට s.
- මන්දගාමී චලනය: Record video at a higher frame rate to play back in slow motion.
- ස්වයං-ටයිමරය: Set a delay before taking a photo.
6. ජල ආරක්ෂිත භාවිතය
The LAMAX X5.2 is waterproof up to 40 meters when enclosed in its dedicated waterproof case. Ensure the case is properly sealed before submerging the camera. Always rinse the case with fresh water after use in saltwater and allow it to dry completely.
Image 6.1: The LAMAX X5.2 Action Camera securely housed within its transparent waterproof case.
7. නඩත්තු කිරීම
7.1 පිරිසිදු කිරීම
Wipe the camera body and lens with a soft, lint-free cloth. For the waterproof case, clean with fresh water and a soft cloth. Avoid harsh chemicals.
7.2 බැටරි සත්කාර
Store the battery in a cool, dry place. Do not expose to extreme temperatures. If storing for extended periods, charge the battery to approximately 50% every few months.
7.3 ගබඩා කිරීම
When not in use, store the camera and accessories in a protective case to prevent damage from dust and impacts.
8. දෝශ නිරාකරණය
If you encounter issues with your LAMAX X5.2, try the following solutions:
- කැමරාව ක්රියාත්මක නොවේ: Ensure the battery is fully charged. Try a different USB-C cable and power source.
- Recording issues (freezing, corrupted files): Ensure you are using a high-speed microSD card (Class 10 or higher). Format the microSD card in the camera's settings.
- Wi-Fi සම්බන්ධතා ගැටළු: Restart both the camera and your mobile device. Ensure the LAMAX app is up to date.
- දුර්වල රූප/වීඩියෝ ගුණාත්මකභාවය: Check the lens for smudges or dirt. Ensure adequate lighting conditions.
For persistent issues, contact LAMAX customer support.
9. තාක්ෂණික පිරිවිතර
| විශේෂාංගය | පිරිවිතර |
|---|---|
| ආදර්ශ අංකය | X5.2 |
| වීඩියෝ ග්රහණ විභේදනය | 4K (30 FPS), Full HD (60 FPS) |
| ඡායාරූප සංවේදක තාක්ෂණය | CMOS |
| Electronic Stabilization | MAX Soft Electronic Stabilisation |
| ජල ආරක්ෂිත ගැඹුර | Up to 40 m (with waterproof case) |
| සම්බන්ධතාවය | USB-C, Wi-Fi |
| තිර ප්රමාණය | අඟල් 2 |
| ෆ්ලෑෂ් මතක වර්ගය | මයික්රෝ SD (128 GB දක්වා) |
| වීඩියෝ ග්රහණ ආකෘතිය | MP4 |
| සහාය දක්වන ශ්රව්ය ආකෘතිය | MP4 |
| උපරිම නාභීය දිග | මිලිමීටර් 2.8 යි |
| වර්ණය | කළු |
| නිෂ්පාදකයා | ලැමාක්ස් |
10. වගකීම් සහ සහාය
For information regarding the product warranty, please refer to the warranty card included in your package or visit the official LAMAX website. For technical support or service inquiries, please contact LAMAX customer service through their official channels.
