හැඳින්වීම
Thank you for choosing the WELLFOR 10" Shower Faucet System. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new shower system. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your product.
නිෂ්පාදන සංරචක
The WELLFOR 10" Shower Faucet System includes the following main components:
- 10-inch Square Rain Shower Head
- Wall-mounted Shower Arm
- Handheld Shower Spray with 3 Modes
- Shower Hose (1.5m / 59 inches)
- අතේ ගෙන යා හැකි ෂවර් රඳවනය
- Rough-in Valve with Diverter
- පාලන හසුරුව සහ කප්පාදු තහඩුව
පිපිරුණා view of WELLFOR 10-inch Shower Faucet System components, including the rain shower head, handheld shower, hose, and rough-in valve.
Installed WELLFOR 10-inch Shower Faucet System, showcasing the rain shower head, handheld shower, and control valve.
පිරිවිතර
| විශේෂාංගය | විස්තර |
|---|---|
| වෙළඳ නාමය | වෙල්ෆෝර් |
| ආකෘතිය | 10" Shower Faucet System |
| වැසි ෂවර් හිස ප්රමාණය | 10 inches (250mm) Square |
| ෂවර් බාහුවේ දිග | අඟල් 14.09 (මි.මී. 358) |
| Handheld Shower Length | අඟල් 10.51 (මි.මී. 267) |
| ෂවර් හෝස් දිග | අඟල් 59 (මීටර් 1.5) |
| Diverter Type | 2-in-1 (Rain Shower Head / Handheld) |
| Handheld Spray Modes | 3 මාදිලි |
| Rough-in Valve Connection | 1/2-14 එන්පීටී |
| අවසන් කරන්න | Chrome |
| UPC | 769047274941 |
සැකසුම සහ ස්ථාපනය
Professional installation is recommended for this shower system. Ensure all local plumbing codes are followed. Turn off the main water supply before beginning installation.
අවශ්ය මෙවලම් (ඇතුළත් නොවේ):
- සකස් කළ හැකි යතුර
- Pipe Thread Sealant Tape
- ඉස්කුරුප්පු නියනක්
- සරඹ
- මට්ටම
- මිනුම් පටිය
ස්ථාපන පියවර:
- බිත්තිය සකස් කරන්න: Ensure the wall cavity is clear and ready for the rough-in valve installation. Refer to the technical drawing for recommended dimensions and pipe connections.
- රළු-ඉන් කපාටය ස්ථාපනය කරන්න: Connect the hot and cold water lines to the designated inlets on the rough-in valve. Secure the valve to a stringer or base surface within the wall. Ensure the valve is level and the rough-in depth (70mm-90mm / 2.75-3.54 inches from finish wall) is correct.
- Install Shower Arm and Rain Head: Thread the shower arm into the wall outlet. Apply pipe thread sealant tape to all threaded connections. Attach the 10-inch rain shower head to the shower arm.
- අතේ ගෙන යා හැකි ෂවර් රඳවනය ස්ථාපනය කරන්න: Mount the handheld shower holder to the wall at the desired height (recommended 1000-1500mm / 39.37-59.05 inches from floor).
- ෂවර් හෝස් සහ අතේ ගෙන යා හැකි සම්බන්ධ කරන්න: Connect one end of the shower hose to the rough-in valve outlet and the other end to the handheld shower spray. Place the handheld shower into its holder.
- ටිම් ප්ලේට් සහ හැන්ඩ්ල් එක සවි කරන්න: Once all plumbing connections are secure and tested for leaks, install the decorative trim plate and control handle onto the rough-in valve.
- පරීක්ෂණ පද්ධතිය: Turn on the main water supply and check all connections for leaks. Test the functionality of the control handle and diverter.

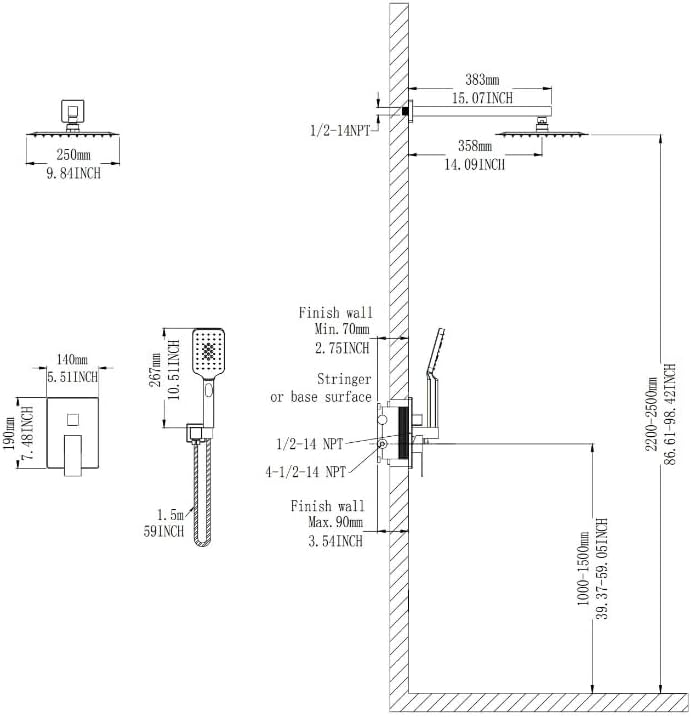

Technical drawing with installation dimensions for the WELLFOR 10-inch Shower Faucet System. Dimensions are in millimeters and inches.
The rough-in valve component of the WELLFOR shower system, showing water inlets and outlets.
මෙහෙයුම් උපදෙස්
The WELLFOR 10" Shower Faucet System features a single control handle for water temperature and flow, and a 2-in-1 diverter to switch between the rain shower head and the handheld spray.
ජල ප්රවාහය සහ උෂ්ණත්ව පාලනය:
- සක්රිය / අක්රිය කරන්න: Rotate the main handle to turn the water flow on or off.
- උෂ්ණත්වය සකස් කරන්න: Rotate the handle left for hotter water and right for colder water.
- ප්රවාහය සීරුමාරු කරන්න: Pull the handle outwards to increase water flow and push inwards to decrease it.
Diverter Function (2-in-1):
- The diverter knob, typically located on the trim plate, allows you to switch the water flow between the rain shower head and the handheld shower.
- Rotate the diverter knob to select your desired water outlet.
Handheld Shower Spray Modes (3-Mode):
The handheld shower features three distinct spray modes for varied showering experiences.
- To change the spray mode, gently rotate the spray face of the handheld shower head or press the button on the handheld unit, depending on the specific design.
- Experiment with the modes to find your preferred setting.

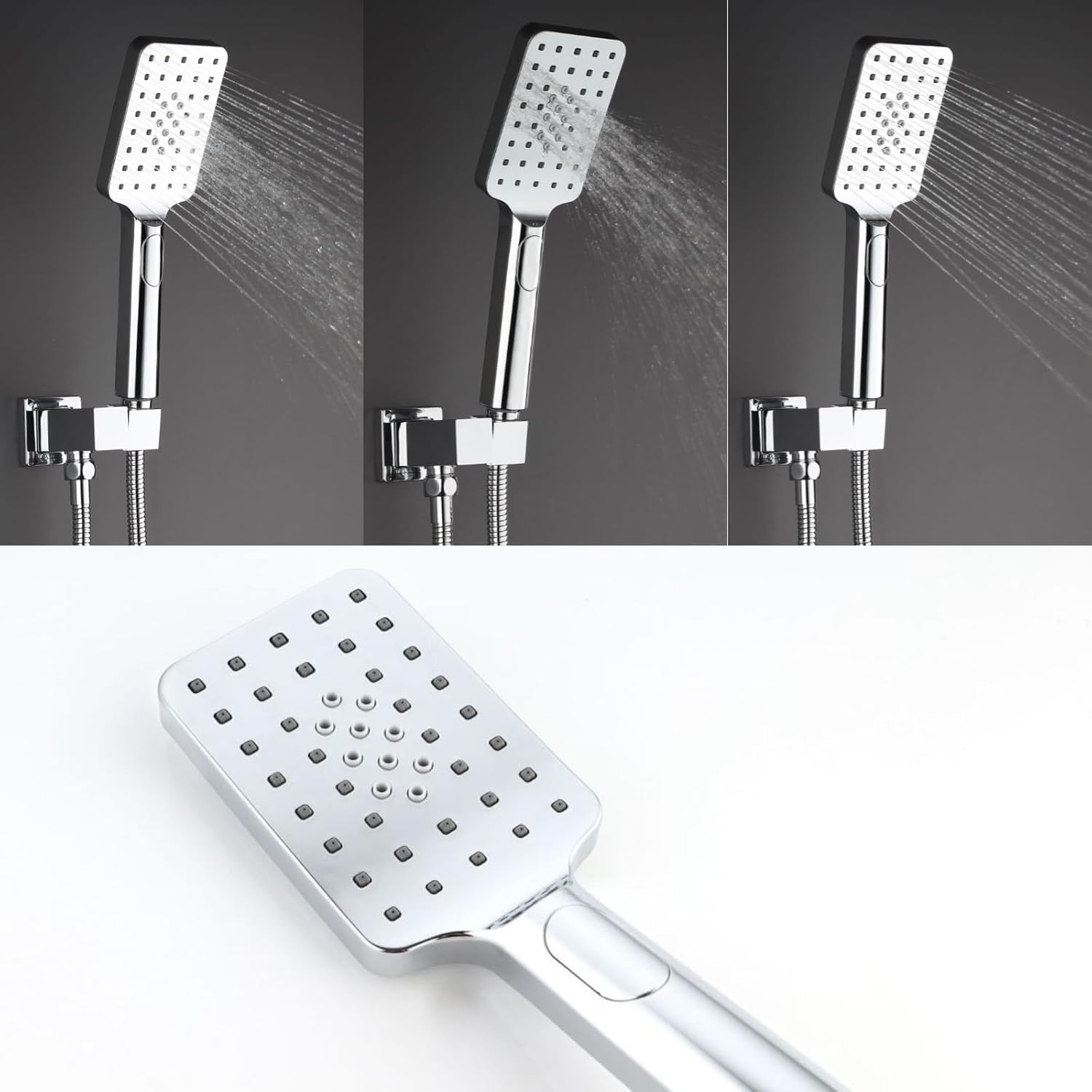

Three spray modes of the WELLFOR handheld shower, demonstrating different water patterns.
The 10-inch rain shower head in operation, providing a wide water coverage.
නඩත්තු කිරීම
Regular cleaning and maintenance will help preserve the finish and functionality of your WELLFOR shower system.
නිමාව පිරිසිදු කිරීම:
- ක්රෝම් නිමාව මෘදු, d රෙදි කැබැල්ලකින් පිරිසිදු කරන්න.amp රෙදි සහ මෘදු සබන්.
- උල්ෙල්ඛ පිරිසිදු කරන්නන්, සැර රසායනික ද්රව්ය හෝ ස්කූරින් පෑඩ් වලින් වළකින්න, මේවා නිමාවට හානි කළ හැකිය.
- පිරිසිදු ජලයෙන් හොඳින් සෝදා, ජල පැල්ලම් වළක්වා ගැනීම සඳහා මෘදු රෙද්දකින් වියළා ගන්න.
Preventing Mineral Buildup:
- For areas with hard water, regularly wipe down the shower head nozzles and handheld spray nozzles to prevent mineral buildup.
- Flexible silicone nozzles can often be cleaned by gently rubbing them with your finger to dislodge mineral deposits.
- For stubborn deposits, a solution of white vinegar and water can be used, but ensure it does not remain on the chrome finish for extended periods. Rinse thoroughly.
දෝෂගවේෂණය
If you encounter issues with your WELLFOR shower system, refer to the following common problems and solutions:
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| අඩු ජල පීඩනය | Clogged shower head/handheld nozzles; partially closed shut-off valve; low household water pressure. | Clean nozzles of mineral buildup. Ensure shut-off valves are fully open. Consult a plumber if household pressure is consistently low. |
| සම්බන්ධතා වලින් කාන්දුවීම් | Loose connections; insufficient pipe thread sealant tape; damaged O-rings/gaskets. | Tighten connections. Reapply pipe thread sealant tape. Inspect and replace O-rings/gaskets if damaged. |
| හැරවුම් යන්ත්රය නිසි ලෙස මාරු නොවීම | Mineral buildup in diverter mechanism; worn diverter cartridge. | Flush the system to clear debris. If problem persists, the diverter cartridge may need replacement by a qualified professional. |
| ජල උෂ්ණත්ව උච්චාවචනයන් | Issues with water heater; pressure balance valve malfunction. | Check water heater settings. If other fixtures are stable, the pressure balance valve in the rough-in may require inspection by a plumber. |
If these solutions do not resolve the issue, please contact WELLFOR customer support or a qualified plumber.
වගකීම් සහ සහාය
WELLFOR products are manufactured to high-quality standards. For warranty information or technical assistance, please refer to the warranty card included with your purchase or visit the official WELLFOR website. When contacting support, please have your product model number and purchase date available.
