BLACK+DECKER Jigsaw Head EJS183 Instruction Manual

1. හැඳින්වීම

ස්තූතියි, උදව් කළාටasing the BLACK+DECKER Jigsaw Head EJS183. This attachment is designed to provide versatile cutting capabilities for various materials, including wood, aluminum, mild steel, flooring materials, and PVC pipes. It is particularly well-suited for making curved cuts in woodworking projects. Please read this manual carefully before use to ensure safe and efficient operation.

2. ආරක්ෂිත උපදෙස්

Always follow basic safety precautions when using power tools to reduce the risk of fire, electric shock, and personal injury. Keep your work area clean and well-lit. Wear appropriate personal protective equipment, including eye protection, hearing protection, and gloves. Ensure the tool is disconnected from the power source (battery removed) before making any adjustments or changing accessories. Keep children and bystanders away while operating the tool.

3. පැකේජ අන්තර්ගතය

ඇසුරුම් ඉවත් කිරීමේදී සියලුම අයිතම තිබෙන බව තහවුරු කරගන්න:

• BLACK+DECKER Jigsaw Head EJS183 (Main Unit)
• Woodworking Blade (6 TPI) x 1
• Woodworking Blade (10 TPI) x 1

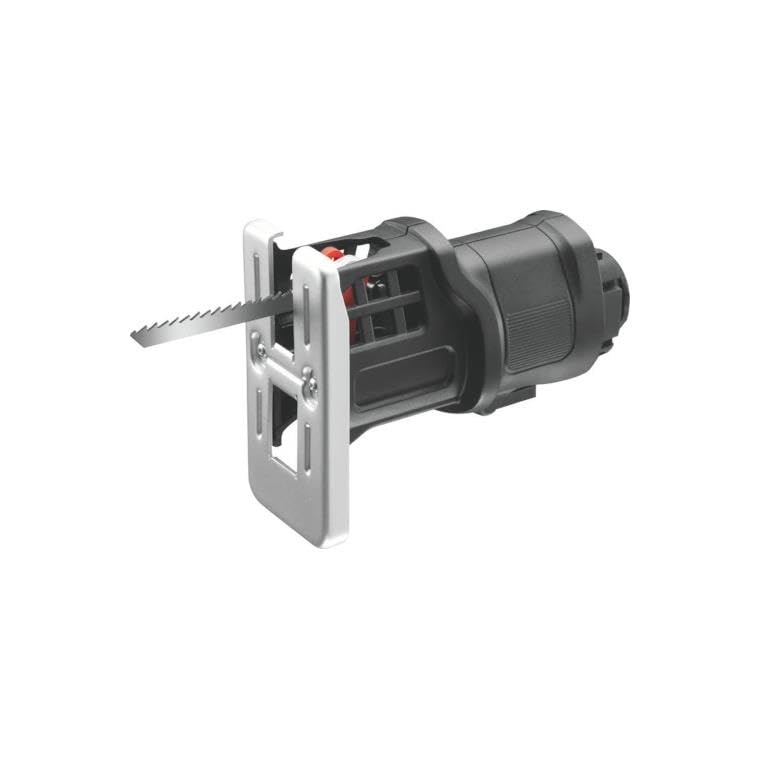

Image: The BLACK+DECKER Jigsaw Head EJS183 shown with the two included woodworking blades (6 TPI and 10 TPI).

4. පිහිටුවීම

4.1 Attaching the Jigsaw Head to the Power Unit

The EJS183 Jigsaw Head is an attachment for a compatible BLACK+DECKER Multi-Evo power unit (sold separately). To attach the jigsaw head:

1. Ensure the power unit's battery is removed.
2. Align the jigsaw head with the power unit's attachment point.
3. Push the head firmly onto the power unit until it clicks securely into place.
4. To remove, press the release button on the power unit and pull the head off.

Video: This video demonstrates the versatility of the BLACK+DECKER 18V Multi-Tool Expert EVO185E1, including how various head attachments, such as the jigsaw head, are connected and used with the main power unit. It shows the process of attaching and detaching different heads for various DIY tasks like drilling, driving screws, cutting wood, and pruning.

4.2 තල සවි කිරීම/වෙනස් කිරීම

The EJS183 features a keyless blade change system for quick and easy blade replacement.

1. Ensure the power unit's battery is removed.
2. තලය cl සොයා ගන්නamp lever on the front of the jigsaw head.
3. තලය cl විවෘත කිරීමට ලීවරය ඔබන්නamp.
4. Insert the desired blade into the blade slot with the teeth facing forward. Ensure the blade is fully seated.
5. Release the lever to secure the blade. Gently pull on the blade to confirm it is locked in place.
6. To remove a blade, push the lever and pull the blade out.

රූපය: සමීප ඡායාරූපයක් view of the front of the BLACK+DECKER Jigsaw Head EJS183, highlighting the keyless blade insertion mechanism and the blade clamp.

රූපය: පැත්ත view of the BLACK+DECKER Jigsaw Head EJS183, showing the main body and the product label with specifications.

5. මෙහෙයුම් උපදෙස්

5.1 සාමාන්ය මෙහෙයුම

Once the jigsaw head is securely attached and a blade is installed, insert the battery into the power unit. Hold the tool firmly with both hands. Place the base plate of the jigsaw head flat against the workpiece. Start the tool by pressing the trigger, then slowly guide the blade into the material. Allow the blade to reach full speed before cutting.

5.2 කැපුම් ද්‍රව්‍ය

• ලී: The EJS183 is ideal for cutting wood up to 45mm thick. Use the appropriate woodworking blade (6 TPI for rough cuts, 10 TPI for finer cuts). It excels at curved cuts.
• ඇලුමිනියම්: Can cut aluminum up to 5mm thick. Use a metal-cutting blade (not included).
• මෘදු වානේ: Capable of cutting mild steel up to 10mm thick. Use a metal-cutting blade (not included).
• Flooring Materials & PVC Pipes: Suitable for various flooring materials and PVC pipes. Use appropriate blades for these materials.

Image: The BLACK+DECKER Jigsaw Head EJS183 displayed with its accompanying blades, ready for use on a work surface.

රූපය: යටි පැත්ත view of the BLACK+DECKER Jigsaw Head EJS183, highlighting the base plate and its attachment points.

6. නඩත්තු කිරීම

නිතිපතා නඩත්තු කිරීම ප්‍රශස්ත කාර්ය සාධනය සහතික කරන අතර ඔබේ මෙවලමෙහි ආයු කාලය දීර්ඝ කරයි.

• පිරිසිදු කිරීම: After each use, remove the battery and clean the tool with a soft, dry cloth. Use compressed air to clear dust and debris from ventilation openings. Do not use water or chemical cleaners.
• බ්ලේඩ් රැකවරණය: Inspect blades for sharpness and damage before each use. Replace dull or damaged blades immediately to prevent poor cutting performance and potential kickback.
• ගබඩා: Store the jigsaw head and blades in a dry, secure place, out of reach of children.

7. දෝශ නිරාකරණය

8. පිරිවිතර

9. වගකීම් සහ සහාය

For warranty information, technical support, or service inquiries, please refer to the documentation provided with your BLACK+DECKER power unit or visit the official BLACK+DECKER webවෙබ් අඩවිය. මිලදී ගැනීම පිළිබඳ සාක්ෂියක් ලෙස ඔබේ මිලදී ගැනීමේ රිසිට්පත තබා ගන්න.
