හැඳින්වීම
This manual provides essential instructions for the safe installation, operation, and maintenance of your Cangaroo i-Swift i-Size Booster Seat. Designed for children between 125-150 cm in height (approximately 4 to 12 years old) and up to 36 kg, this booster seat ensures comfort and safety during travel. Please read this manual thoroughly before first use and keep it for future reference.
ආරක්ෂිත තොරතුරු
- Always secure the child with the vehicle's 3-point seat belt.
- Ensure the booster seat is correctly installed using the ISOFIX system, even when not occupied by a child, to prevent it from becoming a projectile in an accident.
- Never use the booster seat if any part is damaged or missing.
- Do not modify the booster seat in any way.
- Always follow the vehicle manufacturer's instructions for child restraint installation.
- The booster seat is designed for forward-facing use only.
- Regularly check that the seat belt is not twisted and is correctly positioned over the child's shoulder and lap.
සැකසුම සහ ස්ථාපනය
The Cangaroo i-Swift i-Size Booster Seat is designed for quick and easy installation using the ISOFIX system.
- Prepare the Booster Seat: Ensure the ISOFIX connectors are retracted.
- ISOFIX නැංගුරම් සොයා ගන්න: Identify the ISOFIX anchor points in your vehicle's rear seat. These are usually located between the seat back and cushion.
- ISOFIX සම්බන්ධක අමුණන්න: Extend the ISOFIX connectors from the booster seat and push them firmly onto the vehicle's ISOFIX anchor points until you hear an audible "click" and the indicators turn green (if applicable).
- Secure the Booster Seat: Push the booster seat firmly against the vehicle's seat back to ensure a tight fit.
- Install Cup Holder: Attach the cup holder to the designated slot on the side of the booster seat. Ensure it is securely fastened.

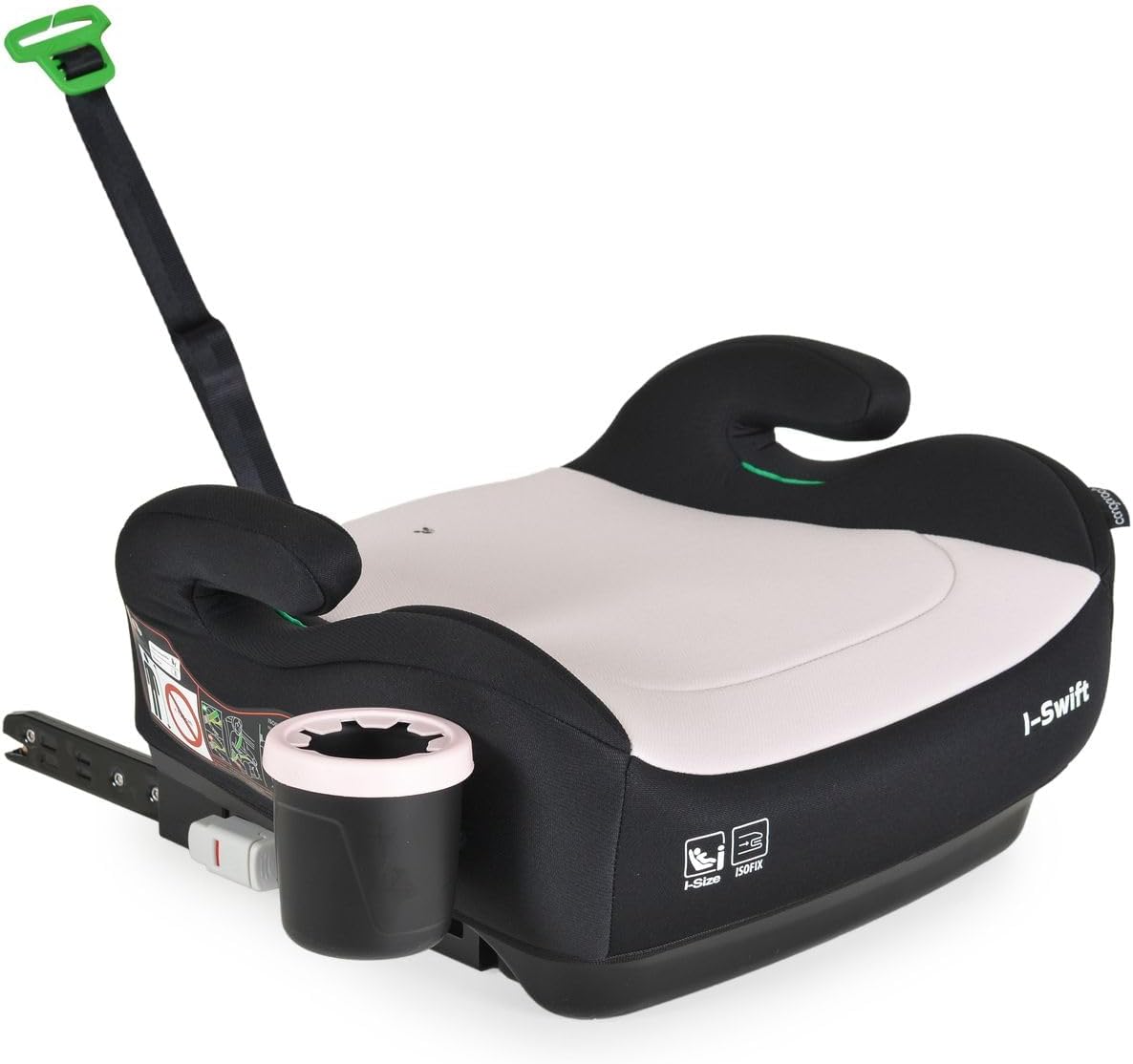

රූපය: පැත්ත view of the Cangaroo i-Swift i-Size booster seat, showing the extended ISOFIX connectors ready for installation.

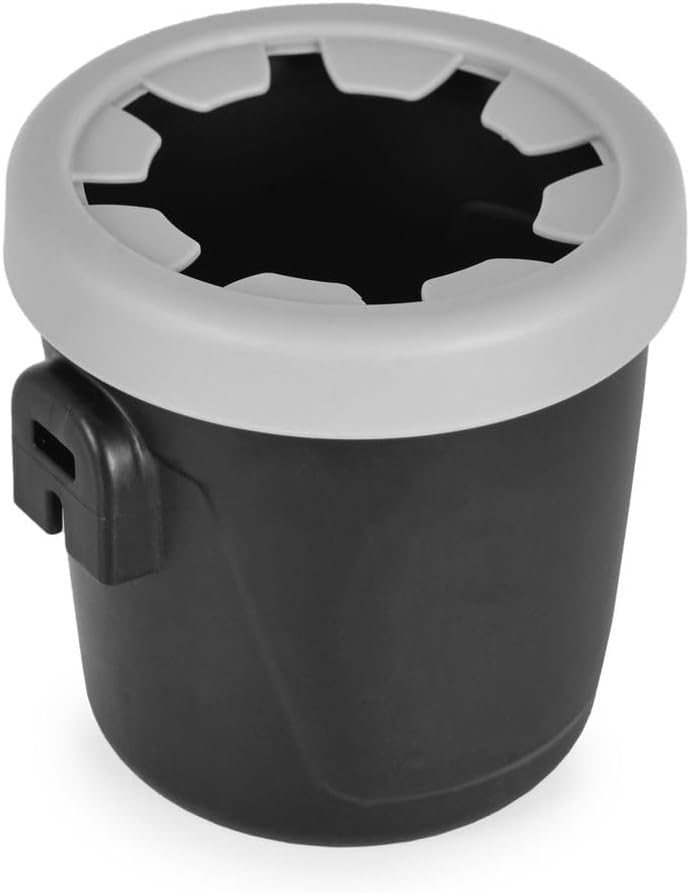

රූපය: සමීප රූපය view of the detachable cup holder, designed with an anti-spill system and soft silicone seal.
මෙහෙයුම් උපදෙස්
Once the booster seat is securely installed, follow these steps to properly secure your child:
- Position the Child: Place your child on the booster seat, ensuring their back is flat against the seat back.
- Route the Seat Belt: Pull the vehicle's 3-point seat belt over the child. The lap belt portion should lie low across the child's hips, touching the thighs. The shoulder belt should cross the center of the child's shoulder and chest, not touching the neck or falling off the shoulder.
- ආසන පටිය සවි කරන්න: Insert the seat belt buckle tongue into the vehicle's buckle receiver until it clicks.
- ආසන පටිය තද කරන්න: Pull the shoulder belt upwards to remove any slack, ensuring the belt is snug against the child's body without being too tight.
- Check Belt Position: Verify that the seat belt is correctly positioned and not twisted. The booster seat's design helps guide the belt for optimal placement.

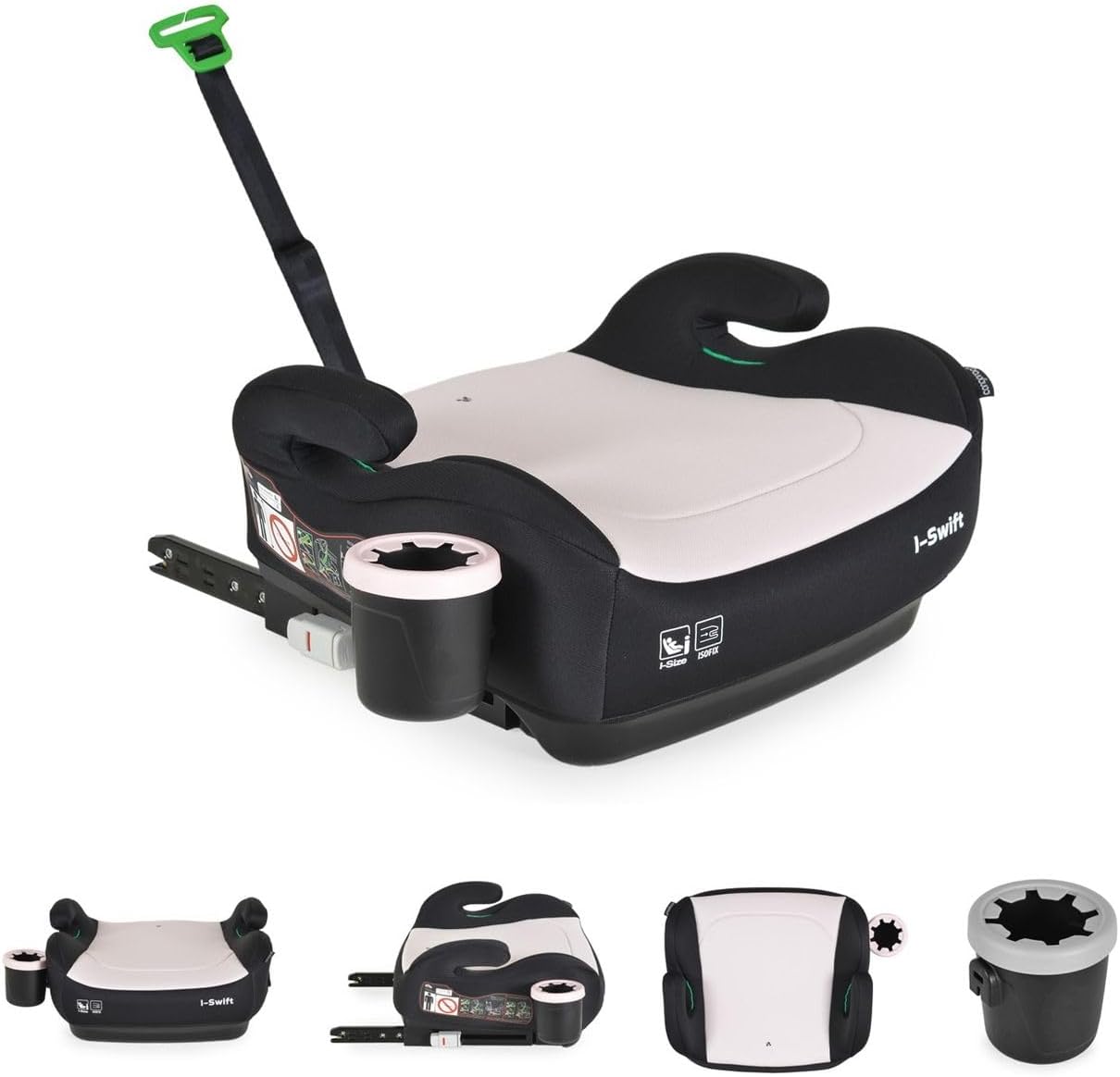

Image: Front angle view of the Cangaroo i-Swift i-Size booster seat, showcasing its ergonomic design and integrated cup holder.
නඩත්තු කිරීම
- කවරය පිරිසිදු කිරීම: The booster seat cover is removable and washable. Refer to the care label for specific washing instructions, typically machine wash cold on a gentle cycle. Do not bleach or tumble dry.
- රාමුව පිරිසිදු කිරීම: Wipe the plastic parts of the booster seat frame with a damp රෙදි සහ මෘදු සබන්. උල්ෙල්ඛ පිරිසිදු කරන්නන් හෝ ද්රාවණ භාවිතා නොකරන්න.
- කුසලාන දරන්නා: The cup holder can be detached and washed separately with soap and water.
- පරීක්ෂාව: Regularly inspect the booster seat for any signs of wear, damage, or loose parts. If any damage is found, discontinue use and contact customer support.
දෝෂගවේෂණය
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| Booster seat feels loose after ISOFIX installation. | ISOFIX connectors not fully engaged or seat not pushed firmly against vehicle seat back. | Ensure ISOFIX connectors click into place (green indicators visible). Push the booster seat firmly towards the vehicle's seat back to remove any gaps. |
| Vehicle seat belt is twisted or not fitting correctly. | Incorrect routing of the seat belt. | Unbuckle the belt, straighten it, and re-route it according to the "Operating Instructions" section, ensuring it passes through the designated guides on the booster seat. |
| Cup holder is not secure. | Not properly attached to the slot. | Ensure the cup holder is pushed firmly into its designated slot until it locks into place. |
පිරිවිතර
- ආදර්ශ අංකය: 111391
- වෙළඳ නාමය: Cangaroo
- වර්ගය: i-Size Booster ආසනය
- ළමා උස පරාසය: 125 - 150 සෙ.මී.
- Approximate Age Range: අවුරුදු 4 - 12
- උපරිම ආධාරක බර: කිලෝ ග්රෑම් 36 කි
- ස්ථාපන ක්රමය: ISOFIX (forward-facing)
- සීමා පද්ධතිය: Vehicle's 3-point seat belt
- ප්රධාන ද්රව්ය: රෙදි (100% පොලියෙස්ටර්)
- නිෂ්පාදන මානයන් (L x W x H): 40 x 43 x 22 සෙ.මී
- නිෂ්පාදන බර: කිලෝ ග්රෑම් 2.8 කි
- ආරක්ෂිත ප්රමිතිය: ECE-R129/03
- විශේෂ ලක්ෂණ: Ergonomic design, breathable cover, removable and washable cover, comfortable armrests, integrated cup holder with anti-spill function.
වගකීම් සහ සහාය
Specific warranty information for the Cangaroo i-Swift i-Size Booster Seat may vary by region and retailer. Please retain your proof of purchase for any warranty claims.
For technical support, spare parts, or further assistance, please contact your local Cangaroo distributor or the retailer from whom you purchased the product. You may also visit the official Cangaroo webසම්බන්ධතා තොරතුරු සහ අමතර සම්පත් සඳහා අඩවිය.
නිෂ්පාදකයා: Cangaroo
ASIN: B0DMQFJV23
