1. හැඳින්වීම
The FlashQ Q20III is a compact, full-featured wireless flash unit designed for photographers seeking portability and versatility. It features a detachable radio transmitter, integrated LED lighting, and a tiltable flash head, making it suitable for various lighting scenarios. This manual provides detailed instructions for setting up, operating, and maintaining your FlashQ Q20III.
Figure 1.1: The FlashQ Q20III main body, showcasing its compact design and control panel. The flash features power level indicators, flash and video light controls, and a mode button.
2. පැකේජ අන්තර්ගතය
පහත ලැයිස්තුගත කර ඇති සියලුම අයිතම ඔබේ පැකේජයට ඇතුළත් කර ඇති බව කරුණාකර සත්යාපනය කරන්න:
- 1 x FlashQ Q20III main body (බැටරි ඇතුළත් නොවේ)
- 1 x FlashQ Transmitter (with built-in rechargeable lithium battery)
- 1 x විසරණ පැනලය (-1.3 EV)
- 1 x වර්ණ ජෙල් රඳවනය
- 1 x වර්ණ ජෙල් ඇසුරුම (වර්ණ 7)
- 1 x ආරක්ෂිත මල්ල
- 1 x USB ආරෝපණ කේබලය
- 1 x පරිශීලක අත්පොත (මෙම ලේඛනය)
3. පිහිටුවීම
3.1. බැටරි ස්ථාපනය
The FlashQ Q20III main body requires two AA-size batteries. For optimal performance and faster recycling times, rechargeable Ni-MH batteries are highly recommended. The FlashQ Transmitter has a built-in rechargeable lithium battery.
- Locate the battery compartment on the FlashQ Q20III main body.
- නිවැරදි ධ්රැවීයතාව (+/-) සහතික කරමින් AA බැටරි දෙකක් ඇතුළු කරන්න.
- බැටරි මැදිරිය ආරක්ෂිතව වසා දමන්න.
3.2. Charging the Transmitter and Main Body
The FlashQ Q20III main body and its detachable transmitter can be charged via USB Type-C.
- ප්රධාන ශරීරය: If using rechargeable Ni-MH AA batteries, connect the USB charging cable to the USB Type-C port on the Q20III main body and to a standard USB power source. The unit will charge the installed Ni-MH batteries.
- සම්ප්රේෂකය: Connect the USB charging cable to the USB Type-C port on the FlashQ Transmitter and to a standard USB power source. The status indicator on the transmitter will show charging status.
3.3. Attaching the Transmitter
The FlashQ Transmitter can be attached to the dedicated socket on the Q20III main body or used wirelessly.
Figure 3.1: Detailed diagram of the FlashQ Q20III main body and its detachable transmitter, highlighting key components and controls such as the tiltable flash head, USB-C charging ports, flash power controls, and mode buttons.
3.4. කැමරාවට සම්බන්ධ කිරීම
The FlashQ Q20III is compatible with most cameras featuring a standard ISO hot shoe, including Sony Multi Interface Shoe (MIS).
- Slide the hot shoe mount of the Q20III (or the transmitter if using wirelessly) onto your camera's hot shoe.
- Secure the unit by tightening the locking mechanism on the hot shoe mount.

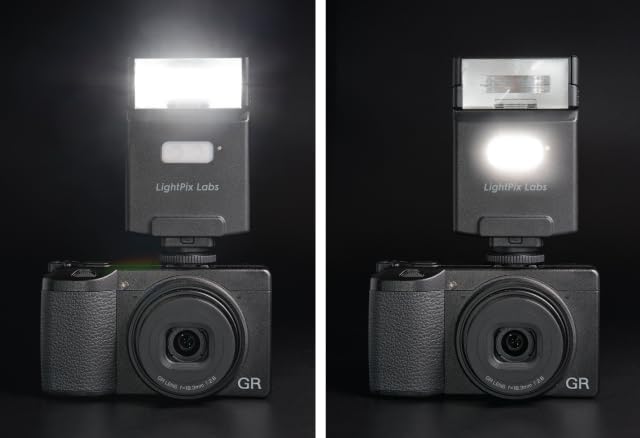

Figure 3.2: The FlashQ Q20III mounted on a camera, demonstrating its compact size and how it appears when attached. The image shows the flash head and the integrated LED video light.
4. මෙහෙයුම් උපදෙස්
4.1. බලය සක්රිය / අක්රිය කරන්න
To power on the FlashQ Q20III, slide the ON/OFF switch located on the main body. The transmitter also has a power button.
4.2. Flash Modes and Power Control
The Q20III offers manual flash control and optical slave modes.
- අතින් සැණෙළිය: Adjust flash power from 1/64 to 1/1 in 7 steps using the flash power control buttons. The Guide Number is 66ft (at ISO 100) with 32mm (Full-Frame) coverage.
- Optical Slave (S1/S2): Use the mode button to select S1 or S2 mode. These modes allow the Q20III to trigger when it detects another flash firing.
4.3. LED Video Light
The integrated LED video light can be adjusted in 7 steps, providing a maximum output of 60 lux at 1m. It also functions as a modeling light.
- Use the video light control buttons to adjust the brightness.
- The LED color temperature is 5500K±300K with a CRI of 95.
4.4. Flash Head Tilting

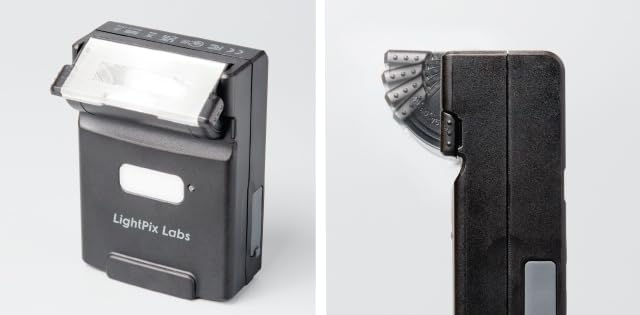

The flash head can be tilted up to 90 degrees with click-stops at 0°, 45°, 60°, 75°, and 90°. This allows for bounce flash photography.

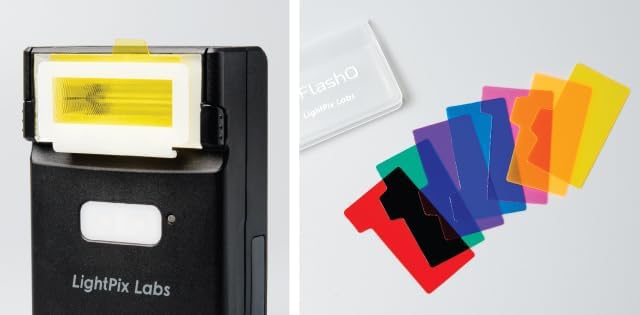

Figure 4.1: The FlashQ Q20III supports various light modifiers. Top image shows a color gel inserted into the flash head. Middle image displays the diffuser panel and color gel holder. Bottom image shows the diffuser panel attached to the flash head, softening the light output.
4.5. රැහැන් රහිත මෙහෙයුම
The detachable 2.4GHz radio transmitter allows for wireless triggering and power adjustment of the Q20III. It can control up to 8 flashes simultaneously within a 32ft operating range.
- Attach the transmitter to your camera's hot shoe.
- Position the Q20III main body off-camera.
- Ensure both units are powered on and set to the same wireless channel (refer to the full user manual for channel setting details).
Figure 4.2: The FlashQ Q20III's versatility is enhanced by its detachable transmitter. The top image shows the complete unit, while the bottom image highlights the separate flash head and transmitter components, allowing for off-camera flash setups.
5. නඩත්තු කිරීම
- ඒකකය පිරිසිදුව හා දූවිලි වලින් තොරව තබා ගන්න. පිරිසිදු කිරීම සඳහා මෘදු වියළි රෙද්දක් භාවිතා කරන්න.
- ඒකකය අධික උෂ්ණත්වයට, ආර්ද්රතාවයට හෝ සෘජු හිරු එළියට නිරාවරණය වීමෙන් වළකින්න.
- කාන්දු වීම වැළැක්වීම සඳහා ඒකකය දිගු කාලයක් භාවිතා නොකරන්නේ නම් බැටරි ඉවත් කරන්න.
- Store the unit in its protective pouch when not in use.
6. දෝශ නිරාකරණය
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| ෆ්ලෑෂ් එක පත්තු වෙන්නේ නැහැ. | Low or dead batteries; incorrect camera settings; unit not powered on; hot shoe connection issue. | Replace/recharge batteries. Check camera flash settings. Ensure unit is ON. Re-seat on hot shoe. |
| LED video light not working. | Low battery; LED mode not selected; brightness set to minimum. | Recharge batteries. Select LED mode. Increase brightness. |
| රැහැන් රහිත ප්රේරකය ක්රියා නොකරයි. | Transmitter/receiver not paired; out of range; interference; transmitter battery low. | Ensure both units are ON and paired. Reduce distance. Check for obstructions. Recharge transmitter. |
| මන්දගාමී ප්රතිචක්රීකරණ කාලය. | Low battery power; using alkaline batteries instead of Ni-MH. | Recharge/replace batteries. Consider using Ni-MH batteries for faster recycling. |
7. තාක්ෂණික පිරිවිතර
| විශේෂාංගය | විස්තර |
|---|---|
| මාර්ගෝපදේශ අංකය | 66ft (at ISO 100) |
| නාභීය දුර ආවරණය | 32mm (Full-Frame) |
| Manual Flash Power | 7 steps adjustable, 1/64 to 1/1 |
| LED Video Light Output | 7 steps adjustable, Max. 60 lux at 1m |
| රැහැන් රහිත සංඛ්යාතය | 2.4GHz low-power digital radio |
| රැහැන් රහිත මෙහෙයුම් පරාසය | අඩි 32 |
| Flash Head Tilt Angle | Up to 90° (click-stops at 0°, 45°, 60°, 75°, 90°) |
| දෘශ්ය වහල් මාදිලි | S1 / S2 |
| ආකෘති නිර්මාණය ආලෝකය | Yes (via LED) |
| සම්ප්රේෂක බැටරි ආයු කාලය | 80 hours operation, 120 days standby |
| Main Body Batteries | Two AA-size alkaline / rechargeable Ni-MH batteries |
| Recycling Time (1/1 full power) | 7 sec. (alkaline) / 6 sec. (Ni-MH) |
| ෆ්ලෑෂ් ගණන | 100 - 2000 flashes (alkaline) |
| LED Lighting Time (full power) | Approx. 1 hour (Ni-MH batteries) |
| ෆ්ලෑෂ් වර්ණ උෂ්ණත්වය | 5600K ± 200K |
| LED වර්ණ උෂ්ණත්වය | 5500K±300K, CRI 95 |
| ආරෝපණ වරාය | USB Type-C |
| Dimensions (with Transmitter) | අඟල් 2.3(W) x 4.0(H) x 1.1(D) |
| බර (බැටරි නොමැතිව) | 4oz |
| අනුකූල සවි කිරීම් | Standard ISO hot shoe (Fujifilm, Leica, Ricoh, Pentax, Sony, Canon, Nikon, Lumix, Four Thirds) |
| ෆ්ලෑෂ් සමමුහුර්ත වේගය | 1/200 |
8. වගකීම් සහ සහාය
For warranty information and technical support, please refer to the official LightPix Labs webවෙබ් අඩවියට හෝ ඔවුන්ගේ පාරිභෝගික සේවයට සෘජුවම සම්බන්ධ වන්න. වගකීම් හිමිකම් සඳහා මිලදී ගැනීමේ සාක්ෂියක් ලෙස ඔබේ මිලදී ගැනීමේ රිසිට්පත තබා ගන්න.
LightPix Labs Official Webඅඩවිය: www.lightpixlabs.com
For further assistance, please contact LightPix Labs customer support.
