HALIDODO Red Light Therapy Foot Wrap (Model: SC-HA-Ft02) Instruction Manual

1. හැඳින්වීම

Thank you for choosing the HALIDODO Red Light Therapy Foot Wrap. This device is designed to provide targeted red light and near-infrared light therapy to your feet and ankles. Please read this manual thoroughly before use to ensure proper operation and maximize the benefits of your device.

Image: The HALIDODO Red Light Therapy Foot Wrap, showcasing its design and the red light emitted around a foot, with the product box in the background.

2. නිෂ්පාදන අවසන්view

2.1 ප්රධාන ලක්ෂණ

• ද්විත්ව තරංග ආයාම චිකිත්සාව: Equipped with 99 lamp beads, each containing 3 chips for visible 660nm red light and invisible 850nm near-infrared light.
• බහු මාතයන්: Features 5 distinct modes for a customized experience, including 10Hz Mode and 40Hz Mode.
• භාවිතා කිරීමට පහසු: Portable design with adjustable Velcro straps for a secure and comfortable fit around the foot.
• සුවපහසු ද්රව්ය: Constructed from breathable and durable materials for extended use.
• Ergonomic Design: Shaped to conform to the foot and ankle for optimal light exposure.

2.2 සංරචක

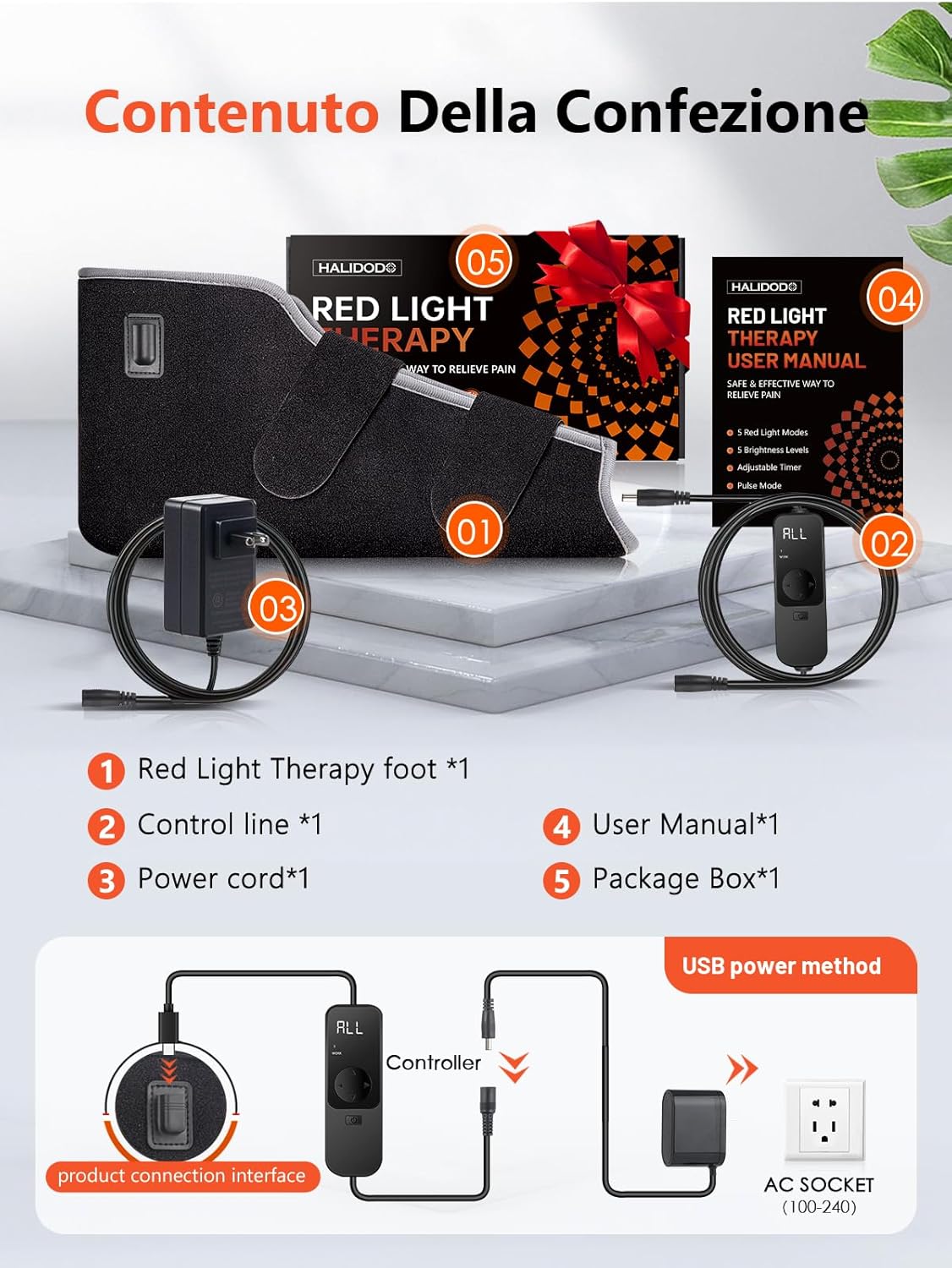

Image: A visual breakdown of the product components, including the red light therapy foot wrap, control line, power cord, user manual, and package box.

1. Red Light Therapy Foot Wrap x 1
2. Control Line x 1
3. විදුලි රැහැන් x 1
4. පරිශීලක අත්පොත x 1
5. පැකේජ පෙට්ටිය x 1

3. පිහිටුවීම

1. Connect the control line to the red light therapy foot wrap.
2. Connect the power cord to the control line.
3. Plug the power adapter into a standard wall outlet (100-240V).
4. Ensure all connections are secure before proceeding to operation.

4. මෙහෙයුම් උපදෙස්

4.1 උපාංගය පැළඳීම

• Place your foot inside the wrap, ensuring the LED lights are positioned over the desired treatment area.
• Adjust the Velcro straps to achieve a snug yet comfortable fit around your foot and ankle. The device should not feel overly tight.

Image: A woman demonstrating the comfortable fit of the foot wrap while relaxing on a sofa.

4.2 බලය සක්රිය / අක්රිය

• To power on the device, press and hold the power button on the control line for 1.5 seconds.
• To power off the device, press and hold the power button again for 1.5 seconds.

4.3 මාදිලිය තේරීම

උපාංගය විවිධ ආකාර 5 ක් ඉදිරිපත් කරයි:

• ALL Mode: Activates both 660nm red light and 850nm near-infrared light simultaneously for comprehensive care.
• 660nm Mode: Targets skin and superficial layers with visible red light.
• 10Hz Pulse Mode: Provides rapid flickering for enhanced cellular response.
• 40Hz Pulse Mode: Offers a deeper rhythm for tissue revitalization.
• හුස්ම ගැනීමේ මාදිලිය: Features a dynamic light rhythm for pre-bedtime relaxation.

Image: A visual guide to the five available modes, detailing their light patterns and intended effects.

4.4 ටයිමර් සැකසුම්

• The default treatment time is 30 minutes.
• Adjust the timer from 0 to 30 minutes using the timer buttons on the control line.

5. භාවිත මාර්ගෝපදේශ

• It is recommended to use the device for 20 minutes per session.
• For optimal results, use the device 3-5 times per week.
• You may feel a local warm and comfortable sensation during initial use; this is normal.
• Consistency is crucial for achieving the full benefits of red light therapy.
• Do not fold the product during use, as this may damage the light-emitting diodes (LEDs) and shorten the lifespan of the device.
• The device generates heat during operation; this is not a heating pad.

Image: A man using the foot wrap, illustrating its application for various foot and joint issues.

6. නඩත්තු කිරීම

• පිරිසිදු කිරීමට පෙර උපාංගය විසන්ධි කර ඇති බවට වග බලා ගන්න.
• උපාංගයේ මතුපිට මෘදු, ඩී සමඟ පිස දමන්නamp රෙදි. දරුණු රසායනික ද්රව්ය හෝ උල්ෙල්ඛ පිරිසිදු කරන්නන් භාවිතා නොකරන්න.
• භාවිතයේ නොමැති විට සෘජු හිරු එළියෙන් ඈත්ව සිසිල් වියළි ස්ථානයක උපාංගය ගබඩා කරන්න.
• නැමීමෙන් හෝ ඇඹරීමෙන් වළකින්නasing the LED panel to prevent damage.

7. දෝශ නිරාකරණ මාර්ගෝපදේශය

8. Specifications (Model: SC-HA-Ft02)

• තරංග ආයාම: 660nm (Red Light) & 850nm (Near-Infrared Light)
• එල් සංඛ්යාවamp පබළු: 99 (each with 3 chips)
• මාතයන්: 5 (ALL, 660nm, 10Hz Pulse, 40Hz Pulse, Breathing)
• ටයිමරය: මිනිත්තු 0-30 අතර වෙනස් කළ හැකිය
• බල ආදානය: 100-240V
• පැකේජ මානයන්: අඟල් 13.54 x 7.68 x 3.35
• අයිතමයේ බර: පවුම් 1.12ක්
• නිෂ්පාදකයා: හැලිඩෝඩෝ

Image: An illustration demonstrating how 660nm red light and 850nm near-infrared light penetrate different layers of tissue.

9. වගකීම් සහ සහාය

HALIDODO offers a වසර 1ක වගකීමක් on this product. Additionally, a දින 30ක නොමිලේ ආපසු එවීම් policy is in place for your satisfaction.

For any questions, troubleshooting assistance, or warranty claims, please contact HALIDODO customer support through the official webවෙබ් අඩවිය හෝ ඔබේ මිලදී ගැනීමේ වේදිකාව.

10 ආරක්ෂිත තොරතුරු

නෛතික වියාචනය: ආහාරමය අතිරේක සම්බන්ධ ප්‍රකාශයන් FDA විසින් ඇගයීමට ලක් කර නොමැති අතර කිසිදු රෝගයක් හෝ සෞඛ්‍ය තත්වයක් හඳුනා ගැනීමට, ප්‍රතිකාර කිරීමට, සුව කිරීමට හෝ වැළැක්වීමට අදහස් නොකෙරේ.

Consult with a healthcare professional before using this device if you have any pre-existing medical conditions, are pregnant, or are taking medications that may be affected by light therapy.

11. නිෂ්පාදන වීඩියෝව

Watch this official product video for a visual guide on how to use the Red Light Therapy Boots.

Video Description: An official seller video demonstrating the features and usage of the Red Light Therapy Boots, including how to wear them and operate the controls.
