1. හැඳින්වීම
The HALIDODO Red Light Therapy Cap is designed to support scalp and hair health through the application of specific wavelengths of light. This device utilizes 660nm red light, along with 850nm and 940nm invisible infrared light, to provide a comprehensive light therapy experience. This manual provides essential information for the safe and effective use of your device, including setup, operation, maintenance, and troubleshooting.
Figure 1.1: The HALIDODO Red Light Therapy Cap, showing the blue cap, the internal red LED panel, and the wired controller.
2 ආරක්ෂිත තොරතුරු
Important: Please read all safety warnings and instructions carefully before using this product.
- ආහාරමය අතිරේක සම්බන්ධ ප්රකාශයන් FDA විසින් ඇගයීමට ලක් කර නොමැති අතර කිසිදු රෝගයක් හෝ සෞඛ්ය තත්වයක් හඳුනා ගැනීමට, ප්රතිකාර කිරීමට, සුව කිරීමට හෝ වැළැක්වීමට අදහස් නොකෙරේ.
- Consult with a healthcare professional before using this device if you have any pre-existing medical conditions, are pregnant, or are taking medications that may increase light sensitivity.
- Do not look directly into the LED lights when the device is operating.
- Keep the device dry. Do not use it in wet environments or immerse it in water.
- දරුවන්ට ළඟා විය නොහැකි ලෙස තබා ගන්න.
- Do not modify or attempt to repair the device. Contact customer support for assistance.
3. නිෂ්පාදන සංරචක
Your HALIDODO Red Light Therapy Cap package includes the following items:
- 1 x Red Light Therapy Cap (Blue)
- 1 x පරිශීලක අත්පොත
- 1 x රැහැන් පාලකය
- 1 x බල ඇඩැප්ටරය
රූපය 3.1: අවසන්view of the Red Light Therapy Cap's dimensions and included components: the cap, user manual, controller, and power adapter.
4. නිෂ්පාදන අවසන්view සහ තාක්ෂණය
The Red Light Therapy Cap features 180 powerful LED lamps, each containing a 3-in-1 chip design that emits 660nm red light, 850nm near-infrared light, and 940nm far-infrared light. These wavelengths are selected for their ability to penetrate different layers of the scalp and support cellular function.
Figure 4.1: Diagram illustrating the 3-in-1 lamp bead technology, showing 180 LEDs emitting 660nm red light, 850nm invisible light, and 940nm invisible light.

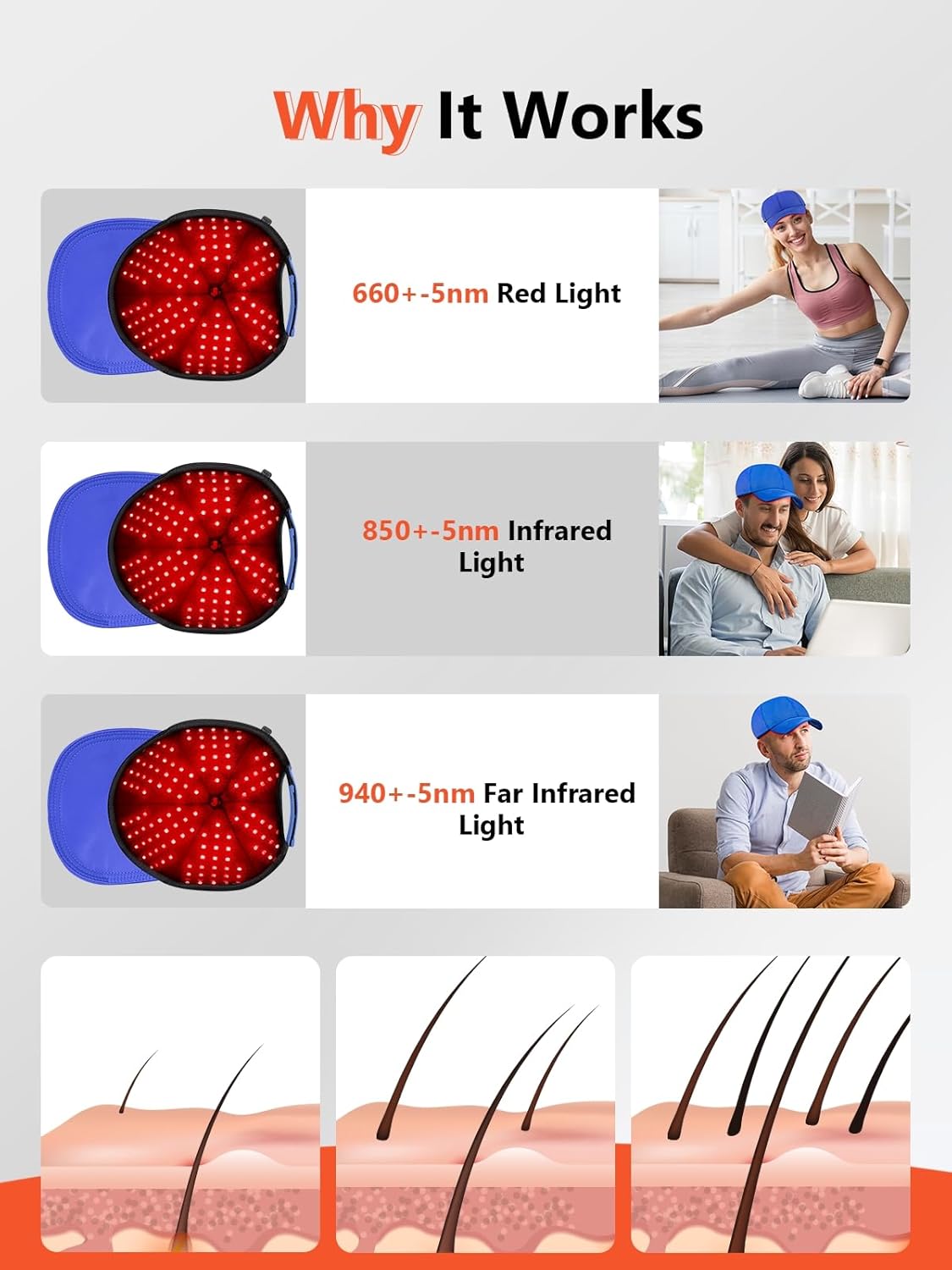

Figure 4.2: Visual explanation of how 660nm Red Light, 850nm Infrared Light, and 940nm Far Infrared Light interact with the scalp and hair follicles.
5. සැකසුම් උපදෙස්
- කොටුවෙන් සියලුම සංරචක ඉවත් කරන්න.
- Connect the wired controller to the Red Light Therapy Cap. Ensure the connection is secure.
- Plug the power adapter into the controller.
- බල ඇඩැප්ටරය සම්මත විදුලි අලෙවිසැලකට සම්බන්ධ කරන්න.
- Place the cap on your head, ensuring a comfortable fit. The cap features an adjustable Velcro strap for various head sizes.
6. මෙහෙයුම් උපදෙස්
The HALIDODO Red Light Therapy Cap offers five operating modes, five brightness levels, and a customizable timer for personalized therapy sessions.
6.1 බලය සක්රිය / අක්රිය
Press the power button on the controller to turn the device on or off.
6.2 මෙහෙයුම් ආකාර තෝරා ගැනීම
The device features five distinct operating modes. Use the mode selection button on the controller to cycle through them:
- ALL Mode (P1): Activates all visible 660nm red light and invisible 850nm/940nm infrared light.
- 660nm Red Light Only (P2): Activates only the visible 660nm red light.
- 10Hz Pulse Mode (P3): Provides flashing red light at a frequency of 10Hz.
- 40Hz Pulse Mode (P4): Provides flashing red light at a frequency of 40Hz.
- Breathing Mode (P5): Offers a gradual increase and decrease in light intensity for a soothing effect.
Figure 6.1: Table detailing the five working light modes (ALL, 660nm, 10Hz, 40Hz, Breathing Mode) along with their power consumption and approximate temperature.
6.3 දීප්තිය සකස් කිරීම
The cap is equipped with five brightness settings (L1-L5). Use the brightness control buttons on the controller to adjust the intensity of the light to your preference.
6.4 ටයිමරය සැකසීම
The device features a built-in timer with six preset durations: 5, 10, 15, 20, 25, and 30 minutes. Use the timer buttons on the controller to select your desired session length. The device will automatically shut off once the selected time has elapsed.
Figure 6.2: Illustration showing the 30-minute time setting feature, with options ranging from 5 to 30 minutes.
7. භාවිත මාර්ගෝපදේශ
For optimal results, it is recommended to use the Red Light Therapy Cap consistently. Typical usage involves daily sessions of 15-30 minutes, depending on your chosen timer setting and personal comfort.
- Ensure your scalp is clean and dry before use.
- Wear the cap comfortably, ensuring the LED panel is positioned over the desired treatment area.
- You can use the device while relaxing at home, exercising, traveling, or working in an office environment, as long as it is connected to a power source.
රූපය 7.1: උදාamples of using the Red Light Therapy Cap in various settings: home, during exercise, while traveling, and in an office.
Figure 7.2: Visual representation of potential improvements in hair density and scalp health after consistent use of the red light therapy cap.
8. නඩත්තුව සහ රැකවරණය
- පිරිසිදු කිරීමට පෙර සෑම විටම බලශක්ති ප්රභවයෙන් උපාංගය විසන්ධි කරන්න.
- Wipe the cap and LED panel with a soft, dry cloth.
- උල්ෙල්ඛ පිරිසිදු කරන්නන්, ද්රාවක හෝ සැර රසායනික ද්රව්ය භාවිතා නොකරන්න.
- උපාංගය සෘජු හිරු එළියෙන් සහ අධික උෂ්ණත්වයන්ගෙන් ඈත්ව සිසිල් වියළි ස්ථානයක ගබඩා කරන්න.
9. දෝශ නිරාකරණය
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| උපාංගය ක්රියාත්මක නොවේ. | Not properly connected to power; power outlet issue. | Ensure all cables are securely connected. Try a different power outlet. |
| විදුලි පහන් අඳුරු හෝ දැල්වෙමින් පවතී. | Low power supply; incorrect brightness setting. | Check power connection. Adjust brightness level using the controller. |
| උපාංගය අනපේක්ෂිත ලෙස ක්රියා විරහිත වේ. | Timer has expired; power interruption. | This is normal if the timer has completed. Check power connection if not. |
| Controller buttons are unresponsive. | Loose connection; internal malfunction. | Ensure controller cable is firmly connected to the cap. If issue persists, contact customer support. |
10. පිරිවිතර
- ආකෘතිය: Red Light Therapy Cap
- Light Wavelengths: 660nm (Red Light), 850nm (Near-Infrared Light), 940nm (Far-Infrared Light)
- LED ගණන: 180 powerful 3-in-1 LED lamps
- මෙහෙයුම් ආකාර: 5 (ALL, 660nm, 10Hz Pulse, 40Hz Pulse, Breathing Mode)
- දීප්තියේ මට්ටම්: 5 (එල් 1-එල් 5)
- ටයිමර් සැකසුම්: 5, 10, 15, 20, 25, 30 විනාඩි
- Product Perimeter: ආසන්න වශයෙන් අඟල් 25.6 (65 සෙ.මී.)
- නිෂ්පාදන විෂ්කම්භය: ආසන්න වශයෙන් අඟල් 7.28 (18.5 සෙ.මී.)
- නිෂ්පාදන ගැඹුර: ආසන්න වශයෙන් අඟල් 5.1 (13 සෙ.මී.)
- පැකේජ මානයන්: අඟල් 12.32 x 8.11 x 4.21
- අයිතමයේ බර: පවුම් 1.32ක්
- නිෂ්පාදකයා: හැලිඩෝඩෝ
- ASIN: B0DRK6SWVG
11. වගකීම් සහ සහාය
For any questions, concerns, or technical support regarding your HALIDODO Red Light Therapy Cap, please contact our customer service team. While specific warranty details are not provided in this manual, HALIDODO is committed to customer satisfaction.
ඕනෑම වගකීම් හිමිකම් පෑමක් හෝ සහාය විමසීමක් සඳහා කරුණාකර ඔබගේ මිලදී ගැනීමේ රිසිට්පත තබා ගන්න.
