Domi 12x20FT Wall-Mounted Sunroom Instruction Manual

වැදගත් ආරක්ෂක තොරතුරු

Please read and understand all instructions and safety warnings before assembly and use. Failure to follow these instructions may result in injury or product damage.

• Always secure the sunroom to a stable foundation.
• Do not assemble or disassemble during windy conditions.
• Remove snow promptly after heavy snowfall to prevent damage.
• තුවාල වළක්වා ගැනීම සඳහා සෑම විටම එකලස් කිරීමේ උපදෙස් ප්‍රවේශමෙන් අනුගමනය කරන්න.

නිෂ්පාදනය අවසන්view

The Domi 12x20FT Wall-Mounted Sunroom provides a generous interior space, transforming your patio or deck into a versatile outdoor living area. It features a sturdy aluminum frame, a galvanized steel roof, and movable PC screens with mesh for privacy and ventilation.

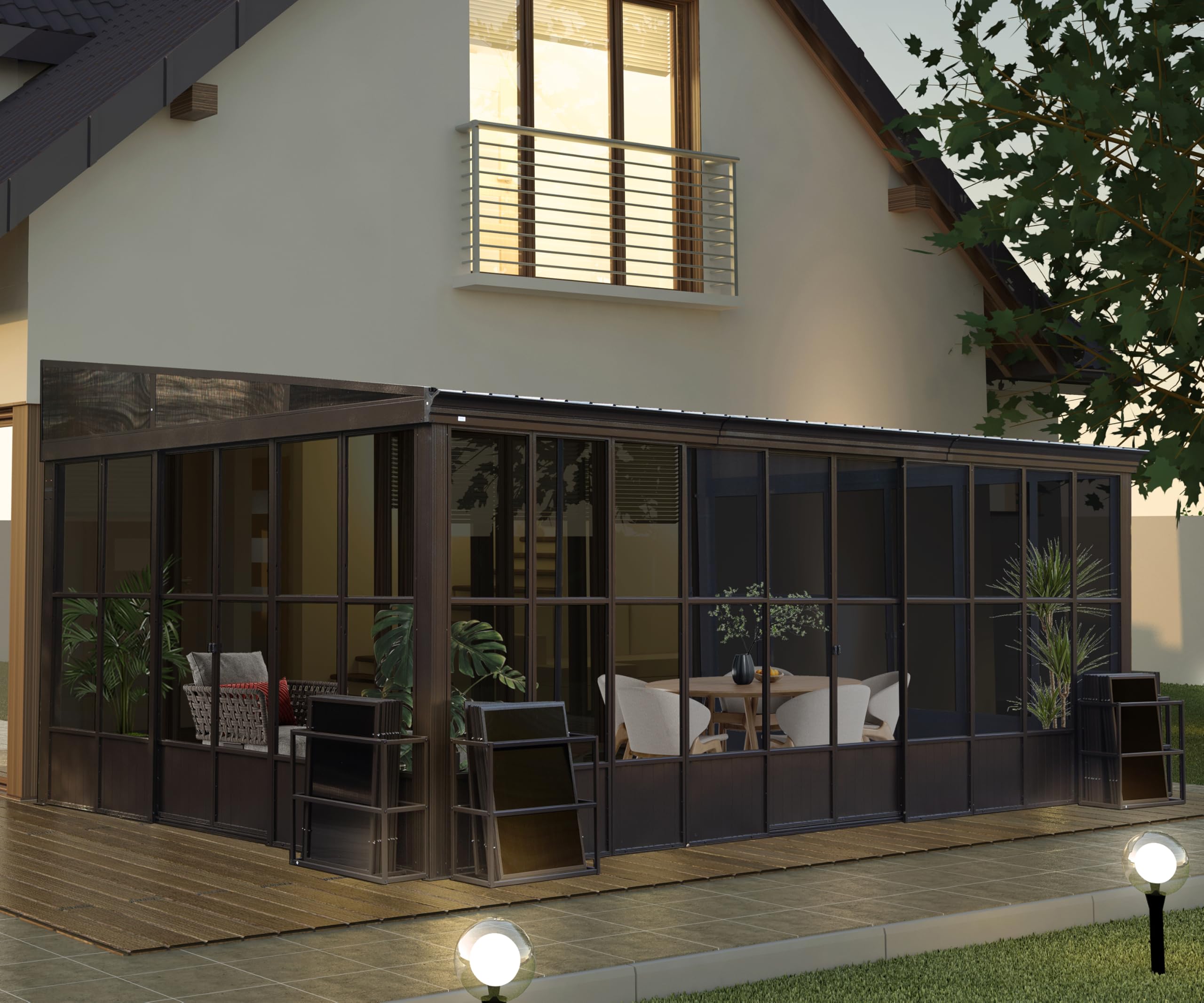

Image: The Domi 12x20FT Wall-Mounted Sunroom, showcasing its integration with a residential building.

ප්රධාන ලක්ෂණ:

• Generous Interior Space: 12x20FT dimensions offer ample room for relaxation and gatherings.
• ශක්තිමත් ඇලුමිනියම් රාමුව: Powder-coated aluminum resists rust and corrosion, designed to withstand various weather conditions, including snow pressure up to 35 pounds per square foot and wind resistance up to 60 miles per hour.
• Galvanized Steel Roof: Provides anti-corrosion properties, strong weight-bearing capacity, and blocks 99% of UV rays.
• Detachable PC Screen & Mesh: Translucent polycarbonate screens and breathable mesh offer privacy, UV protection, and ventilation. Removable design allows for flexible use and efficient storage on shelves.
• Built-in Drainage System: Sloping roof design with gutters ensures swift drainage of rainwater and snow, preventing accumulation.
• Sliding Door & Triple Entrance: Equipped with double sliding doors in the front and both sides for convenient access and seamless indoor-outdoor integration.
• Extra Metal Support Pole: Features a Φ1.65" diameter pole for enhanced stability and snow load capacity during heavy snowfall.

සැකසීම සහ එකලස් කිරීම

Assembly requires at least two people. Organize all parts and tools before beginning. Follow the detailed instructions provided in the packaging. The following video provides a visual guide to the assembly process.

ප්‍රධාන එකලස් කිරීමේ පියවර:

1. Unpack and Organize Parts: Carefully unpack all components and lay them out. Verify all parts are present against the parts list in your manual.
2. Support Assembly: Assemble the base supports for the frame. Ensure all bolts are securely fastened but do not overtighten until the frame is fully aligned.
3. Beam Assembly: Connect the front, rear, and side beams. Pay close attention to the orientation of each beam as indicated in the manual. Apply silicone sealant liberally where specified to ensure waterproof connections.
4. Frame Erection: With assistance, carefully raise the assembled frame and secure it to the ground or other infrastructure using appropriate anchoring bolts (not included).
5. වහල ස්ථාපනය: Install the galvanized steel roof panels. Ensure proper overlap and sealing to prevent leaks. Leave bolts slightly loose until all panels are in place and aligned, then tighten securely.
6. Wall and Door Installation: Install the PC screen and mesh wall panels. Ensure they slide smoothly into their tracks. Install the sliding doors, verifying proper alignment and magnetic closure.
7. Finishing Hardware: Attach all remaining hardware, such as handles, caps, and any additional support poles.

Image: Close-up of the wall-mounted design, showing how the sunroom blends with the house structure.

Image: Illustration of the detachable support pole, highlighting its diameter and securing mechanism for enhanced stability.

මෙහෙයුම් උපදෙස්

The Domi sunroom is designed for flexible use throughout the year. Familiarize yourself with its key operational features.

ස්ලයිඩින් දොරවල්:

The sunroom features double sliding doors at the front and sides, providing multiple access points. To open, gently slide the door along its track using the integrated handle. Ensure the tracks are clear of debris for smooth operation. The doors can be fully opened to integrate indoor and outdoor spaces or partially closed for controlled airflow.

රූපය: View of the convenient sliding doors, showing the handles and durable tracks for easy opening and closing.

Detachable PC Screen & Mesh:

The sunroom is equipped with translucent polycarbonate screens and breathable mesh panels. These panels can be easily removed or installed to adapt to weather conditions and your preference for privacy, ventilation, or protection from UV rays and insects. When removed, the screens can be stored on the provided aluminum storage organizers.

Image: Diagram illustrating the features of the PC screen and breathable mesh, including privacy, anti-mosquito, air ventilation, and landscape enjoyment.

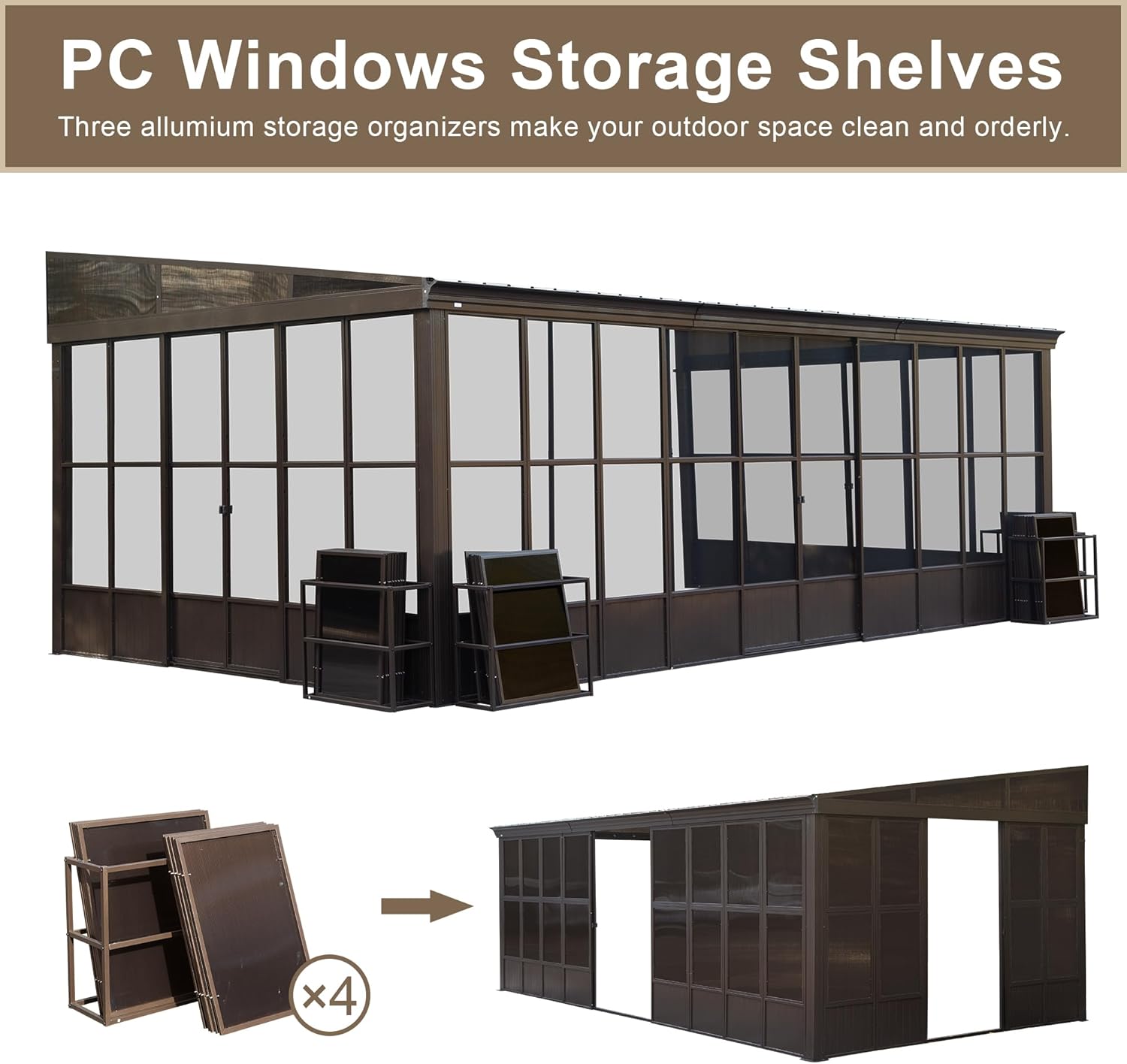

Image: Three aluminum storage organizers designed for efficient storage of removed PC window panels.

ජලාපවහන පද්ධතිය:

The integrated sloping drainage system efficiently directs rainwater and melted snow into the gutters, preventing accumulation on the roof. Regular inspection of the gutters for debris is recommended to ensure optimal performance.

Image: Close-up of the top drainage design, showing how rain flows along the sloping roof into the drainage ditch, preventing water accumulation.

නඩත්තු කිරීම

Proper maintenance will extend the lifespan and preserve the appearance of your Domi sunroom.

පිරිසිදු කිරීම:

• රාමුව: Clean the aluminum frame with a mild soap and water solution. Rinse thoroughly with clean water and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
• Roof Panels: Gently clean the galvanized steel roof panels with a soft brush or cloth and mild soapy water. Rinse well.
• PC Screens & Mesh: Use a soft cloth and mild soap solution to clean the polycarbonate screens and mesh. Avoid excessive pressure or sharp objects that could damage the material.
• ධාවන පථ: Periodically clear the sliding door and screen tracks of any dirt, leaves, or debris to ensure smooth operation.

හිම ඉවත් කිරීම:

To enhance the protection of the roof and ensure its long service life, it is advisable to conduct regular snow removal. Do not allow heavy snow accumulation on the roof, as this can cause structural damage. Use a soft-bristled broom or a snow rake designed for roofs to gently remove snow, avoiding sharp tools that could scratch the surface.

දෝෂගවේෂණය

This section addresses common issues you might encounter with your sunroom.

• කාන්දුවීම්: If you notice leaks, inspect all roof panel seams and connections for proper sealing. Ensure all bolts are tightened and that the drainage system is clear of obstructions. Reapply silicone sealant if necessary.
• Door/Screen Sticking: Check the sliding tracks for debris and clean them thoroughly. Ensure the doors and screens are properly aligned within their frames.
• අස්ථාවරත්වය: Verify that the sunroom is securely anchored to its foundation. Check all frame connections and support poles for tightness. Refer to the assembly instructions for proper anchoring procedures.
• හානි වූ පැනල්: For minor scratches or damage to PC screens, consult with customer support for repair options or replacement parts.

පිරිවිතර

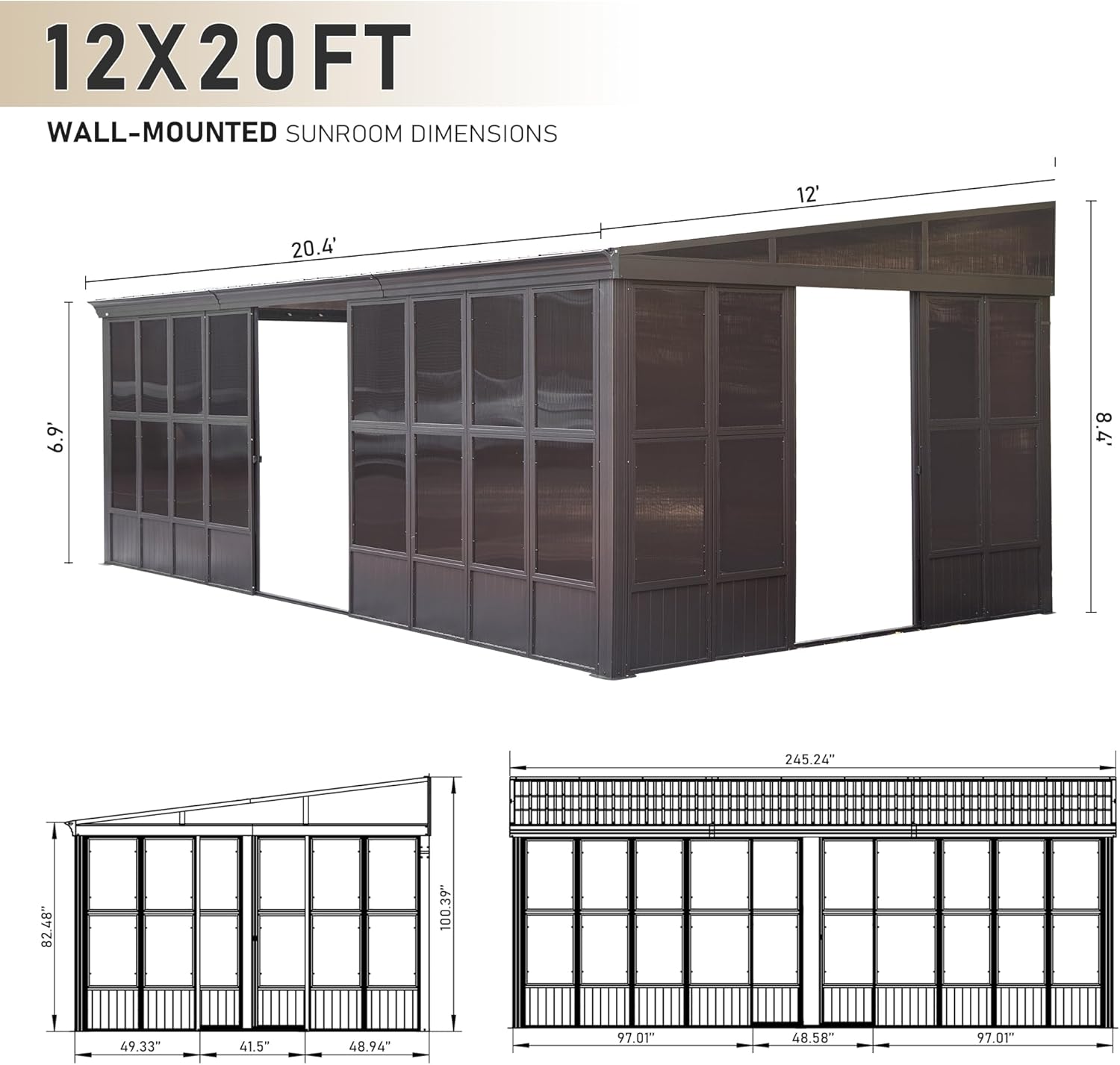

Image: Detailed dimensional drawing of the 12x20FT wall-mounted sunroom, showing height, width, and depth measurements.

වගකීම් සහ සහාය

This product comes with a standard return policy. For specific warranty details, please refer to the documentation included with your purchase or contact the manufacturer directly.

පාරිභෝගික සහාය:

For any questions, concerns, or assistance with your Domi sunroom, please contact customer support. Information regarding customer support can typically be found on the manufacturer's webඅඩවියෙන් හෝ ඔබේ සිල්ලර වෙළෙන්දා හරහා.

• ආපසු දෙන ප්රතිපත්තිය: දින 30ක පහසු ප්‍රතිලාභ.
• විකුණුම්කරු: Fay outdoor life
