ZORNHER ZH870 Wireless Mechanical Gaming Keyboard User Manual

1. හැඳින්වීම

Welcome to the ZORNHER ZH870 Wireless Mechanical Gaming Keyboard user manual. This document provides detailed instructions for setting up, operating, and maintaining your new keyboard. The ZH870 is designed for both gaming and productivity, featuring a compact 80% layout, triple connectivity options, customizable RGB lighting, and hot-swappable switches.

Figure 1: ZORNHER ZH870 Wireless Mechanical Gaming Keyboard.

2. පැකේජ අන්තර්ගතය

සියලුම අයිතම පැකේජයේ ඇති බවට වග බලා ගන්න:

• 1x සම්පුර්ණයෙන්ම එකලස් කරන ලද යතුරු පුවරුව
• 1x Keycap Puller
• 1x දූවිලි ආවරණය
• 3x Replace Switches
• 1x 2.4GHz ග්‍රාහකයා
• 1x USB-C Cable (1.8m nylon)
• 1x උපදෙස් අත්පොත

Figure 2: Package contents for the ZH870 keyboard.

3. නිෂ්පාදන අවසන්view

The ZORNHER ZH870 is an 80% layout mechanical keyboard designed for optimal performance and user experience. Key features include:

• Dipped PBT Keycaps: High-purity PBT keycaps with clear, side-printed legends for durability and vibrant RGB diffusion.
• 80% පිරිසැලසුම: Compact design retaining essential keys (F-row, arrows, navigation cluster) for efficiency.
• Creamy Linear Switches: Factory-lubed switches with gasket mount for soft keystrokes and audible feedback.
• 22 RGB Modes: Vivid RGB lighting with south-facing and side LEDs, offering 22 preset effects.
• උණුසුම් හුවමාරු කළ හැකි: Compatible with 3-pin and 5-pin mechanical switches without soldering.
• Triple Connection: Seamless switching between 2.4GHz wireless, Bluetooth 5.0, and USB-C wired modes, supporting up to 5 devices.
• 4000mAh බැටරිය: High-capacity battery for extended wireless use.
• Ergonomic Design: OEM-profile keycaps and stable build for comfort and control.

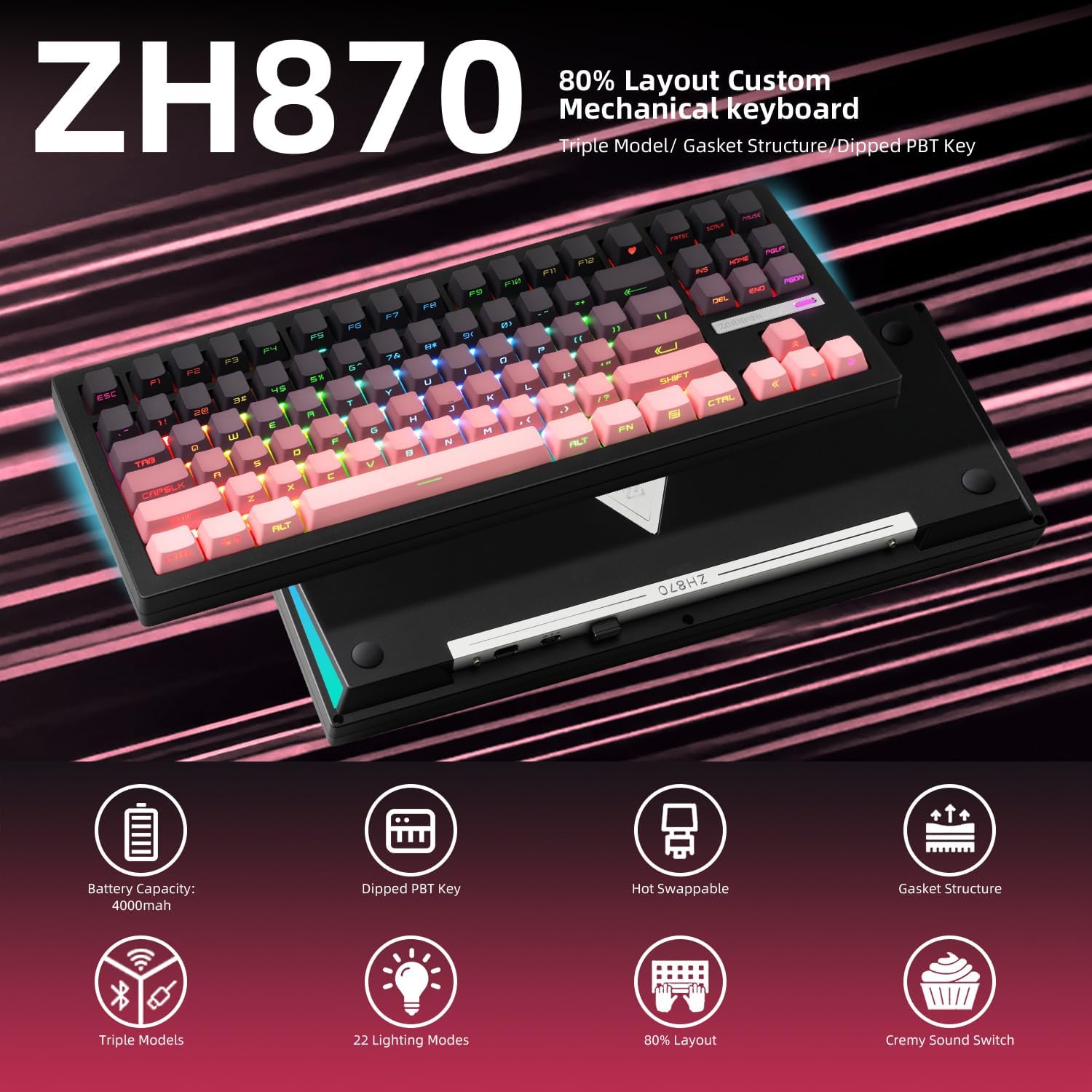

Figure 3: Key features of the ZORNHER ZH870 keyboard.

4. පිහිටුවීම

4.1. සම්බන්ධතා මාතයන්

The ZH870 supports three connection methods: 2.4GHz wireless, Bluetooth 5.0, and USB-C wired. You can switch between these modes using the dedicated switch on the back of the keyboard.

• 2.4GHz රැහැන් රහිත: Insert the 2.4GHz receiver into a USB port on your device. Select 2.4GHz mode on the keyboard.
• බ්ලූටූත් 5.0: Select Bluetooth mode on the keyboard. Pair with your device via Bluetooth settings. The keyboard can connect to up to 5 devices.
• USB-C රැහැන්ගත: Connect the provided USB-C cable from the keyboard to your device. Select wired mode on the keyboard.

Figure 4: Triple connection options for the ZH870.

4.2. ආරෝපණය කිරීම

The keyboard is powered by a 4000mAh battery. Connect the USB-C cable to the keyboard and a power source (e.g., computer USB port, wall adapter) to charge. The battery status can be monitored via the keyboard's display or software.

4.3. සකස් කළ හැකි පාද

The keyboard features adjustable feet on the underside, allowing you to set the typing angle for ergonomic comfort. There are multiple height settings available.

5. මෙහෙයුම් උපදෙස්

5.1. RGB ආලෝකකරණ ක්‍රම

The ZH870 offers 22 preset RGB lighting effects, including side-glow and south-facing LEDs for clean and immersive illumination. Use the function keys (Fn) in combination with other keys to cycle through effects, adjust brightness, and change colors.

• Fn + MENU: Change backlight effect.
• Fn + SHIFT_R: පසුබිම් ආලෝකයේ වර්ණය වෙනස් කරන්න.
• Fn+F13: Switch side backlight effect.
• Fn + BACKSPACE: Toggle lights off/on.
• Fn + ඉහළ ඊතලය: පසුබිම් ආලෝකයේ දීප්තිය වැඩි කරන්න.
• Fn + පහළ ඊතලය: පසුබිම් ආලෝකයේ දීප්තිය අඩු කරන්න.
• Fn + වම් ඊතලය: පසුතල ආලෝකයේ වේගය අඩු කරන්න.
• Fn + දකුණු ඊතලය: පසුතල ආලෝකයේ වේගය වැඩි කරන්න.

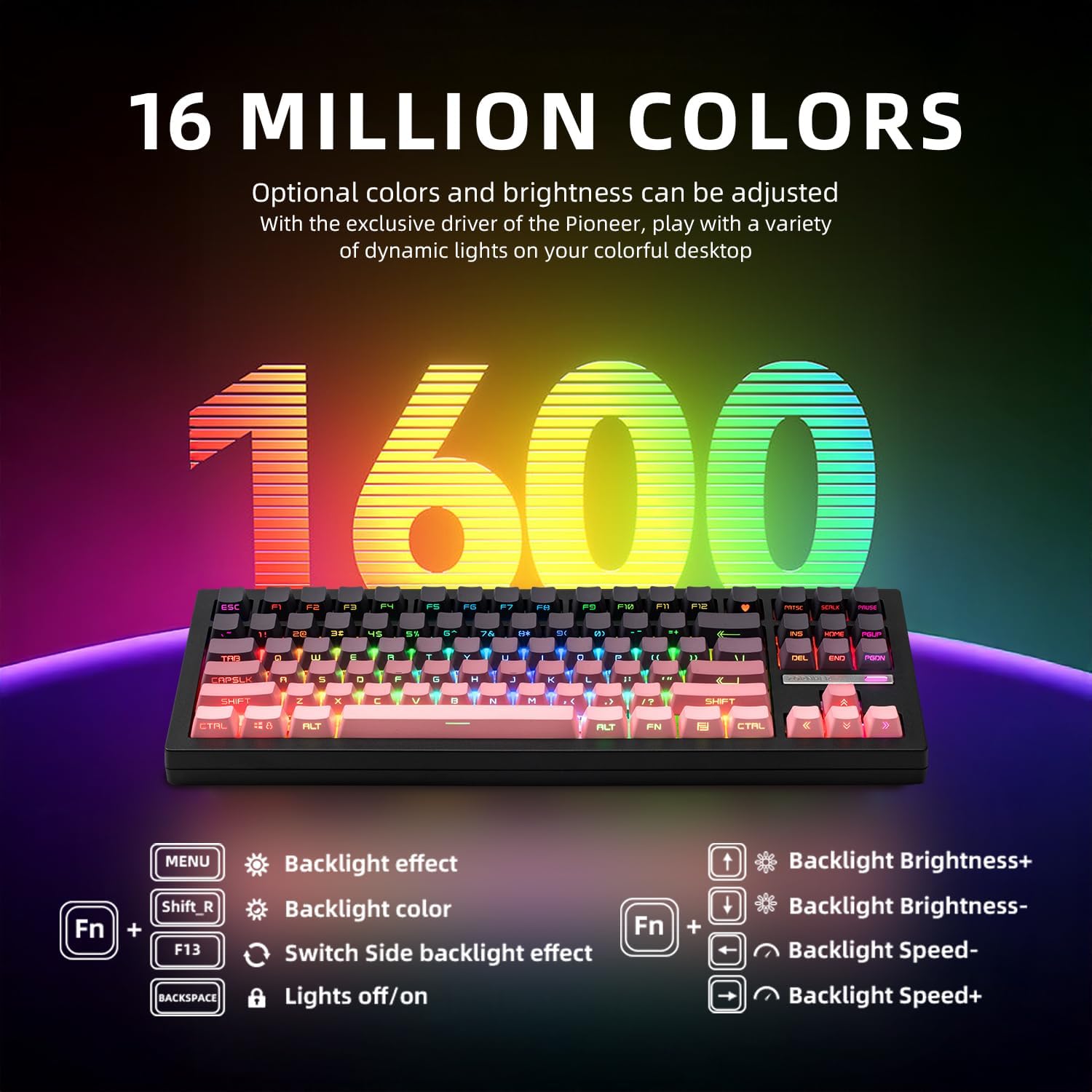

Figure 5: RGB lighting control functions.

5.2. අභිරුචිකරණය

The keyboard is fully customizable:

• උණුසුම්-ස්වාප් කළ හැකි ස්විච: The PCB supports both 3-pin and 5-pin mechanical switches, allowing for easy switch replacement without soldering.
• රියදුරු සහාය: Utilize the dedicated driver software to remap keys, set macros, and personalize lighting modes to suit your preferences.

රූපය 6: උණුසුම්-මාරු කළ හැකි ස්විච ක්‍රියාකාරිත්වය.

Figure 7: Software interface for advanced customization.

5.3. Multi-Device Connection

The ZH870 can connect to up to 5 devices simultaneously via its triple connection modes, allowing for seamless switching between your computer, tablet, and other compatible devices.

6. නඩත්තු කිරීම

To ensure the longevity and optimal performance of your ZORNHER ZH870 keyboard, regular maintenance is recommended:

• පිරිසිදු කිරීම: Use the provided dust cover when not in use. For general cleaning, gently wipe the keycaps and keyboard surface with a soft, lint-free cloth. Use the included brush to remove dust and debris from between the keycaps.
• Keycap and Switch Removal: Use the keycap puller and switch puller (if applicable) to carefully remove keycaps and switches for deeper cleaning or replacement.

7. දෝශ නිරාකරණය

If you encounter issues with your ZORNHER ZH870 keyboard, please refer to the following common solutions:

• සම්බන්ධතා ගැටළු: Ensure the keyboard is in the correct mode (2.4GHz, Bluetooth, or Wired) for your device. For wireless connections, check battery level and ensure the receiver is properly inserted or Bluetooth is paired. Try restarting the keyboard and your device.
• ප්‍රතිචාර නොදක්වන යතුරු: Check if the keyboard is properly connected. If using wireless, ensure it's charged. If specific keys are not working, consider replacing the switch using the hot-swappable feature.
• RGB Lighting Problems: Verify that the lighting is not turned off (Fn + BACKSPACE). Adjust brightness and effects using the function key combinations. Ensure the driver software is up-to-date for advanced customization.
• බැටරිය ආරෝපණය නොවේ: Ensure the USB-C cable is securely connected to both the keyboard and a working power source. Try a different USB-C cable or port.

For further assistance, please contact ZORNHER customer support.

8. පිරිවිතර

9. වගකීම් සහ සහාය

The ZORNHER ZH870 Wireless Mechanical Gaming Keyboard comes with a වසර 2ක වගකීමක් for worry-free ownership. For any product-related inquiries, technical support, or warranty claims, please contact ZORNHER customer service through the official channels provided at the time of purchase.

10. නිෂ්පාදන වීඩියෝ
