NDI ND0988 Stud Detector Instruction Manual

1. හැඳින්වීම

The NDI ND0988 Stud Detector utilizes advanced electronic signals technology to detect the precise location of studs hidden behind walls. This tool is ideal for indoor decoration wiring, installation of electric equipment such as air conditioners and range hoods, and detecting metal in wooden furniture and wood product structures. It offers clear audio and visual indicators to ensure safe drilling and hanging, making it perfect for home improvement tasks like hanging shelves or installing appliances.

2. නිෂ්පාදන අවසන්view

The NDI ND0988 is designed for user-friendly operation and accurate results. Below are its key features and components.

• Accurate Stud Detection: Locates wooden studs with precision at depths of 12mm, 25mm, and 38mm.
• User-Friendly LCD Interface: Bright backlit LCD screen displays detection strength, battery level, and stud depth indicators.
• Multiple Depth Modes: Three depth settings (0.5", 1.0", and 1.5") adapt to various wall thicknesses.
• Battery Indicator & Power Saving: Features a battery level indicator and automatically shuts down after 2 minutes of inactivity.
• සංයුක්ත සහ කල් පවතින නිර්මාණය: Lightweight, easy to handle, and built to withstand everyday use.

නිෂ්පාදන සංරචක

Figure 1: NDI ND0988 Stud Detector with labeled components.

1. Backlit LCD: Displays all operational information.
2. බල බොත්තම: උපාංගය සක්රිය / අක්රිය කරයි.
3. මාදිලි බොත්තම: Switches between different detection modes (depths).
4. Detection Button: Press and hold to initiate scanning.
5. බැටරි මැදිරිය: AAA බැටරි පිහිටා ඇත.

3. පිහිටුවීම

බැටරි ස්ථාපනය

The NDI ND0988 requires two AAA batteries (not included). Follow these steps to install them:

1. උපාංගයේ පිටුපස බැටරි මැදිරි කවරය සොයා ගන්න.
2. කවරය විවෘත කරන්න.
3. නිවැරදි ධ්‍රැවීයතාව (+/-) සහතික කරමින් AAA බැටරි දෙකක් ඇතුළු කරන්න.
4. බැටරි මැදිරි කවරය ආරක්ෂිතව ක්ලික් කරන තුරු එය නැවත එම ස්ථානයට තල්ලු කරන්න.

Figure 2: NDI ND0988 Stud Detector.

4. මෙහෙයුම් උපදෙස්

බලය සක්රිය / අක්රිය

• බල ගැන්වීමට: Short press the Power button. The tool will display full information on the LCD screen.
• බලය අක්රිය කිරීමට: Long press the Power button until the screen turns off. The device also features an automatic shutdown after 2 minutes of inactivity to preserve battery life.

Mode Selection and Unit Switch

• To Switch Depth Modes: Short press the MODE button to cycle through the available stud detection depths (12mm, 25mm, 38mm).
• To Switch Units: Long press the MODE button to switch between Metric (mm) and Imperial (inches) units.

Stud Detection Procedure

For accurate results, ensure the device is calibrated before scanning.

1. Place the detector flat against the wall surface where you intend to scan.
2. Press and hold the Detection button (MEAS). The device will calibrate automatically. Wait for the calibration to complete (usually a short beep and stable display).
3. Slowly slide the detector horizontally across the surface. Keep the device flat against the wall.
4. When a stud is detected, the LCD screen will show signal strength indicators, and an audible beep will sound. Arrows on the display will guide you towards the center of the stud.
5. Mark the center of the stud once the display indicates maximum signal strength and a bullseye icon.
6. Repeat the scan from the opposite direction to confirm the stud's edges and center for maximum accuracy.

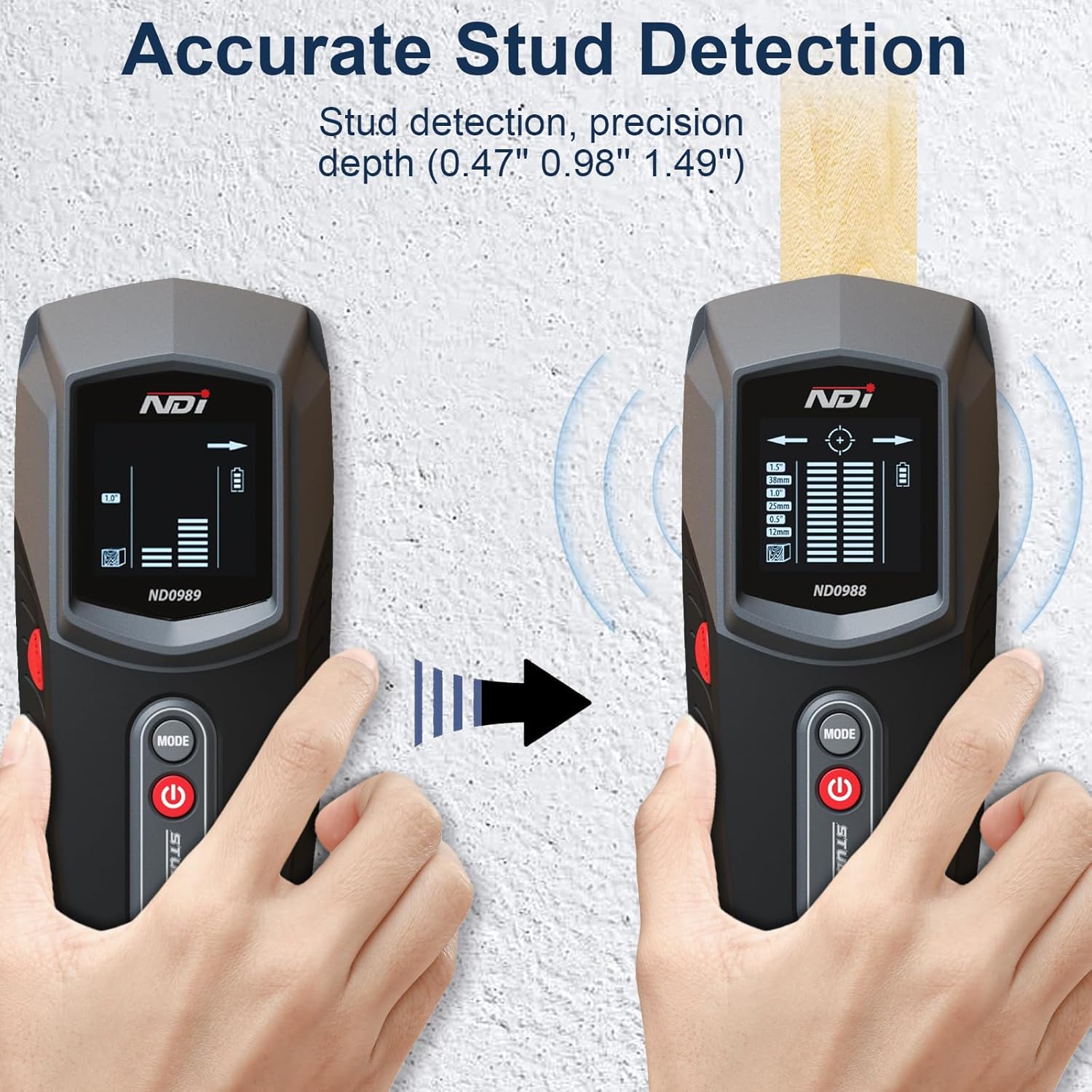

Figure 3: Accurate Stud Detection in progress.

5. Depth Modes

The NDI ND0988 offers three distinct depth modes to accommodate various wall thicknesses and material types:

• Mode 1 (12mm / 0.5"): Ideal for detecting studs closer to the surface.
• Mode 2 (25mm / 1.0"): Suitable for standard wall thicknesses.
• Mode 3 (38mm / 1.5"): For deeper stud detection through thicker materials.

Select the appropriate mode based on your wall's construction for optimal accuracy.

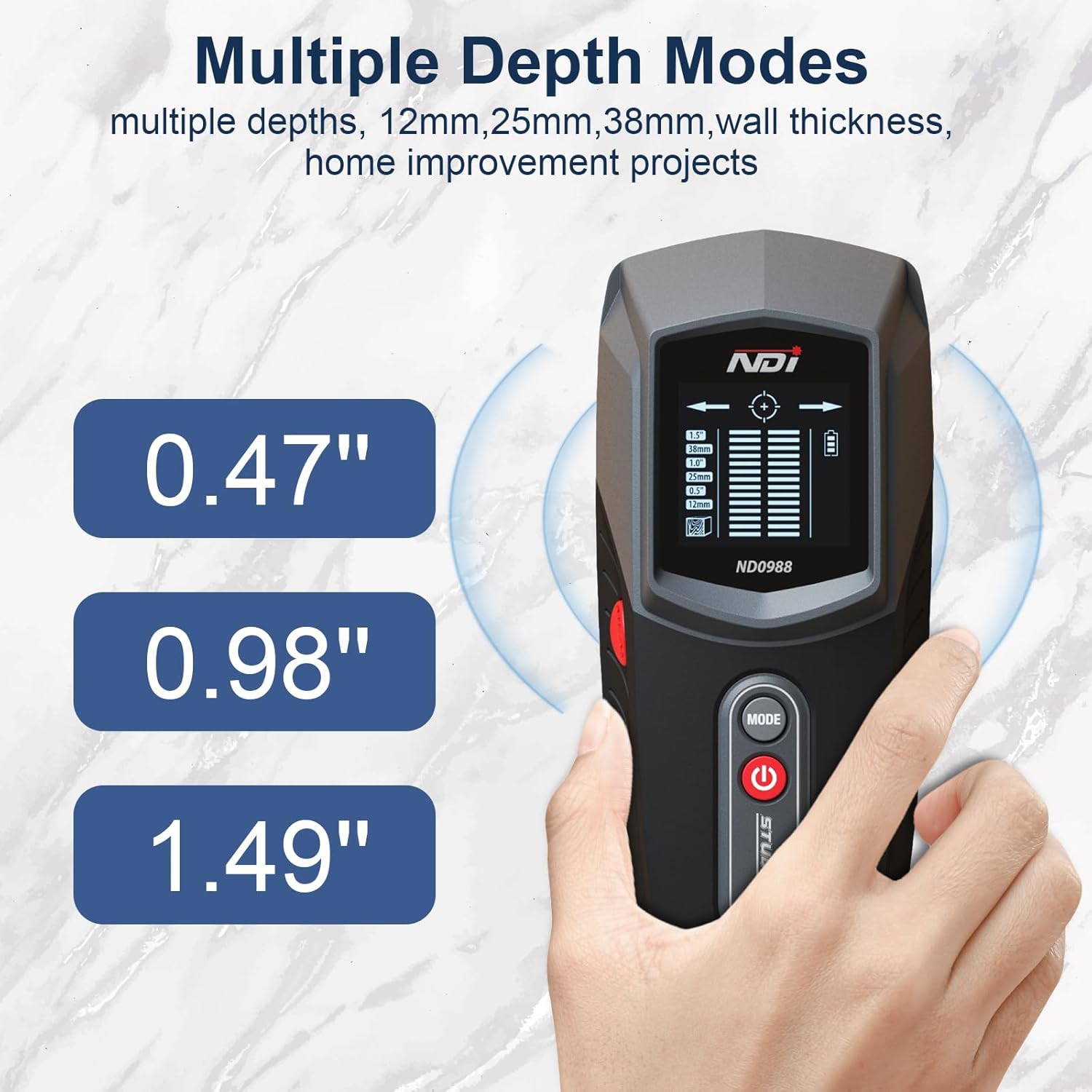

Figure 4: Multiple Depth Modes for versatile scanning.

6. බැටරි තොරතුරු

The NDI ND0988 is powered by two AAA batteries. The device includes a battery level indicator on the LCD screen to inform you when the batteries are running low and need replacement. To conserve battery life, the tool automatically shuts down after 2 minutes of inactivity.

බැටරි ආරක්ෂණ උපදෙස්

• Always remove batteries when storing the product for extended periods.
• භාවිතා කරන ලද බැටරි දේශීය රෙගුලාසි වලට අනුව නිසි ලෙස බැහැර කරන්න.
• බැටරි ඉහළ උෂ්ණත්වයකට හෝ සෘජු හිරු එළියට නිරාවරණය නොකරන්න.

7. නඩත්තු කිරීම

To ensure the longevity and optimal performance of your NDI ND0988 Stud Detector, follow these maintenance guidelines:

• පිරිසිදු කිරීම: මෘදු වියළි රෙද්දකින් උපාංගය පිස දමන්න. උල්ෙල්ඛ පිරිසිදු කරන්නන් හෝ ද්‍රාවක භාවිතා නොකරන්න.
• ගබඩා: Store the detector in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for an extended period.
• හැසිරවීම: අභ්‍යන්තර සංරචක වලට හානි කළ හැකි බැවින්, උපාංගය බිම හෙළීමෙන් හෝ දැඩි බලපෑම්වලට ලක්වීමෙන් වළකින්න.

8. දෝශ නිරාකරණය

If you encounter issues with your NDI ND0988 Stud Detector, refer to the following common troubleshooting tips:

• වැරදි කියවීම්: Ensure the device is properly calibrated by pressing it flat against the wall before scanning. Avoid scanning over wet paint or wallpaper, which can affect accuracy.
• හඳුනාගැනීමක් නැත: Check if the batteries are correctly installed and have sufficient charge. Try switching to a different depth mode. Ensure the device is held flat against the wall and moved slowly.
• උපාංගය ක්‍රියාත්මක නොවේ: Verify that the batteries are new or fully charged and inserted with correct polarity. If the issue persists, replace the batteries.

For further assistance, please contact NDI customer support.

9. පිරිවිතර

10. වගකීම් සහ සහාය

NDI products are manufactured to high-quality standards. For information regarding warranty coverage, product support, or to purchase replacement parts, please refer to the contact information provided with your product packaging or visit the official NDI webවෙබ් අඩවිය. ඕනෑම වගකීම් හිමිකම් පෑමක් සඳහා කරුණාකර ඔබේ මිලදී ගැනීමේ සාක්ෂි තබා ගන්න.
