1. හැඳින්වීම සහ නිෂ්පාදනය අවසන්view
These maXpeedingrods extended brake lines are designed to replace standard rubber brake lines on Jeep Wrangler JK models (2-Door and 4-Door, 2WD and 4WD) manufactured between 2007 and 2018. They are specifically engineered for vehicles equipped with a 4-6 inch suspension lift kit.
When a vehicle's suspension is lifted, the distance between the chassis and the axle increases, requiring longer brake lines to prevent stretching or damage during full suspension articulation. These stainless steel braided lines provide the necessary additional length and offer enhanced durability and improved braking response compared to original equipment (OE) rubber lines.
The stainless steel construction resists expansion under pressure, which can lead to a firmer brake pedal feel and more consistent braking performance, especially beneficial when upgrading to larger tires that demand increased braking pressure.
2. Fitment and Compatibility
- වාහන අනුකූලතාව: Jeep Wrangler JK 2-Door (2WD/4WD) 2007-2018
- වාහන අනුකූලතාව: Jeep Wrangler JK 4-Door (JKU) (2WD/4WD) 2007-2018
- එසවුම් අනුකූලතාව: Designed for vehicles with 4-6 inch suspension lift kits installed.
It is crucial to verify your vehicle's make, model, year, and lift height to ensure proper fitment before installation.

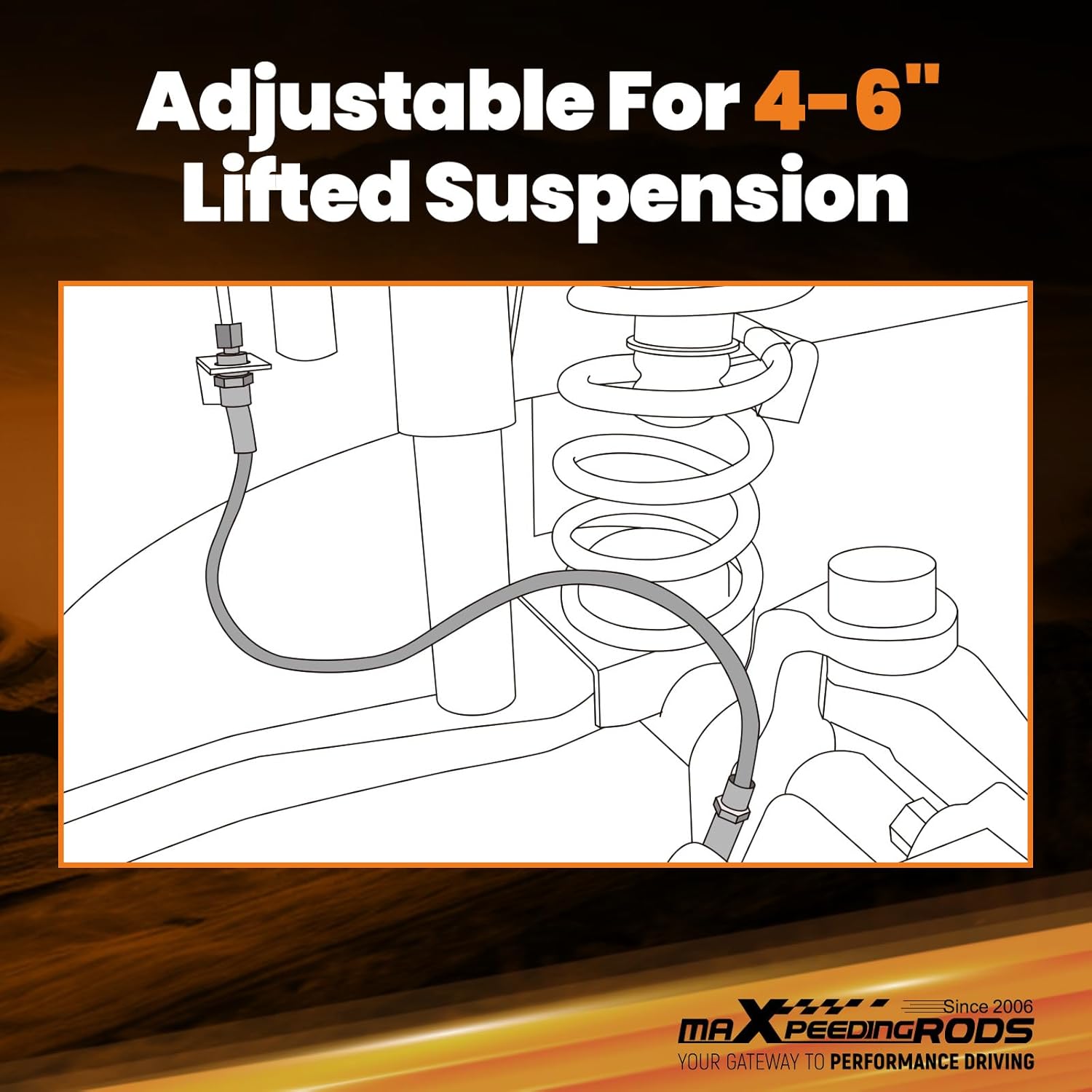

Image: Diagram illustrating how extended brake lines accommodate a lifted suspension.
3. පැකේජ අන්තර්ගතය
Please inspect the package contents upon receipt to ensure all components are present and undamaged.
- 2 x Front Extended Brake Lines
- 2 x Rear Extended Brake Lines
- Necessary Installation Hardware (washers, clips)
Image: Contents of the kit, including four stainless steel braided brake lines and mounting hardware.
4. පිහිටුවීම සහ ස්ථාපනය
අවවාදයයි: Installation of brake components requires specialized knowledge and tools. Improper installation can lead to brake failure, serious injury, or death. It is highly recommended that installation be performed by a qualified professional mechanic.
4.1 ආරක්ෂිත පූර්වාරක්ෂාවන්
- සෑම විටම ආරක්ෂිත කණ්නාඩි සහ අත්වැසුම් ඇතුළු සුදුසු පුද්ගලික ආරක්ෂක උපකරණ (PPE) පළඳින්න.
- Ensure the vehicle is securely supported on jack stands on a level surface. Never work under a vehicle supported only by a jack.
- වාහනයේ බැටරියේ ඍණ අග්රය විසන්ධි කරන්න.
- Brake fluid is corrosive. Avoid contact with skin, eyes, and painted surfaces. Clean up spills immediately.
4.2 සාමාන්ය ස්ථාපන පියවර (වෘත්තීය ස්ථාපනය නිර්දේශ කෙරේ)
- වාහනය සූදානම් කරන්න: Lift the vehicle and secure it on jack stands. Remove wheels.
- Drain Brake Fluid: If necessary, drain some brake fluid from the master cylinder reservoir to prevent overflow during line removal.
- Remove Old Brake Lines: Carefully disconnect the existing brake lines from the caliper/wheel cylinder and the frame mounting point. Be prepared for brake fluid leakage.
- Install New Brake Lines: Attach the new extended brake lines, ensuring proper routing to avoid contact with moving suspension components or sharp edges. Use the provided hardware. Ensure all fittings are tightened to manufacturer specifications (consult a service manual for torque values).
- බ්ලීඩ් තිරිංග පද්ධතිය: This is a critical step. Air introduced into the brake system during line replacement must be removed. Follow the vehicle manufacturer's recommended brake bleeding procedure, typically starting with the wheel furthest from the master cylinder and working towards the closest. This often requires two people.
- කාන්දුවීම් සඳහා පරීක්ෂා කරන්න: After bleeding, visually inspect all connections for any signs of brake fluid leakage.
- Test Brake Pedal: With the engine off, pump the brake pedal several times. The pedal should feel firm and consistent. If it feels spongy, re-bleed the system.
- රෝද නැවත ස්ථාපනය කරන්න: රෝද නැවත ස්ථාපනය කර වාහනය පහත් කරන්න.
5. මෙහෙයුම් සහ ස්ථාපන පසු පරීක්ෂාවන්
ස්ථාපනය කිරීමෙන් පසු, වාහනය ධාවනය කිරීමට පෙර පහත පරීක්ෂාවන් සිදු කරන්න:
- Brake Pedal Feel: The brake pedal should feel firm and consistent. A spongy pedal indicates air in the system, requiring further bleeding.
- තරල මට්ටම: Check the brake fluid level in the master cylinder reservoir and top up if necessary with the correct type of brake fluid specified by your vehicle manufacturer.
- කාන්දු පරීක්ෂාව: Visually inspect all brake line connections for any signs of leakage.
- මාර්ග පරීක්ෂණය: Perform a cautious road test in a safe, open area at low speeds. Test the brakes gently at first, then gradually increase pressure. Listen for unusual noises and observe braking performance. Ensure the vehicle stops straight and without excessive pedal travel.
6. නඩත්තු කිරීම
Regular inspection and maintenance are essential for the longevity and safe operation of your brake system.
- වරින් වර පරීක්ෂා කිරීම: Regularly inspect the brake lines for any signs of wear, fraying, kinks, or damage. Check for corrosion on fittings.
- කාන්දුවීම් පරීක්ෂා කිරීම්: Periodically check all brake line connections for leaks, especially after off-road driving or heavy use.
- තිරිංග තරලය: Monitor brake fluid level and condition. Replace brake fluid according to your vehicle manufacturer's recommendations.
- මාර්ගගත කිරීම: Ensure brake lines remain properly routed and secured, away from moving parts or heat sources.
Image: Detail of the high-strength stainless steel braided line and fitting.
7. දෝශ නිරාකරණය
If you experience any issues after installing the extended brake lines, consider the following common problems and solutions:
- ස්පොන්ජි තිරිංග පැඩලය: This is typically caused by air trapped in the brake system. Re-bleed the entire brake system thoroughly, ensuring no air bubbles remain.
- තිරිංග තරල කාන්දුවීම්: Check all connections for proper tightness. Ensure flare nuts are correctly seated and not cross-threaded. Inspect the brake lines themselves for any damage.
- Poor Braking Performance: Could be related to air in the lines, improper installation, or issues with other brake components. If bleeding does not resolve the issue, consult a professional mechanic.
- Brake Line Rubbing/Contact: If brake lines are rubbing against suspension components or the chassis, re-route and secure them using appropriate clips or zip ties to prevent damage.
If troubleshooting steps do not resolve the issue, seek assistance from a certified automotive technician.
8. පිරිවිතර
| විශේෂාංගය | පිරිවිතර |
|---|---|
| ආදර්ශ අංකය | EL55BP |
| ද්රව්ය | මල නොබැඳෙන වානේ ෙගත්තම් |
| වර්ණය | රිදී |
| Front Brake Line Length | අඟල් 24 (දළ වශයෙන් 610 මි.මී.) |
| Rear Brake Line Length | අඟල් 22.5 (දළ වශයෙන් 571.5 මි.මී.) |
| Lift Compatibility | 4-6 inch suspension lifts |
| අයිතමයේ බර | රාත්තල් 2.31 (දළ වශයෙන් ග්රෑම් 1050) |
| නිෂ්පාදන මානයන් (පැකේජය) | අඟල් 10.94 x 7.8 x 4.29 |

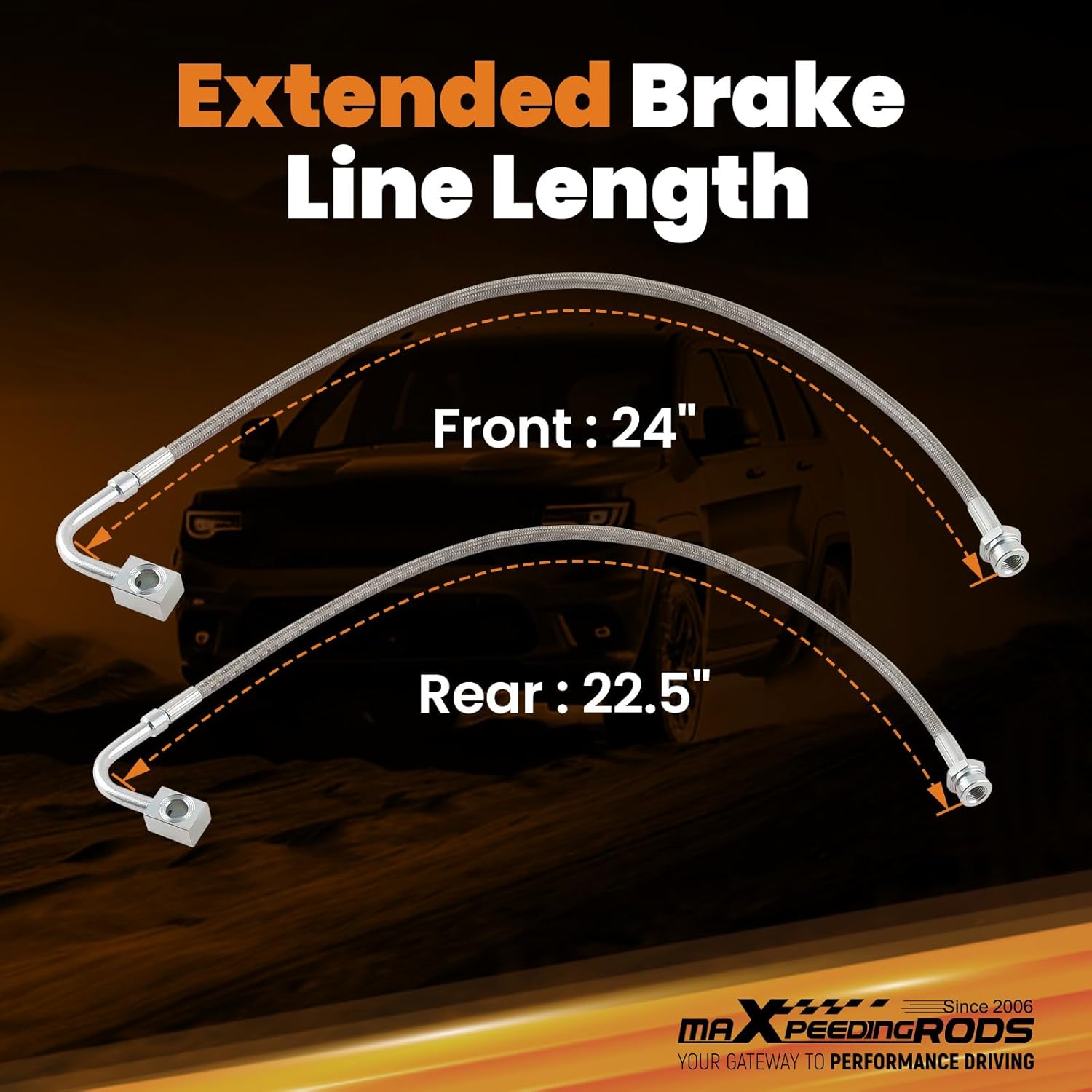

Image: Visual representation of front and rear brake line lengths.
9. වගකීම් සහ සහාය
maXpeedingrods provides the following support for this product:
- සීමිත වගකීම්: 1-year limited warranty for quality-related issues from the date of purchase.
- තාක්ෂණික සහාය: ජීවිත කාලය පුරාම තාක්ෂණික සහාය ලබා ගත හැකිය.
For any questions, technical assistance, or warranty claims, please contact maXpeedingrods customer support.
