1. හැඳින්වීම
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your VEVOR Salt Water Chlorinator System, Model 89420005. This system is designed for in-ground swimming pools up to 25,000 gallons, converting salt into chlorine to maintain water sanitation.

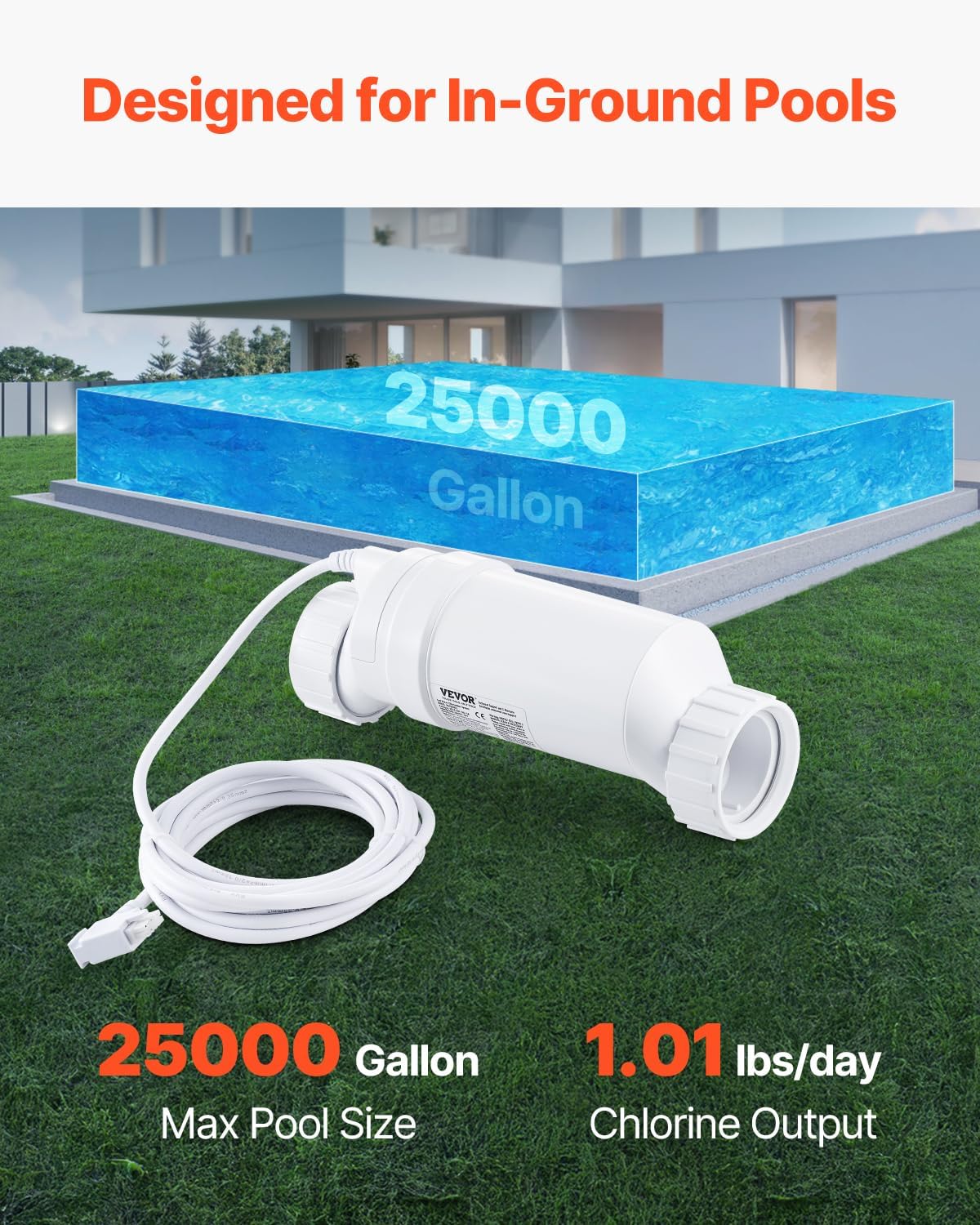

Image 1.1: VEVOR Salt Water Chlorinator System for 25,000-gallon pools.
2 ආරක්ෂිත තොරතුරු
- Always disconnect power to the pool pump and chlorinator before performing any service or maintenance.
- සියලුම විදුලි සංරචක නිසි ලෙස භූගත කිරීම සහතික කරන්න.
- Keep the chlorinator and its power cord away from direct sunlight and extreme temperatures.
- Maintain proper pool chemistry, including salt levels, as specified in the operation section.
- Consult a qualified pool professional for any complex installation or repair procedures.
3. පැකේජ අන්තර්ගතය
පැකේජය විවෘත කිරීමෙන් පසු, සියලුම සංරචක පවතින බවත් හානි වී නොමැති බවත් තහවුරු කර ගන්න:
- VEVOR Salt Water Chlorinator Cell (Model 89420005)
- 15 ft (4.6 m) Power Cord with Quick-Connect Plug
- 4 x O-ring Seals
- 1 x Pipe Cleaning Hook
Image 3.1: Contents of the VEVOR Salt Water Chlorinator System package.
මෙම වීඩියෝව අවසන් කිරීමක් සපයයිview of the VEVOR Salt Water Chlorinator System, including unboxing and initial setup considerations for your pool.
වීඩියෝව 3.1: පෙට්ටි ඉවත් කිරීම සහ තවත්view of the VEVOR Salt Water Chlorinator System.
4. පිරිවිතර
| විශේෂාංගය | පිරිවිතර |
|---|---|
| අයිතම ආදර්ශ අංකය | 89420005 |
| Applicable Pool Capacity | 25,000 Gallons, In-Ground Pools |
| ක්ලෝරීන් ප්රතිදානය | 1.01 lbs/day (19.1 g/h) |
| විදුලි රැහැන් දිග | අඩි 15 / මීටර් 4.6 |
| Material (Shell) | ABS |
| Material (Electrodes) | Titanium Metal |
| නිෂ්පාදන මානයන් | 13.3 x 4.3 x 5.0 අඟල් (339 x 109 x 128 මි.මී.) |
| ශුද්ධ බර | රාත්තල් 4.2 / 1.9 kg |
Image 4.1: Detailed specifications and dimensions of the chlorinator.
5. ස්ථාපනය
The VEVOR Salt Water Chlorinator System is designed for straightforward installation without requiring modifications to existing plumbing. It should be installed in-line after the pool filter.
5.1 System Flow Diagram
Ensure the chlorinator is installed in the correct sequence within your pool's circulation system: Pool > Pump > Filter > Salt Water Chlorination System > Back to Pool.
Image 5.1: System flow diagram for chlorinator installation.
5.2 ස්ථාපන පියවර
- පද්ධතිය සකස් කරන්න: Turn off the pool pump and remove the battery from your existing control system, if applicable.
- Remove Old Cell (if applicable): Disconnect and remove any old salt cell from your plumbing.
- Connect New Cell: Insert the VEVOR Salt Water Chlorinator Cell into the plumbing line after the filter. Ensure the flow direction matches the arrows on the unit. Use the provided O-rings to ensure a watertight seal.
- සම්බන්ධක බලය: Plug the quick-connect power cord into the chlorinator and then into the compatible control system.
- ගැළපුම තහවුරු කරන්න: This system is compatible with various popular pool systems, including AquaRite, AquaRite Pro, SwimPure Plus, Hayward AquaPlus, ProLogic, and OmniLogic automation systems. Ensure your adapted system version is r1.5 or higher. To check the version, press the diagnostics button on your control 7 times.
Image 5.2: Quick 10-minute installation steps.
6. මෙහෙයුම
The VEVOR Salt Water Chlorinator System uses advanced electrolytic technology with titanium plates to convert salt into chlorine, providing continuous water purification.
Image 6.1: Pure chlorine production for water purification.
6.1 Initial Setup and Salt Levels
- Ensure your pool's salt level is maintained between 2700-3400 ppm (parts per million).
- For pools up to 15,000 gallons, set the chlorinator to operate for approximately 10 hours daily.
- For pools between 15,000-25,000 gallons, set the chlorinator to operate for approximately 12 hours daily.
- Adjust operating times based on pool usage, weather conditions, and chlorine demand to maintain desired chlorine levels.
Image 6.2: Benefits of a clean swim environment with salt chlorination.
7. නඩත්තු කිරීම
Regular maintenance ensures the longevity and optimal performance of your chlorinator system.
7.1 සෛල පිරිසිදු කිරීම
It is recommended to clean the chlorinator cell every three months, or more frequently if calcium buildup is observed. Use the included pipe cleaning tool to remove any deposits from the titanium plates. Always follow safety precautions when handling pool chemicals and cleaning solutions.
Image 7.1: Features of the chlorinator, including titanium electrodes for efficient operation.
8. දෝශ නිරාකරණය
If you encounter issues with your VEVOR Salt Water Chlorinator System, consider the following common solutions:
- Low Chlorine Output: Check pool salt levels. Ensure they are within the recommended 2700-3400 ppm range. Inspect the cell for scale buildup and clean if necessary. Verify the system's operating hours are sufficient for your pool size.
- දෝෂ කේත: Refer to your pool control system's manual for specific error code interpretations. Ensure the chlorinator is properly connected and receiving power.
- ජල ප්රවාහ ගැටළු: Confirm the pool pump is running and the filter is clean. Ensure there are no obstructions in the plumbing leading to or from the chlorinator cell.
- කාන්දු වන සම්බන්ධතා: Check all pipe connections for tightness. Replace O-rings if they appear worn or damaged.
If problems persist after attempting these steps, contact VEVOR customer support for further assistance.
9. වගකීම් සහ සහාය
For warranty information and technical support, please refer to the documentation included with your product or visit the official VEVOR webඅඩවිය. වගකීම් හිමිකම් සඳහා ඔබේ මිලදී ගැනීමේ රිසිට්පත තබා ගන්න.
සබඳතා තොරතුරු:
- Webඅඩවිය: www.vevor.com
- Support: Refer to the webසම්බන්ධතා විකල්ප සඳහා අඩවිය.
