Alarm.com ADC-AC-ET25 Keypad Reader User Manual

1. හැඳින්වීම

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Alarm.com ADC-AC-ET25 Keypad Reader. Designed for Smarter Access Control, this reader integrates multiple credential technologies to enhance security and flexibility for businesses.

ප්රධාන ලක්ෂණ:

• Multiple Technologies: Supports Proximity, NFC, and Bluetooth Low Energy (BLE) credentials in a single device.
• Mobile Credentials: Enables the use of smartphones to unlock doors, reducing reliance on physical badges.
• OSDP Auto-Detect & Secure Channel: Ensures secure communication and automatic detection of OSDP devices.
• ස්ථිරාංග උත්ශ්‍රේණිගත කිරීමේ හැකියාව: Supports remote firmware updates for continuous improvement and security enhancements.
• Credential Support: Compatible with I-FARE DESFire EV1 & EV2, and LEAF credentials for secure, open interoperability. Also supports FSK and ASK legacy proximity credentials for seamless transitions.
• Tamper හඳුනාගැනීම: Features accelerometer-based tamper detection for enhanced security.
• Visual & Audible Indicators: Equipped with a tri-state LED light bar (red, green, amber) and an audible beeper for status feedback.
• බහුකාර්ය ස්ථාපනය: ගෘහස්ථ සහ එළිමහන් පරිසරයන් දෙකටම සුදුසුය.

2 ආරක්ෂිත තොරතුරු

Please read all safety instructions carefully before installing or operating the device. Failure to follow these instructions may result in damage to the device, property, or personal injury.

• සියලුම විදුලි සම්බන්ධතා සුදුසුකම් ලත් වෘත්තිකයෙකු විසින් සිදු කරන බවට සහතික කර ගන්න සහ දේශීය විදුලි කේතයන්ට අනුකූල වන්න.
• කිසියම් ස්ථාපනයක් හෝ නඩත්තුවක් සිදු කිරීමට පෙර විදුලිය විසන්ධි කරන්න.
• Do not expose the device to extreme temperatures, humidity, or direct water immersion beyond its specified environmental ratings.
• Avoid placing the device near strong electromagnetic fields, which may interfere with its operation.
• උපාංගය ඔබම විසුරුවා හැරීමට හෝ අලුත්වැඩියා කිරීමට උත්සාහ නොකරන්න. සියලුම සේවා සුදුසුකම් ලත් පුද්ගලයින් වෙත යොමු කරන්න.

3. පැකේජ අන්තර්ගතය

ස්ථාපනය සමඟ ඉදිරියට යාමට පෙර සියලුම අයිතම පැකේජයේ ඇති බව තහවුරු කර ගන්න:

• Alarm.com ADC-AC-ET25 Keypad Reader
• සවි කිරීමේ දෘඩාංග (ඉස්කුරුප්පු, නැංගුරම්)
• ස්ථාපන සැකිල්ල (අදාළ නම්)
• ඉක්මන් ආරම්භක මාර්ගෝපදේශය (සම්පූර්ණ විස්තර සඳහා මෙම අත්පොත බලන්න)

4. නිෂ්පාදන අවසන්view

The ADC-AC-ET25 Keypad Reader is a robust access control device featuring a numeric keypad and multi-technology credential reading capabilities. Its design allows for seamless integration into various security systems.

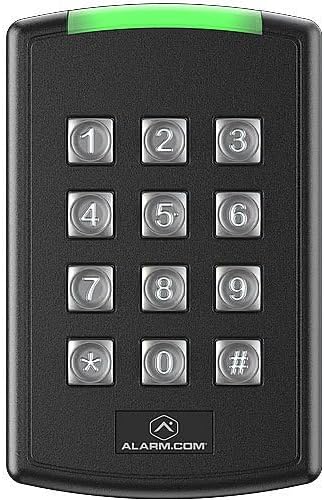

රූපය 4.1: ඉදිරිපස view of the Alarm.com ADC-AC-ET25 Keypad Reader. The device is black with a prominent numeric keypad (0-9, *, #) in the center. A green LED light bar is visible at the top, indicating operational status. The "ALARM.COM" logo is located at the bottom.

සංරචක:

• යතුරු පෑඩ්: Numeric keys (0-9), asterisk (*), and hash (#) for PIN entry.
• LED ආලෝක තීරුව: Tri-state (red, green, amber) indicator for status feedback.
• Credential Reader Area: Integrated area for Proximity, NFC, and BLE mobile credential scanning.
• Tampසංවේදකය: Accelerometer-based sensor to detect unauthorized removal or tampering.

5. පිහිටුවීම සහ ස්ථාපනය

The ADC-AC-ET25 Keypad Reader is designed for flexible installation in both indoor and outdoor environments. Proper installation is crucial for optimal performance and security.

5.1. පූර්ව-ස්ථාපන පිරික්සුම් ලැයිස්තුව:

• Verify the mounting surface is suitable and secure.
• Ensure proper wiring and power supply are available at the installation site.
• Confirm compatibility with your existing access control panel (supports OSDP).

5.2. සවි කිරීම:

1. Choose a suitable mounting location, considering accessibility and environmental factors.
2. Use the provided mounting template to mark drilling points on the wall.
3. අවශ්ය නම් සිදුරු හා නැංගුරම් ඇතුල් කරන්න.
4. Secure the reader's backplate to the wall using the provided screws.

5.3. රැහැන්:

Connect the reader to your access control panel according to the wiring diagram provided with your panel and the reader's specific wiring instructions (typically found on the back of the reader or in a dedicated wiring guide). The reader supports OSDP Auto-Detect and Secure Channel for enhanced communication security.

5.4. බල ගැන්වීම:

Once wiring is complete and verified, apply power to the access control system. The reader's LED light bar will indicate its power-up sequence and operational status.

6. මෙහෙයුම් උපදෙස්

The ADC-AC-ET25 Keypad Reader offers multiple methods for access, providing flexibility for users.

6.1. Using Credentials:

• Proximity/NFC Cards/Fobs: Present your compatible card or fob within close proximity to the reader's front surface. The reader will emit an audible beep and the LED will change color (typically green) upon successful read.
• Bluetooth Low Energy (BLE) Mobile Credentials: Ensure your smartphone has the Alarm.com mobile access app installed and BLE is enabled. Approach the reader with your phone. The app will communicate with the reader to grant access.

6.2. Using the Keypad (PIN Entry):

1. Enter your assigned Personal Identification Number (PIN) using the numeric keypad.
2. Press the hash (#) key to confirm your entry.
3. Upon successful PIN entry, the reader will provide an audible and visual confirmation (e.g., green LED).

6.3. LED Indicator Meanings:

• කොළ: Access granted, successful credential read, or system ready.
• රතු: Access denied, error, or system fault.
• ඇම්බර්: Standby, processing, or specific system status (refer to your access control system documentation for detailed amber indications).

7. නඩත්තු කිරීම

Regular maintenance ensures the longevity and optimal performance of your ADC-AC-ET25 Keypad Reader.

• පිරිසිදු කිරීම: මෘදු, ඩී භාවිතා කරන්නamp cloth to clean the exterior of the reader. Do not use abrasive cleaners, solvents, or excessive moisture.
• ස්ථිරාංග යාවත්කාලීන කිරීම්: The reader supports remote firmware upgradability. Your access control system administrator will manage these updates to ensure the device has the latest features and security patches.
• පරීක්ෂාව: භෞතික හානි හෝ ලිහිල් සම්බන්ධතා පිළිබඳ සලකුණු සඳහා වරින් වර කියවන්නා පරීක්ෂා කරන්න.

8. දෝශ නිරාකරණය

This section addresses common issues you might encounter with the ADC-AC-ET25 Keypad Reader.

• Reader is unresponsive (no lights, no sound):
  • Check power supply to the reader and access control panel.
  • රැහැන් සම්බන්ධතා ආරක්ෂිත සහ නිවැරදි දැයි තහවුරු කර ගන්න.
• Credential not granting access (red LED):
  • Ensure the credential is valid and active in the access control system.
  • Confirm the credential type is supported by the reader (Proximity, NFC, BLE).
  • Try presenting the credential again, ensuring proper alignment.
• Keypad entry not working:
  • Verify the PIN is correct and active.
  • Ensure the hash (#) key is pressed after entering the PIN.
• Tamper alarm triggered:
  • Check if the reader has been dislodged or moved from its mounting.
  • Securely re-mount the reader if necessary.

For persistent issues, contact your system administrator or technical support.

9. පිරිවිතර

10. වගකීම් තොරතුරු

Specific warranty terms and conditions for the Alarm.com ADC-AC-ET25 Keypad Reader are typically provided at the point of purchase or by the manufacturer. Please refer to the documentation included with your purchase or contact your seller/installer for detailed warranty information. Keep your proof of purchase for warranty claims.

11. පාරිභෝගික සහාය

For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact your authorized Alarm.com dealer or the seller from whom you purchased the product. Provide your product model number (ADC-AC-ET10) and a detailed description of the issue when seeking support.

නිෂ්පාදකයා: Alarm.com
