Milly Mally Optimus Max 5-in-1 Tricycle User Manual

1. හැඳින්වීම

The Milly Mally Optimus Max 5-in-1 Tricycle is designed to adapt to your child's developmental stages from 12 months to 3 years. This versatile vehicle transforms through five different modes to support motor skill development, balance, and coordination, preparing your child for independent cycling. Constructed from durable materials, it ensures a safe and comfortable riding experience.

2 ආරක්ෂිත තොරතුරු

• සෘජු වැඩිහිටි අධීක්ෂණය යටතේ පමණක් භාවිතා කළ යුතුය.
• එක් එක් භාවිතයට පෙර සියලුම කොටස් ආරක්ෂිතව සවි කර ඇති බවට වග බලා ගන්න.
• Always use appropriate safety gear, such as a helmet, when operating the tricycle.
• Do not use on public roads, near motor vehicles, or on steep inclines.
• අත් සහ පාද චලනය වන කොටස් වලින් ඉවත්ව තබා ගන්න.
• Regularly inspect the tricycle for any damage or loose components.

3. පෙට්ටියේ ඇති දේ

Your Milly Mally Optimus Max package includes:

• Tricycle frame and components
• රෝද (ඉදිරිපස සහ පසුපස)
• Seat with 3-point safety harness
• හසුරුව
• Pedals (detachable)
• Parent handle (detachable and adjustable)
• එකලස් කිරීමේ උපදෙස්
• Necessary materials for assembly

4. එකලස් කිරීමේ උපදෙස්

The Milly Mally Optimus Max requires self-assembly. Please follow the detailed assembly instructions provided in the box. Ensure all connections are tight and secure before allowing a child to use the tricycle.

ප්‍රධාන එකලස් කිරීමේ පියවර:

1. Attach the front wheel and handlebar to the main frame.
2. Secure the rear wheels to the frame.
3. Install the seat, ensuring it is properly aligned and locked into place.
4. Attach the pedals to the front wheel or use them as footrests as needed.
5. If using, attach the parent handle to the rear of the tricycle.

Refer to the included diagram for visual guidance during assembly.

රූපය: විස්තරාත්මක view of tricycle components for assembly.

5. Operating Modes (5-in-1)

The Optimus Max transforms to suit your child's growing abilities. Here are the five configurations:

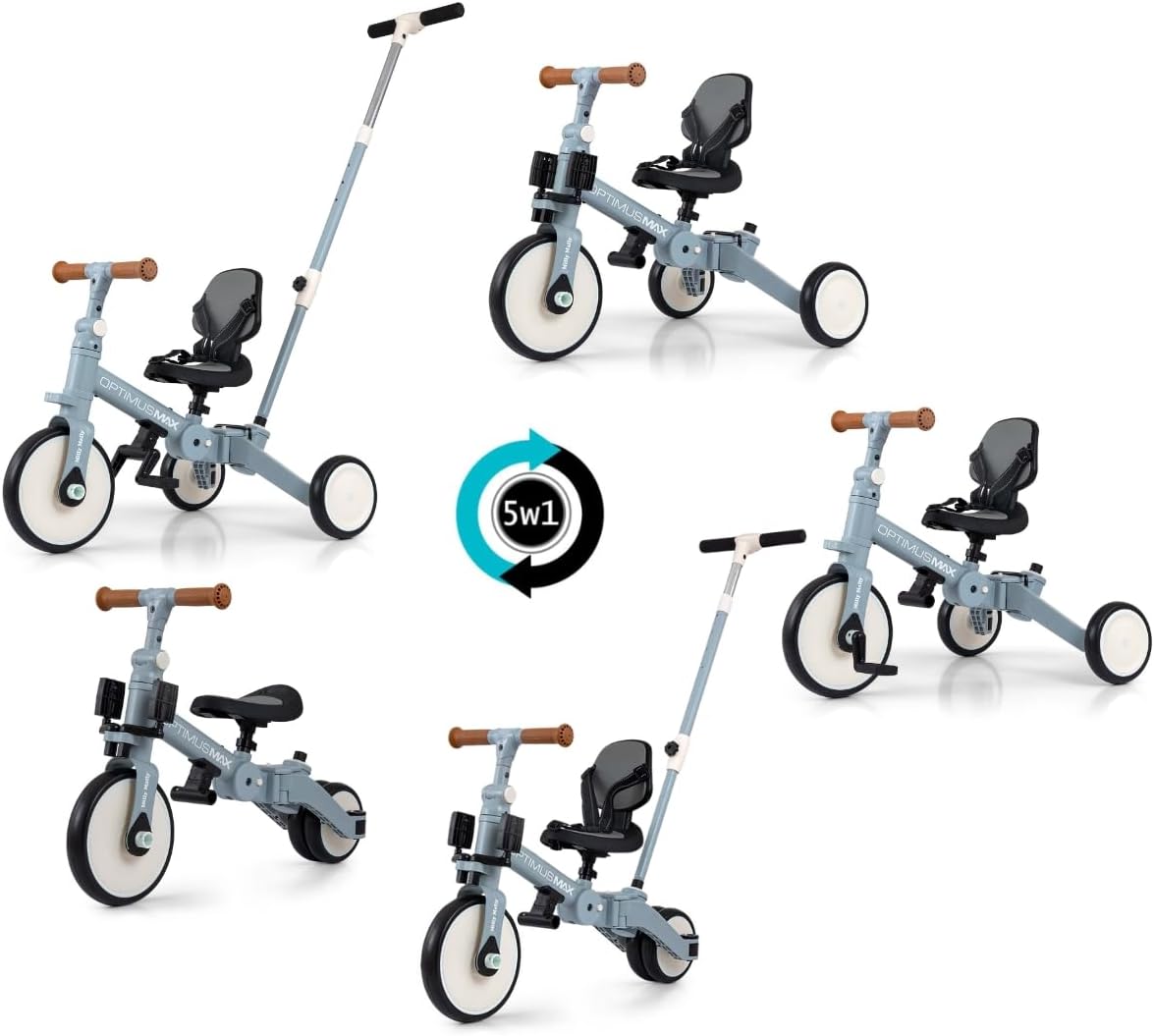

රූපය: අවසන්view of the 5-in-1 modes.

Mode 1: Parent-Assisted Tricycle with Footrests (Approx. 12-18 months)

Ideal for initial experiences. The child sits securely in the seat with the 3-point harness, and their feet rest on the pedals used as footrests. The parent controls steering and propulsion using the adjustable parent handle.

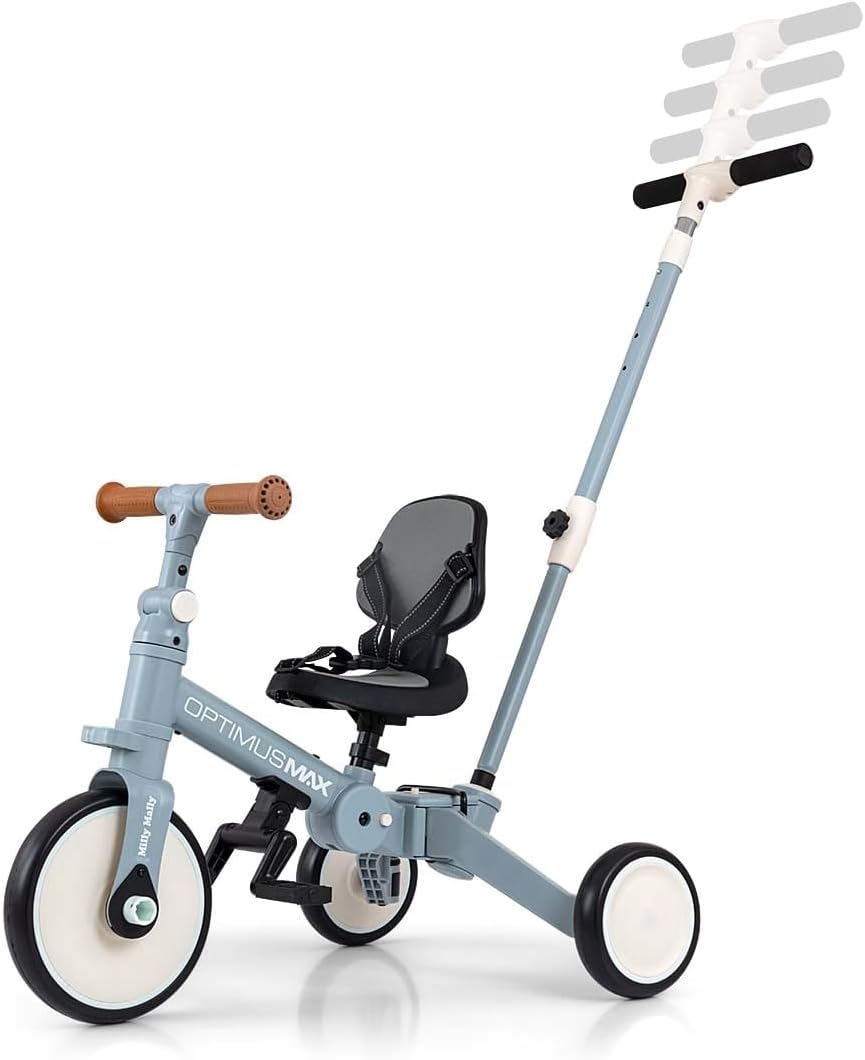

Image: Tricycle in parent-assisted mode.

Mode 2: Balance Tricycle (Approx. 18-24 months)

Once the child is more confident, the parent handle can be removed, and the pedals can remain as footrests or be removed. The child uses their feet to push off the ground, developing balance and steering skills on three wheels.

Image: Tricycle in balance tricycle mode.

Mode 3: Pedal Tricycle (Approx. 24-30 months)

When the child is ready to pedal, attach the pedals to the front wheel. The child can now propel themselves forward while maintaining the stability of three wheels. The parent handle can be re-attached for assistance if needed.

Image: Tricycle in pedal tricycle mode.

Mode 4: Pedal Bike with Parent Handle (Approx. 24-36 months)

For children transitioning to two wheels, the rear wheels can be folded inward to create a two-wheel configuration. The parent handle can be used to assist with balance and steering as the child learns to pedal a two-wheel bike.

Mode 5: Classic Balance Bike (Approx. 30-36 months)

Once the child has mastered balance and steering, the parent handle can be removed, and the pedals can be detached and stored. The tricycle transforms into a classic two-wheel balance bike, allowing the child to push off with their feet and glide, further developing balance for a standard bicycle.

Image: Tricycle in classic balance bike mode.

6. ගැලපීම්

Seat Height and Distance Adjustment:

The seat height and distance are adjustable to accommodate your child's growth. Locate the adjustment mechanism beneath the seat. Loosen the fastener, adjust the seat to the desired position, and securely tighten the fastener. Ensure the child's feet can comfortably reach the ground in balance bike mode or the pedals in pedal mode.

හැන්ඩ්ල්බාර් ගැලපීම:

The handlebar angle can be adjusted for optimal comfort and control. A steering limiter is integrated to prevent excessive turning and enhance stability, protecting against tipping.

Image: Adjustable handlebar feature.

Parent Handle Adjustment:

The parent handle is adjustable to 4 different height levels. To adjust, locate the locking mechanism on the handle, release it, extend or retract the handle to the desired height, and secure the lock. The parent handle can be completely removed when no longer needed.

7. නඩත්තු කිරීම

• පිරිසිදු කිරීම: දැන්වීමකින් ත්‍රිරෝද රථය පිස දමන්නamp රෙදි සහ මෘදු සබන්. උල්ෙල්ඛ පිරිසිදු කරන්නන්ගෙන් වළකින්න.
• පරීක්ෂාව: Regularly check all bolts, screws, and fasteners to ensure they are tight. Inspect wheels and tires for wear or damage.
• ගබඩා: Store the tricycle in a dry place, away from direct sunlight and extreme temperatures, to prolong its lifespan. The compact and foldable design allows for easy storage.
• ලිහිසි තෙල්: Periodically check moving parts for smooth operation. Apply a small amount of lubricant if necessary, avoiding contact with plastic or foam parts.

8. දෝශ නිරාකරණය

• ත්‍රිරෝද රථය අස්ථාවර බවක් දැනේ: Ensure all assembly bolts are tightened. Check that the seat and handlebar are securely locked in place.
• Difficulty steering: Check for any obstructions in the steering mechanism. Ensure the handlebar is correctly installed and not overtightened.
• Pedals not engaging: Verify that the pedals are correctly attached to the front wheel and the locking mechanism (if any) is engaged.
• රෝද සුමටව හැරෙන්නේ නැත: Check for debris caught in the wheels or axles. Ensure wheels are properly aligned and not rubbing against the frame.

If you encounter persistent issues, please contact customer support.

9. පිරිවිතර

Image: Tricycle dimensions overview.

10. වගකීම් සහ සහාය

For warranty information or customer support, please refer to the documentation included with your purchase or contact Milly Mally customer service through their official webභාණ්ඩය මිලදී ගත් ස්ථානය හෝ සිල්ලර වෙළෙන්දා. වගකීම් හිමිකම් සඳහා කරුණාකර ඔබේ මිලදී ගැනීමේ සාක්ෂි තබා ගන්න.
