1. නිෂ්පාදන අවසන්view
The CHENREN HNC-150LAP is a specialized electronic component supplied in a Dual In-line Package (DIP). This component is designed for integration into various electronic circuits, providing specific functionality as required by the circuit design. It is crucial to handle this component with care and adhere to proper installation procedures to ensure optimal performance and longevity.

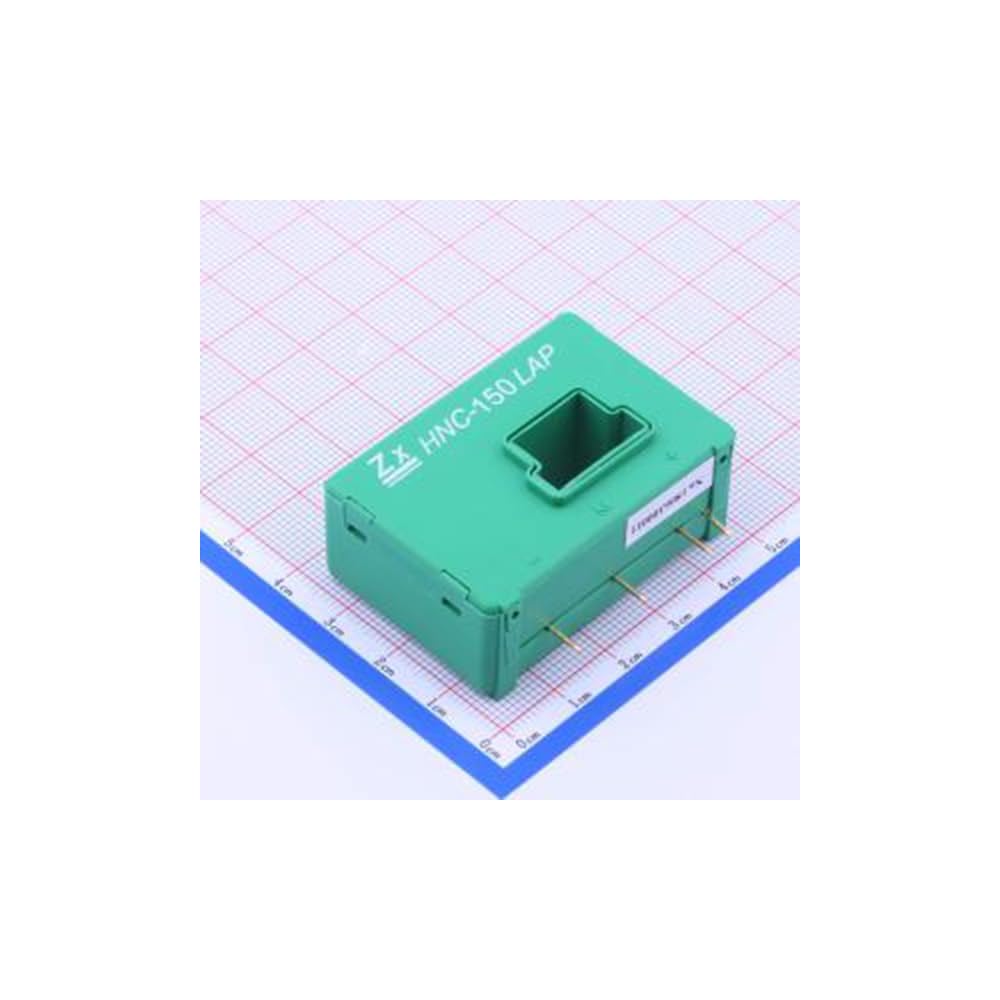

Figure 1: The HNC-150LAP DIP component. This image shows the green-cased component with its pins extending from the sides, placed on a measurement grid indicating its compact size.
2. පිහිටුවීම සහ ස්ථාපනය
Proper installation of the HNC-150LAP DIP is essential for its correct operation and to prevent damage. Follow these guidelines carefully:
- විද්යුත් ස්ථිතික විසර්ජන (ESD) පූර්වාරක්ෂාවන්: Always handle the component in an ESD-safe environment. Use an anti-static wrist strap and mat to prevent damage from static electricity.
- පින් පෙළගැස්ම: Carefully align the pins of the HNC-150LAP with the corresponding holes on the Printed Circuit Board (PCB) or breadboard. Ensure the orientation (e.g., notch or dot indicator) matches the circuit design.
- ඇතුළත් කිරීම: Gently insert the component into the socket or through-holes. Apply even pressure to avoid bending or damaging the pins. If resistance is met, re-check alignment.
- Soldering (if applicable): If soldering, use appropriate soldering techniques and equipment. Avoid excessive heat, which can damage the internal circuitry. Ensure good solder joints for reliable electrical connection.
- දෘශ්ය පරීක්ෂාව: After installation, visually inspect all pins to ensure they are correctly seated and connected, with no bent pins or solder bridges.
3. මෙහෙයුම් මූලධර්ම
The HNC-150LAP DIP functions as an integral part of the electronic circuit it is embedded within. Its specific operational characteristics are determined by the circuit design and the external components it interacts with. Users should refer to the complete circuit schematic and design documentation for detailed information on its role and expected behavior.
- බල අවශ්යතා: Ensure the component receives the correct voltage and current as specified in the circuit design. Incorrect power supply can lead to malfunction or damage.
- සංඥා අඛණ්ඩතාව: Maintain proper signal integrity in the surrounding circuit to ensure the HNC-150LAP receives and transmits signals accurately.
- පාරිසරික තත්ත්වයන්: Operate the component within its specified temperature and humidity ranges to prevent performance degradation or failure.
4. නඩත්තුව සහ රැකවරණය
The HNC-150LAP DIP is a robust component, but proper care can extend its lifespan and ensure continued reliability:
- ගබඩා: Store unused components in their original anti-static packaging in a cool, dry place, away from direct sunlight and extreme temperatures.
- පිරිසිදු කිරීම: If cleaning is necessary, use a soft, lint-free cloth. For stubborn dirt, a small amount of isopropyl alcohol can be used, ensuring the component is completely dry before use. Avoid abrasive cleaners or solvents.
- හැසිරවීම: Always handle the component by its body, avoiding contact with the pins to prevent bending or contamination.
5. දෝශ නිරාකරණය
If the circuit incorporating the HNC-150LAP DIP is not functioning as expected, consider the following common troubleshooting steps:
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| සංරචකය ක්රියා නොකරයි | Incorrect insertion or orientation; Bent or broken pins; ESD damage; Incorrect power supply; Faulty solder joint. | Verify correct orientation and pin alignment. Inspect pins for damage. Re-check power supply voltage and polarity. Inspect solder joints and re-solder if necessary. Replace component if ESD damage is suspected. |
| අතරමැදි මෙහෙයුම | Loose connection; Cold solder joint; Environmental factors (temperature/humidity). | Ensure component is firmly seated. Re-solder suspicious joints. Verify operating environment is within specified limits. |
| අධික උනුසුම් වීම | Excessive current; Short circuit in circuit; Incorrect component usage. | Check circuit design for current draw. Identify and rectify any short circuits. Ensure component is used within its specified ratings. |
6. තාක්ෂණික පිරිවිතර
The following are key technical specifications for the CHENREN HNC-150LAP DIP:
| ගුණාංගය | වටිනාකම |
|---|---|
| නිෂ්පාදන ආකෘතිය | HNC-150LAP |
| නිෂ්පාදකයා | CHENREN |
| පැකේජ වර්ගය | DIP (Dual In-line Package) |
| නිෂ්පාදන මානයන් | අඟල් 0.39 x 0.39 x 0.39 |
| අයිතමයේ බර | අවුන්ස 0.04 කි |
| ASIN | B0F5BSVPCR |
| පළමු දිනය තිබේ | අප්රේල් 17, 2025 |
7. වගකීම් සහ සහාය
For specific warranty information regarding the HNC-150LAP DIP component, please refer to the purchase documentation or contact the seller directly. As an electronic component, warranty terms typically cover manufacturing defects.
For technical support or inquiries, please contact the manufacturer, CHENREN, or your authorized distributor. Ensure you have the product model (HNC-150LAP) and ASIN (B0F5BSVPCR) available when seeking support.
