හැඳින්වීම
This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your AMZCHEF 3-in-1 Electric Meat Mincer. This versatile appliance functions as a meat grinder, sausage stuffer, and food grinder, designed for home use. Please read all instructions carefully before first use and retain this manual for future reference.
වැදගත් ආරක්ෂක උපදෙස්
- එකලස් කිරීමට, විසුරුවා හැරීමට හෝ පිරිසිදු කිරීමට පෙර උපකරණය සැමවිටම විසන්ධි කර ඇති බවට සහතික වන්න.
- මෝටර් ඒකකය ජලයේ හෝ වෙනත් කිසිදු ද්රවයක ගිල්වන්න එපා. දැන්වීම සමඟ පිරිසිදු කරන්න.amp රෙදි පමණක්.
- Keep hands and utensils away from moving parts during operation. Always use the food pusher provided to feed ingredients into the hopper. Never use fingers or other objects.
- Ensure all parts are correctly assembled and securely locked before operating the appliance.
- Do not operate the appliance continuously for more than 10 minutes. Allow a 10-minute rest period between cycles to prevent overheating.
- මෙම උපකරණය ගෘහස්ථ භාවිතය සඳහා පමණි. එළිමහනේ හෝ වාණිජමය අරමුණු සඳහා භාවිතා නොකරන්න.
- විදුලි රැහැනට හානි සිදුවුවහොත්, අනතුරක් වළක්වා ගැනීම සඳහා නිෂ්පාදකයා, එහි සේවා නියෝජිතයා හෝ ඒ හා සමාන සුදුසුකම් ලත් පුද්ගලයින් විසින් එය ප්රතිස්ථාපනය කළ යුතුය.
- උපකරණය දරුවන්ට ළඟාවිය නොහැකි ලෙස තබා ගන්න.
Image: Key safety and design features of the AMZCHEF meat mincer, highlighting the safety lock, reverse function, cooling vents, and suction base for stable operation.
නිෂ්පාදනය අවසන්view සහ සංරචක
Familiarize yourself with the various parts of your AMZCHEF Electric Meat Mincer before assembly and operation.
රූපය: පුපුරා ගියේය view illustrating the assembly sequence of the meat mincer's grinding head, screw, blade, and various grinding plates. This image also shows the option to use the mincer without a grinding plate for specific applications.
ප්රධාන සංරචක:
- මෝටර් ඒකකය (ප්රධාන කොටස)
- ආප්ප පිඟාන
- ආහාර තල්ලු කරන්නා
- Grinding Head (Aluminum Alloy)
- පෝෂණ ඉස්කුරුප්පු ඇණ
- කැපුම් තලය
- ඇඹරුම් තහඩු (සිහින්, මධ්යම, රළු)
- අගුලු දැමීමේ මුද්ද
- Sausage Stuffer Attachments
- කුබ්බේ ඇමුණුම
සැකසීම සහ එකලස් කිරීම
Follow these steps to assemble your meat mincer for grinding:
- Ensure the motor unit is unplugged and placed on a stable, flat surface.
- Insert the grinding head into the motor unit's front opening, aligning the tab with the slot. Rotate clockwise until it locks securely.
- Insert the feeding screw into the grinding head.
- Place the cutting blade onto the square shaft of the feeding screw, ensuring the sharp edges face outwards towards the grinding plate.
- Select the desired grinding plate (e.g., 7mm for general meat filling) and place it over the cutting blade and feeding screw.
- Screw the locking ring onto the grinding head clockwise until it is hand-tight. Do not overtighten.
- Place the hopper plate onto the top of the grinding head.
For sausage stuffing or kubbe making, refer to the specific attachment instructions included in the packaging. The assembly process for these functions will involve different components after step 3.
මෙහෙයුම් උපදෙස්
Prepare your ingredients and operate the mincer as follows:
- අමුද්රව්ය සකස් කරන්න: Chop all foods into small pieces, approximately 20x20x60 mm (0.8x0.8x2.4 inch), to ensure they can be easily inserted into the hopper opening. For best results, opt for lean, boneless, and fat-free meat.
- බල ගැන්වීම: Plug the appliance into a suitable power outlet. Switch the button to "ON". The machine will start working.
- පෝෂක අමුද්රව්ය: Place the prepared food onto the hopper plate. Use only the food pusher to gently guide the food into the grinding head. Never use your hands or other utensils.
- නිරීක්ෂණ මෙහෙයුම: Allow the mincer to process the food. Do not overload the machine.
- අවසන් කරන්න: Once all ingredients are processed, switch the button to "O" (OFF).
- බලය විසන්ධි කරන්න: Unplug the appliance from the power supply immediately after use.

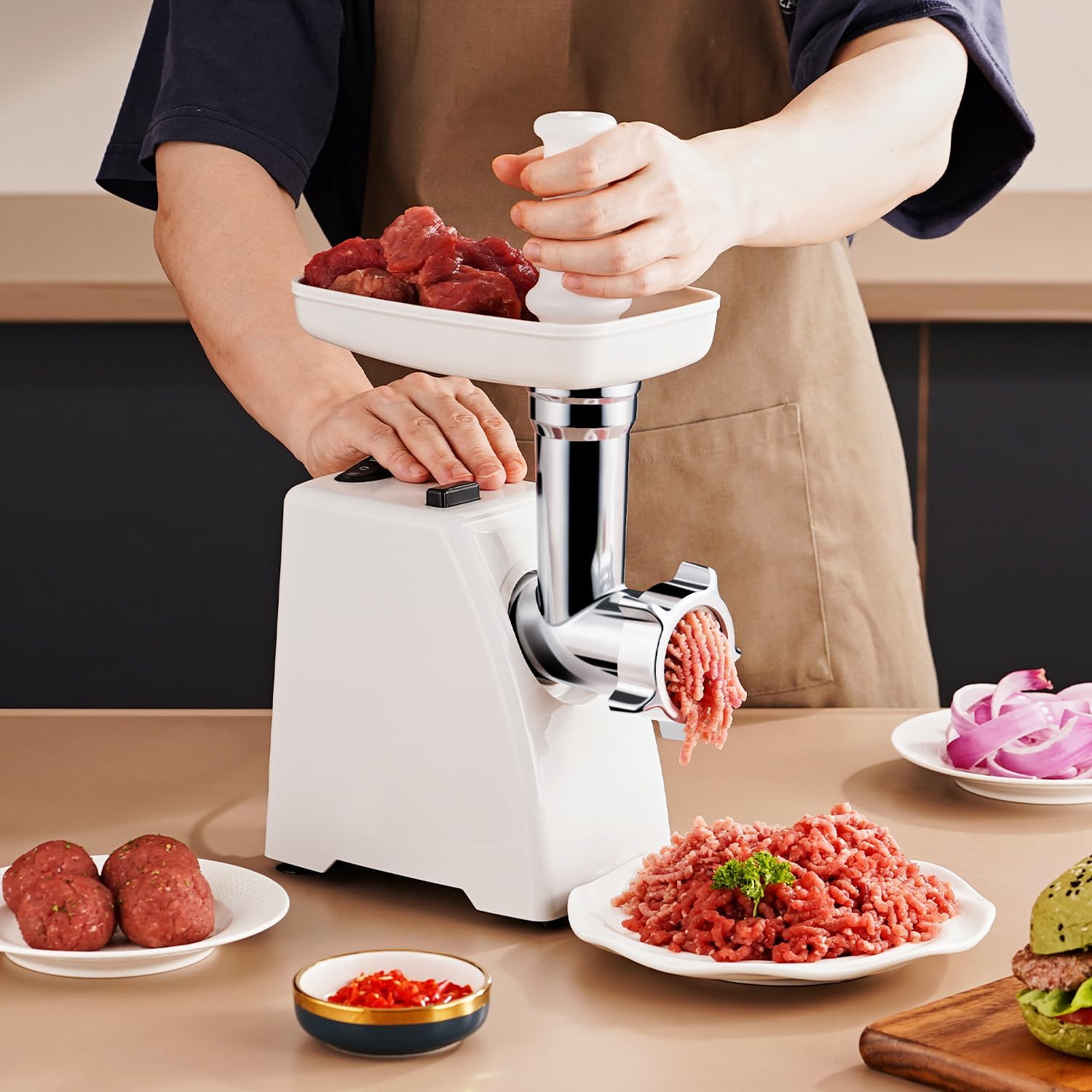

Image: A user demonstrating the operation of the AMZCHEF meat mincer, feeding meat into the hopper using the provided food pusher. Ground meat is visible exiting the machine.
නඩත්තු කිරීම සහ පිරිසිදු කිරීම
Proper cleaning and maintenance ensure the longevity and hygienic operation of your appliance.
- විසන්ධි කරන්න: Always ensure the appliance is unplugged before cleaning.
- විසුරුවා හැරීම: Disassemble all removable parts (grinding head, screw, blade, plates, locking ring, hopper plate, attachments).
- සේදීමේ කොටස්: Wash all removable parts in warm, soapy water. Use a brush to remove any food residue from the grinding plates and blade. Rinse thoroughly.
- හොඳින් වියළන්න: Dry all metal parts immediately after washing to prevent rust. Air dry non-metal parts.
- පිරිසිදු මෝටර් ඒකකය: දැන්වීම සමඟ මෝටර් ඒකකය පිස දමන්නamp රෙදි. කිසිම අවස්ථාවක එය ජලයේ ගිල්වන්න එපා.
- Reassemble/Store: Once all parts are completely dry, reassemble them or store them in a clean, dry place.
සටහන: Some parts may be dishwasher safe; however, hand washing and immediate drying are recommended for metal components to preserve their finish and prevent corrosion.
දෝෂගවේෂණය
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| උපකරණය ආරම්භ නොවේ. | Not plugged in; power switch off; safety lock not engaged. | Check power connection; ensure switch is "ON"; verify grinding head is securely locked. |
| මෙහෙයුම අතරතුර මෝටර් නතර වේ. | අධි බර ආරක්ෂාව සක්රීය කර ඇත; මෝටරය අධික ලෙස රත් වීම. | Turn off and unplug. Remove excess food. Allow motor to cool for at least 30 minutes before restarting. Reduce load. |
| Food is stuck or not grinding properly. | Ingredients too large; bone/gristle obstruction; parts incorrectly assembled. | Turn off and unplug. Press the 'R' (Reverse) button to clear jams. Disassemble and check for obstructions or incorrect assembly. Ensure meat is boneless and cut to recommended size. |
| මෙහෙයුම අතරතුර විශාල ශබ්දය. | Parts loose; foreign object inside. | Turn off and unplug. Check all parts are securely assembled. Disassemble and inspect for any foreign objects. |
පිරිවිතර
- වෙළඳ නාමය: ඇම්චෙෆ්
- ආකෘතිය: UL-AZ-MGC03-SV
- වර්ගය: 3-in-1 Electric Meat Mincer (Meat Grinder, Sausage Stuffer, Food Grinder)
- අගය කළ වොට්tage: 300W
- උපරිම වොට්tage: 2800W
- වෙළුමtage: වෝල්ට් 120
- ද්රව්ය: Stainless Steel (parts), ABS Plastic (housing)
- වර්ණය: සුදු
- නිෂ්පාදන මානයන්: 10"අඟල් x 7.3"අඟල් x 16"අඟල් (25.4සෙ.මී. ලී x 18.5සෙ.මී. ලී x 40.6සෙ.මී. උස)
- අයිතමයේ බර: ආසන්න වශයෙන් රාත්තල් 6.3 (කිලෝග්රෑම් 2.85)
රූපය: ඉදිරිපස පැත්ත view of the AMZCHEF Electric Meat Mincer with key dimensions indicated in both inches and centimeters.
Image: Diagram showing the internal 2800W Max Pure-Copper Motor of the AMZCHEF meat mincer, emphasizing its intelligent chip for auto-shutoff protection against overheating.
වගකීම් සහ සහාය
Your AMZCHEF Electric Meat Mincer comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty duration and coverage details.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact AMZCHEF customer service. Contact information can typically be found on the product packaging, the official AMZCHEF webඅඩවිය, හෝ ඔබේ සිල්ලර වෙළෙන්දාගේ සහාය නාලිකා හරහා.
When contacting support, please have your model number (UL-AZ-MGC03-SV) and purchase date readily available.
