1. හැඳින්වීම
This manual provides detailed instructions for the installation, operation, and maintenance of your BESTTEN 24W USB Wall Outlet, Model BAA-015. This device integrates a standard 15 Amp electrical outlet with both Type C and Type A USB charging ports, offering a total output of 4.8A (5VDC, 24W). It is designed for convenient charging of various electronic devices while maintaining a clean aesthetic with its screwless wallplate.
රූපය 1.1: ඉවරයිview of the BESTTEN 24W USB Wall Outlet.
2 ආරක්ෂිත තොරතුරු
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or property damage.
- UL/cUL ලැයිස්තුගත: This product is UL/cUL Listed, ensuring it meets recognized safety standards.
- Tamper-Resistant (TR) Shutters: The outlet features tamper-resistant shutters to prevent foreign objects from being inserted, enhancing electrical safety, especially in homes with children.
- ද්රව්ය: Constructed from fire and impact-resistant polycarbonate thermoplastic material for enhanced durability and safety.
- ස්ථාපනය අතරතුර අනතුරු ඇඟවීම්:
- ස්ථාපනය කිරීමට පෙර සෑම විටම පරිපථ කඩනයේ විදුලිය විසන්ධි කරන්න.
- Do not unscrew the terminal screws too far or with excessive force.
- Do not use power tools to loosen or tighten terminal screws.
- The USB receptacle can only be wired to one circuit.
- This USB outlet cannot charge laptops.
Image 2.1: Tamper-Resistant feature for enhanced safety.
Image 2.2: Multiple safety protections integrated into the outlet.
3. පැකේජ අන්තර්ගතය
ස්ථාපනය ආරම්භ කිරීමට පෙර සියලුම සංරචක පවතින බව තහවුරු කර ගන්න:
- USB Outlets (quantity as per pack)
- Screwless Wallplates
- සවිකරන ඉස්කුරුප්පු
4. පිරිවිතර
| විශේෂාංගය | පිරිවිතර |
|---|---|
| ආදර්ශ අංකය | බීඒඒ-015 |
| USB ශ්රේණිගත කිරීම | Two USB Ports with 4.8 Amp, 5VDC (24W total) |
| AC අලෙවිසැල් ශ්රේණිගත කිරීම | 15 Amp125VAC |
| වයර් පර්යන්ත | #14 - #12 AWG for Side, #14 AWG for Back |
| මෙහෙයුම් උෂ්ණත්වය | -4 සිට 140°F (-20 සිට 60°C) |
| USB ගැළපුම | USB 1.1/2.0/3.0 Devices, including Apple Products (excluding laptops) |
| සහතික කිරීම | UL/cUL ලැයිස්තුගත කර ඇත |
| ද්රව්ය | පොලිකාබනේට් (PC) |
| නිෂ්පාදන මානයන් | 4.69"L x 2.91"W x 1.75"D (11.91cm x 7.39cm x 4.45cm) |
| අයිතමයේ බර | අවුන්ස 6.3 කි |

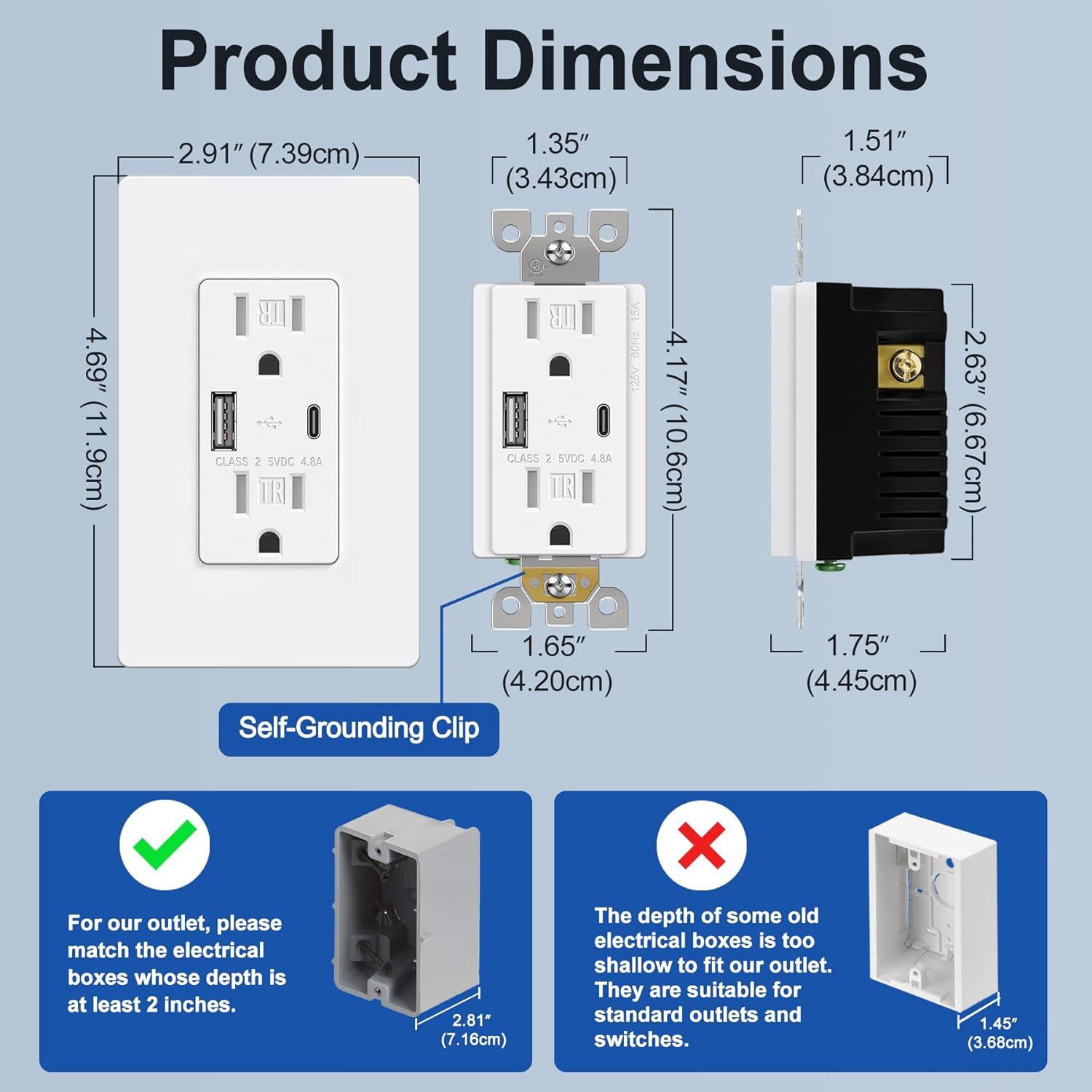

Image 4.1: Product dimensions and electrical box depth requirement.
Image 4.2: Comprehensive product specifications and dimensions.
5. සැකසුම (ස්ථාපනය)
Installation should be performed by a qualified electrician or a knowledgeable individual following all local electrical codes and safety guidelines. Always ensure power is OFF at the circuit breaker before starting.
රැහැන් උපදෙස්
The outlet supports both back and side wiring options.
Image 5.1: Wiring diagram and installation steps.
Image 5.2: Back wire vs. Side wire connection methods.
Steps for Back Wiring:
- Gently loosen the screw holding it against the terminal.
- Press the screw, insert the bare wire into the terminal hole.
- Tighten the terminal screw to 12-14 in-lbs.
Steps for Side Wiring:
- Strip approximately 1 inch of insulation from the wire.
- Wrap the wire clockwise around the screw terminal, ensuring 2/3 of the way around.
- පර්යන්ත ඉස්කුරුප්පුව ආරක්ෂිතව තද කරන්න.
වැදගත් අනතුරු ඇඟවීම්:
- Ensure the electrical box depth is at least 2 inches for proper fitment.
- Connect the Black/Hot wire to the Brass screw, White/Neutral wire to the Silver screw, and Green/Ground wire to the Green screw.
- After wiring, carefully push the outlet into the electrical box and secure it with mounting screws.
- Attach the screwless wallplate by snapping it into place.
- පරිපථ කඩනයෙහි බලය යථා තත්වයට පත් කරන්න.
6. මෙහෙයුම් උපදෙස්
Once installed and power is restored, the BESTTEN USB Wall Outlet is ready for use.
- AC අලෙවිසැල්: Plug standard electrical devices into the two 15 Amp AC receptacles.
- USB ආරෝපණ වරාය: Use the Type C or Type A USB ports to charge compatible electronic devices. The total output for both USB ports is 4.8A (5VDC, 24W).
- එකවර ආරෝපණය කිරීම: You can charge two USB devices simultaneously without needing adapters, while still having access to the two AC outlets.
- ගැළපුම: Compatible with a wide range of electronic devices including smartphones, tablets, e-readers, digital cameras, and MP3 players. Note: This USB outlet cannot charge laptops.
Image 6.1: High-speed charging with Type C and Type A USB ports.
Image 6.2: Wide compatibility with various electronic devices.
7. නඩත්තු කිරීම
The BESTTEN USB Wall Outlet requires minimal maintenance.
- පිරිසිදු කිරීම: මතුපිට පිරිසිදු කිරීම සඳහා, මෘදු, d රෙදි කඩකින් පිස දමන්න.amp රෙදි. උල්ෙල්ඛ පිරිසිදු කරන්නන් හෝ ද්රාවක භාවිතා නොකරන්න. පිරිසිදු කිරීමට පෙර විදුලිය විසන්ධි කර ඇති බවට වග බලා ගන්න.
- පරීක්ෂාව: Periodically inspect the outlet and wallplate for any signs of damage, wear, or loose connections. If any issues are found, turn off power at the breaker and consult a qualified electrician.
8. දෝශ නිරාකරණය
If you encounter issues with your USB wall outlet, refer to the following table:
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| No power from AC outlets | පරිපථ කඩනය ක්රියා විරහිත විය; ලිහිල් රැහැන් සම්බන්ධතාවය | Check and reset the circuit breaker. Verify wiring connections are secure (power off first). |
| USB පෝට් ආරෝපණය නොවේ | Device incompatibility; Faulty USB cable; USB ports failed; Overload | Ensure device is compatible (not a laptop). Try a different USB cable. Reduce number of devices charging. If USB ports fail after extended use, replacement may be necessary. |
| උපාංගය සෙමින් ආරෝපණය වේ | High power demand from multiple devices; Faulty USB cable | Ensure total USB current draw does not exceed 4.8A. Try a different, high-quality USB cable. |
| Wallplate does not fit flush | Electrical box too shallow; Obstruction | Ensure electrical box depth is at least 2 inches. Check for any wires or debris obstructing the fit. |
9. වගකීම් සහ සහාය
This BESTTEN product is backed by a standard return policy, typically 30 days from the date of purchase for refund or replacement, as per retailer terms. For specific warranty details and duration, please refer to the product packaging or contact BESTTEN customer support.
For technical assistance or further inquiries, please visit the official BESTTEN webවෙබ් අඩවියට හෝ ඔවුන්ගේ පාරිභෝගික සේවා දෙපාර්තමේන්තුවට සම්බන්ධ වන්න. වගකීම් හිමිකම් සඳහා ඔබේ මිලදී ගැනීමේ රිසිට්පත තබා ගන්න.
සබඳතා තොරතුරු:
Please refer to the BESTTEN official webනවතම පාරිභෝගික සහාය සම්බන්ධතා තොරතුරු සඳහා අඩවිය.
