Breville VCF183

Breville Prima Latte VCF183X Espresso Coffee Machine Instruction Manual

හැඳින්වීම

This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your Breville Prima Latte VCF183X Espresso Coffee Machine. Please read all instructions carefully before first use and retain this manual for future reference.

නිෂ්පාදන සංරචක

Familiarize yourself with the various parts of your Breville Prima Latte VCF183X coffee machine.

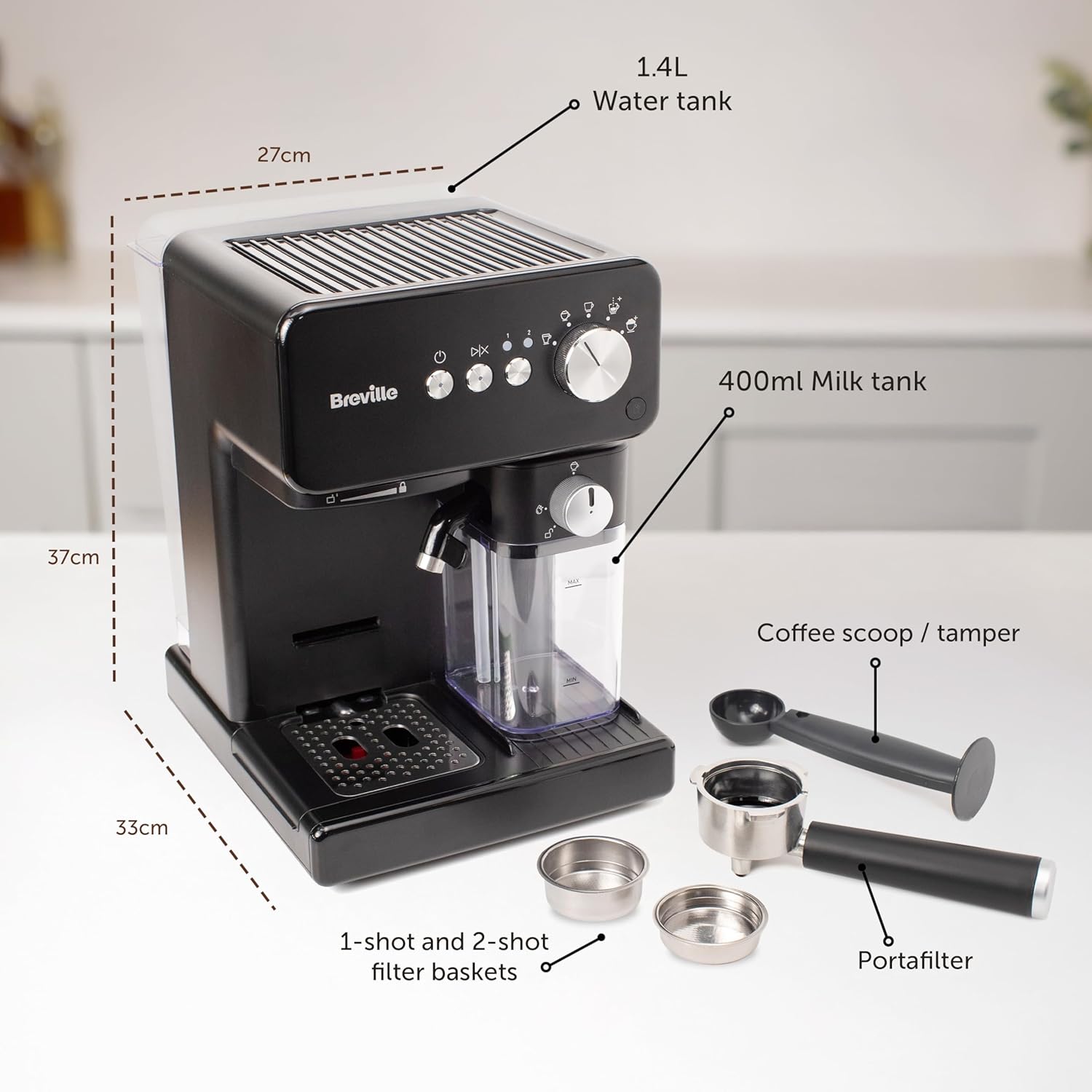

Diagram showing the Breville Prima Latte VCF183X coffee machine with its main components labeled

රූපය 1: Breville Prima Latte VCF183X Components. This diagram illustrates the key parts of the coffee machine, including the 1.4L water tank, 400ml milk tank, portafilter, 1-shot and 2-shot filter baskets, and the coffee scoop/tamper.

සැලසුම

  1. ඇසිරීම: සියලුම ඇසුරුම් ද්‍රව්‍ය ප්‍රවේශමෙන් ඉවත් කර සියලුම සංරචක පවතින බවට වග බලා ගන්න.
  2. මූලික පිරිසිදු කිරීම: Before first use, wash the water tank, milk tank, portafilter, and filter baskets with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp රෙදි.
  3. ජල ටැංකි පිරවීම: Fill the 1.4L water tank with fresh, cold water up to the MAX line. Place it securely back into its position at the rear of the machine.
  4. Milk Tank Placement: If preparing milk-based drinks, ensure the 400ml milk tank is clean and properly attached to the side of the machine.
  5. බල සම්බන්ධතාවය: විදුලි රැහැන භූගත විදුලි අලෙවිසැලකට සම්බන්ධ කරන්න.
  6. යන්ත්‍රය ප්‍රයිම් කිරීම: Follow the instructions in the full user manual to prime the machine by running water through it without coffee or milk to flush the system.

මෙහෙයුම් උපදෙස්

Espresso සෑදීම

  1. පෝටෆිල්ටර් සකස් කරන්න: Insert either the 1-shot or 2-shot filter basket into the portafilter.
  2. බිම් කෝපි එකතු කරන්න: Fill the filter basket with finely ground espresso coffee. Use the coffee scoop to measure and the tamper to compact the coffee evenly.
  3. පෝටෆිල්ටරය අමුණන්න: Securely attach the portafilter to the brewing head of the machine.
  4. Select Shot Size: Use the control panel to select either a single or double espresso shot. The machine features pre-set shot volumes for consistent results.
    5. Close-up of the Breville Prima Latte VCF183X control panel showing single and double shot buttons

    රූපය 2: Control Panel for Shot Selection. This image highlights the single and double shot buttons, which allow for precise espresso preparation.

  5. බෲ එස්ප්‍රෙසෝ: Press the selected shot button to begin brewing. The machine will automatically stop when the pre-set volume is reached.

Frothing Milk for Lattes and Cappuccinos

  1. Fill Milk Tank: Fill the 400ml milk tank with your desired milk (dairy or plant-based) up to the MAX line. Ensure the milk tank is properly attached.
    2. Breville Prima Latte VCF183X coffee machine with milk bottles, illustrating its ability to froth various types of milk

    රූපය 3: Frothing Capability. The machine is designed to froth various types of milk, including dairy and plant-based options, for your preferred coffee beverages.

  2. බීම වර්ගය තෝරන්න: Use the control dial to select your desired drink, such as Latte or Cappuccino. The machine features an automatic milk frother.
    3. Woman holding a cup of coffee next to the Breville Prima Latte VCF183X, highlighting one-touch operation for lattes, cappuccinos, and espresso

    රූපය 4: One-Touch Beverage Preparation. This image demonstrates the ease of preparing lattes, cappuccinos, and espresso with a single touch.

  3. පෙරීම ආරම්භ කරන්න: Press the corresponding button to start the brewing and frothing process. The machine will automatically dispense espresso and frothed milk into your cup.

Adjusting for Cup Size

The drip tray can be adjusted or removed to accommodate various cup sizes, from small espresso cups to taller latte mugs.

Breville Prima Latte VCF183X coffee machine with various cup sizes, demonstrating the adjustable drip tray

රූපය 5: Adjustable Drip Tray. This feature allows users to use their preferred cup, regardless of height, by adjusting the drip tray.

නඩත්තු කිරීම

නිතිපතා පිරිසිදු කිරීම සහ නඩත්තු කිරීම ඔබේ කෝපි යන්ත්‍රයේ ආයු කාලය සහ ප්‍රශස්ත ක්‍රියාකාරිත්වය සහතික කරනු ඇත.

Woman pouring milk into the milk tank of the Breville Prima Latte VCF183X, illustrating easy maintenance with removable components

රූපය 6: Easy Maintenance. The machine features easily removable and washable components for convenient cleaning.

දෝෂගවේෂණය

If you encounter issues with your Breville Prima Latte VCF183X, refer to the following common problems and solutions.

ගැටලුවවිය හැකි හේතුවවිසඳුම
කෝපි ප්රමාණවත් තරම් උණුසුම් නොවේ.Cups are cold; machine not preheated sufficiently.Preheat your cups with hot water before brewing. Allow the machine to fully heat up before use.
කෝපි වල රසය දුර්වලයි.Insufficient coffee grounds; coffee too coarsely ground; improper tamping.Ensure you are using enough finely ground espresso coffee. Tamp කෝපි තදින් හා ඒකාකාරව.
Milk frothing is inconsistent or stopped working.Milk frother is clogged; milk tank not clean.Thoroughly clean the milk tank and frothing mechanism after each use. Refer to the maintenance section.
Milk container is difficult to remove.Possible residue buildup or improper alignment.Ensure the milk container is clean and dry before insertion. Try wiggling gently while pulling. If persistent, contact customer support.
Machine is not brewing.Water tank empty; machine not powered on; portafilter not correctly inserted.Check water level. Ensure machine is plugged in and powered on. Re-insert portafilter securely.

පිරිවිතර

වගකීම් සහ සහාය

Specific warranty information is not available in this document. For detailed warranty terms, product support, or to purchase replacement parts, please refer to the official Breville website or contact Breville customer service directly. Keep your proof of purchase for warranty claims.
