WAVLINK WiFi 7 BE5100 Outdoor WiFi Extender (Model WL-WN573HBE2)

1. හැඳින්වීම

This manual provides detailed instructions for the installation, configuration, and operation of your WAVLINK WiFi 7 BE5100 Outdoor WiFi Extender. This device is designed to provide robust and high-speed wireless connectivity in outdoor environments, supporting multiple operating modes to suit various networking needs.

2. පෙට්ටියේ ඇති දේ

• 1 x WAVLINK WiFi 7 BE5100 Outdoor WiFi Extender
• 4 x Omni-directional Detachable Fiberglass Antennas
• 1 x PoE ඇඩැප්ටරය
• 1 x AC බල ඇඩැප්ටරය
• 1 x RJ45 ඊතර්නෙට් කේබලය
• 1 x බිත්ති සවි කිරීමේ කට්ටලය
• 1 x ස්ථාපන මාර්ගෝපදේශය

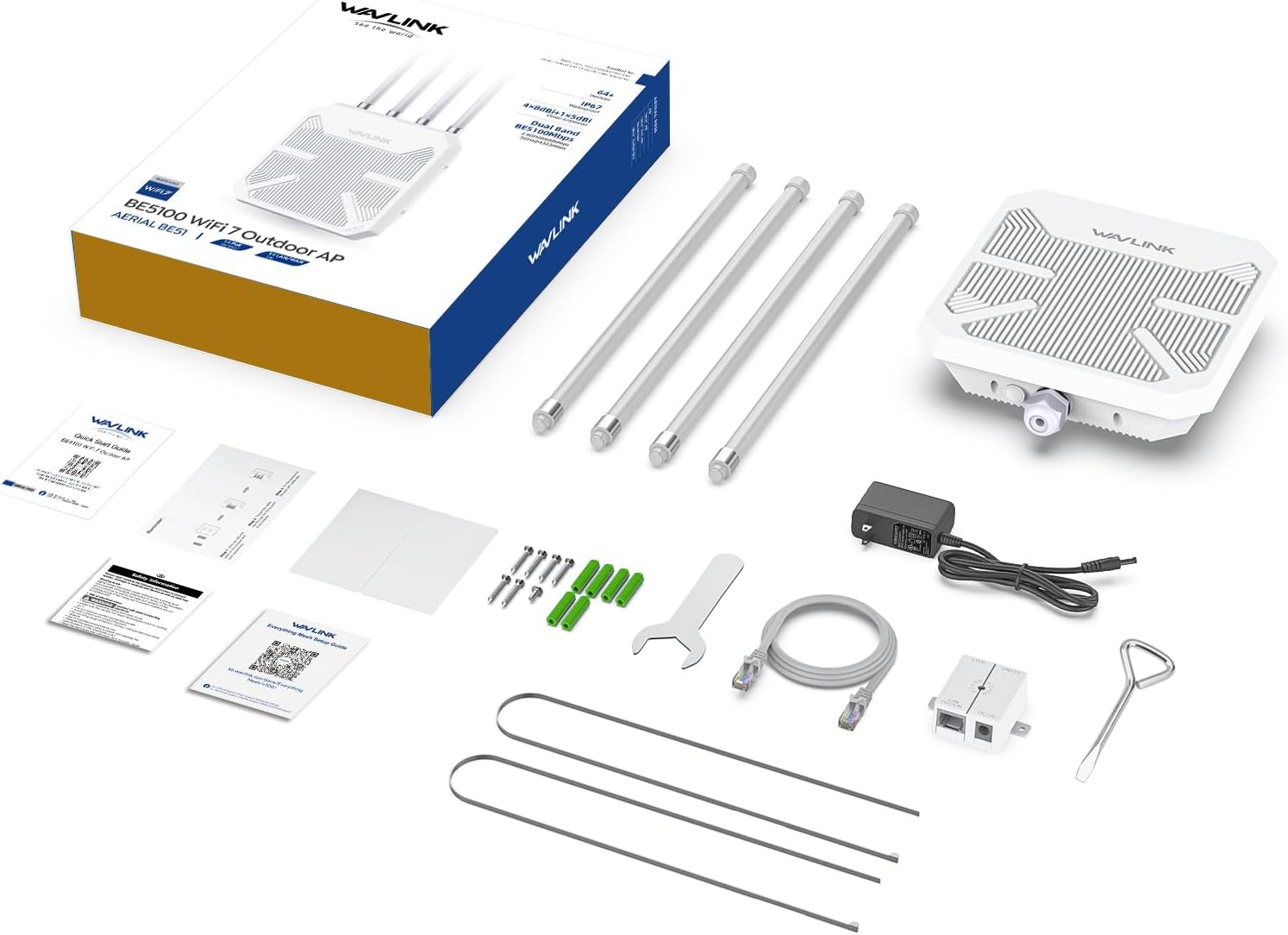

රූපය 2.1: පැකේජයේ අන්තර්ගතය

3. නිෂ්පාදන අවසන්view

The WAVLINK WiFi 7 BE5100 is a high-performance outdoor wireless device featuring the latest Wi-Fi 7 technology. It offers dual-band operation, robust outdoor protection, and flexible deployment options.

3.1 ප්රධාන ලක්ෂණ

• Dual Band WiFi 7 (802.11be) Standard: Achieves speeds of up to 4323 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band, utilizing 4-stream technology for optimized signal distribution.
• විස්තීරණ පරාසය: Equipped with 4x 8dBi omni-directional detachable fiberglass antennas and two built-in high-power amplifiers, providing up to 300m (radius) WiFi coverage and supporting up to 256 connected devices.
• ඊතර්නෙට් හරහා බලය (PoE) සහාය: Compatible with both 802.3AF/AT active and passive PoE for flexible power options. Note: The PoE converter is not waterproof and should be protected from moisture.
• බහු වැඩ ආකාර: Supports AP, Router, Repeater, Mesh AP, and Mesh Extender modes to adapt to various network setups. Mesh mode is compatible with other WAVLINK series products.
• එළිමහන් කල්පැවැත්ම: Features an IP67 waterproof housing, 15 KV ESD protection, and 6 KV lightning protection, ensuring reliable operation in harsh weather conditions (rain, snow, wind, thunder).

රූපය 3.1: නිෂ්පාදන විශේෂාංග අවසන්view

Figure 3.2: Designed for Harsh Outdoor Conditions

3.2 සංරචක

The device includes four external antennas and a 2.5 Gigabit Ethernet port for WAN/LAN connectivity. A reset button is also present for factory reset or WPS pairing.

රූපය 3.3: නිෂ්පාදන මානයන්

4. සැකසුම සහ ස්ථාපනය

Follow these steps to set up your WAVLINK WiFi 7 BE5100 Outdoor WiFi Extender.

4.1 ඇන්ටෙනා ස්ථාපනය

Carefully screw the four omni-directional detachable fiberglass antennas into their respective ports on the top of the extender unit. Ensure they are securely tightened.

4.2 Power over Ethernet (PoE) Connection

The device is powered via Power over Ethernet. Connect an Ethernet cable (CAT5E or above, not exceeding 100m/328ft) from your network source (router/modem) to the 'LAN DATA IN' port on the PoE adapter. Then, connect another Ethernet cable from the 'POE' port on the adapter to the 2.5G WAN/LAN port on the bottom of the extender. Finally, connect the AC power adapter to the PoE adapter and a power outlet.

Figure 4.1: PoE Connection Diagram

4.3 Physical Mounting

Use the provided wall mounting kit to securely attach the extender to a pole or wall in your desired outdoor location. Ensure the device is positioned for optimal signal coverage and away from major obstructions.

Figure 4.2: Mounting Steps

4.4 මූලික වින්‍යාසය

After physical installation and power-up, connect a computer or mobile device to the extender's default Wi-Fi network (SSID usually found on the device label or quick start guide). Open a web browser and navigate to the default login address (e.g., waplogin.link or 192.168.11.1). Follow the on-screen prompts to set up your desired operating mode, Wi-Fi name (SSID), and password.

5. මෙහෙයුම් මාතයන්

The WAVLINK BE5100 supports several operating modes to provide flexibility for different network requirements:

• AP මාදිලිය (ප්‍රවේශ ස්ථානය): Converts a wired network connection into a wireless one, allowing wireless devices to connect.
• පුනරාවර්තන මාදිලිය: Extends the coverage of an existing wireless network by repeating its signal.
• රවුටර ප්‍රකාරය: Functions as a primary router, connecting directly to your internet service provider's modem and creating a new wireless network.
• Mesh AP Mode: Acts as the main access point in a Mesh network, providing seamless Wi-Fi coverage with a single SSID.
• දැල් විස්තාරක මාදිලිය: Expands an existing Mesh network, working with other WAVLINK Mesh products to eliminate Wi-Fi dead zones.

Figure 5.1: Multiple Working Modes

6. වින්යාසය

වෙත පිවිසෙන්න web-based management interface to customize your extender's settings.

6.1 වෙත ප්‍රවේශ වීම Web අතුරු මුහුණත

Connect your device to the extender's Wi-Fi network or via an Ethernet cable. Open a web browser and enter the default IP address (e.g., 192.168.11.1) or domain name (e.g., waplogin.link) into the address bar. Log in using the administrator credentials you set during initial setup.

6.2 යතුරු සැකසුම්

• රැහැන් රහිත සැකසුම්: Configure SSID, encryption method (WPA2-PSK recommended), and password for both 2.4 GHz and 5 GHz bands. Enable Multi-Link Operation (MLO) for optimal WiFi 7 performance.
• අමුත්තන්ගේ Wi-Fi: Create a separate Wi-Fi network for guests, providing secure access without compromising your main network.
• සංඥා ගැලපීම: Adjust the transmit power of the antennas (High, Medium, Low) to optimize coverage and minimize interference.
• ස්ථිරාංග යාවත්කාලීන කිරීම: ප්‍රශස්ත කාර්ය සාධනය සහ ආරක්ෂාව සහතික කිරීම සඳහා නිතිපතා ස්ථිරාංග යාවත්කාලීන කිරීම් පරීක්ෂා කර ස්ථාපනය කරන්න.

7. පිරිවිතර

8. Operating the WAVLINK WiFi 7 BE5100

Once configured, the WAVLINK BE5100 operates autonomously based on the selected mode. Ensure the device has a stable power supply and a clear line of sight to the areas requiring Wi-Fi coverage for optimal performance.

9. නඩත්තු කිරීම

Regular maintenance helps ensure the longevity and optimal performance of your outdoor extender.

• පිරිසිදු කිරීම: Periodically clean the exterior of the device to remove dust, dirt, or debris. Use a soft, damp රෙදි. දරුණු රසායනික ද්රව්ය හෝ උල්ෙල්ඛ පිරිසිදු කරන්නන් භාවිතා නොකරන්න.
• ස්ථිරාංග යාවත්කාලීන කිරීම්: පරීක්ෂා කරන්න web interface regularly for available firmware updates and install them to benefit from performance improvements and security patches.
• කේබල් පරීක්ෂාව: Periodically inspect the Ethernet cable and power connections for any signs of wear or damage. Ensure waterproof seals are intact.

10. දෝශ නිරාකරණය

If you encounter issues with your WAVLINK BE5100, try the following steps:

• බලය නැත: Ensure the PoE adapter is correctly connected to a power source and the extender. Check all cable connections.
• අන්තර්ජාල ප්‍රවේශය නැත: Verify that your main router/modem has an active internet connection. Check the Ethernet cable connection between the PoE adapter and your network source.
• Weak Signal/Poor Performance: Adjust the extender's position for better line of sight. Ensure antennas are securely attached. Check for physical obstructions. Adjust signal adjustment settings in the web interface to 'High'.
• ප්‍රවේශ විය නොහැක Web අතුරු මුහුණත: Ensure your device is connected to the extender's Wi-Fi or via Ethernet. Try restarting the extender. Verify the correct IP address or domain name.
• කර්මාන්තශාලා යළි පිහිටුවීම: If problems persist, perform a factory reset by pressing and holding the reset button for approximately 10 seconds until the indicator lights change. Note: This will erase all custom settings.

11. වගකීම් සහ සහාය

WAVLINK products come with a manufacturer's warranty. For technical support, warranty claims, or further assistance, please contact WAVLINK customer service:

• දුරකථන සහාය: +1 888 973 0883 (UTC-5) Mon - Fri 9 AM - 6 PM
• ඊමේල් සහාය: contact@wavlink.com
• Life-long technical support is provided.
