1. හැඳින්වීම
Thank you for choosing the Pawfly 300 L/H Internal Aquarium Filter. This filter is designed to provide efficient mechanical and biological filtration for freshwater and saltwater aquariums ranging from 30 to 80 liters. Its compact design, adjustable flow, and quiet operation contribute to a healthy and stable aquatic environment. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of your filter.
2. ආරක්ෂිත උපදෙස්
- ඕනෑම නඩත්තුවක්, ස්ථාපනයක් හෝ පිරිසිදු කිරීමක් සිදු කිරීමට පෙර සෑම විටම බල සැපයුම විසන්ධි කරන්න.
- විදුලි පේනුව හසුරුවන විට ඔබේ දෑත් වියළිව ඇති බවට වග බලා ගන්න.
- විදුලි රැහැන හෝ ප්ලග් එකට හානි සිදුවී ඇත්නම් පෙරහන ක්රියාත්මක නොකරන්න.
- This appliance is for indoor use only and must be fully submersible.
- දරුවන්ට ළඟා විය නොහැකි ලෙස තබා ගන්න.
- Do not use the filter for purposes other than filtering aquarium water.
3. නිෂ්පාදන ලක්ෂණ
- දෙක-එස්tagඊ පෙරීම: Includes two biological sponges that capture debris, food remnants, and fish waste for clear water. These sponges also provide a surface for beneficial bacteria to thrive, aiding in the removal of harmful substances.
- සංයුක්ත සහ කාර්යක්ෂම: Measuring 4 x 5.6 x 14 cm (L x W x H), this filter is suitable for 30 to 80-liter freshwater or saltwater aquariums, providing both mechanical and biological filtration.
- Customizable Flow Options: Features both a jet outlet and a spray bar to adjust water flow according to tank size and fish density, promoting strong and consistent circulation for improved oxygenation.
- Quiet and Adjustable: Powered by an energy-saving motor with a robust ceramic shaft, ensuring quiet operation. A sliding switch allows for slight adjustment of water flow.
- පිරිසිදු කිරීමට පහසු: Designed for easy disassembly and rinsing.
4. පැකේජ අන්තර්ගතය
සියලුම සංරචක පැකේජයේ ඇති බව තහවුරු කර ගන්න:
- 1 x Pawfly Internal Aquarium Filter
- 1 x Spray Bar (Rain Pipe)
- 1 x Fountain Accessory (Jet Outlet)
- 4 x Suction Cups (Black)
- 1 x බල කේබලය (මීටර් 1.6)
- 1 x පරිශීලක අත්පොත
5. සැකසුම් උපදෙස්
- සංරචක ඉවත් කරන්න: ඇසුරුම්කරණයෙන් සියලුම අයිතම ප්රවේශමෙන් ඉවත් කරන්න.
- Assemble Filter: If disassembled for shipping, reassemble the filter body, ensuring the bio sponges are correctly placed within the filter chamber. Refer to the 'Detachable Design' image for component placement.
රූපය: පුපුරා ගියේය view of the Pawfly internal aquarium filter, illustrating its various components and their assembly order. Key parts include the water outlet, water pump, rotor, bio sponge, suction cups, filter chamber, and water inlet.
- Attach Outlet: Choose between the spray bar or the jet outlet. Attach your preferred outlet to the water pump. The spray bar can be adjusted 360 degrees for optimal water distribution.
Image: A diagram illustrating the 360-degree adjustability of the spray bar, allowing it to rotate left and right, and flip up and down for a custom fit in the aquarium.
- Mount Filter: Secure the suction cups to the filter body. Press the filter firmly against the inside wall of your aquarium, ensuring it is fully submerged. The filter should be placed in a location that allows for good water circulation throughout the tank.
Image: The Pawfly 300 L/H Internal Aquarium Filter shown installed inside an aquarium, demonstrating its compact form factor and how it attaches to the tank wall.
- ජල මට්ටම පරීක්ෂා කරන්න: Ensure the filter is completely submerged in water before plugging it in. Operating the filter dry can cause damage.
6. මෙහෙයුම් උපදෙස්
- බල ගැන්වීම: Once the filter is correctly installed and fully submerged, plug the power cord into a suitable electrical outlet. The filter will begin to operate.
- ප්රවාහ අනුපාතය සකසන්න: Use the sliding switch located on the filter body to adjust the water flow rate. Slide the switch to increase or decrease the flow as needed for your aquatic pets and tank conditions.

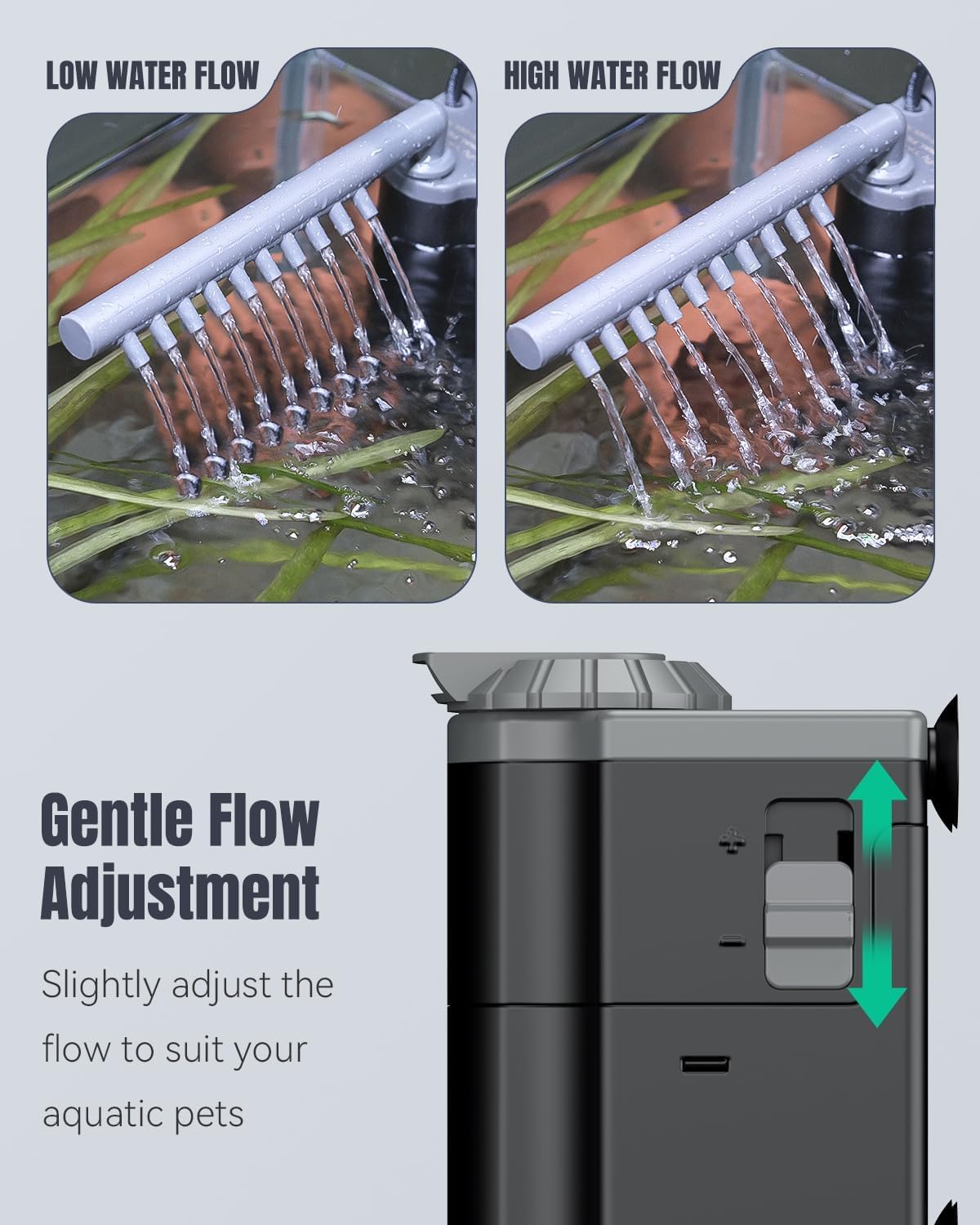

Image: This image illustrates the gentle flow adjustment mechanism on the filter, demonstrating the visual difference between low and high water flow settings from the spray bar.
- Customize Water Output: The spray bar and jet outlet offer different water flow patterns. The spray bar provides a gentle, diffused flow, while the jet outlet offers a more direct stream. Experiment with both to find the best option for your aquarium.

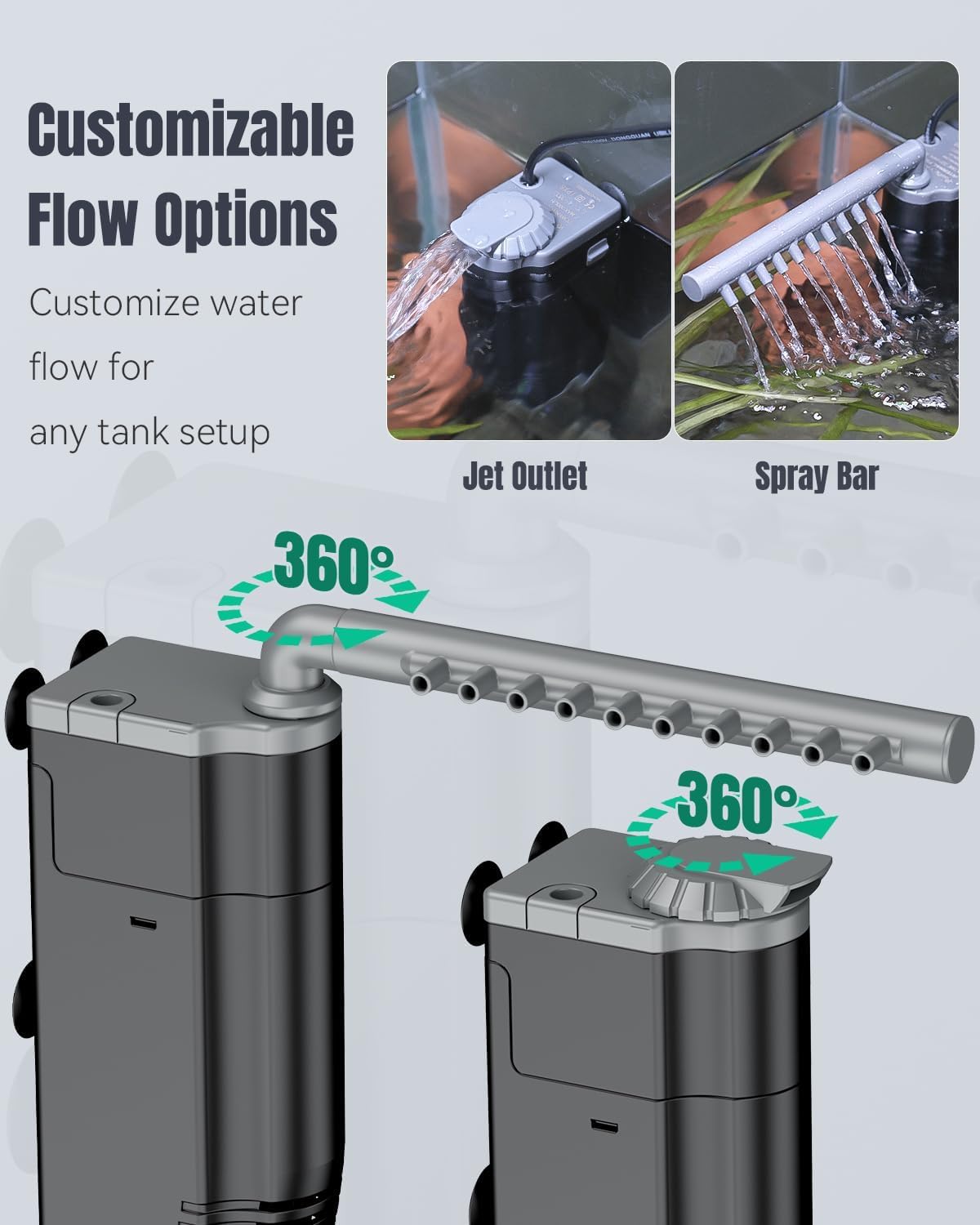

Image: This image displays the customizable flow options available with the filter, featuring both a jet outlet for concentrated flow and a spray bar for diffused water output.
7. නඩත්තු කිරීම
ඔබේ පෙරහනෙහි ප්රශස්ත ක්රියාකාරිත්වය සහ කල්පැවැත්ම සඳහා නිතිපතා නඩත්තු කිරීම ඉතා වැදගත් වේ.
- බලය විසන්ධි කරන්න: Always unplug the filter from the power outlet before any cleaning or maintenance.
- Remove Filter from Tank: Carefully detach the filter from the aquarium wall.
- Disassemble Filter: The filter features a detachable design for easy cleaning. Separate the filter components as shown in the 'Detachable Design' image.
රූපය: පුපුරා ගියේය view of the Pawfly internal aquarium filter, illustrating its various components and their assembly order. Key parts include the water outlet, water pump, rotor, bio sponge, suction cups, filter chamber, and water inlet.
- Clean Bio Sponges: Clean the biological sponges every 2 to 4 weeks. වැදගත්: Rinse the sponges using only water from the aquarium. Do not use tap water, as chlorine can kill beneficial bacteria essential for biological filtration. Gently squeeze the sponges to remove accumulated debris.
- Clean Other Components: Rinse the filter housing, pump, and impeller under tap water to remove any sludge or debris. Ensure the impeller spins freely.
- ස්පොන්ජ් ආදේශනය: For optimal performance, replace the bio sponges every 2 to 3 months.
- නැවත එකලස් කර නැවත ස්ථාපනය කරන්න: Once all components are clean, reassemble the filter and reinstall it in the aquarium, following the setup instructions.
8. දෝශ නිරාකරණය
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| පෙරහන ක්රියාත්මක නොවේ | බලය නැත; ඉම්පෙලරය හිරවී ඇත; හානි වූ මෝටරය | Check power connection; Clean impeller and motor housing; Contact support if motor is damaged. |
| අඩු ජල ප්රවාහය | Filter media clogged; Impeller dirty; Flow adjustment set too low | Clean or replace filter sponges; Clean impeller; Adjust flow switch to a higher setting. |
| අධික ශබ්දය | Impeller dirty or damaged; Air trapped in filter; Filter not fully submerged | Clean or replace impeller; Gently shake filter to release air; Ensure filter is fully submerged. |
| ජලය වළාකුළු සහිතයි | Filter media saturated; Incorrect filter size for tank; Overfeeding fish | Clean or replace filter media; Ensure filter is appropriate for tank volume; Reduce feeding amount. |
If you encounter issues not listed here or if the problem persists after attempting the solutions, please contact Pawfly customer support.
9. පිරිවිතර
- ආකෘතිය: Pawfly-CW4560-EU
- වෙළඳ නාමය: Pawfly
- මානයන් (L x W x H): 14 x 4 x 14 cm (5.5 x 1.6 x 5.5 අඟල්)
- බර: ග්රෑම් 250 කි
- ද්රව්ය: ප්ලාස්ටික්
- බලශක්ති ප්රභවය: විදුලි කේබලය
- බලශක්ති පරිභෝජනය: 3 ඩබ්ලිව්
- මැක්ස් ප්රවාහ අනුපාතය: පැයකට ලීටර් 300 යි
- වෙළුමtage: 220-240 V (based on typical EU specifications for similar products)
- සංඛ්යාතය: 50 Hz (based on typical EU specifications for similar products)
- නිර්දේශිත ටැංකි ප්රමාණය: ලීටර් 30 සිට 80 දක්වා
- භාවිතය: Aquarium Filter (Freshwater and Saltwater)
Image: A visual representation of the Pawfly internal aquarium filter, highlighting its compact dimensions (14 cm height, 4 cm width, 5.6 cm depth) and key specifications such as Max Flow (300 L/h), Power (3 W), and recommended Tank Size (30-80 L).
10. වගකීම් සහ සහාය
Pawfly products are manufactured to high-quality standards. For warranty information, technical support, or any questions regarding your Pawfly 300 L/H Internal Aquarium Filter, please refer to the contact information provided with your purchase or visit the official Pawfly webවෙබ් අඩවිය. වගකීම් හිමිකම් සඳහා කරුණාකර ඔබේ මිලදී ගැනීමේ සාක්ෂි තබා ගන්න.
