ACONEE 19 SEER 12000 BTU Split Air Conditioner User Manual

1. නිෂ්පාදන අවසන්view

The ACONEE 19 SEER 12000 BTU Ductless Mini-Split Inverter A/C Heat Pump System is designed to provide efficient cooling, heating, and dehumidifying for spaces up to 750 square feet. This 115V unit operates with a 19 SEER rating for energy efficiency and features ultra-quiet operation, as low as 42 dB(A) in sleep mode.

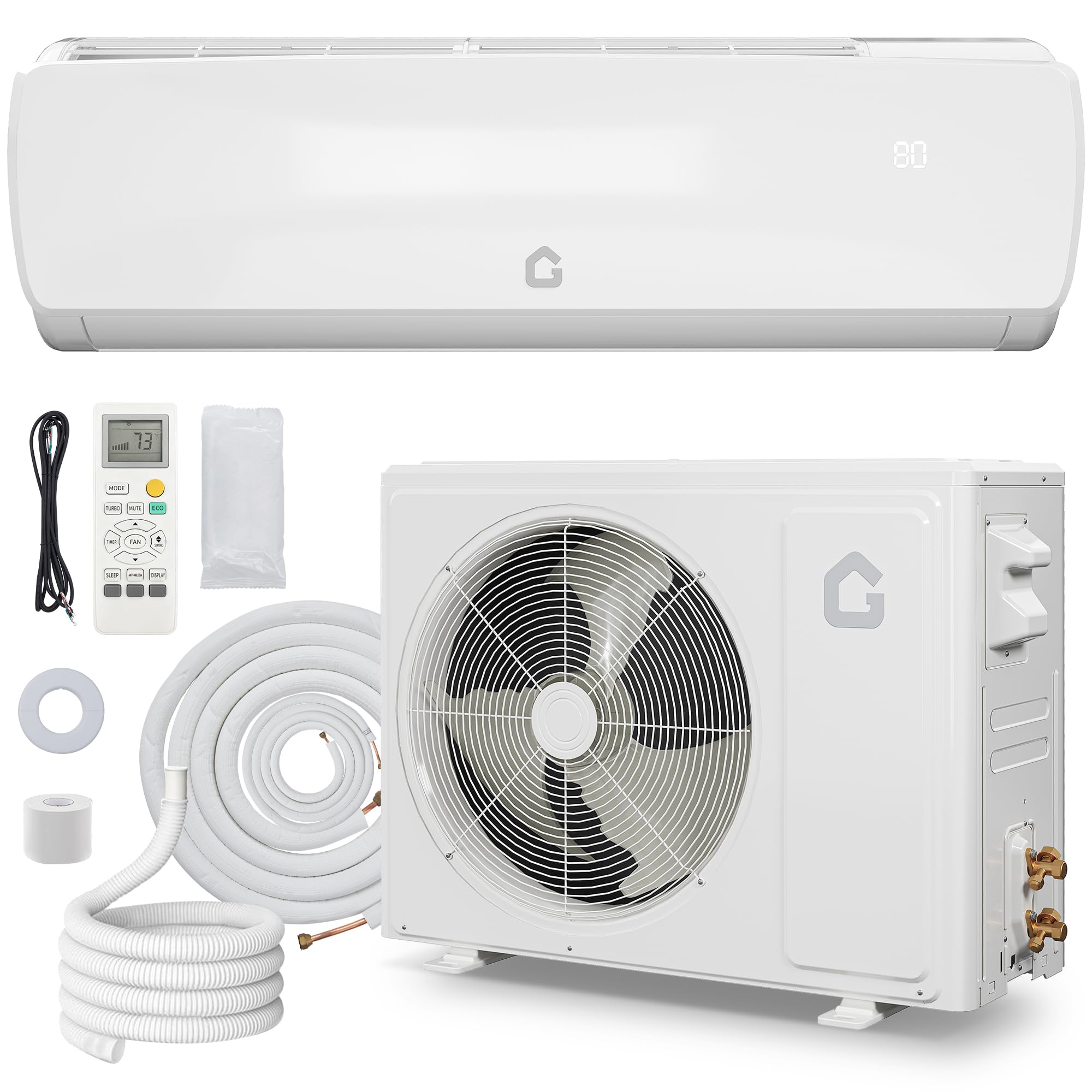

Figure 1: ACONEE 19 SEER 12000 BTU Split Air Conditioner components.

Figure 2: The ACONEE 12000 BTU system is designed to maintain optimal indoor comfort year-round for areas up to 750 sq. ft.

Figure 3: The indoor unit operates at a whisper-quiet 42 dB(A) in sleep mode, ensuring undisturbed comfort.

2. පිහිටුවීම සහ ස්ථාපනය

Proper installation is crucial for the optimal performance and longevity of your ACONEE Mini-Split system. It is highly recommended that installation be performed by a qualified professional to ensure compliance with all local electrical and safety codes, and to prevent damage from incorrect refrigerant handling.

2.1 ස්ථාපනය කිරීමට පෙර සකස් කිරීම

• Unpack all components and verify that all accessories are complete as per the packing list.
• Ensure the installation wall for the indoor unit is hard and firm to prevent vibration.
• Reserve adequate space around the indoor unit: 15cm above to the ceiling, 20cm above to the side walls, and 230-260cm from the floor.
• For the outdoor unit, ensure sufficient clearance: 50cm above to obstruction, 10cm above for air intake, 30cm to side obstructions, and 200cm for air outlet.

2.2 ගෘහස්ථ ඒකක ස්ථාපනය

1. Drill pilot holes and use a '+' type screw to fasten the pegboard horizontally on the wall, ensuring it is level.
2. Create a wall hole (60-80mm diameter) for piping, slanting it outwards by 5-10 degrees. Avoid pre-buried power wires.
3. Pass the power cable out from the back of the indoor unit and fix it on the terminal board using a clamp.
4. According to the piping direction, remove the knock-out panel with a knife and remove any burrs to prevent drain pipe damage.
5. Carefully bend the pipes to the desired direction.
6. Connect the connecting pipes to the indoor unit. Aim at the pipe center, tighten the taper nut with fingers, then use a torque wrench. Refer to the torque table below for specific values.
7. Carefully check for any damage to joints before installation. Joints should not be reused unless re-flared.
8. Use the insulation sleeve to wrap the joint part of the indoor unit and the connection pipe, then use insulating material to pack and seal the insulation pipe to prevent condensate water generation.
9. Connect the water outlet with drain pipes and ensure the connection pipes, cables, and drain hose are straight.
10. සම්බන්ධක පයිප්ප, කේබල් සහ කාණු හෝස් ඔතා ගැනීමට ප්ලාස්ටික් කේබල් ටයි භාවිතා කරන්න. නළය පහළට බෑවුමකින් ධාවනය කරන්න.
11. Put the refrigerant piping through the wall hole.
12. Hang the indoor unit on the peg board. Move the unit from left to right to ensure the hook is properly positioned. Push toward the lower left side and the upper right side of the unit until the hook is embedded in the slot and makes a click sound.
13. To protect piping and wires, install a pipe protecting ring and seal it with putty.

Torque Specifications for Pipe Connections

2.3 එළිමහන් ඒකක ස්ථාපනය

1. Use at least 6 expansion bolts to fix the mounting brackets firmly on the wall. Ensure the brackets are level.
2. Carefully place the outdoor unit onto the installed brackets.
3. Use 4 screws to fix the feet of the outdoor unit to the brackets.
4. Remove the nuts from the stop valves.
5. Aim the pipe center of the stop valve, tighten the taper nut with fingers, then tighten with two wrenches.
6. When the length of the connecting pipe is changed, extra refrigerant may need to be added or reduced. Refer to the table below.
7. විදුලි පෙට්ටියේ කවරය ඉවත් කරන්න.
8. Connect the cables respectively to the corresponding terminals of the outdoor unit's terminal board. Refer to the wiring diagram provided on the unit. If signals are connected to a plug, conduct a butt joint.
9. Remove the grounding screw from the electric bracket, cover the grounding wire end onto the grounding screw, and screw it into the grounding hole.
10. Fix the cables reliably with fasteners (pressing board).
11. E-කොටස් කවරය එහි මුල් ස්ථානයේ තබා එය ඉස්කුරුප්පු වලින් සවි කරන්න.
12. Before working on the air conditioner, remove the cover of the stop valve.
13. Remove the caps from the gas and liquid valves and be sure to retighten them afterward to prevent potential air leakage.
14. Fully open the handle Lo of the manifold valve and apply vacuum for at least 15 minutes. Check that the compound vacuum gauge reads -0.1MPa (-76cmHg).
15. රික්තය යෙදීමෙන් පසු, හෙක්ස් යතුරකින් නැවතුම් කපාටය සම්පූර්ණයෙන්ම විවෘත කරන්න.
16. Screw all the caps back on and tighten them securely.

Refrigerant Adjustment Table

When the length of the connecting pipe is changed, extra refrigerant needs to be added or reduced so that the operation and performance of the air conditioner will not be compromised.

3. මෙහෙයුම් උපදෙස්

Your ACONEE Mini-Split system offers versatile climate control with multiple operating modes and features for year-round comfort.

Figure 4: Multi-functions and remote control overview.

3.1 මෙහෙයුම් ආකාරය

• සිසිල්: Provides powerful cooling to quickly lower room temperature.
• තාපය: Delivers efficient heating to warm your space.
• තෙතමනය ඉවත් කරන්න: වඩාත් සුවපහසු පරිසරයක් සඳහා ආර්ද්‍රතා මට්ටම් අඩු කරයි.
• රසිකයා: සිසිලනය හෝ උණුසුමකින් තොරව වාතය සංසරණය කරයි.
• ස්වයංක්‍රීය: Automatically selects the appropriate mode (cooling or heating) based on the ambient temperature.
• නින්ද: Adjusts temperature and fan speed for quiet, comfortable sleep, typically operating at 42 dB(A).
• ECO: Optimizes energy consumption for cost savings.

3.2 පංකා වේගය

The unit offers 4 fan speeds: Low, Medium, High, and Turbo, allowing you to customize airflow intensity.

3.3 අමතර විශේෂාංග

• සිව්-මාර්ග පැද්දීම: Directs airflow in multiple directions for even distribution.
• ස්වයංක්‍රීය පිරිසිදු කිරීම: Helps maintain the cleanliness of the indoor unit's evaporator.
• Fast Cooling/Heating: Rapidly adjusts room temperature to your desired setting.
• 24H ටයිමරය: Allows scheduling of operation times.
• සංදර්ශක ආලෝකය: Controls the illumination of the unit's display.

4. නඩත්තු කිරීම

Regular maintenance ensures the efficiency and longevity of your ACONEE Mini-Split system.

Figure 5: Filter cleaning is simple and essential for maintenance.

4.1 පෙරහන පිරිසිදු කිරීම

• The unit will provide a filter-cleaning reminder.
• To clean, open the front panel of the indoor unit and carefully remove the air filters.
• පෙරහන් ඇල්මැරුණු ජලය සහ මෘදු ඩිටර්ජන්ට් එකකින් සෝදන්න. හොඳින් සෝදා නැවත ඇතුල් කිරීමට පෙර සම්පූර්ණයෙන්ම වාතයේ වියළීමට ඉඩ දෙන්න.
• Regular cleaning (e.g., every 2-4 weeks, depending on usage) helps maintain air quality and unit efficiency.

4.2 සාමාන්ය පිරිසිදු කිරීම

• ගෘහස්ථ සහ එළිමහන් ඒකකවල බාහිර පෙනුම මෘදු, d පිරිසිදුකාරකයකින් පිස දමන්න.amp රෙදි. දරුණු රසායනික ද්රව්ය හෝ උල්ෙල්ඛ පිරිසිදු කරන්නන් භාවිතා නොකරන්න.
• Ensure the outdoor unit's coils are free from debris, leaves, and other obstructions to maintain proper airflow.

5. දෝශ නිරාකරණය

If you encounter issues with your ACONEE Mini-Split system, refer to the following common troubleshooting steps. For complex problems, contact qualified service personnel.

• ඒකකය ක්‍රියාත්මක නොවේ: බල සැපයුම, පරිපථ කඩනය පරීක්ෂා කර, දුරස්ථ පාලක බැටරි ක්‍රියාකාරී දැයි සහතික කර ගන්න.
• ප්‍රමාණවත් සිසිලනය/උණුසුම නොමැතිකම: Verify temperature settings, ensure air filters are clean, and check for any obstructions to airflow indoors or outdoors.
• අසාමාන්ය ශබ්ද: Minor noises during operation are normal. If loud or persistent noises occur, inspect for loose parts or contact support.
• ජල කාන්දුව: Ensure the drain hose is not blocked or kinked and is sloping downward correctly. Check all pipe connections for tightness.
• දෝෂ කේත: Refer to the specific error code in the full manual (if available) or contact customer support with the code.

5.1 Trial Operation

After installation, perform a trial operation to ensure proper function:

• Use a multimeter to test for possible leaking positions on the outdoor unit shell. If electricity leakage is detected, immediately turn off power and conduct further examination.
• Remove one filter from the indoor unit.
• Pour approximately 500ml of water along the evaporator for about 20 seconds.
• Check that water drains normally from the outdoor drain pipe and that there is no leakage around the indoor unit.

6. පිරිවිතර

7. වගකීම් සහ සහාය

Figure 6: ACONEE customer support and warranty information.

• ඊමේල් සහාය: Receive assistance within 12 hours.
• ආපසු දෙන ප්රතිපත්තිය: 30-day unreasonable return period.
• නඩත්තුව සහ තාක්ෂණික සහාය: 12 months of free maintenance and technology support.

For further assistance or to claim warranty services, please refer to the contact information provided in your product packaging or visit the official ACONEE webඅඩවිය.
