WILAWELS 600W Low Voltage Transformer D11LT06 User Manual

1. හැඳින්වීම

Thank you for choosing the WILAWELS 600W Low Voltage Transformer D11LT06. This transformer is designed to convert standard 120V AC household current to a safe 12V/14V AC low voltage, ideal for powering outdoor landscape lighting systems. It features multiple operating modes, a built-in photocell sensor, and robust weather-resistant construction for reliable performance.

නිසි භාවිතය සහතික කිරීමට සහ ඔබේ නිෂ්පාදනයේ ආයු කාලය උපරිම කිරීමට කරුණාකර ස්ථාපනය සහ ක්‍රියාත්මක කිරීමට පෙර මෙම අත්පොත හොඳින් කියවන්න.

2. ආරක්ෂිත උපදෙස්

• විදුලි ආරක්ෂාව: Always disconnect power at the source before installing, servicing, or cleaning the transformer or connected lighting.
• එළිමහන් භාවිතය: This transformer is designed for outdoor use. Ensure all connections are secure and protected from moisture.
• භූගත කිරීම: Ensure the transformer is properly grounded according to local electrical codes.
• බල සීමාව: Do not exceed the maximum 600W power output of this transformer. Overloading can cause damage and create a fire hazard.
• කේබල් ආරක්ෂණ: Protect low voltage cables by routing them in close proximity to the fixture or building structure, or by burying them up to 6 inches (15 cm).
• ස්ථානගත කිරීම: Mount the transformer at least 1 foot (30 cm) above ground level to prevent water damage.
• නඩත්තු: Regularly inspect the transformer and wiring for any signs of damage or wear. Replace damaged components immediately.

3. පැකේජ අන්තර්ගතය

පැකේජය විවෘත කිරීමෙන් පසු සියලුම සංරචක පවතින බවත් හානි නොවී ඇති බවත් තහවුරු කර ගන්න:

• WILAWELS 600W Low Voltage Transformer (Model D11LT06)
• Integrated Photocell Sensor
• Power Cord (ETL Certified SJTW 18AWG/3C, 3.3ft)
• Sensor Cord (ETL Certified SJTW 20AWG/2C, 6ft)
• පරිශීලක අත්පොත (මෙම ලේඛනය)

4. නිෂ්පාදන ලක්ෂණ

600W බල ප්‍රතිදානය: This transformer provides a robust 600 watts of power, capable of supporting a wide range of low voltage landscape lighting fixtures. It converts 120V AC input to 12V/14V AC output, suitable for most outdoor lighting systems.

Six Operating Modes: The transformer offers versatile control with six distinct operating modes: Manual On/Off, Auto On/Off, Timer Mode, Countdown Mode, Dusk On Timer Off Mode, and Test Mode. These modes allow for flexible scheduling and control of your lighting.

ඡායාරූප සෛල සංවේදකය: Equipped with an intelligent photocell sensor, the transformer can automatically turn your lights on at dusk and off at dawn, providing energy efficiency and convenience. This feature is integral to the Auto On/Off and Dusk On Timer Off modes.

Weather-Resistant and Durable: The robust construction ensures the transformer is resistant to various weather conditions, including rain, snow, and dust. It is designed to be corrosion-resistant for long-term outdoor use.

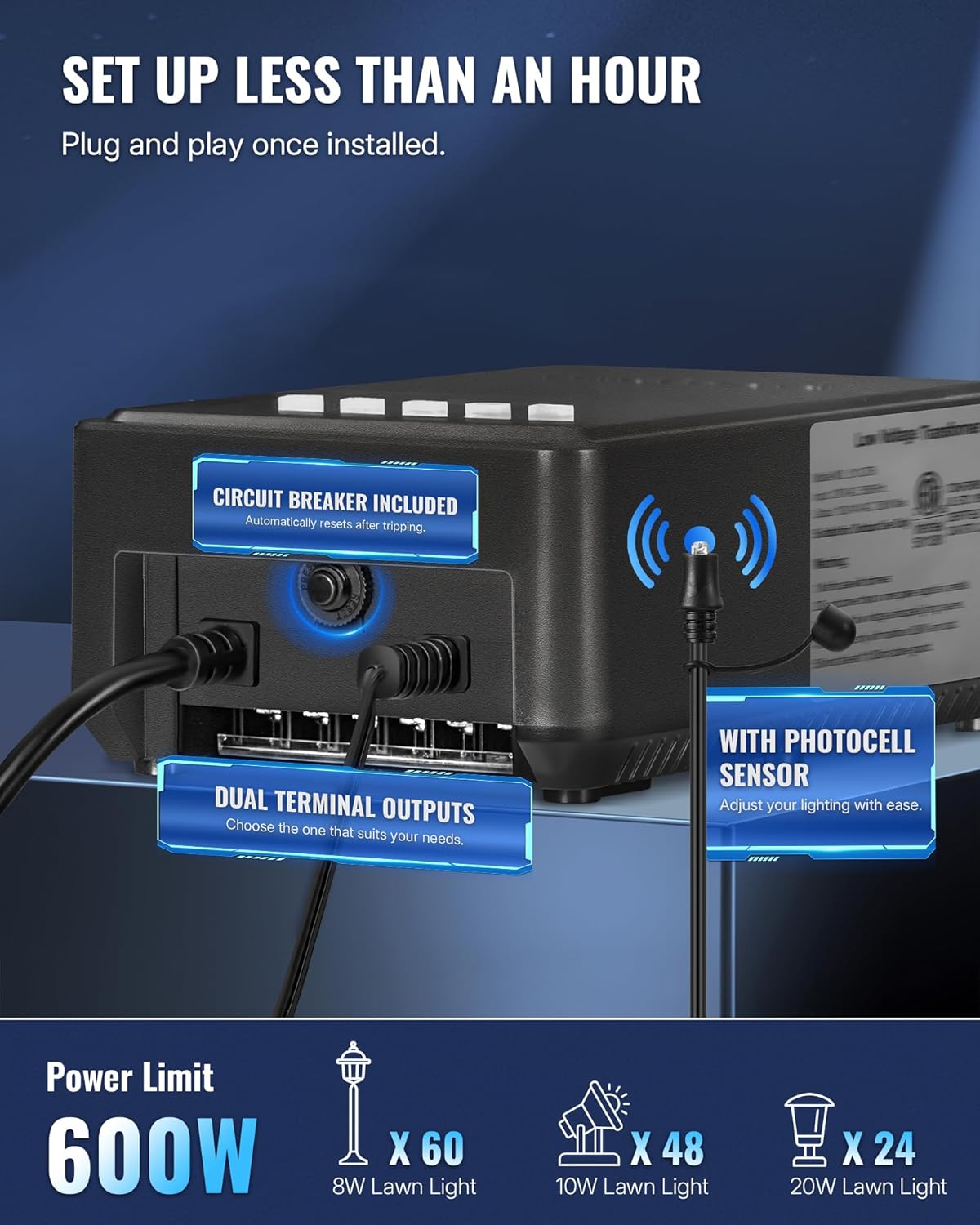

Built-in Circuit Breaker & Dual Terminal Outputs: For enhanced safety, a circuit breaker is included which automatically resets after tripping due to overload. The transformer also features dual terminal outputs, allowing for flexible wiring configurations to suit your landscape lighting layout.

5. පිහිටුවීම සහ ස්ථාපනය

5.1 ට්රාන්ස්ෆෝමරය සවි කිරීම

• Choose a suitable outdoor location near a 120V AC GFCI (Ground Fault Circuit Interrupter) protected outlet.
• Mount the transformer vertically on a wall or post using appropriate screws (not included). Ensure it is at least 1 foot (30 cm) above ground level.
• Ensure the photocell sensor is not obstructed by eaves, trees, or other objects that could block natural light, and is not exposed to artificial light sources (e.g., porch lights) that could interfere with its operation.

5.2 Connecting Low Voltagඊ කේබල්

• Ensure the transformer is unplugged from the power outlet.
• Strip approximately 1/2 inch (1.2 cm) of insulation from the ends of your low voltagඊ භූ දර්ශන ආලෝකකරණ කේබල්.
• Open the terminal cover on the transformer. Insert the stripped ends of the low voltage cables into one of the terminal output ports (12V or 14V, depending on your lighting requirements and cable length). Tighten the screws securely to ensure a good electrical connection.
• If using multiple lighting runs, you can utilize both terminal outputs. Ensure the total wattagසම්බන්ධිත සියලුම ලාම්පු වල e 600W නොඉක්මවයි.
• අඩු වෙළුමේ මාර්ගයtage cables to your lighting fixtures, ensuring they are protected from damage.

5.3 Connecting the Photocell Sensor

• The photocell sensor is connected via a dedicated sensor cord. Plug the sensor cord into the designated port on the transformer.
• Position the sensor in an area that receives natural daylight and is not affected by artificial light sources at night.

Dimensions: 8.9" (22.7cm) H x 5.7" (14.5cm) W x 3.2" (8.2cm) D. Power Cord: 3.3ft (1m). Sensor Cord: 6ft (1.8m).

6. මෙහෙයුම් උපදෙස්

The transformer features a digital display and control buttons (MENU, CLOCK, ENTER) for setting the time and selecting operating modes.

6.1 වත්මන් වේලාව සැකසීම

1. Plug the transformer into a GFCI protected 120V AC outlet.
2. ඔබන්න ඔරලෝසුව බොත්තම. පැය ඉලක්කම් දැල්වෙනු ඇත.
3. භාවිතා කරන්න මෙනුව පැය සීරුමාරු කිරීමට බොත්තම. ඔබන්න ඇතුල් කරන්න තහවුරු කිරීමට.
4. The minute digits will flash. Use the මෙනුව button to adjust the minutes. Press ඇතුල් කරන්න තහවුරු කිරීමට.
5. The AM/PM indicator will flash. Use the මෙනුව button to select AM or PM. Press ඇතුල් කරන්න to confirm. The current time is now set.

6.2 මෙහෙයුම් ආකාර තෝරා ගැනීම

ඔබන්න මෙනුව button repeatedly to cycle through the available operating modes. The selected mode will be indicated on the display.

• අක්‍රියයි: Lights remain off.
• මත: Lights remain on continuously.
• ස්වයංක්‍රීය: Lights turn on at dusk and turn off at dawn, controlled by the photocell sensor.
• ටයිමර්: Lights turn on at dusk and stay on for a set duration (2H, 4H, 6H, 8H).
  1. Select TIMER mode using the මෙනුව බොත්තම.
  2. ඔබන්න ඇතුල් කරන්න. The timer duration will flash.
  3. භාවිතා කරන්න මෙනුව button to select 2H, 4H, 6H, or 8H.
  4. ඔබන්න ඇතුල් කරන්න to confirm. Lights will turn on at dusk and turn off after the selected duration.
• ගණන් කිරීම: Lights turn on immediately and stay on for a set duration (2H, 4H, 6H, 8H).
  1. Select COUNTDOWN mode using the මෙනුව බොත්තම.
  2. ඔබන්න ඇතුල් කරන්න. The countdown duration will flash.
  3. භාවිතා කරන්න මෙනුව button to select 2H, 4H, 6H, or 8H.
  4. ඔබන්න ඇතුල් කරන්න to confirm. Lights will turn on immediately and turn off after the selected duration.
• පරීක්ෂණය: This mode allows you to quickly test your lighting system. Lights will turn on for a short period (e.g., 1 minute) and then revert to the previously selected mode.

7. නඩත්තු කිරීම

• පිරිසිදු කිරීම: Periodically wipe the transformer's exterior with a soft, damp අපිරිසිදු හා සුන්බුන් ඉවත් කිරීමට රෙදි. උල්ෙල්ඛ පිරිසිදු කරන්නන් භාවිතා නොකරන්න හෝ ඒකකය ජලයේ ගිල්වන්න එපා.
• සම්බන්ධතා: වාර්ෂිකව සියලුම අඩු පරිමාව පරීක්ෂා කරන්නtage cable connections to ensure they are tight and free from corrosion. Loose connections can cause flickering or power loss.
• ඡායාරූප සෛල සංවේදකය: Keep the photocell sensor clean and free from obstructions (e.g., leaves, dirt) to ensure accurate dusk/dawn detection.
• පරිපථ බිඳිනය: If the lights stop working, check the circuit breaker. If it has tripped, disconnect some lights to reduce the load, then allow it to reset automatically.

8. දෝශ නිරාකරණය

9. පිරිවිතර

10. වගකීම් සහ සහාය

WILAWELS products are manufactured to high-quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty details, support, or technical assistance, please refer to the warranty card included with your product or contact WILAWELS customer service directly.

ඔබට සාමාන්‍යයෙන් නිෂ්පාදකයාගේ නිල වෙබ් අඩවියෙන් සම්බන්ධතා තොරතුරු සොයාගත හැකිය. webඅඩවියෙන් හෝ ඔබේ සිල්ලර වෙළෙන්දා හරහා.
