1. Introduction to Pubbo Air
The WhalesBot Pubbo Air is an interactive educational robot designed to engage children aged 6 and up in STEM learning through play. It features multiple control methods, including voice, touch, remote, and a dedicated mobile application, allowing for a dynamic and personalized user experience. Pubbo Air is equipped with advanced sensors and supports modular and Scratch coding, fostering critical thinking and problem-solving skills.
Image: The WhalesBot Pubbo Air robot, showcasing its compact and friendly design.
2. පෙට්ටියේ ඇති දේ
Your Pubbo Air package includes the following components:
- Pubbo Air Robot
- දුරස්ථ පාලකය
- පරිශීලක අත්පොත
- ඉක්මන් ආරම්භක කාඩ්පත
- සිතියම
- Type-C ආරෝපණ කේබලය
- ස්ටිකර්

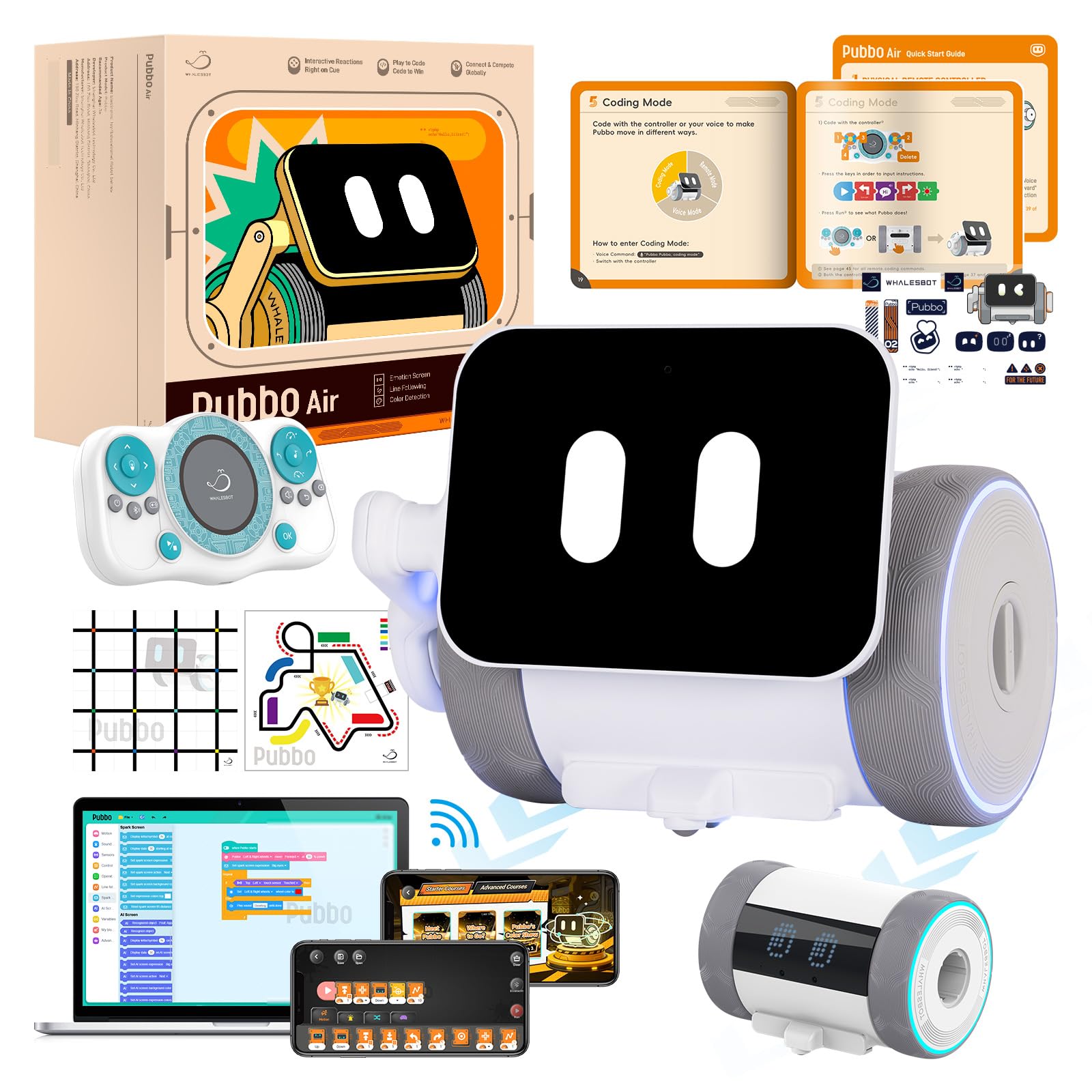

Image: All components included in the WhalesBot Pubbo Air retail package.
3. සැකසුම් මාර්ගෝපදේශය
3.1 පෙට්ටි ඉවත් කිරීම සහ මූලික ගාස්තුව
Carefully remove all items from the packaging. Before first use, ensure the Pubbo Air robot is fully charged using the provided Type-C charging cable. Connect the cable to the robot's charging port and a suitable USB power source. The charging indicator will provide status updates.
3.2 බල ගැන්වීම සක්රිය / අක්රිය කිරීම
To power on Pubbo Air, locate the power button (usually on the robot's body) and press and hold it until the screen illuminates and you hear a startup sound. To power off, press and hold the power button again until the robot shuts down.
3.3 යෙදුම් බාගත කිරීම සහ සම්බන්ධතාවය
Download the official 'Pubbo App' from your device's app store. Once installed, open the app and follow the on-screen instructions to connect to your Pubbo Air robot via Bluetooth. Ensure Bluetooth is enabled on your device.
Image: The Pubbo Air robot alongside its remote controller and a tablet displaying the companion app.
Video: An unboxing demonstration of the Pubbo Air robot, showing the contents and initial setup.
4. මෙහෙයුම් මාතයන්
4.1 හඬ පාලනය
Pubbo Air responds to voice commands. To activate voice control, say "Pubbo Pubbo!" followed by your command. The robot's screen will indicate when it is listening. Example විධානවලට ඇතුළත් වන්නේ:
- Motion Control: BE-CUTE, HEAD-UP, SAY-HELLO, TURN-RIGHT, DANCE-TIME, GO-BACKWARD, START-RUNNING, KEEP-MOVING-BACK
- Play Sounds & Music: CAT-SOUND, MUSIC-TIME, PLAY-PIANO, COW-SOUND, SING-A-SONG, PLANE-SOUND, BARK-LIKE-A-DOG, DINOSAUR-SOUND
- Light & Sound Settings: SPEED-UP, LIGHT-ON, TURN-IT-UP, TURN-GREEN, QUIET-PLEASE, YELLOW-LIGHT, LOUDER-PLEASE, VOLUME-TO-THE-MAX
- Play Mode Selection: CAR-RACE, MAIN-MENU, SLEEP-MODE, SNAKE-GAME, REMOTE-MODE, COLOR-READER, BLUETOOTH-CONNECT, LET'S-DO-LINE-FOLLOWING
Video: A demonstration of Pubbo Air responding to various voice commands and performing actions.
ස්පර්ශ පාලනය
Pubbo Air is designed to be responsive to touch. A simple tap on its head or body can wake it up, trigger cheerful emojis, or initiate fun animations and sounds. This allows for immediate and intuitive interaction.
Image: Pubbo Air demonstrating various interactive responses to touch and movement, including displaying emojis and dancing.
4.3 දුරස්ථ පාලනය
Use the included remote controller for precise movement and to activate specific functions. The remote allows you to steer Pubbo Air, trigger sounds, and control its expressive screen.
Image: A child operating Pubbo Air using the dedicated remote controller.
4.4 යෙදුම් පාලනය
The Pubbo App provides comprehensive control over the robot. Through the app, users can design custom dance moves, create unique sound effects, and combine various emoji expressions. The app also serves as the interface for coding activities.
Image: A child interacting with the Pubbo App on a tablet, controlling the robot's functions.
5. Sensors and Interactive Features
Pubbo Air is equipped with 9 smart sensors that allow it to perceive and interact with its environment:
- දුරස්ථ සංවේදකය: For precise ranging and object detection.
- Infrared Encoder: For modulation and movement tracking.
- ස්පර්ශ සංවේදකය: Enables responsive interactions like waking up or initiating actions with a tap.
- IR Obstacle Sensor: Allows the robot to detect and avoid obstacles.
- ආලෝක සංවේදකය: For detecting ambient light levels.
- ශබ්ද සංවේදකය: Enables the robot to detect and react to sounds.
- ගයිරෝස්කෝප් සංවේදකය: Detects orientation and rotational motion, enabling interactive responses to shaking.
- අළු පැහැති සංවේදකය: Essential for line-following activities.
- වර්ණ සංවේදකය: Allows the robot to recognize and react to different colors.
These sensors enable Pubbo Air to perform various tasks such as following lines, navigating mazes, and responding to light and sound cues, providing a rich interactive experience.
Image: A detailed diagram illustrating the location and function of Pubbo Air's 9 sensors.
Video: Pubbo Air demonstrating its obstacle avoidance capabilities using its sensors.
Video: Pubbo Air showcasing its ability to follow lines and detect colors, demonstrating sensor-based coding.
6. Gamified Education & Coding
The Pubbo App transforms learning into an engaging adventure. It offers interactive coding quests and cartoon-style tutorials that introduce children to programming concepts without prior experience. Through game-based challenges and fun contests, kids develop real programming and STEM skills, including logical reasoning, computational thinking, and creative problem-solving.
Image: Children engaging with the Pubbo App, featuring cartoon courses and gamified coding quests.
7. පිරිවිතර
| නිෂ්පාදන මානයන් | අඟල් 6.1 x 5.6 x 4.48 |
| අයිතමයේ බර | රාත්තල් 2 කි |
| අයිතම ආදර්ශ අංකය | Pubbo Air |
| නිෂ්පාදකයා නිර්දේශිත වයස | අවුරුදු 6 සහ ඊට වැඩි |
| බැටරි | 1 C බැටරියක් අවශ්යයි (ඇතුළත්) |
| නිෂ්පාදකයා | Whalesbot |
8 ආරක්ෂිත තොරතුරු
Pubbo Air is designed with child safety as a priority. It is made from child-safe ABS+PC material and has passed strict safety tests to ensure its suitability for children aged 6 and above. Always supervise young children during play.
9. දෝශ නිරාකරණය
If you encounter any issues with your Pubbo Air robot, please try the following steps:
- රොබෝවරයා ප්රතිචාර නොදක්වයි: Ensure the robot is powered on and fully charged. Check the remote control batteries if using the remote.
- යෙදුම් සම්බන්ධතා ගැටළු: Verify Bluetooth is enabled on your device and the robot is within range. Try restarting both the app and the robot.
- අනපේක්ෂිත හැසිරීම: Ensure the robot's sensors are clean and unobstructed. Check for any active coding programs that might be influencing its actions.
- හඬ විධාන හඳුනා නොගත්: Speak clearly and ensure there is minimal background noise. Confirm the robot's microphone is not obstructed.
10. වගකීම් සහ සහාය
For warranty information or technical support, please refer to the official WhalesBot website or contact their customer service directly. Details can typically be found in the included User Manual or on the product's official support pages online.
