STRICH Pipe Tones Pocket Multi-Effects Processor Instruction Manual

1. හැඳින්වීම

The STRICH Pipe Tones is a compact, desktop-style multi-effects processor designed for electric guitar and bass. It offers a wide range of features for home practice, recording, and live performance, including numerous effect modules, amp modeling, a looper, drum patterns, and wireless control capabilities. This manual provides detailed instructions to help you get the most out of your device.

2. පැකේජ අන්තර්ගතය

කරුණාකර පහත සඳහන් සියලුම අයිතම ඔබගේ පැකේජයට ඇතුළත් කර ඇත්දැයි පරීක්ෂා කරන්න:

STRICH Pipe Tones Multi-Effects Processor Unit
External Dual Foot Switch
TRS Cable (for foot switch connection)
USB-C ආරෝපණ කේබලය
User Manuals (for Pipe Tones and Foot Switch)

3. උපාංගය අවසන්view

3.1 ඉදිරිපස පැනල් පාලන

ඉදිරිපස view of the STRICH Pipe Tones unit with labeled controls.

This image displays the front panel of the Pipe Tones unit, highlighting its main interactive elements.

1. සංදර්ශක තිරය: 2-inch color TFT display for navigating menus, presets, and effect parameters.
2. VOL Knob: Adjusts the overall output volume of the unit (0-100).
3. EDIT Knob: Navigates through menus and adjusts parameter values. Pressing the knob confirms selections or enters edit mode.
4. වම් බොත්තම: Navigates left through presets or menu options. Can be used for looper control.
5. දකුණු බොත්තම: Navigates right through presets or menu options. Can be used for looper control.

3.2 පසුපස පැනල් තොටුපළ

Rear panel of the STRICH Pipe Tones unit with labeled input/output ports.

This image shows the rear panel of the Pipe Tones unit, detailing its connectivity options.

6. බල ස්විචය: ඒකකය සක්‍රිය/අක්‍රිය ටොගල් කරයි.
7. USB-C වරාය: Used for charging the built-in battery, connecting to a computer for USB audio interface functionality, and app control.
8. IN Jack: 1/4-inch input for connecting your guitar or bass.
9. OUT/PHONES Jack: 1/4-inch output for connecting to an amplifier, mixer, or headphones. Supports stereo output for headphones.
10. EXP/CTRL Jack: 1/4-inch input for connecting an external expression pedal or the included dual foot switch for additional control.

4. පිහිටුවීම

4.1 මූලික ආරෝපණය

STRICH Pipe Tones unit beside battery icon indicating 4-5 hours of use.

The Pipe Tones unit features a built-in rechargeable lithium battery, providing approximately 4-5 hours of portable use. Connect the supplied USB-C cable to the USB-C port (7) on the rear panel and to a suitable USB power source (e.g., computer, USB wall adapter). The unit can be used while charging.

4.2 Connecting Your Instrument and Output Device

Connect your electric guitar or bass to the IN jack (8) using a standard 1/4-inch instrument cable.
Connect headphones, an amplifier, or a mixer to the OUT/PHONES jack (9) using a 1/4-inch cable. For stereo headphones, use a TRS (Tip-Ring-Sleeve) 1/4-inch cable.

4.3 Connecting the External Foot Pedal

STRICH Pipe Tones unit connected to an external dual foot switch.

Connect the included external dual foot switch to the EXP/CTRL jack (10) using the supplied TRS cable. This allows for hands-free preset switching during performance.

4.4 බල ගැන්වීම සක්‍රිය / අක්‍රිය කිරීම

Slide the Power switch (6) to the 'ON' position to power on the unit. The display screen will light up. To power off, slide the switch back to the 'OFF' position.

5. මෙහෙයුම් උපදෙස්

5.1 Basic Navigation and Presets

The Pipe Tones unit comes with 99 factory presets (P01-P99). You can browse through these presets using the Left (4) and Right (5) buttons on the front panel, or by rotating the EDIT knob (3). To save a modified preset, navigate to the save option in the menu.

5.2 Effect Modules

Multi-functional Effector Matrix showing 10 effect modules.

The unit supports up to ten effect modules running simultaneously, including GATE, OD/FX, AMP, CAB, EQ, MOD, DELAY, REVERB, LOOPER, and DRUM. Press the EDIT knob (3) to enter the effect editing menu. Rotate the EDIT knob to select a module and press to enter its parameters. Rotate the EDIT knob to adjust parameters and press again to confirm or exit.

5.3 DSM Amp Modeling and IR/NAM File ආනයනය කරන්න

High-precision DSM Speaker Simulation with preset details.

The Pipe Tones features advanced DSM (Dynamic Spectrum Modeling) technology with 30 built-in amp models (25 guitar, 5 bass). It also supports NAM (NFILE) amp model import and third-party IR loading, each with 10 dedicated slots. Access these options within the AMP and CAB modules in the effect editing menu.

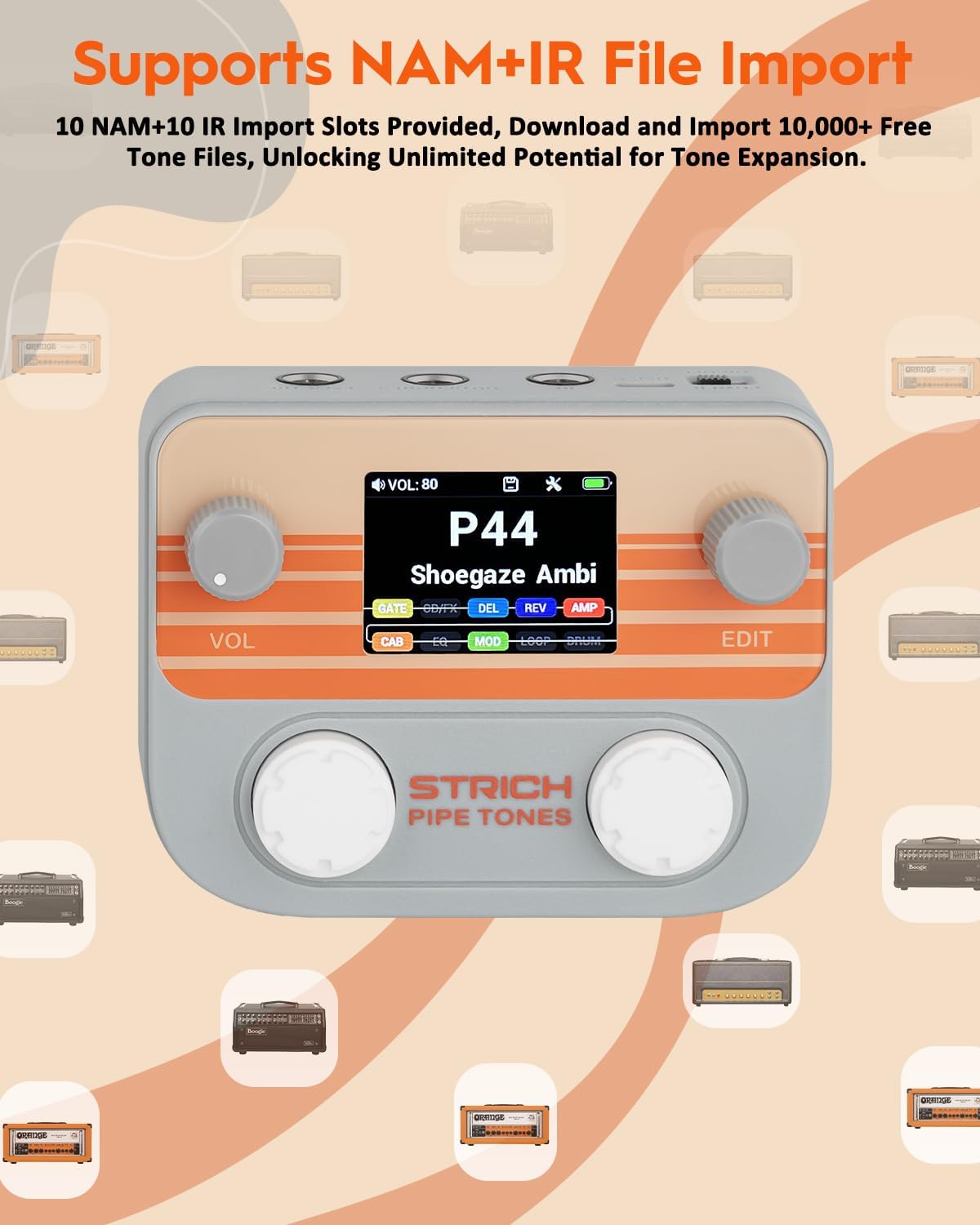

Supports NAM+IR File Import with various amp ආකෘති.

This image illustrates the unit's capability to import NAM and IR files, expanding your tone library.

5.4 Looper සහ Drum Machine

Built-in Loop Module with record and overdub functions.

The unit includes a 40-second stereo looper with Auto Rec mode. Access the LOOPER module to record, overdub, and manage your loops. It also has 100 drum patterns available in the DRUM module to practice with.

5.5 සුසරකය

To access the built-in tuner, press both the Left (4) and Right (5) buttons simultaneously. The display will show the tuning interface. You can adjust the reference pitch (A4=440Hz) using the EDIT knob (3). Press the EDIT knob again to exit the tuner.

5.6 Wireless Control (App)

Smart App for computer and mobile control.

The Pipe Tones supports wireless audio playback and app-based control via Bluetooth. Download the dedicated app (available for Android/iOS and PC/Mac) to edit parameters, manage presets, and control various functions remotely. Ensure Bluetooth is enabled on your device and the Pipe Tones unit.

Video: STRICH Pipe Tones Pocket Guitar Multi-Effects Sound Demo (Source: Strich Direct)

Video: STRICH Pipe Tones Pocket Guitar Multi-Effects Play Demo(P90) (Source: Strich Direct)

Video: STRICH Pipe Tones Pocket Multi-Effects Guitar Performance (Source: Strich Direct)

Video: STRICH Pipe Tones Pocket Guitar Effects Game Style Play 01 (Source: Strich Direct)

5.7 USB ශ්‍රව්‍ය අතුරුමුහුණත

Built-in Sound Card for real-time recording.

The Pipe Tones has a built-in USB audio interface, offering 48 kHz / 24-bit recording and ASIO support for direct computer recording. Connect the unit to your computer via the USB-C port (7) and select it as your audio input/output device in your DAW.

5.8 External Foot Pedal Control

The external foot pedal allows for hands-free control during live performance. Use the foot switches to cycle through presets (A and B buttons on the foot switch correspond to Left and Right buttons on the unit). Refer to the foot switch manual for advanced configurations.

6. නඩත්තු කිරීම

6.1 පිරිසිදු කිරීම

Wipe the unit with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish.

6.2 බැටරි සත්කාර

To prolong battery life, avoid fully discharging the unit frequently. Recharge the battery regularly, even if the unit is not in use for extended periods. Store the unit in a cool, dry place.

7. දෝශ නිරාකරණය

7.1 ශබ්දයක් නැත

Check all cable connections (instrument in, output to amp/හෙඩ්ෆෝන්).
Ensure the unit is powered on and the volume knob (2) is turned up.
Verify that the output volume on your connected amplifier or headphones is also turned up.
Check if any effect modules (e.g., GATE) are muting the signal or if the unit is in bypass mode.

7.2 Connectivity Issues (Bluetooth/USB)

For Bluetooth, ensure the wireless function is enabled in the unit's settings and your device's Bluetooth is on.
For USB audio, ensure the unit is correctly selected as the audio input/output device in your computer's sound settings or DAW.
Try restarting both the Pipe Tones unit and the connected device.

7.3 කර්මාන්තශාලා යළි පිහිටුවීම

If you encounter persistent issues or wish to restore all settings to their original factory defaults, navigate to the 'FACTORY' option in the system settings menu and select 'Reset'.

8. පිරිවිතර

අයිතමයේ බර: රාත්තල් 1.2 කි
නිෂ්පාදන මානයන්: අඟල් 7.4 x 5.91 x 2.36
අයිතම ආදර්ශ අංකය: Pipe Tones
බැටරි: ලිතියම් පොලිමර් බැටරි 1ක් අවශ්‍යයි (ඇතුළත්)
දෘඪාංග අතුරුමුහුණත: USB
වර්ණය: අළු

9. වගකීම් සහ සහාය

Customer Care information with icons for response, warranty, and return policy.

STRICH is committed to providing excellent customer service.

වගකීම් සේවා: The product comes with up to a 12-month warranty.
ආපසු දෙන ප්රතිපත්තිය: Enjoy a 30-day free return period.
පාරිභෝගික සත්කාර: For any inquiries or support, please contact our customer care team. We aim to provide an e-mail chat assistant response within 24 hours.
