maXpeedingrods MXR6000GT 6000 Watt Portable Inverter Generator Instruction Manual

හැඳින්වීම

This manual provides essential information for the safe and efficient operation of your maXpeedingrods MXR6000GT 6000 Watt Portable Inverter Generator. Please read all instructions carefully before use to ensure proper function and longevity of your unit.

ප්රධාන ලක්ෂණ:

• Smart Control & Monitor: Bluetooth app for remote start/stop, real-time monitoring (voltage, frequency, fuel level, load power, runtime), and ECO mode toggle.
• බලවත් එන්ජිම: Robust 224cc OHV engine delivering 6000W starting watts and 5000W running watts on gasoline.

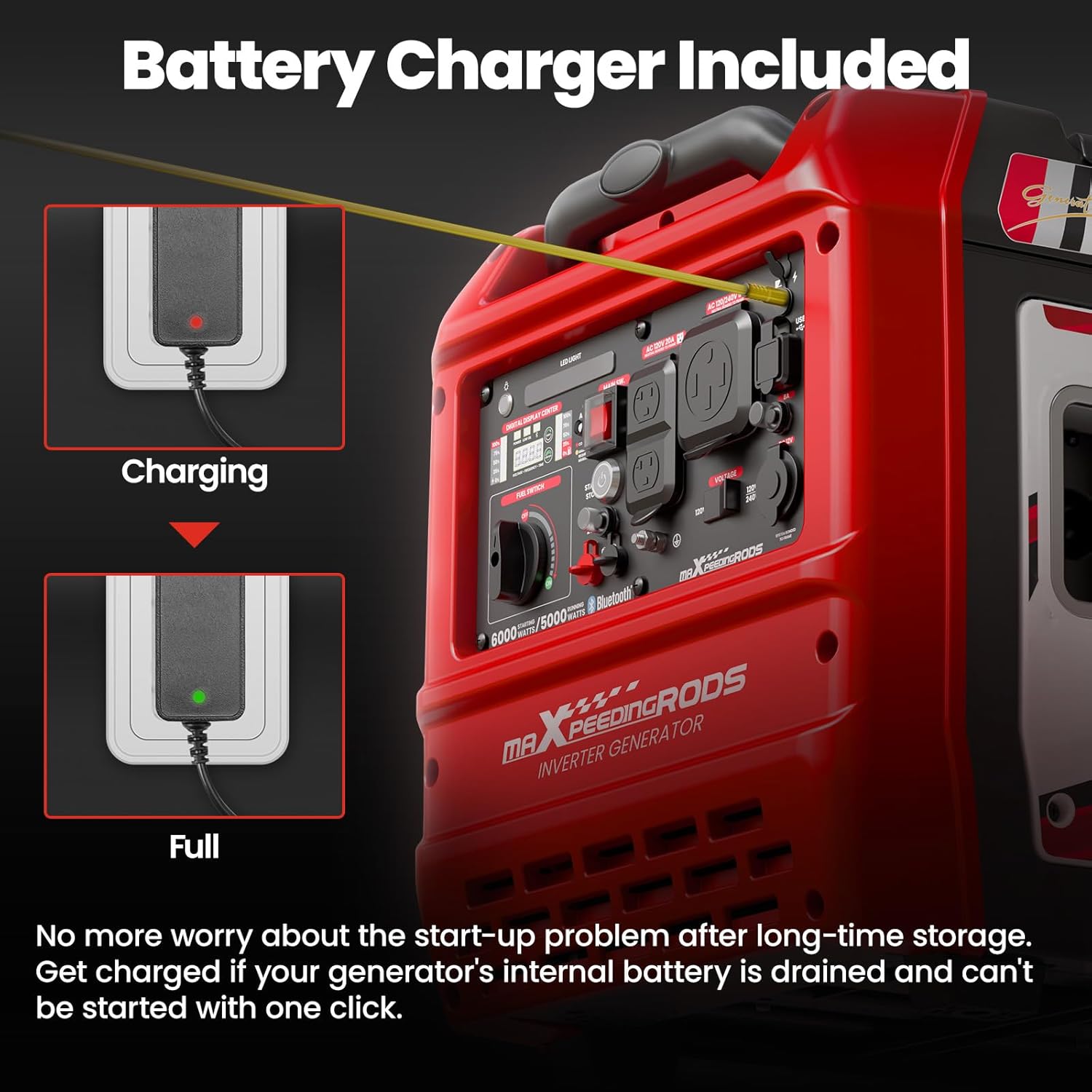

• Fast Charging Port: External port for instant one-click startup and recharging the built-in lithium battery.
• ද්විත්ව වෙළුමtagඊ ප්‍රතිදානය: Easily switch between 120V and 240V to accommodate various device voltagඊ අවශ්යතා.
• අතේ ගෙන යා හැකි නිර්මාණය: Equipped with wheels and a telescopic handle for easy transportation.

පෙට්ටියේ ඇති දේ

Your maXpeedingrods MXR6000GT generator comes with the following accessories:

Image: The maXpeedingrods MXR6000GT generator is shown alongside all its included accessories, neatly laid out. These include the owner's manual, dust cover, various plugs (20A US Plug, 50A US Plug), generator parallel cables, generator battery charger, screwdriver, spark plug socket wrench, oil funnel, and cigarette lighter plug.

• හිමිකරු අත්පොත (1)
• 50A US Plug (1)
• 20A US Plug (1)
• Generator Battery Charger (1)
• Spark Plug Socket Wrench (1)
• ඉස්කුරුප්පු නියන් (1)
• තෙල් පුනීලය (1)
• සිගරට් සැහැල්ලු ප්ලග් (1)
• උත්පාදක සමාන්තර කේබල් (1)
• දූවිලි ආවරණය (1)

සැලසුම

1. එන්ජින් ඔයිල් එකතු කරන්න

Before starting the generator, ensure the engine oil is filled to the correct level. The generator is shipped without oil. Use the provided oil funnel to add 0.74 quarts (0.7L) of SAE 10W-30 engine oil. Do not overfill.

Image: A hand uses the provided oil funnel to pour engine oil into the generator's oil fill port, located behind a removable side panel.

2. Connect Battery (for Electric Start)

The built-in lithium battery for electric start may be disconnected for shipping. Connect the battery terminals as per the owner's manual instructions.

3. Add Fuel

Fill the fuel tank with fresh, unleaded gasoline. Do not use E85 or any other fuel type. Ensure the fuel cap is securely tightened.

4. Parallel Connection (Optional)

If you intend to use two MXR6000GT generators in parallel for increased power output, connect them using the provided parallel cables. Ensure both units are off before connecting. The dual-voltage 240V mode allows parallel operation without an external parallel box.

Image: Two maXpeedingrods MXR6000GT generators are shown connected side-by-side with parallel cables, demonstrating their capability for increased power output.

මෙහෙයුම් උපදෙස්

1. Generator ආරම්භ කිරීම

The MXR6000GT offers electric start, recoil start, and remote start via Bluetooth app.

• අතින් ආරම්භ කිරීම: Turn the multi-switch to the 'Choke' position, then to 'Run'. Use the recoil starter handle or the electric start button.
• App Remote Start: Download the maXpeedingrods app, connect via Bluetooth, and use the app interface to start/stop the generator.

Image: The maXpeedingrods MXR6000GT generator is displayed with an overlay showing the mobile app interface for remote control. Icons for App Control, Electric Start, and Recoil Start are also visible.

2. පාලන පැනලය අවසන්view

The control panel provides various outlets and indicators for operation.

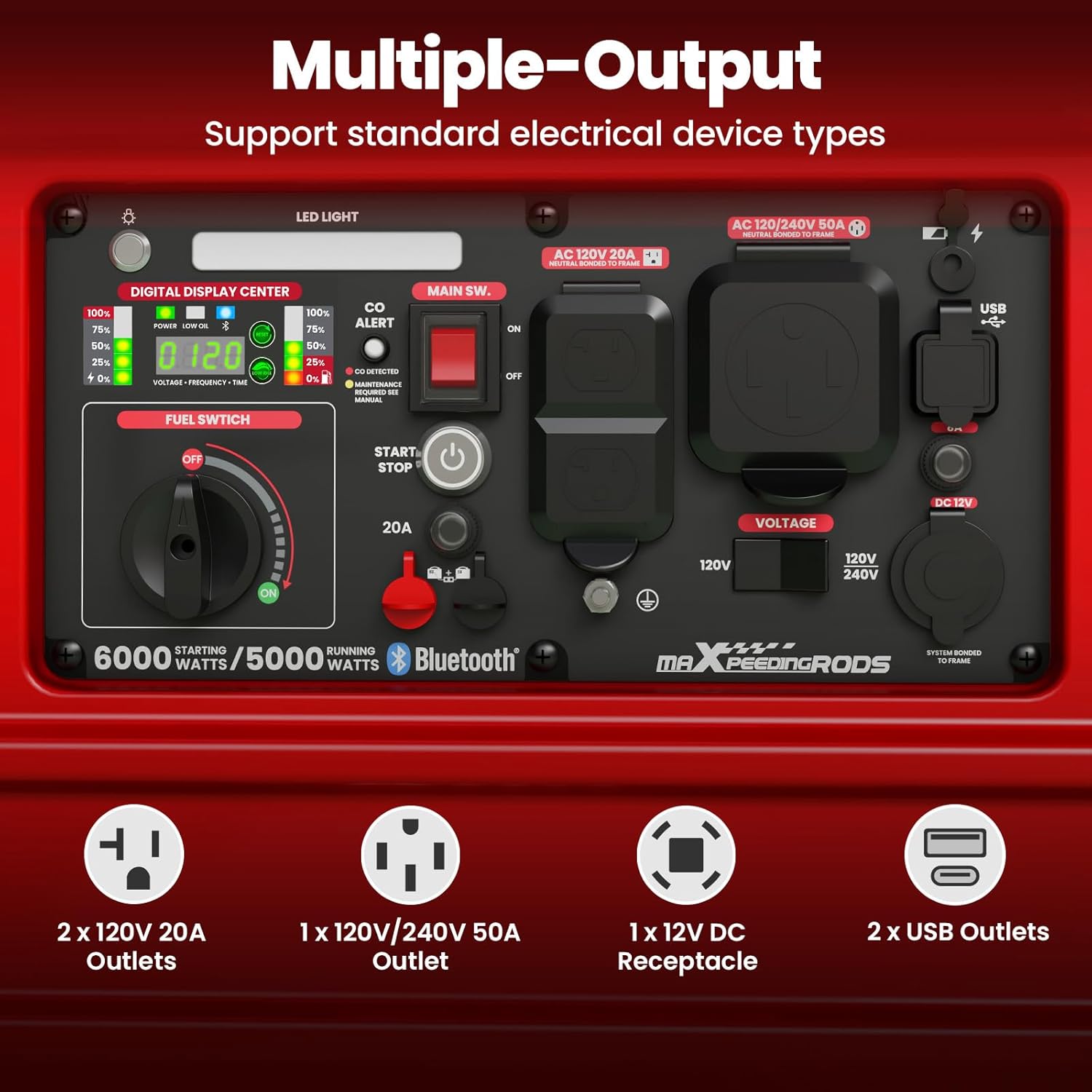

Image: A close-up of the maXpeedingrods MXR6000GT generator's control panel, highlighting the digital display, various outlets (120V 20A, 120V/240V 50A, 12V DC, USB), and indicator lights.

• සංඛ්යාංක දර්ශකය: සංදර්ශන වෙළුමtage, සංඛ්‍යාතය සහ ධාවන කාලය.
• දර්ශක පහන්: Power, Low Oil, CO Alert, Maintenance Required, Bluetooth.
• ECO මාදිලිය: Toggle for fuel efficiency.
• අලෙවිසැල්: 2 x 120V 20A, 1 x 120V/240V 50A, 1 x 12V DC, 2 x USB.

3. යෙදුම් අධීක්ෂණය

The Bluetooth app allows you to monitor key operational data in real-time.

Image: A mobile phone screen displays the maXpeedingrods app, showing real-time data from the MXR6000GT generator including wattage, fuel level, voltage, frequency, and run time.

4. ද්විත්ව වෙළුමtagඊ ප්රතිදානය

Select between 120V and 240V output using the dedicated switch on the control panel to match your appliance requirements.

Image: The maXpeedingrods MXR6000GT generator is shown with a split image illustrating its dual voltage output capability, providing both 120V and 240V power.

නඩත්තු කිරීම

නිතිපතා නඩත්තු කිරීම ප්‍රශස්ත ක්‍රියාකාරිත්වය සහතික කරන අතර ඔබේ උත්පාදක යන්ත්‍රයේ ආයු කාලය දීර්ඝ කරයි.

1. එන්ජින් ඔයිල් වෙනස් කිරීම

It is recommended to change the engine oil after the first 20 hours of use or the first month, whichever comes first. Subsequent oil changes should follow the schedule in the owner's manual.

Video: This video demonstrates the maintenance procedures for the MXR6000GT generator, including how to change the engine oil.

2. Spark Plug Access

The MXR6000GT features a wider spark plug access port for easier maintenance. Regularly inspect and clean or replace the spark plug as needed.

3. Air Filter Maintenance

Check and clean the air filter regularly, especially in dusty conditions, to ensure proper engine performance.

4. Spark Arrester

This generator is US Forestry approved and includes a spark arrester. Ensure it is serviced regularly to prevent fire hazards.

දෝෂගවේෂණය

If your generator encounters issues, refer to the indicator lights on the control panel for initial diagnosis:

• CO අනතුරු ඇඟවීම: Indicates carbon monoxide detection. Move the generator to a well-ventilated area immediately.
• අඩු තෙල්: Indicates low engine oil level. Add oil to the recommended level.
• නඩත්තු කිරීම අවශ්ය වේ: Consult the owner's manual for specific maintenance schedules and procedures.
• Load Trip: If the generator stops due to overload, reduce the connected load and press the reset button.

පිරිවිතර

වගකීම් සහ සහාය

For warranty information or technical support, please refer to the contact details provided in your owner's manual or contact the seller directly. Protection plans are available for purchase separately.

• විකුණුම්කරු: maXpeedingrods-us
• ආරක්ෂණ සැලසුම්: 4-Year Protection Plan, Complete Protect (monthly subscription)
