Parrot Uncle 52-Inch Gold Ceiling Fan with Light and Remote

1. හැඳින්වීම

Welcome to the instruction manual for your Parrot Uncle 52-Inch Gold Ceiling Fan with Light and Remote. This manual provides important information for the safe installation, operation, and maintenance of your ceiling fan. Please read it thoroughly before installation and keep it for future reference.

ආරක්ෂක අනතුරු ඇඟවීම්: Always disconnect power at the circuit breaker before installation or servicing. Ensure all wiring connections comply with local electrical codes. Consult a qualified electrician if you are unsure about any part of the installation. Do not operate the fan with damaged blades or housing. Ensure the fan is securely mounted to a ceiling junction box capable of supporting at least 35 lbs (15.9 kg).

This image shows the Parrot Uncle 52-inch gold ceiling fan with light installed in a contemporary living room setting, providing both illumination and air circulation.

2. ඇතුළත් කර ඇති දේ

Carefully unpack all components and ensure you have received all items listed below. If any parts are missing or damaged, contact customer support before proceeding with installation.

• විදුලි පංකා මෝටර් එකලස් කිරීම
• විදුලි පංකා තල (4)
• ඩවුන්රෝඩ් (අඟල් 4.5)
• වියන්
• සවිකරන වරහන
• දුරස්ථ පාලකය
• දුරස්ථ ග්රාහකයා
• Light Kit with Integrated LED Module
• දෘඩාංග ඇසුරුම (ඉස්කුරුප්පු, රෙදි සෝදන යන්ත්‍ර, වයර් ඇට)

This image illustrates the overall dimensions of the fan and highlights its core components: the robust motor, the four walnut plywood blades, and the integrated LED light module.

3. සැකසුම (ස්ථාපනය)

Follow these steps for proper installation. It is recommended to have two people for installation.

3.1. පූර්ව ස්ථාපනය

• Turn off power at the main circuit breaker to prevent electrical shock.
• Ensure the ceiling junction box is securely mounted and capable of supporting the fan's weight (at least 35 lbs / 15.9 kg).

3.2 සවිකරන වරහන් ස්ථාපනය

• Attach the mounting bracket to the ceiling junction box using the provided screws and washers. Ensure it is firmly secured.

3.3. ඩවුන්රොඩ් එකලස් කිරීම

• Route the fan motor wires through the downrod.
• Secure the downrod to the fan motor assembly with the provided pin and screw.

3.4. විදුලි පංකාව එල්ලීම

• Carefully lift the fan assembly and hang it on the hook of the mounting bracket.

3.5. රැහැන්

• Install the remote receiver in the canopy.
• Connect the receiver wires to the fan and household wires using the provided wire nuts. Typically, connect black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground). Refer to the detailed wiring diagram in the included printed manual for specific connections.

3.6. තල ඇමිණුම්

• Attach the four fan blades to the motor housing using the provided screws. Ensure all screws are tightened securely to prevent wobbling.

3.7. ආලෝක කට්ටල ස්ථාපනය

• Connect the light kit wires to the fan motor assembly wires.
• Secure the light kit to the fan motor housing.

3.8. වියන් ස්ථාපනය

• Slide the canopy up and secure it to the mounting bracket with the canopy screws.

This diagram shows how the fan can be mounted using the included 4.5-inch downrod, as well as options for extended downrods and sloped ceilings up to 15 degrees.

4. මෙහෙයුම් උපදෙස්

Your Parrot Uncle ceiling fan is controlled by the included remote control. Ensure the remote has a working battery installed.

4.1. දුරස්ථ පාලන කාර්යයන්

The remote control allows for convenient adjustment of fan speed, light brightness, and timer settings.

• බල බොත්තම: විදුලි පංකාව සහ ආලෝකය සක්‍රිය/නිවා දමයි.
• විදුලි පංකා වේග බොත්තම් (1-6): Adjusts fan speed from low (1) to high (6).
• ආලෝක සක්‍රිය/අක්‍රිය බොත්තම: Toggles the light ON/OFF.
• Dimming Buttons: Adjusts the brightness of the integrated LED light. Press and hold to dim, or short press for ON/OFF.
• ටයිමර් බොත්තම් (1H, 3H, 6H, 8H): තෝරාගත් කාල සීමාවෙන් පසු විදුලි පංකාව ස්වයංක්‍රීයව නිවා දැමීමට සකසයි.

4.2. අඳුරු LED ආලෝකය

The integrated 18W LED module provides 3000K warm light with 1500 lumens output. Use the dimming buttons on the remote to adjust the light intensity to your preference.

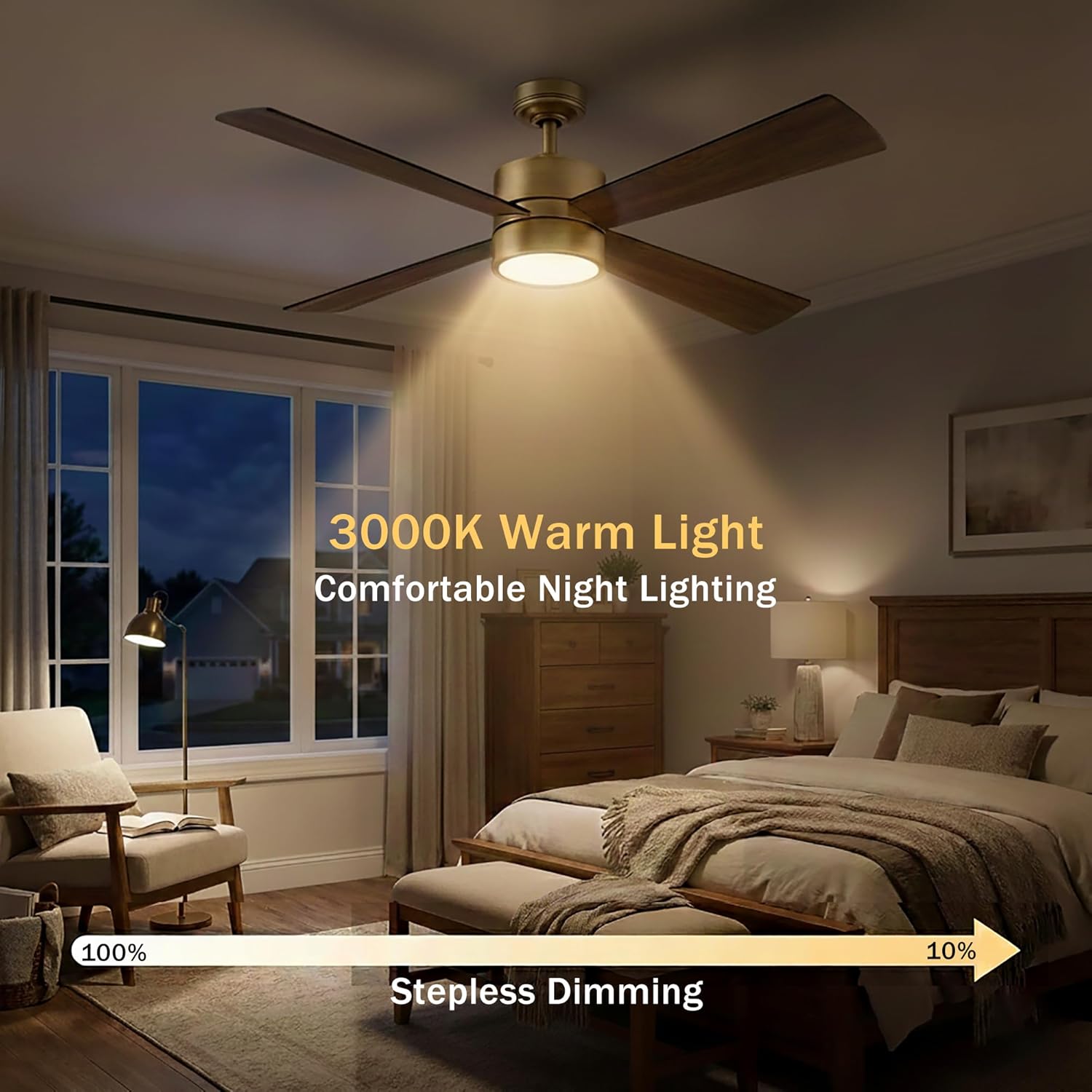

The fan's integrated LED light offers stepless dimming from 100% to 10% brightness, providing comfortable night lighting.

4.3. Reversible Motor (Summer/Winter Mode)

The fan features a reversible AC motor to optimize comfort year-round. Locate the reverse switch on the fan motor housing (usually a small slide switch).

• ගිම්හාන මාදිලිය (පහළට වායු ප්‍රවාහය): Set the switch for downward airflow. This creates a direct breeze, providing a cooling effect.
• ශීත මාදිලිය (ඉහළට වායු ප්‍රවාහය): Set the switch for upward airflow. This circulates warm air near the ceiling, helping to distribute heat more evenly throughout the room.

This image explains how to utilize the reversible motor function to optimize air circulation for both cooling in summer and warming in winter.

5. නඩත්තු කිරීම

නිතිපතා නඩත්තු කිරීම ඔබේ සිවිලිමේ විදුලි පංකාවේ ආයු කාලය සහ ප්‍රශස්ත ක්‍රියාකාරිත්වය සහතික කිරීමට උපකාරී වේ.

5.1 පිරිසිදු කිරීම

• Always turn off the power at the circuit breaker before cleaning your fan.
• වරින් වර විදුලි පංකා තල සහ මෝටර් නිවාස මෘදු, d පිරිසිදු කරන්නෙකු භාවිතයෙන් පිරිසිදු කරන්න.amp රෙදි.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish and electrical components.

5.2. තල රැකවරණය

• Check blade screws periodically to ensure they are tight. Loose blades can cause wobbling and noise.

5.3. Light Module

• The LED light module is integrated and not user-replaceable. If the light module fails, contact customer support for assistance.

6. දෝශ නිරාකරණය

ඔබේ සිවිලිමේ විදුලි පංකාව සමඟ ගැටළු ඇති වුවහොත්, පහත සඳහන් පොදු ගැටළු සහ විසඳුම් වෙත යොමු වන්න:

6.1. Fan Does Not Start

• Check that power is supplied to the fan at the circuit breaker.
• Ensure all wire connections are secure and correctly made.
• දුරස්ථ පාලක බැටරිය ක්‍රියාකාරීද සහ නිවැරදිව ඇතුළත් කර ඇත්දැයි තහවුරු කර ගන්න.

6.2. විදුලි පංකා Wobbles

• සියලුම තල ඉස්කුරුප්පු තද කර ඇති බවට වග බලා ගන්න.
• Check that the mounting bracket is securely fastened to the ceiling box.
• Verify the downrod is properly seated and secured.
• Ensure blades are not warped or damaged.

6.3. Light Does Not Work

• Check wire connections to the light kit.
• Ensure power is supplied to the fan.
• Confirm the remote control battery is functional and the light button is pressed.

6.4. Excessive Noise

• Check for loose screws on the blades or motor housing.
• Ensure the canopy is not vibrating against the ceiling.
• Verify the fan is properly balanced.

7. පිරිවිතර

Technical details for the Parrot Uncle 52-Inch Gold Ceiling Fan (Model BBCPS1268-A4-NBR):

This Energy Guide provides information on the fan's estimated yearly energy cost and airflow efficiency.

8. වගකීම් සහ සහාය

8.1. වගකීම් තොරතුරු

This Parrot Uncle ceiling fan comes with a limited warranty. Please refer to the original purchase documentation or contact Parrot Uncle customer service for specific terms and conditions regarding your warranty coverage.

8.2. පාරිභෝගික සහාය

For technical assistance, replacement parts, or warranty inquiries, please contact Parrot Uncle customer service. Contact details can typically be found on the product packaging, the official Parrot Uncle webඅඩවිය, හෝ ඔබේ සිල්ලර වෙළෙන්දා හරහා.
