1. හැඳින්වීම
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Swann SWDVK-163208S-US 3200S 16-Channel 960H DVR Security System. Please read this manual thoroughly before using the product to ensure proper setup and functionality. Keep this manual for future reference.
The system includes a 16-channel 960H Digital Video Recorder (DVR) with a pre-installed 1TB hard drive and eight 700TVL security cameras designed for both indoor and outdoor use. It supports continuous recording, motion detection, and remote viewing හැකියාවන්.
2 ආරක්ෂිත තොරතුරු
- Ensure all power connections are secure and correctly rated for the device.
- Do not expose the DVR or cameras to water or excessive moisture.
- DVR සෘජු හිරු එළියේ හෝ තාප ප්රභවයන් අසල තැබීමෙන් වළකින්න.
- Use only the power adapters supplied with the system.
- Do not attempt to open or service the DVR or cameras yourself. Refer all servicing to qualified personnel.
- Keep cables organized to prevent tripping hazards and ensure proper ventilation.
3. පැකේජ අන්තර්ගතය
Verify that all items listed below are present in your package. If any items are missing or damaged, contact Swann customer support.
- Swann SWDVK-163208S-US 16-Channel 960H DVR with 1TB HDD
- 8 x 700TVL Security Cameras
- 8 x BNC Cables (60ft/18m)
- Power Adapters for DVR and Cameras
- ඊතර්නෙට් කේබලය
- HDMI කේබලය
- USB මූසිකය
- සවි කරන ඉස්කුරුප්පු සහ ප්ලග්
- ඉක්මන් ආරම්භක මාර්ගෝපදේශය
- සොරකම් කිරීම වැළැක්වීමේ ස්ටිකර්
4. පද්ධතිය අවසන්view
4.1 DVR Front Panel
The front panel of the DVR provides access to essential controls and indicators.

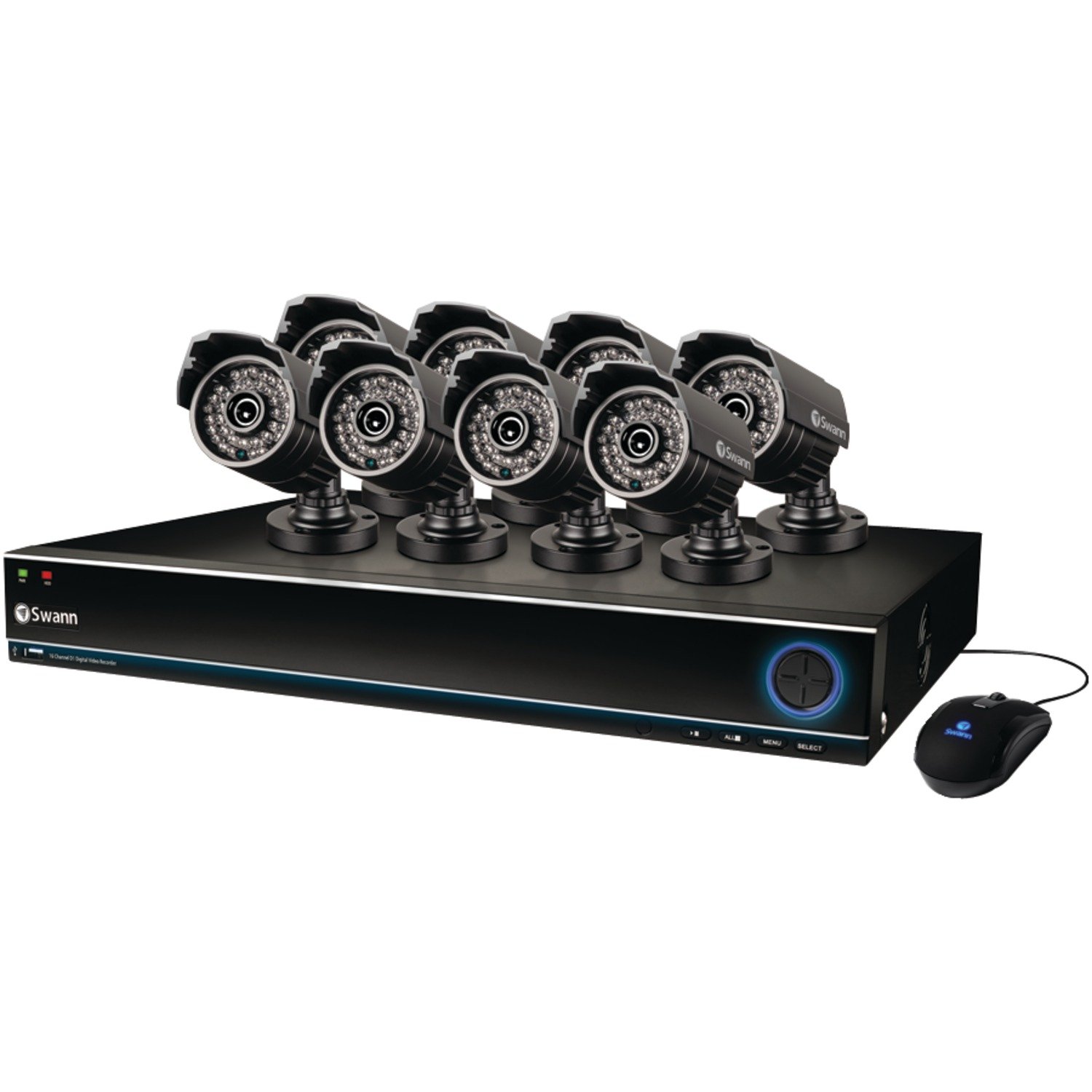

Image: The Swann SWDVK-163208S-US security system, showing the DVR unit and several cameras. The DVR features a blue-lit front panel with control buttons and status indicators.
- බල දර්ශකය: Illuminates when the DVR is powered on.
- HDD දර්ශකය: දෘඪ තැටිය සක්රිය විට දැල්වෙයි.
- ජාල දර්ශකය: ජාල සම්බන්ධතාවය දක්වයි.
- USB Port: For connecting a USB mouse or for data backup.
- පාලන බොත්තම්: Navigate menus and control playback.
4.2 DVR Rear Panel
The rear panel contains all the necessary ports for connecting cameras, monitors, and network cables.
- Video Input (BNC): 16 ports for connecting security cameras.
- Video Output (HDMI/VGA): For connecting a monitor or TV.
- Audio Input/Output (RCA): For connecting microphones and speakers (if supported).
- ඊතර්නෙට් වරාය (RJ45): ජාල සම්බන්ධතාවය සඳහා.
- USB Ports: පර්යන්ත උපාංග සඳහා අමතර USB පෝට්.
- eSATA වරාය: For connecting an external hard drive for expanded storage.
- බල ආදානය: For connecting the DVR power adapter.
4.3 කැමරා විශේෂාංග
The included 700TVL cameras offer clear video surveillance with night vision capabilities.
- විභේදනය: 700TVL (Television Lines) for detailed images.
- රාත්රී දර්ශනය: Infrared LEDs provide visibility up to 82ft (25m) in low light or complete darkness.
- කාලගුණ ආරක්ෂිත: Designed for both indoor and outdoor installation.
- සවි කිරීම: Adjustable brackets for flexible positioning.
5. පිහිටුවීම
5.1 Connecting the DVR
- Connect the included USB mouse to one of the USB ports on the DVR.
- Connect the HDMI cable from the DVR's HDMI output to an HDMI input on your TV or monitor. Alternatively, use a VGA cable for VGA connections.
- දුරස්ථ සඳහා viewing, connect an Ethernet cable from the DVR's Ethernet port to your router or network switch.
5.2 කැමරා සම්බන්ධ කිරීම
- Mount each camera in your desired location using the provided screws and plugs. Ensure the camera has a clear field of view and is protected from direct impact.
- Connect one end of the BNC cable to the camera's video output.
- Connect the other end of the BNC cable to a video input port on the DVR (e.g., Video In 1, Video In 2, etc.).
- Connect the camera's power input to the power splitter cable, then connect the power adapter to the splitter and a power outlet.
5.3 බල ගැන්වීම
- Connect the DVR power adapter to the DVR's power input and then to a power outlet.
- The DVR will power on automatically. The power indicator light on the front panel will illuminate.
- Wait for the system to boot up. The Swann logo will appear on your connected monitor, followed by the live view ප්රදර්ශනය.
5.4 මූලික වින්යාසය
Upon first boot-up, the DVR will guide you through an initial setup wizard.
- භාෂා තේරීම: ඔබ කැමති භාෂාව තෝරන්න.
- දිනය සහ වේලාව: Set the correct date, time, and time zone. This is crucial for accurate recording timestamps.
- ජාල සැකසීම්: Configure network settings (DHCP is usually sufficient for automatic setup).
- මුරපද සැකසුම: Create a strong password for the administrator account to secure your system.
- දෘඪ තැටි ආකෘතිය: The system may prompt to format the hard drive. Confirm to proceed.
6. පද්ධතිය ක්රියාත්මක කිරීම
6.1 සජීවී View
මූලික සැකසුමෙන් පසු, DVR සජීවීව පෙන්වනු ඇත view සම්බන්ධිත සියලුම කැමරා වලින්. ඔබට තනි කැමරාවක් අතර මාරු විය හැකිය view, multi-camera grids (e.g., 4-channel, 8-channel, 16-channel), and sequence modes using the on-screen menu or front panel controls.
6.2 පටිගත කිරීමේ ක්රම
The DVR supports various recording modes:
- අඛණ්ඩ පටිගත කිරීම: Records 24/7, overwriting the oldest footage දෘඪ තැටිය පිරී ඇති විට.
- චලන අනාවරණය පටිගත කිරීම: කැමරාවල චලනය අනාවරණය වූ විට පමණක් පටිගත කරයි view. This conserves hard drive space. Sensitivity and detection areas can be configured for each camera.
- උපලේඛනගත පටිගත කිරීම: Records during specific times of the day or week.
- අතින් පටිගත කිරීම: Start and stop recording manually from the DVR interface.
Access recording settings via the DVR's main menu: Menu > Record > Record Schedule.
6.3 නැවත ධාවනය
නැවත කිරීමටview වාර්තාගත footage:
- සජීවී සිට view, right-click with the mouse to open the main menu.
- තෝරන්න නැවත ධාවනය.
- Choose the desired date and camera channel(s).
- Use the timeline to navigate through recorded events. Different colors on the timeline indicate different recording types (e.g., continuous, motion).
- Use the playback controls (play, pause, fast forward, rewind) to review footage.
6.4 උපස්ථ
You can back up important video footage to a USB flash drive or external hard drive.
- Insert a USB storage device into a USB port on the DVR.
- වෙත යන්න Menu > Backup.
- Select the camera channel, date, and time range for the footage you wish to back up.
- Choose the backup device and file format (e.g., AVI).
- ක්ලික් කරන්න ආරම්භ කරන්න to begin the backup process.
6.5 දුරස්ථ Viewing (SwannLink & SwannView)
The SwannLink and SwannView applications allow you to view your cameras remotely from a smartphone or tablet.
- Ensure your DVR is connected to the internet via the Ethernet port.
- Download the SwannView ඔබගේ උපාංගයේ යෙදුම් ගබඩාවෙන් යෙදුම.
- Open the app and follow the on-screen instructions to add your DVR. This typically involves scanning a QR code displayed on the DVR's monitor (Menu > Network > SwannLink) or manually entering the device ID.
- Enter the DVR's username and password when prompted.
- ඔබට දැන් හැකි විය යුතුයි view සජීවී footage and access playback remotely.
7. නඩත්තු කිරීම
7.1 දෘඪ තැටි කළමනාකරණය
1TB දෘඪ තැටිය පැරණිතම foo එක ස්වයංක්රීයව උඩින් ලියයි.tage when full. To ensure optimal performance, it is recommended to periodically check the hard drive status via Menu > HDD > Disk Manage. You can also connect an external hard drive to the eSATA port for additional storage capacity.
7.2 Cleaning Cameras
කැමරා කාච මෘදු, d පිරිසිදු කරන්නෙකු භාවිතයෙන් වරින් වර පිරිසිදු කරන්න.amp cloth to remove dust, dirt, or water spots that may obscure the view. Do not use harsh chemicals or abrasive materials.
7.3 ස්ථිරාංග යාවත්කාලීන කිරීම්
Swann may release firmware updates to improve system performance or add new features. Check the Swann support website for the latest firmware for your model. Follow the instructions provided with the firmware update carefully to avoid damaging the DVR.
8. දෝශ නිරාකරණය
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| මොනිටරයේ රූපයක් නැත | ලිහිල් වීඩියෝ කේබලය, මොනිටරයේ වැරදි ආදානය තෝරා ඇත, DVR ක්රියාත්මක කර නොමැත. | HDMI/VGA කේබල් සම්බන්ධතා පරීක්ෂා කරන්න. මොනිටරය නිවැරදි ආදානයේ ඇති බව සහතික කර ගන්න. DVR බලය සත්යාපනය කරන්න. |
| කැමරා රූපයක් නැත | Loose BNC cable, camera power issue, faulty camera. | Check BNC and power connections for the specific camera. Test camera with a known working cable/power supply. |
| DVR not recording | Recording schedule not set, hard drive full or faulty, motion detection not configured. | Check recording schedule. Verify hard drive status. Ensure motion detection is enabled and configured correctly. |
| බැහැ view දුරස්ථව | No network connection, incorrect network settings, app configuration error. | Verify DVR has internet access. Check network settings (DHCP). Reconfigure the DVR in the SwannView යෙදුම. |
| Purple image on camera | IR filter stuck, camera malfunction. | Power cycle the camera. If the issue persists, the camera may be faulty and require replacement. |
9. පිරිවිතර
- ආදර්ශ අංකය: SWDVK-163208S-US
- වීඩියෝ ආදාන: 16 Channels BNC
- වීඩියෝ ප්රතිදානය: hdmi, vga
- සංදර්ශක විභේදනය: Up to 1080p (HDMI)
- පටිගත කිරීමේ යෝජනාව: 960H (960x576/960x480)
- දෘඪ තැටිය: 1TB SATA HDD (expandable via eSATA)
- සම්පීඩන ආකෘතිය: එච්.264
- ජාල අතුරුමුහුණත: RJ45 ඊතර්නෙට් වරාය
- USB අතුරුමුහුණත: 3 x USB 2.0 ports
- කැමරා විභේදනය: 700TVL
- Camera Night Vision: අඩි 82 (මීටර් 25) දක්වා
- Camera Weatherproof Rating: IP66 (බාහිර භාවිතය සඳහා)
- Dimensions (DVR): අඟල් 22.5 x 15.3 x 8.1 (ආසන්න)
- Weight (DVR): රාත්තල් 14 (ආසන්න වශයෙන්)
- බලශක්ති ප්රභවය: DC 12V
10. වගකීම් තොරතුරු
Swann products are covered by a limited warranty. The specific terms and duration of your warranty may vary by region and product. Please refer to the warranty card included with your product or visit the official Swann webසවිස්තරාත්මක වගකීම් තොරතුරු සහ ලියාපදිංචි කිරීමේ ක්රියා පටිපාටි සඳහා අඩවිය. වගකීම් හිමිකම් සඳහා ඔබේ මිලදී ගැනීම පිළිබඳ සාක්ෂි තබා ගන්න.
11. සහාය
For technical assistance, product support, or to download the latest software and manuals, please visit the official Swann support website. You can typically find FAQs, troubleshooting guides, and contact information for customer service there. Have your product model number (SWDVK-163208S-US) ready when contacting support.
ස්වෑන් සහාය Webඅඩවිය: https://www.swann.com/us/support
